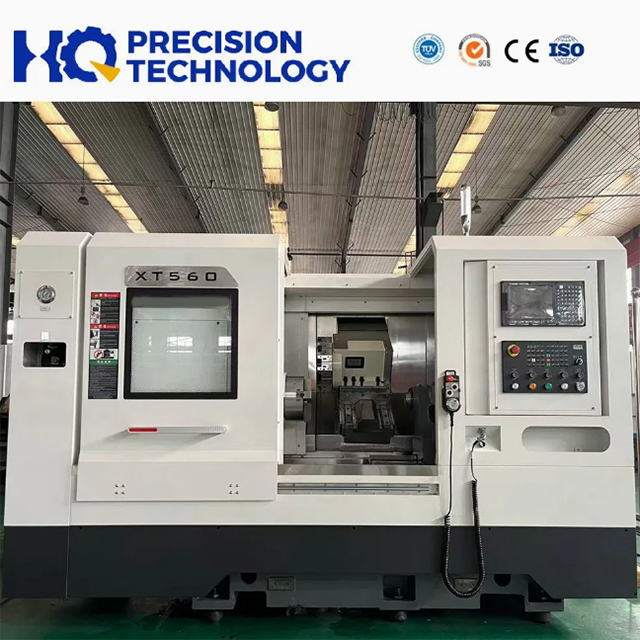

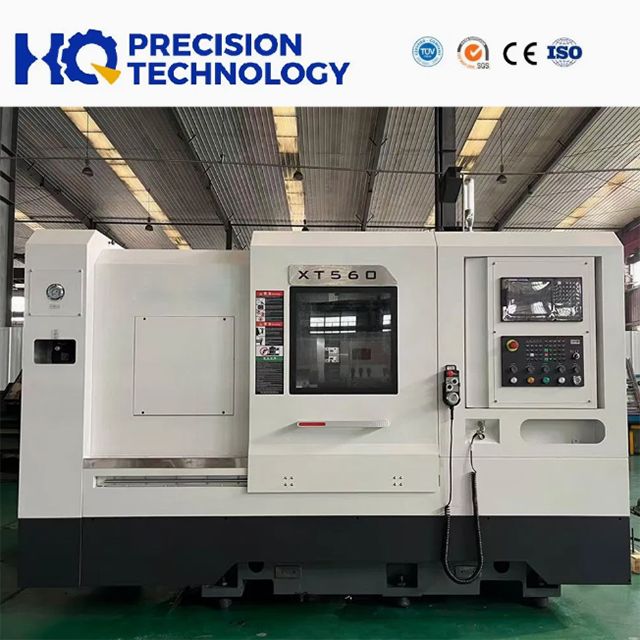

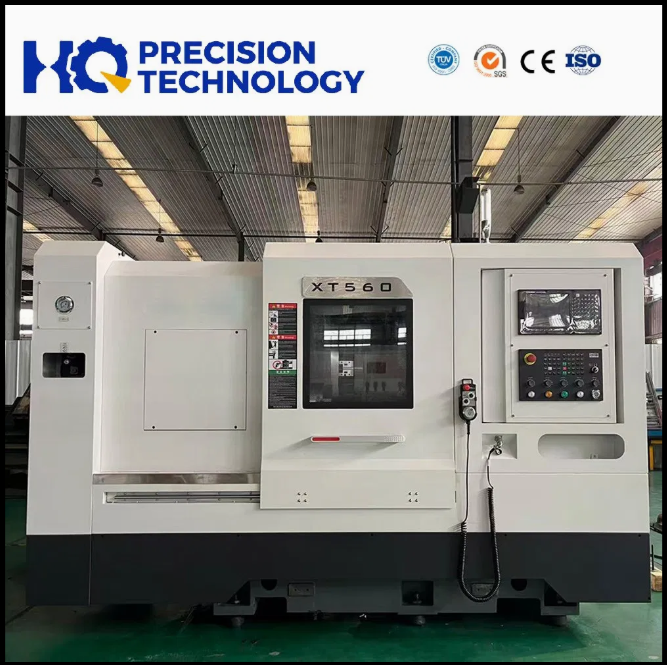

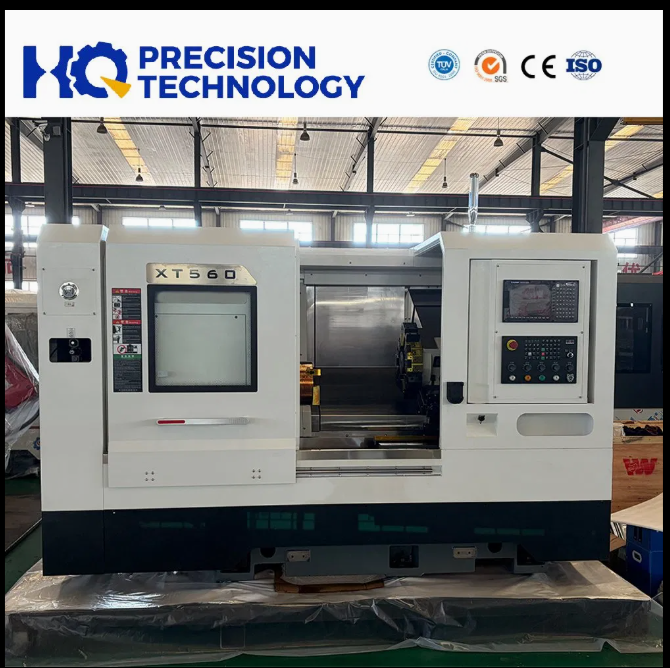

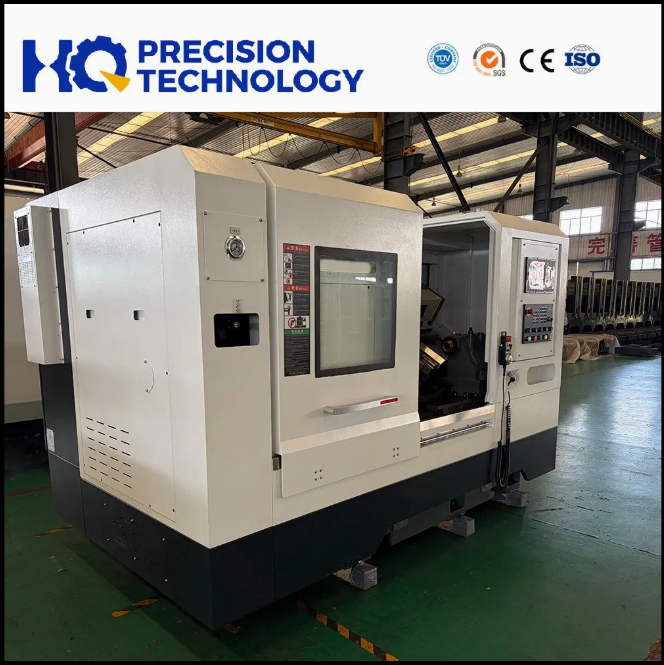

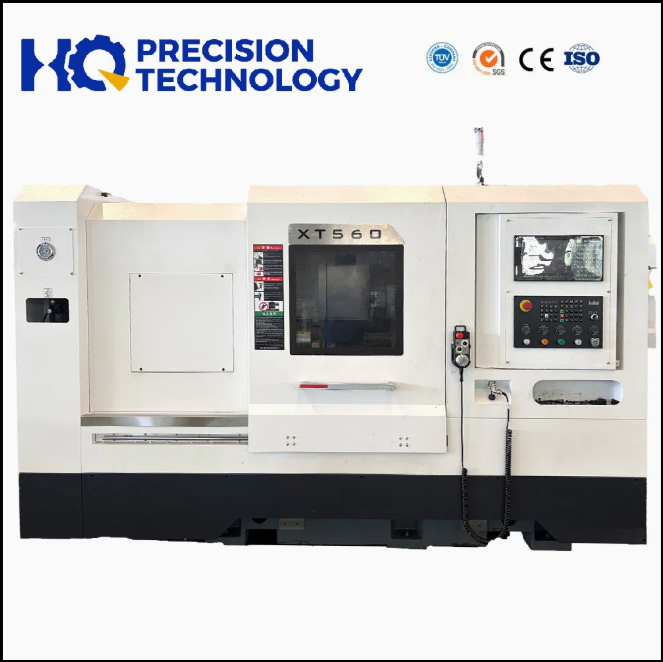

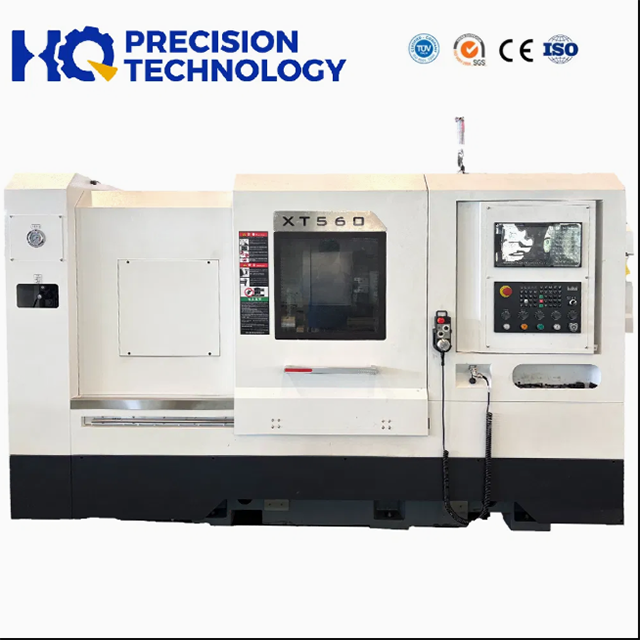

The XT560B is a high‑performance slant cnc lathe engineered with decades‑long machine‑tool manufacturing experience. This robust cnc metal lathe is developed for modern precision metal‑cutting workshops, delivering outstanding stability, repeat accuracy and competitive total‑cost performance. As a horizontal lathe, it is widely deployed in automotive component production, construction machinery processing and general metal fabrication sectors.

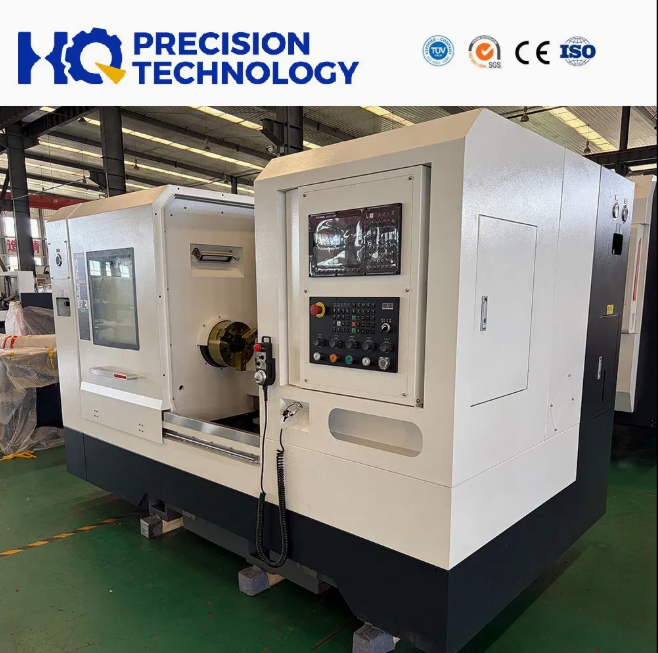

Equipped with GSK980TDi plus CNC controller, the XT560B cnc lathe adopts full‑enclosed machine guarding, imported‑grade spindle bearings and servo‑driven stepless spindle speed control. It excels in high‑rigidity turning tasks and keeps consistent dimensional tolerance for mass‑batch metal workpieces.

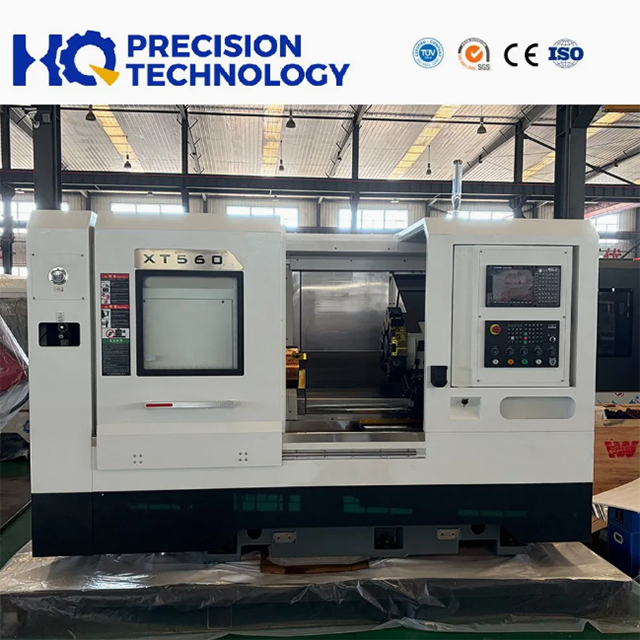

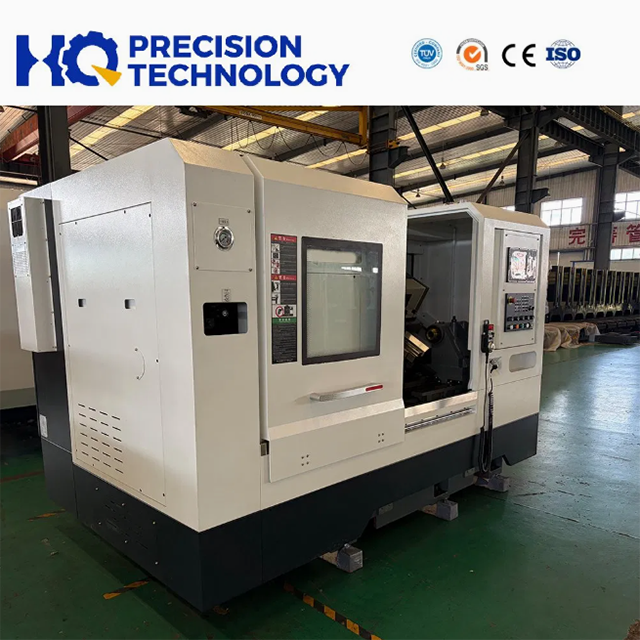

This slant cnc lathe adopts a 30‑degree one‑piece slant‑bed flat guideway, boosting chip‑removal capacity and outstanding structural rigidity. Critical parts are integrally cast from high‑density cast iron, and the small‑triangle saddle resists deformation during heavy‑cutting tasks.
As a reliable cnc metal lathe, it applies 4010‑standard ball screws plus size‑45 ball linear guides for X‑ and Z‑axes. Precision‑scraped mating surfaces enhance contact stiffness for fast feeding and stable long‑run positioning accuracy.
The rigid A2‑8 assembled spindle headstock features scraped joint surfaces between spindle box and bed to maintain stable machining performance.
Fitted with a 12‑station servo‑hydraulic turret. Wide‑span housing and tooth‑disc locking with 8 M16 bolts enable high‑load turning while retaining precision.
Compact hydraulic hard tailstock comes with 100 mm lockable sleeve and finely scraped slide guides, offering solid support for long shaft workpieces.
Core components including spindle bearings, ball screws, hydraulics, lubrication and electric parts adopt premium branded parts to extend overall machine service life.
Below lists complete technical metrics of the XT560B horizontal lathe, covering machining capacity, spindle unit, travel data, accuracy indexes, turret, tailstock, power configuration and machine dimension data.
Item | Specification Parameter |
|---|---|
Max swing over bed | φ570 mm |
Max swing over carriage | φ320 mm |
Maximum turning diameter | φ380 mm |
Max workpiece processing length | 560 mm |
Rail span | 320 mm |
Spindle nose | A2‑8 |
Spindle bore diameter | φ92 mm |
Spindle bore taper | Metric 1:20 |
Chuck type | 10‑inch hydraulic hollow chuck |
Max bar passing diameter(with 10‑inch hollow chuck) | 74 mm |
Spindle speed range | Stepless speed, max 3000 rpm |
X‑axis travel | 250 mm |
Z‑axis travel | 570 mm |
X/Z‑axis rapid traverse speed | 20 m/min, 20 m/min |
Positioning accuracy | X‑axis ≤0.008 mm; Z‑axis ≤0.008 mm |
Repositioning accuracy | X‑axis ≤0.006 mm; Z‑axis ≤0.006 mm |
Turret station quantity | 12 stations servo‑hydraulic turret |
Max tool cross‑section | 25 mm×25 mm (φ40 mm) |
Tailstock total travel | 450 mm |
Tailstock sleeve parameter | φ80 mm / MT5 taper / 80 mm sleeve travel |
Main spindle motor power | 11 kW /15 kW |
Coolant pump motor power | 750 W |
X/Z‑axis ball linear guide | 45 size ball linear guide |
Ball screw specification(X&Z axis) | φ40 mm×10 mm (4010) |
Slant bed inclination angle | 30° high‑low rail |
Overall dimension(L×W×H) | 2960 mm ×1850 mm ×1950 mm |
Net machine weight | 3400 KG |
This cnc lathe comes with a complete set of factory‑standard configurations for out‑of‑box metal turning production.
CNC & Servo System: GSK980TDi plus CNC unit, GSK brand 10 Nm X/Z feed servo motors, 11/15 kW main spindle motor and matching servo drives.
Spindle Unit: High‑quality spindle bearing sets for front‑end and rear‑end positions.
Motion Components: Grade‑qualified 4010 ball screws and 45‑size ball linear guides for X‑axis and Z‑axis.
Hydraulic & Clamping Unit: 10‑inch hollow hydraulic chuck, rotary oil cylinder and integrated hydraulic power station.
Tooling Unit: 12‑station servo‑hydraulic turret with square and round tool holders.
Auxiliary Systems: 750 W coolant pump with self‑manufactured water tank, automatic lubrication assembly, electric cabinet cooling module, Schneider‑brand electrical switches, contactors and relays.
Safety & Operation Accessories: Full inner‑outer machine protective covers, handheld manual pulse generator, foot switch, multi‑color warning lamp, machine working lamp.
As a multi‑purpose cnc metal lathe, the XT560B slant bed turning machine fits mixed‑variety and mass‑volume metal‑part manufacturing. It performs well for turning steel, alloy and cast‑iron workpieces.
Typical application fields include automotive spare‑part manufacturing, engineering machinery component machining, hydraulic‑fitting production and general‑purpose mechanical‑part fabrication. Whether users need continuous heavy cutting or high‑precision finishing work, this horizontal lathe maintains stable precision retention and good workpiece dimensional consistency.
