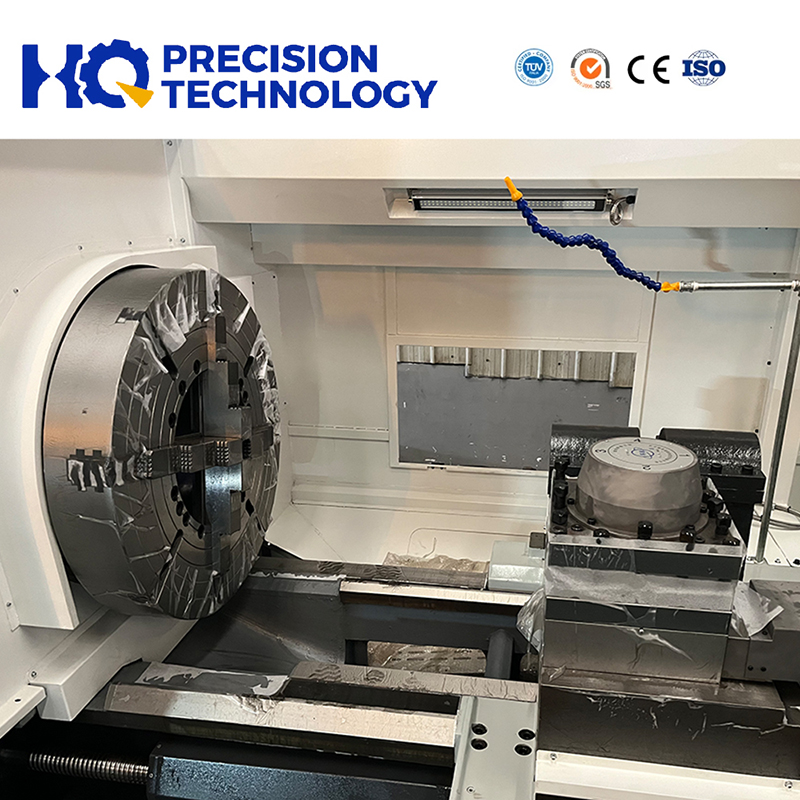

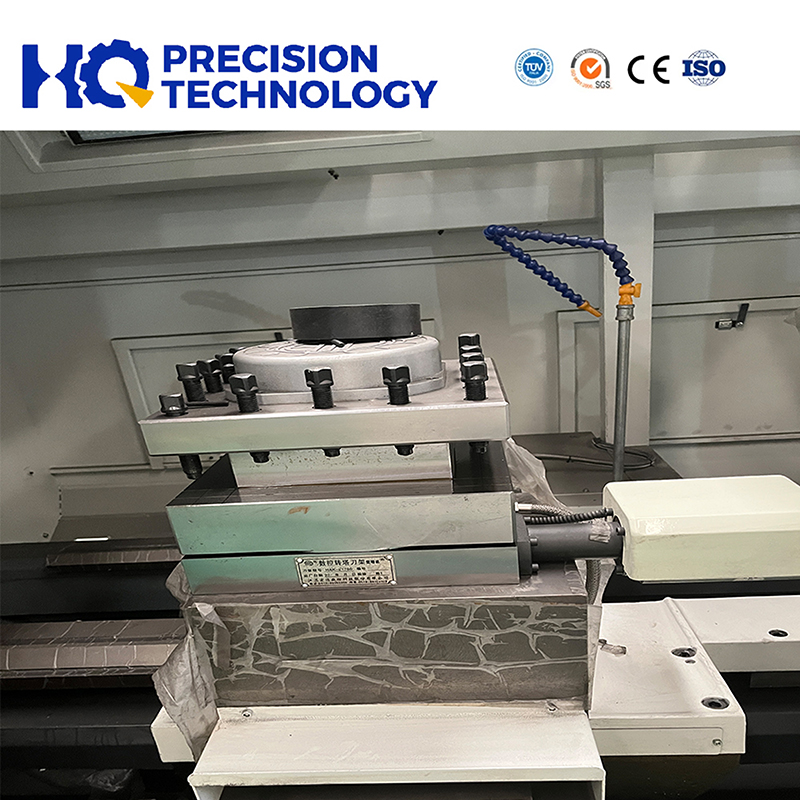

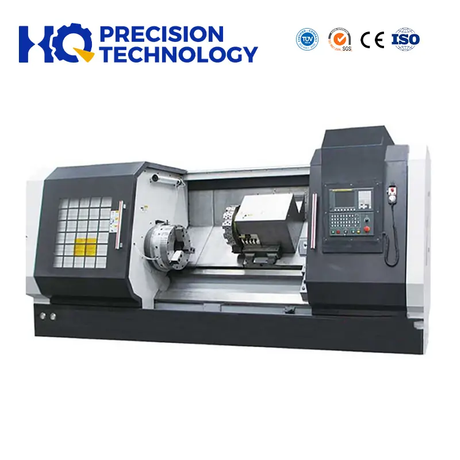

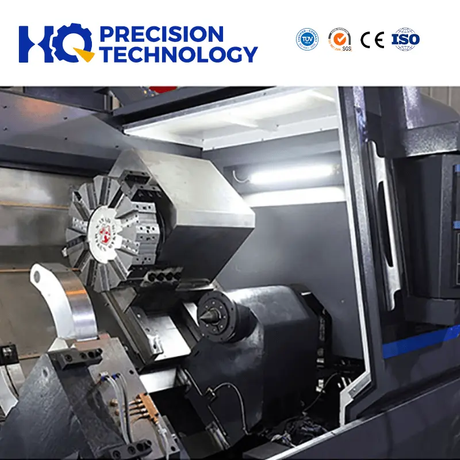

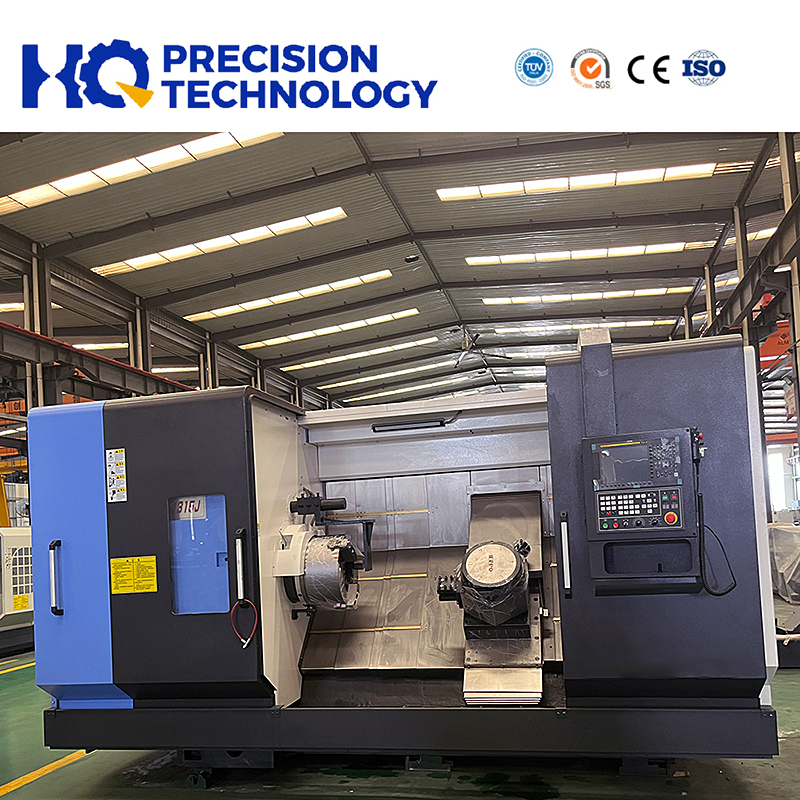

Slant Bed CNC Pipe Threading Lathe QKY1319J

Our slant bed CNC lathe  is an intelligent automated solution designed for ultra-high precision and maximum efficiency. Featuring a robust inclined bed structure and equipped with advanced components such as a multi-station servo turret, this lathe delivers exceptional performance in handling a wide range of tasks. It seamlessly processes straight cylinders, tapered cylinders, arcs, various threads, and even complex 3D surfaces like worm gears—all in a single, efficient setup.
Availability:
Quantity:

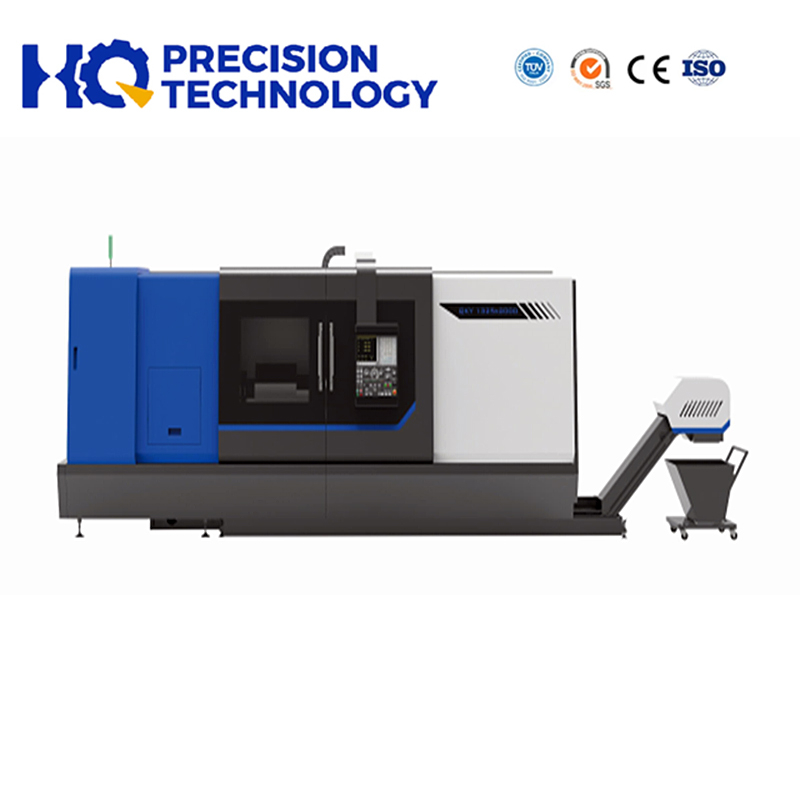

Slant Bed CNC Pipe Threading Lathe

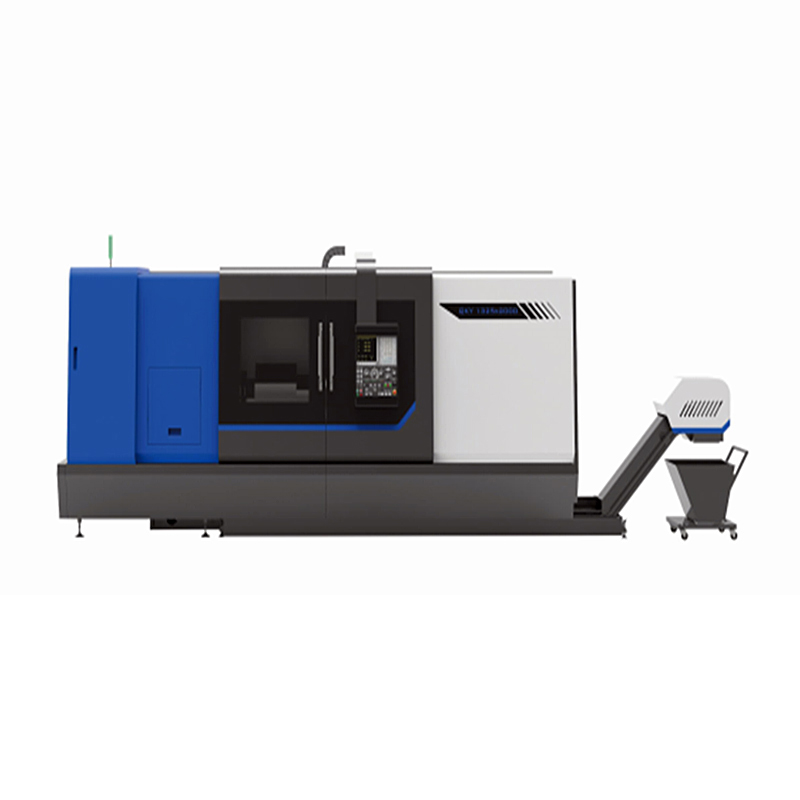

slant bed cnc pipe threading lathe-1
Features:

1. The overall bed is cast from high-quality, high-strength cast iron, providing excellent rigidity and precision.
2. The surface of the guideways undergoes ultrasonic frequency quenching treatment, resulting in high hardness and long service life.
3. The carriage adopts a plastic-lined guideway surface process, which enhances wear resistance and precision.

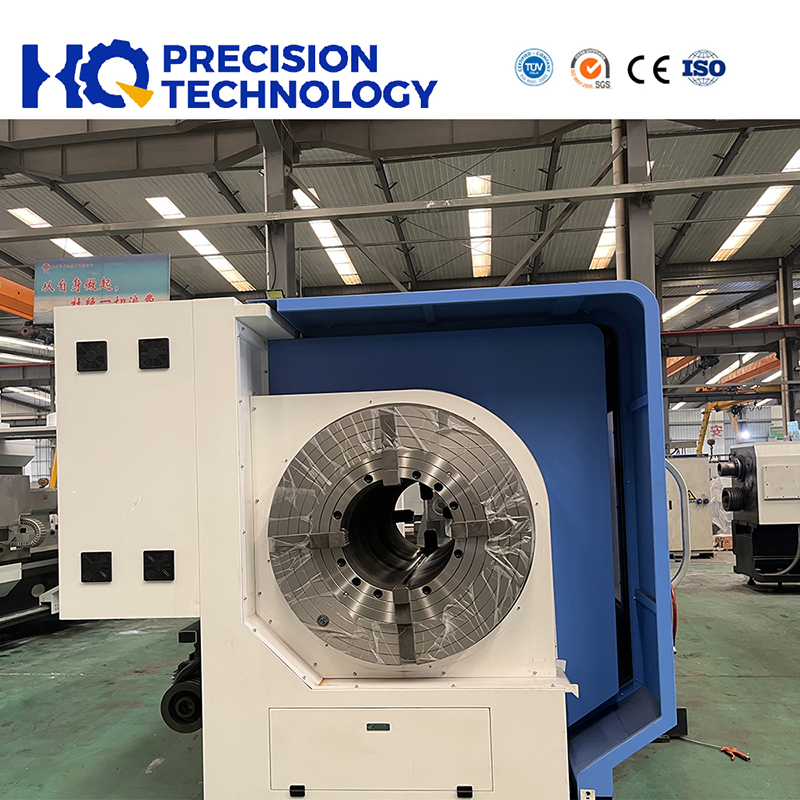

4. The spindle bore is large, allowing for high passability, and the dual chuck clamping of workpieces ensures stability.

⏭ DETAILS

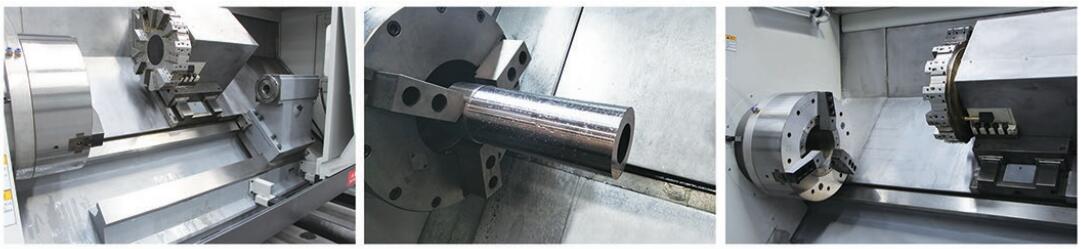

11

⏭ Product Parameters

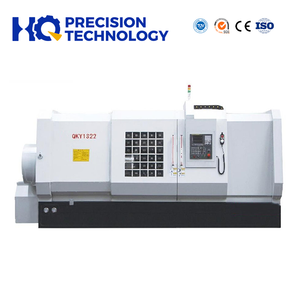

SPECIFICATION UNIT QKY1319J QKY1322J QKY1325J QKY1327J QKY1330J QKY1335J

 Capacity
Swing over bed mm 600 600 800 800 800 800
Max.ti Jrning diameter mm 450 450 450 ∠50 450 450
Swing over cross slide mm 450 /50 150 50 450 150
Dislarcc between conters mm 600 600 600 600 600 600
Slant bed Iayout angle
45 45 45 45 45 45

  Spindle
Spindle bore mm 206 225 255 28D 300 355
Bar material through - 190 220 250 275 295 350
Spindle speed range rpIT 550 550 450 450 350 350
  Turret Turretloo pust
4NC turret Lposit on
Tool shanksize mm 32×32 32x32 32×32 32x32 40×40 40×40

 Feed
Xaxis travel mm 350 350 350 350 350 350
Zaxis travel mm 600 600 600 600 600 600
Xaxis rapid travCrsO mmmin 40C0 4000 4000 4000 4000 4000
Zaxis rapid traverse mmmin 60C0 6000 6000 6000 6000 600C

Taislock
Tai stock qjill diameter mm AWihoLl lailslock
aistock q.jill trave mm - - - - - -
 Motor Main spindle mctor kW 22 22 22 22 30 30
Coolant pump molor kW 0.25 0.25 C.25 0.25 0.25 0.25

Dimension
WidthxHeight mm 2250X2350 2250X2350 2250X2350 2250X2350 2250X2350 2250X2350
-ergth(chip conveyor ncluded; mm 51CO 5100 5100 5100 5100 51CC
Wesgh Nel wuighl T 10.3 10.5 11.3 11.5 12.5 12.5

⏭ STANDARD CONFIGURATIONS

Shandong HQ Precision Technology Co., Ltd. is located in Yishui, Shandong Province, China. It is a professional r&d enterprise of medium and large lathe series, a national high-tech enterprise and a civil-military integration enterprise in Shandong Province. Our factory was founded in 1952 and was a designated pipe thread lathe manufacturer of the former Ministry of National Machinery Industry. It was restructured in 2013 and we started to export recent years. At present, the company covers an area of 200 000 square meters, fixed assets of more than 600 million yuan, more than 500 employees, with more than 60 engineers and technicians.

⏭ Packing&Shipping

FAQ

  1. How can I choose the most suitable machines?

    • We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!

  2. What are your company's main products?

    • We specialize in all kinds of machines, such as CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Lathe Machines, Drilling Machines and so on.

  3. What is your MOQ (Minimum Order Quantity)?

    • 1 set.

  4. How long is the warranty period for your machines?

    • The warranty period for our machines is one year, starting from the completion of commissioning.

  5. Do you provide technical support if I encounter problems during use?

    • Absolutely, we provide comprehensive technical support. You can contact our technical team via phone, email, or online chat, and they will be happy to assist you with any questions.

  6. Do your machines support customization?

    • Yes, we offer customization services. You can contact us with your specific requirements, such as size, functionality, color, etc., and we will customize the machine according to your needs.
