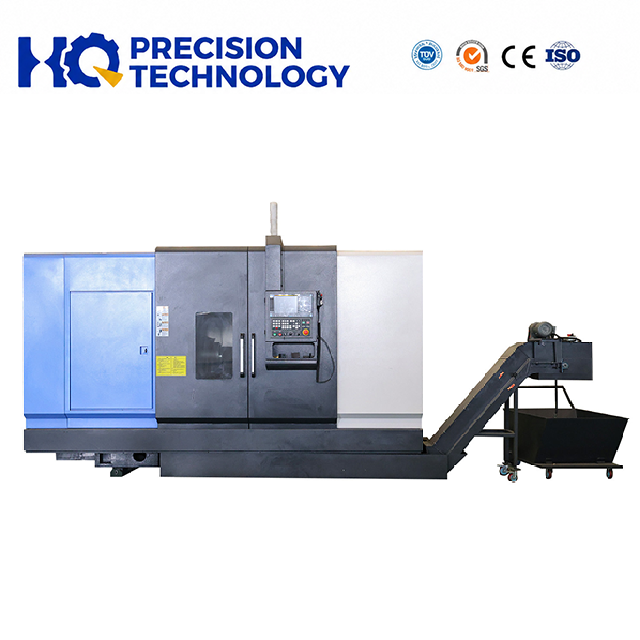

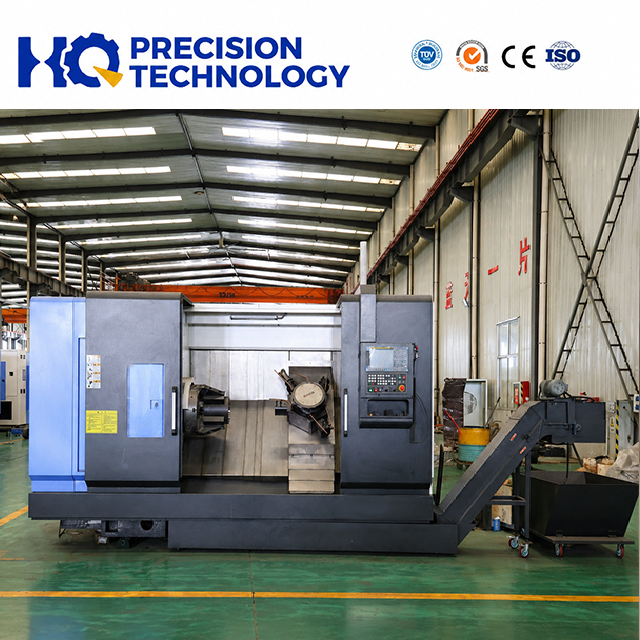

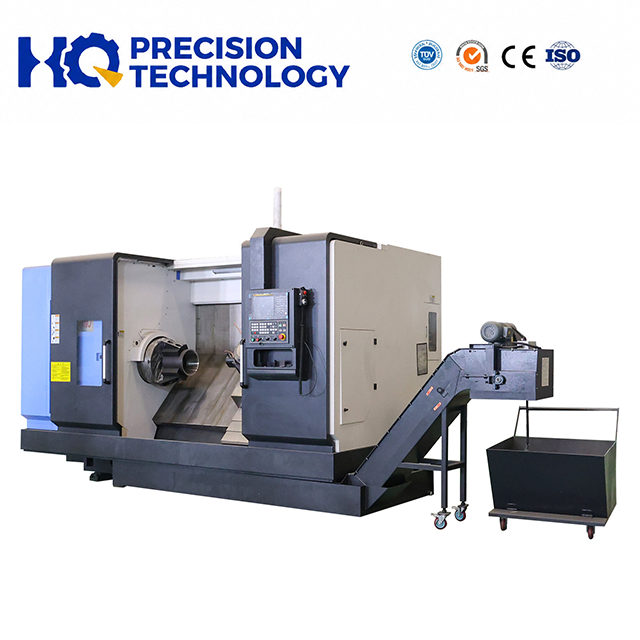

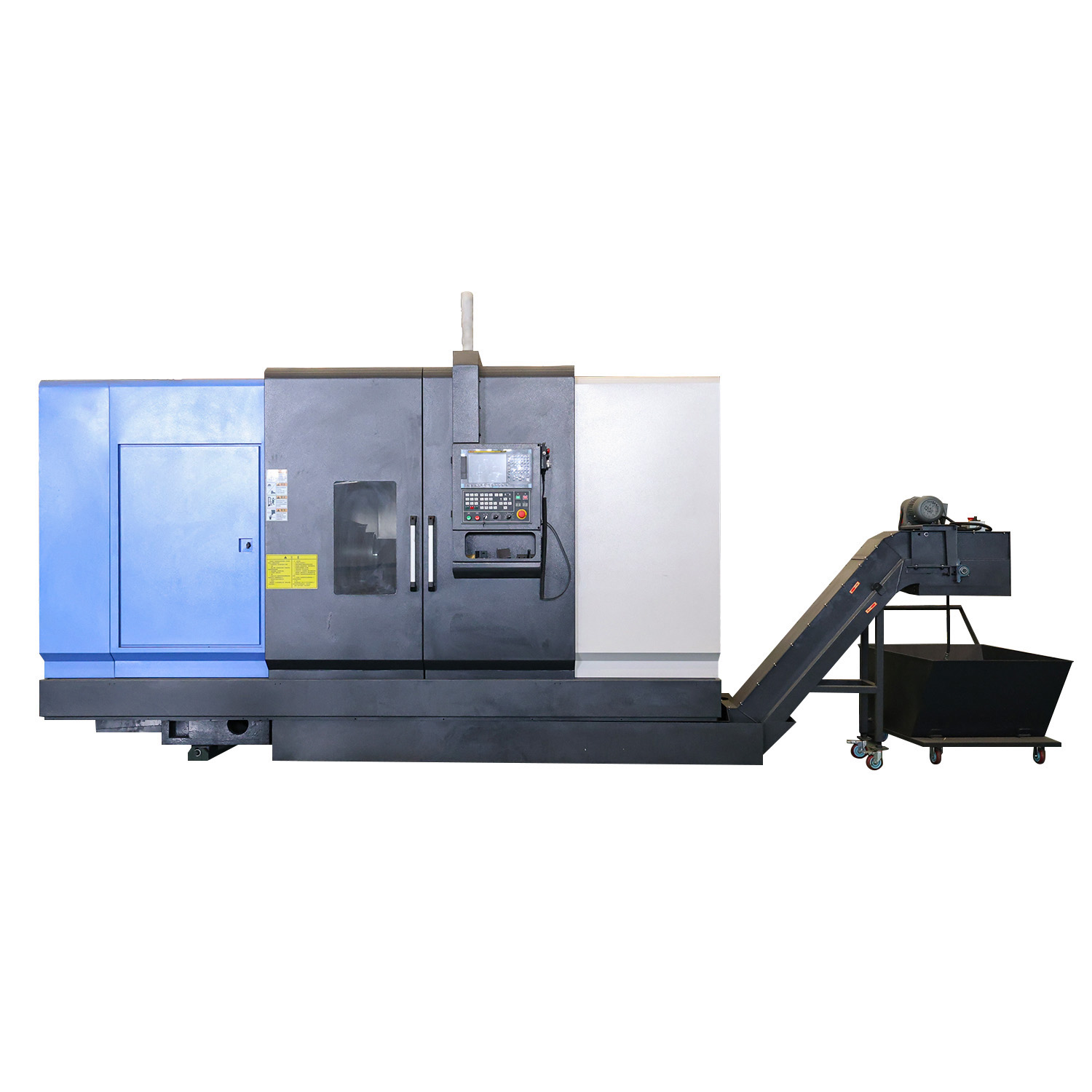

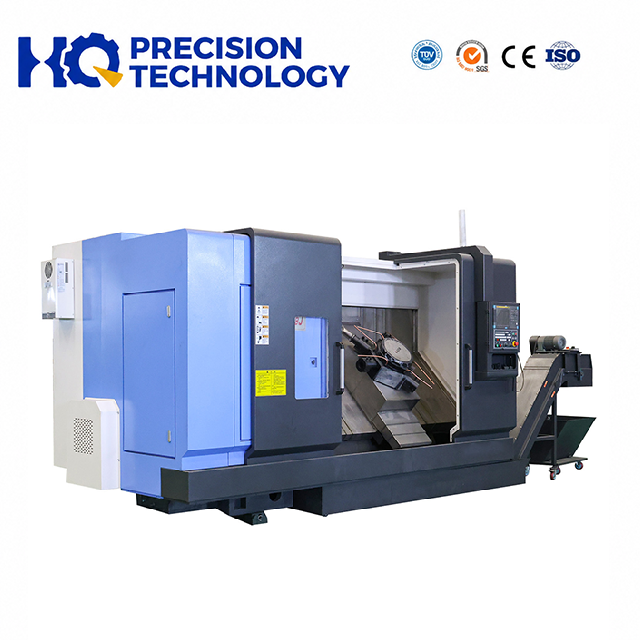

This slant bed CNC pipe threading lathe delivers higher precision and efficiency than traditional flat bed models.This lathe is equipped with advanced configurations such as multi-station servo and power turrets. It can machine straight cylinders, inclined cylinders, circular arcs and various threads, as well as complex parts including worms. Featuring simple programming, reliable structure, easy operation and high automation, it is a high-efficiency CNC processing equipment widely used in the machining of pipe fittings such as oil pipes.
SPECIFICATION | UNIT | QKY1319 |
Swing over bed | mm | 680 |
Max. Turning diameter | mm | 600 |
Swing over cross slide | mm | 450 |
Distance between centers | mm | 920 |
Slant bed layout angle | degree | 45 |
Spindle bore | mm | 200 |
Spindle nose type | - | A 2-15 |
Bar material through | - | 190 |
Spindle speed range | rpm | 550 |

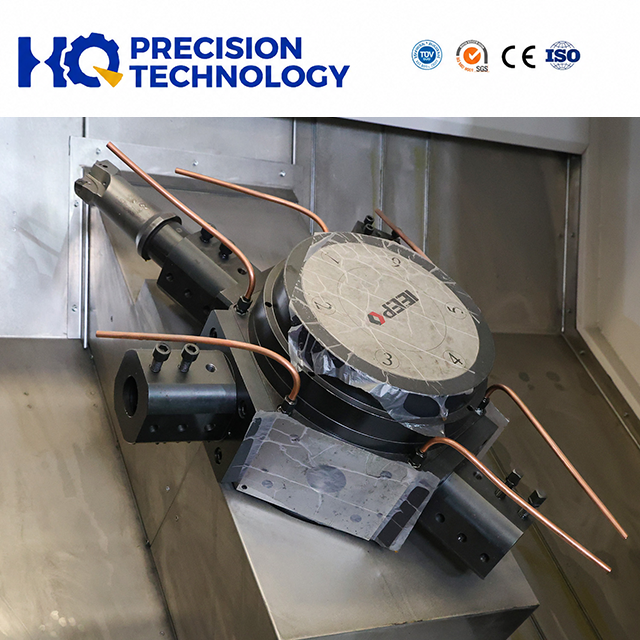

Turret/tool post | - | 8 station hydraulic turret |
Tool shank size | mm | 32 x 32 |
X axis travel | mm | 350 |
Z axis travel | mm | 1140 |
X axis rapid traverse | mm/min | 4000 |
Z axis rapid traverse | mm/min | 6000 |
Tailstock quill diameter | mm | 140 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 200 |
Main spindle motor | KW | 22 |
Coolant pump motor | KW | 0.37 |
Width x Height | mm | 2000 x 2200 |
Length(chip conveyor included) | mm | 6600 |
Net weight | T | 11.8 |
STANDARD CONFIGURATIONS | OPTIONAL CONFIGURATIONS |
Hydraulic tool turret;；Pneumatic chuck; Hydraulic tailstock; Automatic centralized lubrication system; Cooling system; Enclosed protective cover. | CNC systems from Siemens, Fanuc, Guangzhou CNC (GSK), and KND etc.; Live tooling turret; Live tools. |
Big spindle bore and double chucks ensure the processing of large-diameter pipes.

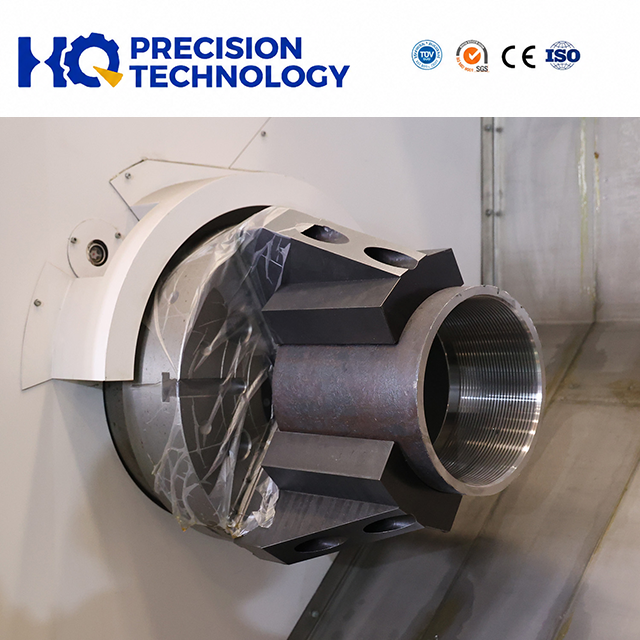

Double pneumatic chucks ensure stable and efficient workpiece clamping.
The one-piece bed is made of high-strength cast iron to ensure rigidity and machining precision.
Ultrasonic frequency quenched guideways provide excellent wear resistance.
The contact surface between the carriage and guideways uses Turcite B material to maintain long-term accuracy.
1. What types of lathes do you offer?
We specialize in CNC lathes, engine lathes, bench lathes, and heavy-duty industrial lathes. Models vary in spindle speed, swing diameter, and automation levels.
2. Are your lathes CE, ISO, or other certified?
Yes, all our lathes comply with international standards, including CE certification (for EU markets) and ISO 9001 quality management. Certifications ensure safety, reliability, and performance.
3. Can you customize lathes for specific requirements?
Absolutely. We provide OEM/ODM services for spindle configurations, bed length, control systems (e.g., Siemens, Fanuc), and automation integration. Share your specs, and we'll tailor a solution.
4.What's the warranty period?
Warranty time is 12 months after commissioning.
6. How long is the production lead time?
The delivery time is usually 15-25 days, if it is in stock it is 7 days, the specific time depends on the model and quantity you order
7. Where is your factory located? How can I visit there?
Our factory is located in Yishui County, Shandong Province, China. We welcome quality inspections and factory audits.
