High-stakes oilfield applications leave zero margin for error in thread profiles. Machining casing, tubing, and drill pipes requires absolute precision. You need heavy-duty workholding and strict compliance with global industry standards. Upgrading production capacity means moving beyond standard turning centers. You must invest in specialized equipment built specifically for long, heavy, and large-diameter tubular goods. Standard machines simply cannot handle these extreme physical demands.
We designed this guide to help engineering and procurement teams navigate the complex machine selection process. It provides a practical, vendor-neutral framework to evaluate, specify, and shortlist the right dedicated equipment. You will learn how to align critical specifications with your production volumes and operational constraints. Choosing the correct CNC pipe threading lathe serves as a crucial step toward scaling your manufacturing capabilities while ensuring field-ready reliability.
Standard turning centers cannot reliably handle the overhang, vibration, and large-diameter through-hole requirements of oil pipe threading.
Spindle bore size and dual-chuck configurations are the most critical baseline specifications for preventing workpiece deflection.
Choosing between a flat bed and a slant bed threading lathe impacts chip evacuation, footprint, and upfront cost.
Validating a machine’s capability for API thread machining requires assessing control system macros, rigidity, and vendor-provided test cuts.
Machine shop managers frequently browse engineering forums like Practical Machinist to ask a common question. They want to know if they can cut oilfield pipe threads using a standard CNC lathe. The short answer is yes, occasionally, for very short pipe sections. The practical answer for production environments is a resounding no. Standard lathes fail rapidly when applied at scale to tubular goods.
Standard equipment lacks the necessary spindle bore capacity. Most standard turning centers feature small through-holes. You cannot pass a 20-foot section of drill pipe through a standard headstock. Instead, the workpiece must stick out from the front chuck. This creates massive overhang. When long, heavy pipes rotate without rear support, they act like tuning forks. They generate extreme vibration during the cutting cycle. This vibration translates directly into chatter marks on the thread profile. Chatter leads to failed inspections, rejected parts, and significant material waste.
Dedicated equipment solves the overhang problem entirely. A proper pipe thread lathe features a massive hollow spindle. It includes both a front and a rear chuck. You can feed the entire length of the pipe through the headstock. Both chucks clamp down on the material. This creates a rigid, stable setup. It eliminates the whipping effect commonly seen on standard machines.
You must justify the capital investment by viewing this equipment as a risk-mitigation tool. Oil Country Tubular Goods (OCTG) carry high profit margins. They also carry severe penalties for failure. A dedicated machine ensures strict compliance with tolerance requirements. It drastically reduces scrap rates. It allows operators to take heavier cuts, which lowers cycle times. The initial investment pays off through reliable, repeatable production runs.
Evaluating machines for oilfield pipe machining begins with three fundamental specifications. You must size the machine correctly to match your heaviest and largest workpieces. Failing to specify these components correctly leads to bottlenecks and excessive wear.
The spindle bore determines the maximum outer diameter (O.D.) you can process. You cannot simply match the spindle bore to the nominal pipe size. You must account for upset ends, couplings, and slight bends in raw material. If you plan to machine 5-inch casing, a 5.1-inch bore will cause loading issues. Operators will struggle to feed imperfect pipes through the headstock. Best practice dictates specifying a spindle bore at least 15% to 20% larger than your maximum target O.D.
Workholding makes or breaks thread quality. Double chuck systems represent the industry standard. They secure the pipe at two separate points along the headstock axis. This dual-grip method absorbs cutting forces and prevents workpiece deflection.
You must choose between pneumatic and hydraulic chuck actuation. Both systems offer distinct trade-offs:
Pneumatic Chucks: They offer excellent proportional control. Operators can fine-tune air pressure easily. This prevents thin-walled tubing from crushing or deforming. Pneumatic systems require clean, dry shop air to function reliably.
Hydraulic Chucks: They deliver immense, raw gripping force. This makes them ideal for thick-walled drill pipes and heavy casing. They handle high-torque cutting parameters without slipping. However, excessive hydraulic pressure can easily crush delicate materials.
Threading large-diameter pipes demands substantial low-RPM torque. You are often removing tough alloys like P110 or Q125 steel. Direct-drive spindles excel at high speeds, but they lack the necessary twisting force at lower RPMs. When a direct-drive spindle hits a heavy threading pass, it can stall or lose synchronization.
Geared headstocks solve this issue. A robust gearbox multiplies the motor torque. It delivers continuous power directly to the cutting tool. When evaluating specifications, examine the torque curve charts provided by the manufacturer. Ensure peak torque aligns with the spindle speeds you intend to use for your largest threading operations.
The structural foundation of the machine dictates its longevity and performance. You must choose between a traditional flat bed and a modern slant bed configuration. Each architecture serves different production environments and budgets.
Flat bed machines position the guideways horizontally. This classic design handles extreme weight capacities well. If you frequently load massively oversized pipes manually using overhead cranes, flat beds offer wide-open access. They generally require lower upfront capital expenditure.
However, flat beds suffer from inferior chip evacuation. Gravity causes chips to pile up directly on the guideways and the workpiece. Operators must frequently pause production to clear these metal nests. Furthermore, flat bed machines consume a much larger floor footprint. This makes them less ideal for cramped facilities.

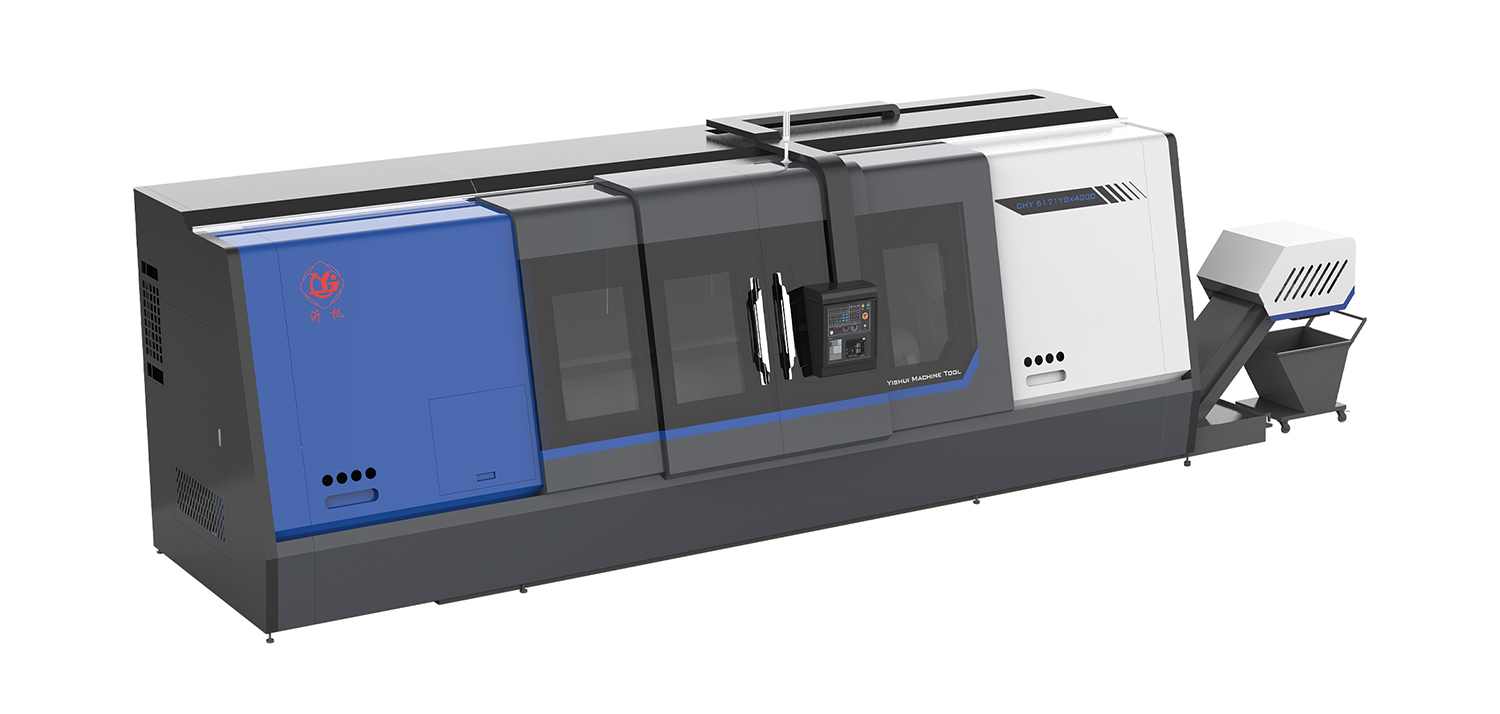

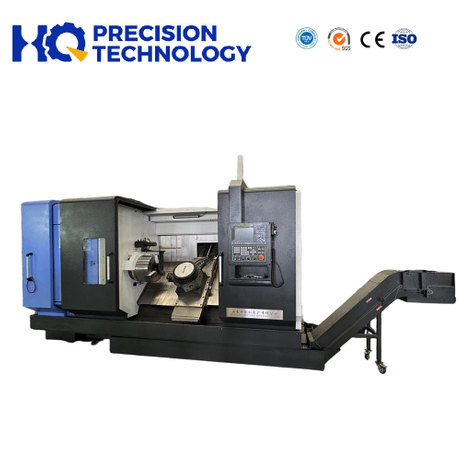

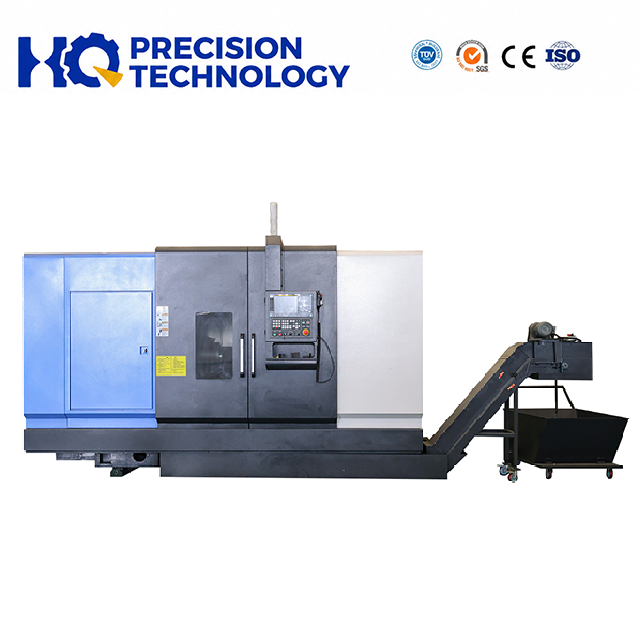

A slant bed threading lathe angles the guideways, typically between 30 and 45 degrees. This geometry provides superior rigidity. The cutting forces push directly down into the heaviest part of the casting. This natural absorption dampens vibration during heavy roughing passes.
Slant beds excel at chip evacuation. Gravity pulls the chips down and away from the cutting zone. They fall directly into the conveyor below. This continuous flow proves critical during deep threading cycles. Additionally, the slanted design offers better ergonomics for operators and integrates seamlessly with automated gantry loading systems. The primary drawback remains the higher initial investment cost.
Use the following comparison chart to guide your structural selection:
Feature/Factor | Flat Bed Lathe | Slant Bed Lathe |
|---|---|---|
Initial Cost | Generally lower | Higher premium |
Chip Evacuation | Poor (requires manual clearing) | Excellent (gravity assisted) |
Cutting Rigidity | Moderate to High | Superior (forces direct to base) |
Automation Readiness | Challenging to integrate | Highly compatible |
Floor Space Footprint | Large and wide | Compact and space-efficient |
Choose a flat bed if you process low-volume, highly varied, oversized parts manually. Choose a slant bed if you require high-volume production, targeted cycle times, and automated material handling.
The American Petroleum Institute (API) establishes uncompromising standards for tubular connections. Producing compliant threads like API 5CT or specialized VAM premium connections requires absolute control over machine motion. You cannot achieve API thread machining compliance through guesswork.
Oilfield threads rely on precise tapers to create secure seals. The machine must interpolate the X and Z axes simultaneously over long distances. Even a microscopic deviation in pitch accuracy will cause the thread gauge to fail. The connection will leak under high pressure in the field.
To guarantee this accuracy, specify machines equipped with high-resolution servomotors. These motors must drive heavy-duty, pre-tensioned ball screws. This mechanical combination eliminates backlash. It ensures the cutting insert tracks perfectly along the programmed taper, pass after pass.
Vibration destroys thread finish. It leads to galling when field crews assemble the pipes. You must suppress vibration at the source. Start with the machine base. Look for single-piece castings poured from high-quality Meehanite iron. The sheer mass of this material absorbs harmonic frequencies before they reach the cutting tool.
Next, evaluate the tooling setup. Avoid lightweight VDI turrets for large-diameter work. They can deflect under severe cutting pressure. Instead, specify heavy-duty block-style turrets. Block turrets lock the boring bars and threading holders rigidly in place. This rigidity prevents the insert from wandering during the final finish pass.
Procuring the machine only solves half the equation. You must prepare your facility to integrate the equipment smoothly. Overlooking these practical implementation risks causes severe launch delays.
Dedicated equipment demands specific floor space and foundation requirements. These machines carry immense physical weight. You cannot simply drop them onto a standard 6-inch concrete slab. The dynamic loads during heavy oil pipe threading operations require reinforced, isolated foundations. You must consult structural engineers to pour custom footings. This isolates the machine from surrounding shop vibrations.
Material handling presents another major hurdle. You are moving 30-foot sections of heavy steel. You must factor in the physical space required for infeed pipe racks, V-roller supports, and outfeed tables. If you plan to use automatic loading and unloading mechanisms, design the cell layout carefully. Ensure forklift drivers have adequate turning radii to load raw material bundles safely.
Do not underestimate the operator learning curve. Transitioning machinists from standard G-code to specialized oilfield programming takes time. Standard programming becomes tedious when writing macros for variable pitch and complex tapers. Many dedicated machines feature conversational software. This software prompts the operator for pipe dimensions and thread types, automatically generating the code. Invest heavily in vendor-supplied training to bridge this knowledge gap.
Finally, address coolant and filtration systems immediately. Deep-hole chip evacuation requires high-pressure coolant delivery. Standard flood coolant will not flush chips out of a long internal casing thread. Specify programmable high-pressure pumps. Pair them with robust filtration units to separate fine metal particulate. This prevents premature tool wear and maintains surface finish consistency.
You must approach vendor evaluation systematically. Do not rely entirely on glossy marketing brochures or theoretical spec sheets. You need hard evidence of capability before issuing a purchase order.
Always demand a Factory Acceptance Testing (FAT) protocol. Send the vendor a batch of your actual production material. If you cut P110 or J55 grade steel, make them cut that exact material during the test. Watch the machine run at your targeted cycle times. Bring your own certified ring and plug gauges to the facility. Verify the thread compliance independently. If the vendor refuses a live test cut, eliminate them from your shortlist immediately.
Assess their service and parts availability strictly. Oilfield production schedules operate around the clock. Downtime costs thousands of dollars per hour. Ask the vendor to provide their documented downtime resolution Service Level Agreement (SLA). Investigate where they warehouse their spare parts. If a proprietary gearbox component or a control system board fails, you need replacements shipped overnight, not across the ocean over three weeks.
Formulate a standardized Request for Quote (RFQ) checklist. Use this checklist to enforce uniform bidding among suppliers. Prioritize the following elements:
Exact spindle bore clearance required.
Specific chuck types (front and rear).
Desired bed structure (flat vs. slant).
Included API software macros and conversational programming modules.
Coolant pressure ratings and chip conveyor specifications.
Specifying a heavy-duty threading lathe requires balancing immediate budget realities against long-term rigidity, automation potential, and strict API compliance. You must look beyond standard turning centers to achieve sustainable success in the OCTG sector. The stakes remain too high for improvised solutions or inadequate machinery.
We advise you to prioritize heavy iron foundations, adequate spindle bore clearance, and reliable double-chucking systems. These structural fundamentals matter far more than superficial software features or minor cosmetic upgrades. Rigidity always dictates thread quality. Proper chip evacuation dictates continuous production flow.
Take proactive steps today. Download a standardized procurement checklist to align your engineering and purchasing teams. Request a capability consultation from reputable machine tool builders. Submit your most difficult part drawings to vendors for a comprehensive cycle-time analysis. Rigorous preparation guarantees a successful equipment launch.
A: Oil country lathes feature exceptionally large hollow spindles. They include dual chucks located at the front and rear of the headstock. This design allows long lengths of pipe to pass entirely through the machine. It provides extreme rigidity, whereas standard lathes force long pipes to hang dangerously out of a single front chuck.
A: Yes. Slant beds offer excellent structural rigidity. The slanted architecture directs heavy cutting forces straight into the base. They provide superior chip evacuation. This makes them highly efficient for heavy-duty oil pipe threading, provided you size the machine correctly for your specific pipe weights.
A: While standard controls like FANUC or Siemens can handle API threads, programming them manually is complex. Dedicated pipe lathes often feature specialized macro variables and conversational software. These tools are specifically designed for variable pitch and taper threading. They drastically reduce setup time and operator errors.
A: Use programmable hydraulic or proportional pneumatic chucks. These systems allow operators to regulate gripping pressure precisely. Combine these advanced chucks with wide, wrap-around jaws. The wider surface area distributes the gripping force evenly, preventing the tubing from crushing or warping during heavy cuts.
