Manufacturing hydraulic and telescopic cylinders demands extreme precision. You must maintain tight tolerances across exceptionally long workpieces to ensure reliable field performance. Managing tough material hardness adds another layer of daily complexity. Guaranteeing surface finish integrity is non-negotiable. Poor finishes lead directly to premature seal wear and catastrophic fluid leaks. Specialized machining equipment requires a significant capital expenditure. Standard setups often fall short. They create major production bottlenecks and increase scrap rates. You simply cannot afford to make the wrong purchasing decision.
This guide gives production engineers and procurement teams an objective framework. We deliver a specification-driven approach for evaluating and selecting the exact right equipment. You will learn how to transition away from inefficient legacy machines. We will explore core specifications, advanced workholding strategies, and critical floor implementation risks. Read on to discover how purpose-built machines transform your workflow. You will see exactly how specialized equipment boosts long-term production capacity and part quality.
Standard lathes often lack the rigidity, specialized clamping, and through-hole capacity required for efficient, high-volume hydraulic cylinder production.
A dedicated oil cylinder CNC lathe reduces cycle times primarily through optimized setups for deep hole processing, skiving, and heavy-duty turning.
Machine selection must balance upfront cost with long-term OEE (Overall Equipment Effectiveness), factoring in tooling compatibility, automation readiness, and maintenance overhead.
Integrating specialized accessories (e.g., high-speed through-hole rotary cylinders) is as critical as the machine bed architecture itself.
Achieving efficiency in oil cylinder processing requires overcoming significant physical challenges. General-purpose machines frequently fail under these specific stresses. They lack the engineered stability needed for extreme operational demands.
Standard machines struggle to handle extreme length-to-diameter ratios. Hydraulic piston rods and telescopic cylinders are inherently long and heavy. When you place these parts in a standard chuck, gravity takes over. The workpiece sags in the middle. Cutting forces push the material away from the tool. This deflection creates intense chatter. The resulting vibration destroys dimensional accuracy. Standard tailstocks simply cannot provide the necessary counter-support for such massive, awkward parts.
Hydraulic components require mirror-like internal and external finishes. These smooth surfaces prevent internal seal wear. A standard lathe struggles to hold consistent tolerances over long passes. It often leaves microscopic tool marks. You then must rely on secondary polishing or honing operations. Moving parts between different machines wastes valuable production time. It also increases the risk of handling damage.
You will frequently process high-yield-strength alloys like 4140 steel. These tough materials require heavy interrupted cuts. General-purpose spindles lack the required low-end torque. The machine bed itself often lacks sufficient mass. When the tool hits a tough spot, a light machine vibrates. This lack of structural rigidity dulls tools prematurely. You will replace inserts far too often, slowing down your entire shift.
Deep-hole processing creates massive amounts of metal chips. Inadequate chip clearance causes immediate problems. Chips pack tightly inside the cylinder bore. Standard coolant systems cannot flush them out fast enough. The trapped chips generate intense heat. They score the freshly machined surface. Eventually, the packed chips break the cutting tool. You end up with a scrapped part and expensive downtime.
You must evaluate different machine architectures to solve these bottlenecks. Buyers usually face a choice between modifying existing equipment or investing in dedicated technology.
Many shops try to save money by retrofitting standard lathes. They add aftermarket steady rests and upgraded coolant pumps. This approach offers a lower initial capital expenditure. However, retrofits carry severe hidden risks. Bolt-on accessories suffer from alignment drift during continuous heavy use. The underlying machine bed still lacks the required mass. This compromised rigidity leads to higher scrap rates.
Conversely, a special purpose CNC lathe is engineered specifically for cylinder turning. The manufacturer integrates heavy-duty steady rests directly into the casting. The tailstocks handle massive axial loads. The coolant systems are designed specifically for heavy material removal. This purpose-built architecture guarantees long-term geometric stability.
Feature | Standard Lathe (Retrofit) | Special Purpose CNC Lathe |
|---|---|---|
Initial CapEx | Lower upfront cost | Higher initial investment |
Structural Rigidity | Prone to vibration during heavy cuts | Massive castings absorb severe chatter |
Alignment Stability | Accessories experience alignment drift | Integrated components hold true tolerance |
Scrap Rates | Moderate to high in continuous runs | Consistently low, high process reliability |
The foundation of the machine dictates its handling characteristics. You generally choose between flat bed and slant bed designs.
Flat Bed: This design suits very heavy, oversized cylinders. It distributes extreme weight evenly across a wide footprint. Flat beds handle massive radial loads effectively.
Slant Bed: A slant bed cylinder lathe offers superior operator ergonomics. Operators can access the cutting zone easily for faster tool changes. The angled design uses gravity to pull chips away from the workpiece. This optimal chip evacuation makes it perfect for high-speed, high-precision environments.

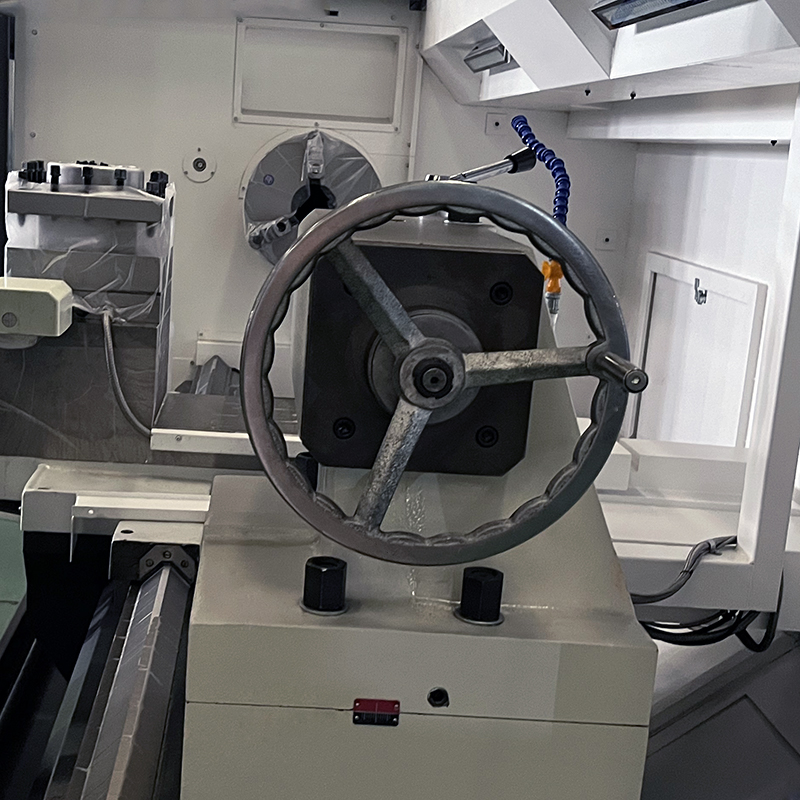

Choosing the right hydraulic cylinder lathe requires a strict review of technical specifications. You must align the machine capabilities directly with your production blueprints.
You must determine the necessary spindle bore size first. The bore must easily accommodate your longest piston rods and steel tubes. A restrictive spindle forces operators to use dangerous overhangs. Evaluate the integration of high-speed through-hole rotary hydraulic cylinders. These accessories work with specialized chucks to secure raw material instantly. They minimize setup times between different part sizes.
Assess the turret capacity carefully. It must hold heavy boring bars without sagging. Look for multi-tool setups capable of handling complex geometries. The best machines integrate advanced operations directly. You should look for capability to perform skiving and roller burnishing on the same machine. Combining these steps eliminates secondary honing processes entirely.
Securing long parts requires extreme clamping precision. You are often gripping thin-walled telescopic cylinders. Excessive clamping force deforms the tube. Insufficient force allows the part to slip. Evaluate programmable tailstocks for precise axial pressure control. Insist on self-centering hydraulic steady rests. Specialized jaw configurations are necessary to secure thin-walled materials without causing permanent deformation.
The machine brain must communicate with your existing shop floor networks. Verify CNC controller compatibility. Fanuc and Siemens controllers represent the industry standard. They ensure easy integration and operator familiarity. Assess the machine for automation readiness. Consider future robotic loading and unloading capabilities. You might also want to integrate the lathe with adjacent hydraulic cylinder welding machines.
Bringing massive machinery onto your production floor presents logistical challenges. You must prepare your facility and your workforce before the equipment arrives.
High-mass machines cannot sit on standard factory floors. They require engineered concrete foundations. You must dig and pour specific isolation pads. These foundations mitigate heavy vibration from adjacent presses or forklifts. A proper foundation ensures long-term geometric accuracy. Skipping this step voids warranties and guarantees poor part quality.
Deep boring generates incredible heat. Thermal expansion ruins tight dimensional tolerances. You must implement high-pressure coolant delivery systems. High pressure blasts chips out of deep cavities. It cools the cutting edge directly. Managing coolant effectively extends tool life and stabilizes the cutting process. Keep a close eye on your filtration systems to prevent chip recirculation.
Operating these machines requires specific expertise. Transitioning an operator from a general CNC machine to specialized cylinder processing takes time. They need specific training on heavy part handling. Steady rest calibration requires a delicate touch. Specialized tooling parameters differ vastly from standard turning. Invest in OEM-led training to prevent expensive crashes during the first month of operation.
Heavy-duty turning destroys consumable components over time. You must identify critical wear parts immediately. Hydraulic chuck seals degrade under constant pressure. Turret couplings wear down from heavy boring bar indexing. Verify local parts availability before signing the purchase order. Check the OEM service level agreements carefully. You need guaranteed response times to avoid crippling production delays.
You need a structured method to evaluate potential machine builders. Focus on verifiable performance metrics rather than glossy brochures.
Do not simply compare raw machine specifications. You must calculate ROI based on reduced cycle times. Evaluate the time saved by using single-setup skiving and burnishing versus separate honing operations. A more expensive machine that combines three operations into one yields a faster payback. Map every machine feature directly to a tangible reduction in processing time.
Never accept a machine based on promises. Demand physical or live-streamed test cuts. Provide the builder with your specific material grades. Give them your exact workpiece dimensions. Watch them machine your part from start to finish. Measure the final tolerances and surface finishes yourself. A successful run-off proves the machine handles your specific bottleneck.
Operator safety remains paramount. Ensure the machine meets local safety standards perfectly. Verify CE or OSHA compliance documentation. Inspect the physical guarding around the cutting zone. Test the electronic interlocks on the doors. High-pressure hydraulic systems pose significant dangers. Confirm that all high-pressure lines feature burst protection and automatic shut-off valves.
Solving your production bottlenecks requires moving beyond general-purpose equipment. You must specify a machine architecture built specifically for heavy, long workpieces. Upgrading your floor capabilities ensures you can meet tightening industry tolerances without sacrificing throughput.
Conduct a comprehensive audit of your current cycle times and scrapped part costs to establish a solid business case.
Prioritize extreme bed rigidity and integrated steady rest systems to eliminate vibration and chatter on long parts.
Demand proof of capability through physical run-offs using your exact material grades and dimensions.
Invest in integrated processes like skiving and burnishing to eliminate secondary handling.
Investing in a specialized oil cylinder CNC lathe is a strategic decision. It dictates your long-term production capacity. It secures your part quality and establishes your overall market competitiveness. Take the time to vet specifications carefully, prepare your facility, and train your operators for success.
A: A special purpose lathe focuses heavily on extreme bed rigidity. It features specialized workholding, including heavy-duty self-centering steady rests. These machines are engineered specifically for deep-hole processing and skiving capabilities, whereas general-purpose lathes lack the mass and torque for these specific tasks.
A: Yes, provided the machine is engineered correctly. The builder must include sufficient linear guideway sizing and massive structural mass. It also requires appropriate advanced workholding systems to prevent long workpiece sag during operations.
A: This integration requires massive spindle torque at low RPMs. The machine needs extreme axial rigidity to push the tooling. It also requires highly specialized, high-pressure coolant systems to support the heavy thrust loads generated during the burnishing process.
A: You need a large through-hole capacity to accommodate oversized tubes. Look for high clamping force that remains stable at high RPMs. Crucially, ensure the accessories include fail-safe mechanical mechanisms to prevent part ejection during heavy, interrupted cuts.
