Shaft machining presents unique geometric challenges. Deflection, vibration, and runout plague many production floors. Standard turning setups often fail to manage these physical issues efficiently. Operators struggle to hold tolerances across long workpieces. You must address these realities head-on to maintain part quality.
Selecting the wrong equipment leads to bottlenecked cycle times. You also face high scrap rates from out-of-tolerance parts. Accelerated tool wear quickly degrades your overall operational efficiency. Shafts require robust support systems to maintain concentricity during heavy material removal. Weak machines simply cannot handle these extreme radial forces.
This guide breaks down how to evaluate machine architecture effectively. We explore essential workholding capabilities and spindle performance metrics. You will learn to identify equipment guaranteeing repeatable accuracy. Our objective is to guide you toward a setup delivering verifiable efficiency for shaft production.
Length-to-Diameter (L/D) Ratio dictates the build: Shafts with an L/D ratio over 3:1 require dedicated tailstock support; over 6:1 requires heavy-duty steady rests.
Mass equals rigidity: A monolithic cast-iron bed is non-negotiable for dampening vibration during heavy material removal on long steel shafts.
Automation readiness matters: Factoring in programmable tailstocks and bar feeders upfront prevents expensive retrofitting later.
Empirical testing is required: Never finalize a purchase without a runoff test using your specific shaft material and required tolerances.
Shafts are inherently unstable during turning operations. Radial cutting forces constantly push against an unsupported center. This physical phenomenon causes severe workpiece deflection. Deflection leads to chatter, poor surface finishes, and dimensional inaccuracies. You cannot fix deflection through programming alone. You need superior mechanical rigidity to counteract these aggressive forces.
You must categorize your primary production parts first. We use the Length-to-Diameter (L/D) ratio for this baseline measurement. Divide the maximum turning length by the part diameter. Short shafts fall below a 3:1 ratio. Medium shafts range from 3:1 to 6:1. Long shafts exceed the 6:1 threshold. Your typical L/D ratio directly defines required machine travel. It also dictates your necessary support mechanisms.
Different materials demand entirely different spindle characteristics. You must match spindle horsepower to specific part metallurgy. Hardened steel shafts require massive low-end torque. You need geared headstocks to push heavy tools through tough alloys. Aluminum shafts require high spindle speeds instead. Direct-drive spindles excel in these high-velocity, low-torque applications. Failing to match torque to material causes spindle stalling and broken inserts.
A highly successful setup accomplishes several goals simultaneously. It minimizes cycle times. It maintains strict concentricity tolerances end-to-end. It achieves surface finish standards without manual operator intervention mid-cycle. You want the machine running continuously. Intervening to adjust rests or swap inserts kills your throughput.
Audit your past six months of production prints.
Calculate the average and maximum L/D ratios across all jobs.
Identify the hardest material you turn regularly.
Size your machine specifications based on these extreme limits.
Engineers evaluate two dominant machine architectures for shaft production. You must choose between slant bed and flat bed configurations. Each design solves specific manufacturing problems. Choosing the wrong foundation limits your future capabilities.
You must align your part dimensions with the correct machine geometry. Large, heavy parts behave differently than small, fast parts. We categorize machines based on their structural response to gravity and cutting pressure. A dedicated shaft machining lathe must match your exact volume and weight requirements.

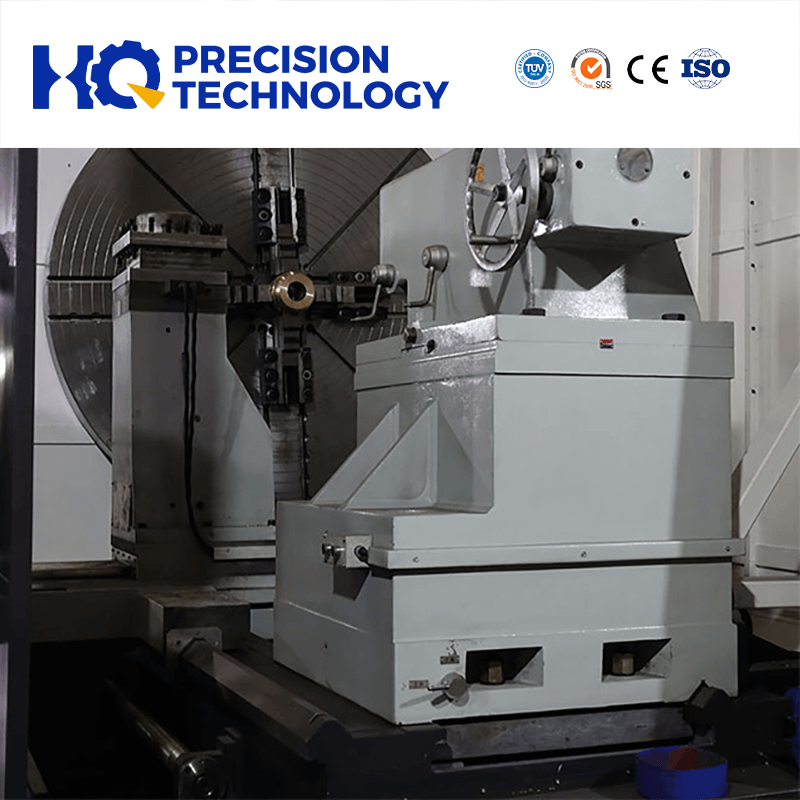

A flat bed CNC lathe excels at heavy-duty machining. It easily handles large-diameter shaft applications. These machines offer incredible mass for vibration dampening. They manage massive workpiece weights effortlessly. The horizontal orientation simplifies loading via overhead cranes. It also allows easier integration of oversized, manual steady rests. Operators can adjust supports securely from a comfortable stance.

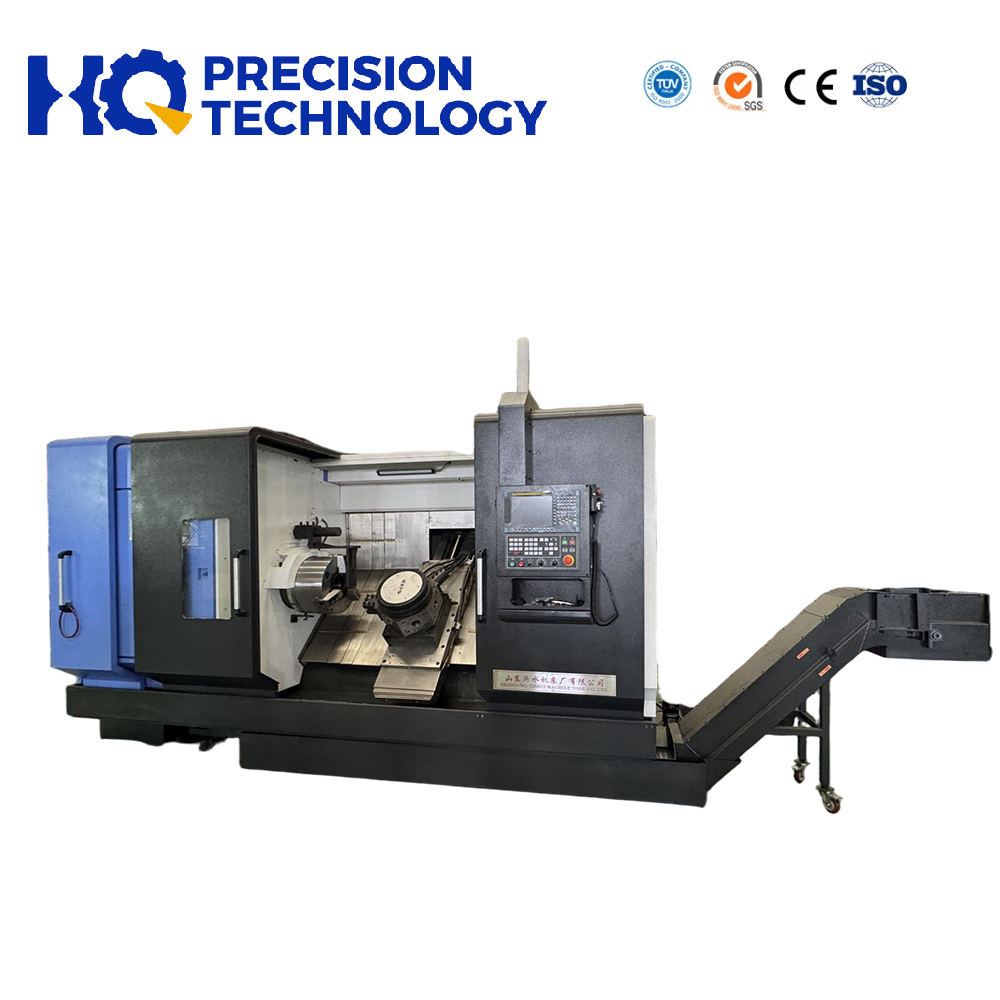

Slant bed architectures dominate high-volume production. They handle smaller shafts exceptionally well. Gravity assists in clearing metal chips away from the cutting zone. This prevents recutting chips and ruining surface finishes. Slant beds offer highly ergonomic access for operators. They feature faster rapid traverse rates. Quicker axis movements directly create shorter cycle times.
Use a simple rule of thumb for your decision. Match the part weight and length directly to the bed architecture. High-volume, lightweight shafts belong on a slant bed. Low-volume, heavy shafts belong on a flat bed.
Feature | Flat Bed Architecture | Slant Bed Architecture |
|---|---|---|
Primary Application | Heavy-duty, large diameter shafts | High-volume, automated small shafts |
Vibration Dampening | Exceptional (High machine mass) | Moderate to High |
Chip Evacuation | Requires manual clearing or heavy coolant | Excellent (Gravity assisted) |
Steady Rest Integration | Easy to mount oversized, manual rests | Best for programmable, hydraulic rests |
Rapid Traverse Rates | Slower (Optimized for torque) | Faster (Optimized for speed) |
Superficial features do not cut tough metal. Hardware dictates performance. You must scrutinize four structural pillars before making your CNC lathe selection. Ignoring any of these elements guarantees future production bottlenecks.
Single-piece castings significantly outperform bolted designs. A monolithic bed maintains strict alignment over the machine lifecycle. Bolted joints inevitably shift under continuous cutting vibration. Cast iron naturally absorbs chatter. It dissipates harmonic vibrations before they reach the cutting tool. You must demand a single-piece casting for serious shaft work.
A weak tailstock ruins perfectly good shafts. You must evaluate the Morse Taper (MT) sizing carefully. Larger MT sizes handle heavier axial loads. Scrutinize the quill thrust capacity. You need enough pressure to hold the part without bowing it. You have three primary tailstock options:
Manual Tailstocks: Require operator physical effort. Good for low-mix, low-volume setups.
Tow-along Tailstocks: Connect to the Z-axis carriage for positioning. Better for medium volume.
Fully Programmable Servo Tailstocks: Position via CNC control. Essential for automation and high-mix production.
Your headstock transfers motor power into cutting force. Belt-driven spindles provide high speed for fine finishes. They run smoothly but lack extreme low-end torque. Geared headstocks deliver high torque at low RPMs. This mechanical advantage is crucial for turning large-diameter shafts. Evaluate your material hardness to choose the correct headstock drive.
Interference crashes destroy machines. You must ensure sufficient Z-axis travel. Verify your maximum swing clearance. The tooling must never interfere with the tailstock during operation. It must clear steady rests completely. Simulate your longest part to guarantee your turret can maneuver safely around all workholding devices.
Buyers often focus purely on maximum turning length. They ignore turret clearance over the saddle. A machine might hold a 60-inch shaft between centers. However, if the turret cannot pass the steady rest, you cannot machine the entire length in one setup. Always verify "machinable length" versus "center distance."
You cannot produce accurate shafts without rigid workholding. Radial pressure bends the metal away from the insert. Managing this deflection separates average shops from top-tier manufacturers. A true precision turning machine utilizes multiple support zones.
Traditional chuck-and-center setups have strict limits. Once your L/D ratio exceeds 6:1, intermediate support becomes absolutely mandatory. Relying solely on tailstock pressure for long parts causes bowing. The center of the shaft thickens because it pushes away from the tool. You must constrain the center physically.
Steady rests provide critical central support. Hydraulic self-centering steady rests adjust automatically. They maintain consistent grip pressure as the part diameter changes. Manual setups require skilled operators to dial in the rollers perfectly. Programmable steady rest brackets are essential for automated cycles. The CNC control moves them into position without human intervention.
The chuck holds the driving end of your shaft. Selecting the right solution minimizes part distortion. Collet chucks wrap around the circumference evenly. They prevent the crushing forces associated with traditional jaws. Three-jaw power chucks grip tightly but can cause jaw lift. High RPMs pull heavy jaws outward via centrifugal force. This reduces gripping power. You must select counter-centrifugal chucks for high-speed shaft turning.
Thermal growth ruins concentricity over long shifts. Spindles and ball screws heat up and expand. You must evaluate thermal compensation systems. Good machines use sensors to detect temperature changes. The control automatically offsets axis positions to maintain accuracy. Linear scale feedback provides absolute positioning data. This guarantees continuous concentricity regardless of ball screw expansion.
Buying the machine is only the first step. Integrating it into your facility presents significant challenges. You must uncover hidden implementation hurdles before signing a purchase order. Thorough preparation prevents disastrous installation delays.
Specialized shaft production introduces unique integration blind spots. Custom steady rest bases require precise alignment. Heavy-duty lathes demand substantial foundation work. Standard factory floors often crack under the massive weight of a rigid machine. You might need to pour isolated concrete pads. Furthermore, specialized shaft tooling requires distinct storage and handling systems.
Automating long shafts is notoriously difficult. Aligning bar feeders with the spindle bore requires laser precision. Gantry loaders must balance long parts perfectly to prevent dropping them. Robotic unloading systems struggle with extraction clearance. Pulling a 40-inch shaft out of a chuck requires 80 inches of total linear clearance. You must map the entire physical envelope of your automated cell.
Follow a strict logical progression when filtering potential CNC lathe candidates. Do not let sales brochures distract you from core metrics.
Filter by dimensions: Define your maximum turning length and diameter requirements. Add 20% to these numbers for future-proofing your investment.
Filter by bed architecture: Select Flat vs. Slant bed based on your part weight and volume matrix.
Evaluate OEM track record: Demand proof of success in your specific industry. Aerospace, automotive, and oil & gas all have vastly different shaft requirements.
Never buy a machine based on specifications alone. Demand a time-study from the manufacturer. Provide them with your most difficult, tight-tolerance shaft print. Require a live runoff test. You need empirical proof the machine hits your cycle times and geometric tolerances simultaneously.
Choosing the right equipment requires moving far beyond basic specifications. You must scrutinize how the machine handles aggressive radial forces. You need to understand its vibration dampening characteristics. You must account for thermal expansion over long, heavy cuts. Every structural choice impacts your final part quality.
We advise prioritizing rigid machine mass above all else. Robust tailstock design matters more than superficial software features. Fancy touchscreens cannot compensate for a weak machine bed. Focus entirely on mechanical stability when turning shafts.
Consult directly with application engineers today. Ask them to configure a machine tailored strictly to your specific L/D ratios. Match the torque precisely to your material types. Build a solid foundation for your manufacturing future.
A: Horizontal lathes remain the universal standard for shafts. Vertical lathes are typically reserved for parts where the diameter is significantly larger than the length. Gravity and chucking dynamics favor vertical machines for disks, rings, and wheels. Shafts require long axial travel, making horizontal beds far more efficient.
A: It completely eliminates manual setup time between different part lengths. The control ensures consistent, programmable pressure to prevent part bowing. This eliminates human error. Furthermore, a programmable tailstock enables fully automated robotic loading and unloading, allowing for true lights-out production.
A: Generally, a 3:1 ratio is safe with just a chuck. Ratios from 3:1 to 6:1 require tailstock support. Anything exceeding 6:1 strictly requires one or more steady rests. Without them, you will experience severe deflection, chatter, and impossible-to-hold tolerances.
A: Box ways provide greater surface area contact. They offer superior rigidity, vibration dampening, and load-bearing capacity for heavy shafts. Linear guides offer higher speeds and precision, making them better suited for lighter, high-volume shafts where rapid traverse times matter most.
