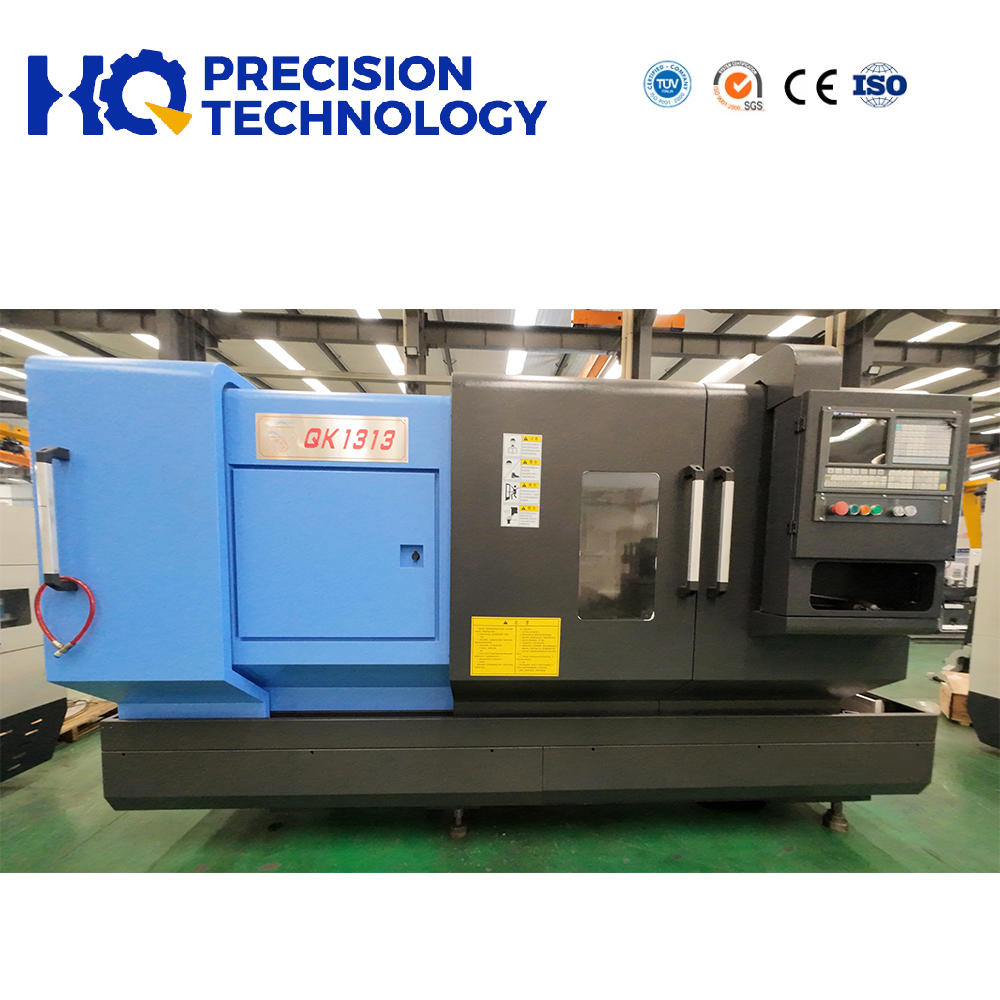

QK1313
HQ
| Quantity: | |
|---|---|

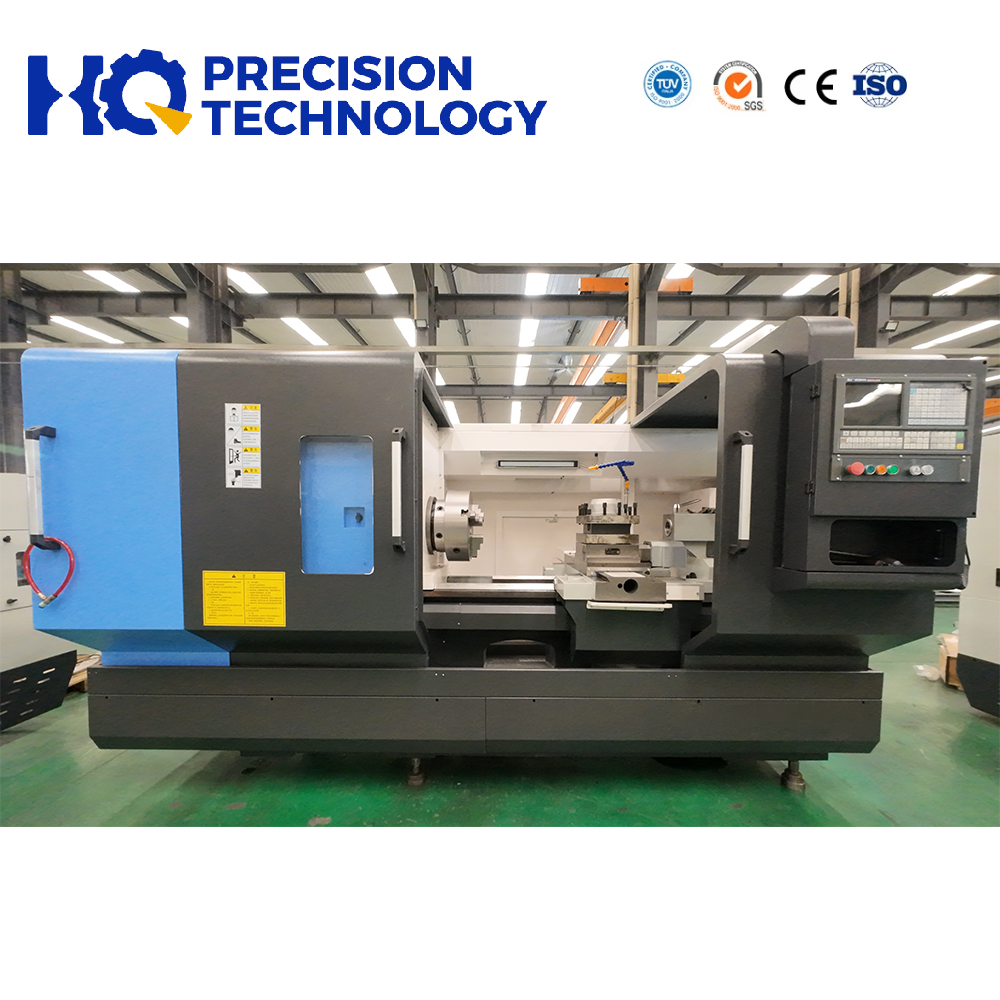

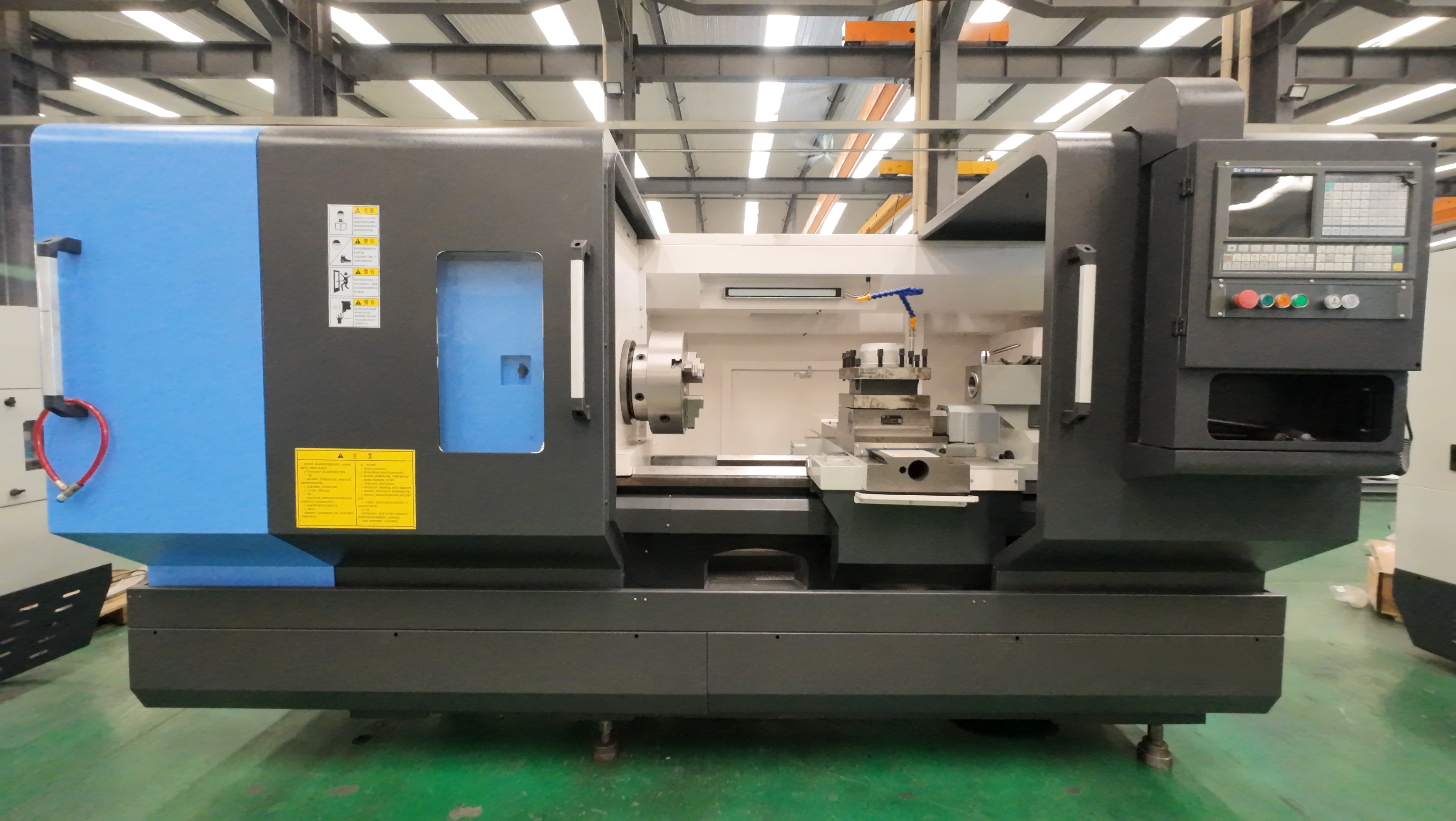

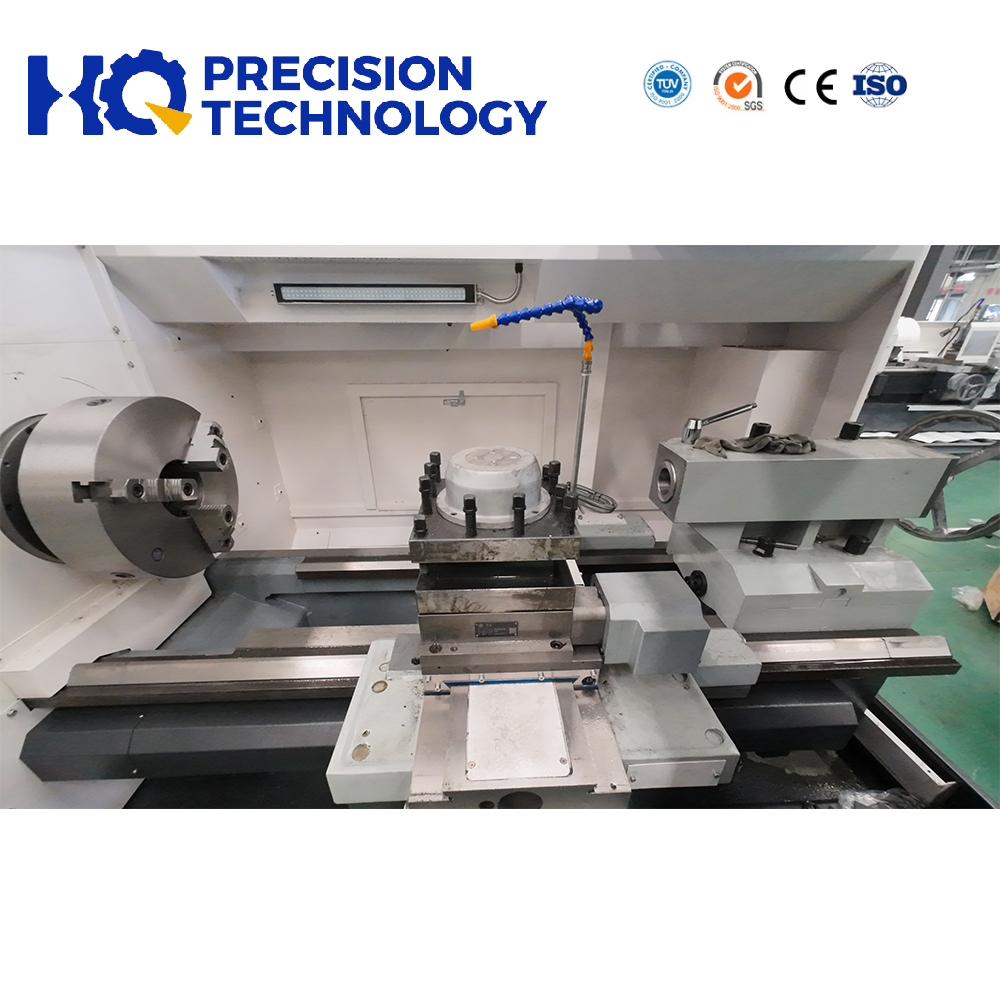

Product Introduction
This Model of CNC Pipe Threading Lathe Machine is esigned for semi-finishing, finishing, drilling and tapping of shaft and disc parts, it adopts a two-axis two-linkage CNC system to support high-precision processing of complex shapes.
Product Advantage
Processing capabilities
Turning: straight line, oblique line, arc (cylindrical/conical/spherical)
Thread processing: metric/imperial straight thread, tapered thread
Drilling: axial hole processing and thread tapping
Applicable parts: discs, sleeves, shafts and other precision and complex workpieces

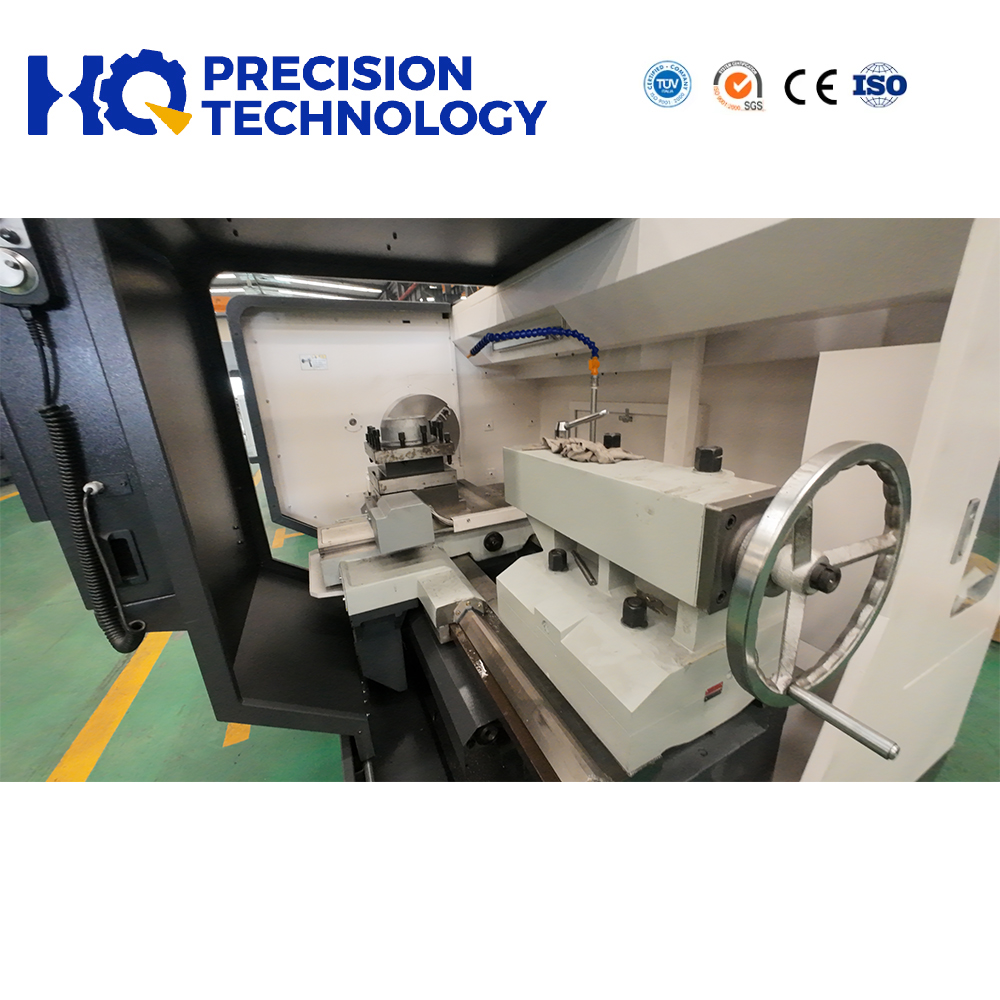

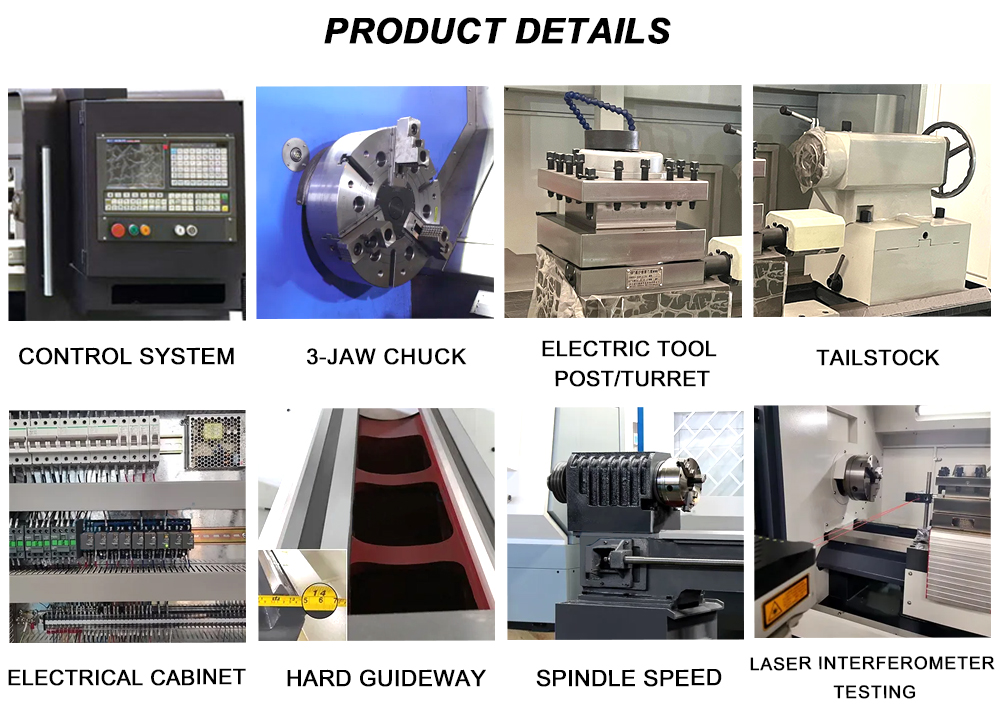

Structural advantages

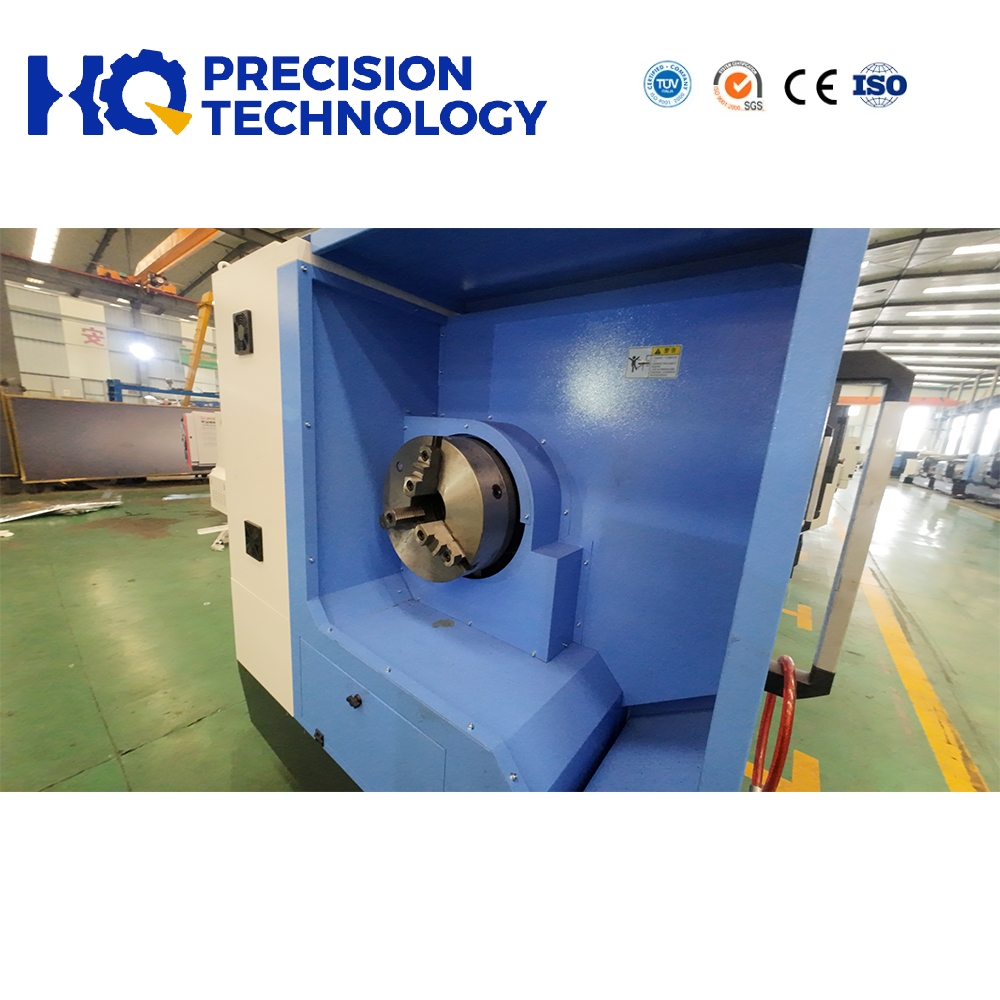

One-piece flat bed: convenient operation, smooth chip removal, efficient workpiece loading and unloading
Intermediate frequency quenching guide rail: improve response speed and extend service life
Direct-connected X/Z axis transmission: high stability and dynamic accuracy

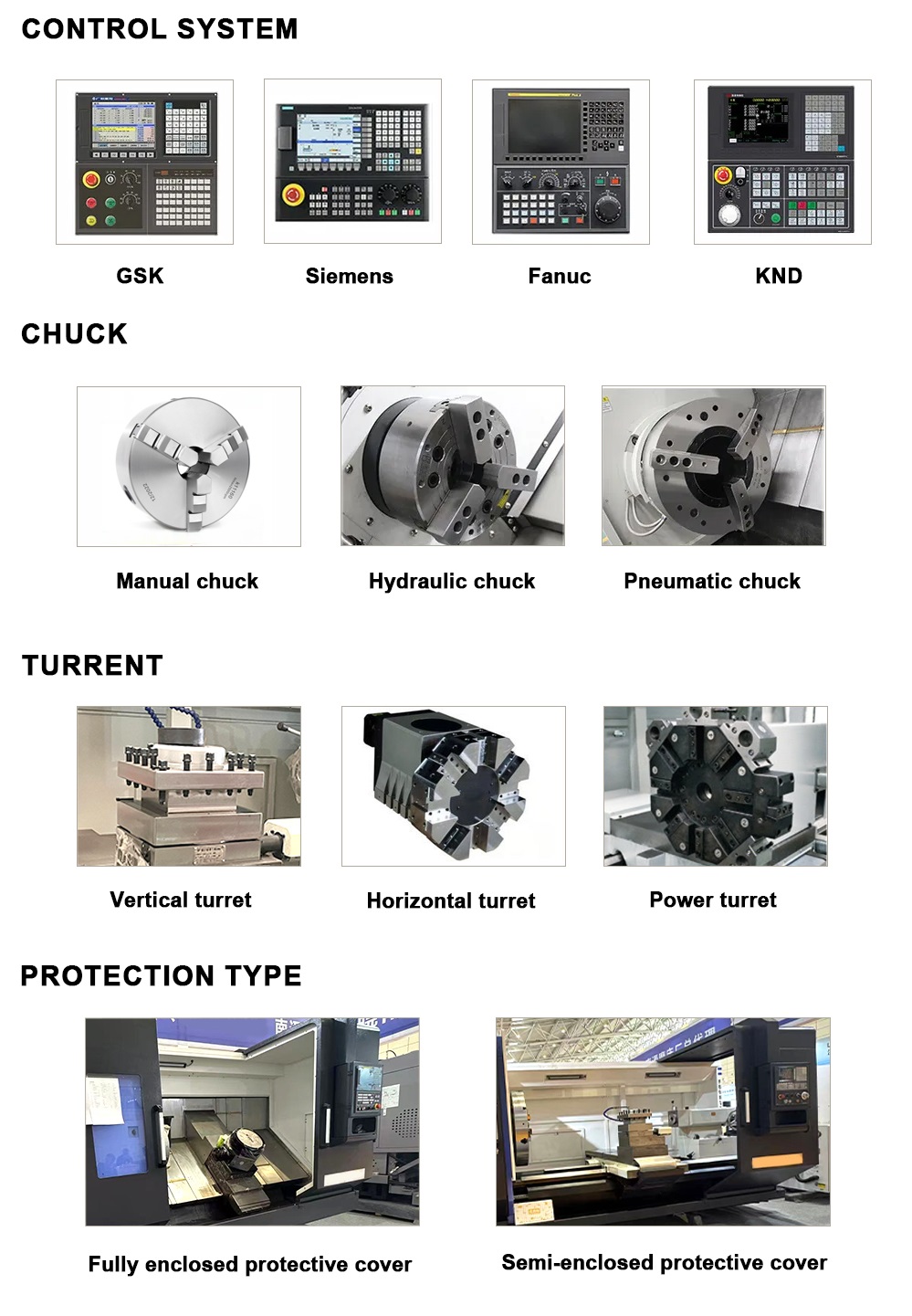

Four-station electric tool holder: high precision, fast tool change, support for a variety of accessories (can also be customized according to customer requirements)

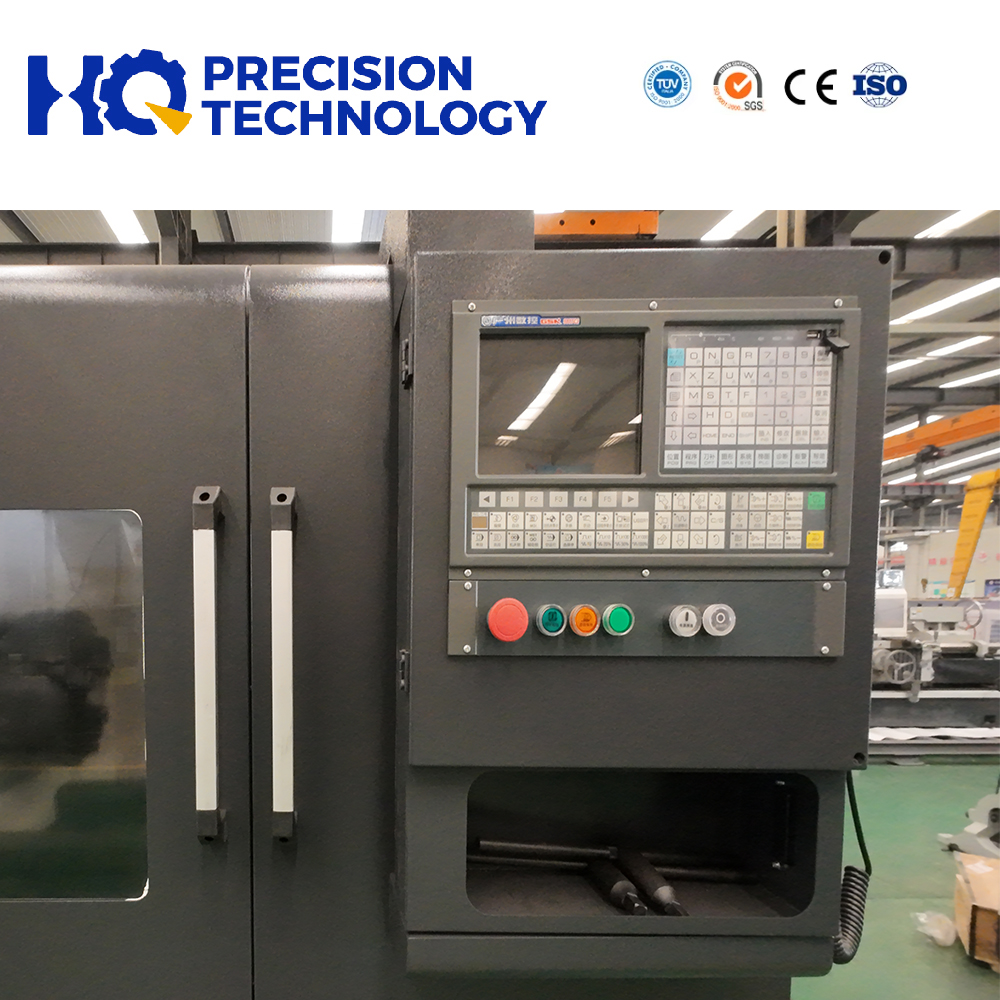

CNC system
AC digital drive, semi-closed loop control, strong anti-interference ability
Advanced functions: pitch compensation, constant linear speed cutting, fixed cycle, direct programming of drawing dimensions, DNC communication
Control System Brand: GSK, Fanuc, KND, Seimens etc.
Feature summary
Fast response, good rigidity, high reliability, taking into account both efficiency and accuracy, suitable for high-demand processing scenarios.
Technical Parameters
SPECIFICATION | UNIT | QK1313 | QK1319 | QK1322 | |||
Manual | Manual | HYD | Manual | Manual | |||
Capacity | Swing over bed | mm | 630/800 | 630/B00 | 630/B00 | ||
Swing over cross slide | mm | 340/520 | 340/520 | 340/520 | |||
Distance between centers | mm | 1000-6000 | 1000-6000 | 1000-6000 | |||
Pipe threading range | mm | 30-126 | 50-193 | 50-220 | |||
Guideway width | Tim | 550 | 550 | 550 | |||
Max. load capacity | T | 3 | 3 | 3 | |||
Spindle | Spindle bore | mm | 130 | 206 | 225 | ||
Spindle speed steps | - | F.3steps | NF.4 steps|/HYD.4 steps | F.4steps | HYD.4steps | ||
Spindle speed range | rpm | 30-800 | 20-500 | 20-500 | |||
Chuck | mm | φ400 3-jaw manual | φ500 3-jaw manual | φ5003-jaw manual | |||
Turret | Turret/tool post | NC turret 4 position | NC turret 4 position | NC turret4 position | |||
Tool shank size | mm | 32×32 | 32×32 | 32×32 | |||
Feed | X axis travel | mm | 340/420 | 340/420 | 340/420 | ||
Z axis travel | mm | 1000-6000 | 000-6000 | 1000-6000 | |||
X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |||
Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | |||
Tailstock | Tailstock quill diameter | mm | φ100 | φ100 | φ100 | ||
Tailstock quill taper | MT6 | MT6 | MT6 | ||||
Tailstock quill travel | mm | 250 | 250 | 250 | |||
Motor | Main spindle motor | kW | 11 | 11 | 11 | ||
Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | |||
Dimension | Width x Height | TIT | 1800×1850 | 880×1850 | 1880×1850 | ||
Length | mm | 3000/8300 | 3000/8300 | 3000/8300 | |||
Weight | Net weight | T | 4-8 | 4.6-8.6 | 4.7-87 | ||
Please note: Machine bed length can customize according to real work demand, machine on this page can choose servo motor direct driving structure turning center with C axis | |||||||
