Purchasing a metalworking machine represents a critical capital investment for your facility. This specific decision dictates long-term cycle times and routine maintenance overhead. It fundamentally determines your overall shop floor scalability. Managers often underestimate how structural design impacts daily throughput.
Various turning centers perform the same fundamental operations. However, their base geometry radically alters daily performance on the floor. The underlying CNC lathe structure heavily dictates thermal dynamics. It also governs chip management and overall cutting rigidity. You cannot afford to ignore these engineering differences when planning automated runs.
Selecting the right equipment requires evaluating your specific production volume carefully. You must actively assess your average part size and strict tolerance requirements. Choosing between a traditional horizontal setup and an angled configuration impacts operations deeply. We will explore how bed geometry changes machine capability directly. You will learn the exact technical criteria needed to match equipment to your manufacturing workflow.
Chip Management: Slant beds use gravity for superior chip evacuation, making them essential for high-volume, automated production.
Thermal Stability: True slant bed castings distribute heat more evenly, reducing thermal distortion during prolonged precision turning.
Part Sizing: Flat bed CNC lathes remain the superior choice for heavy-duty, large-diameter workpieces due to their open structure and high weight capacity.
TCO (Total Cost of Ownership): Slant beds carry a higher initial cost but typically yield lower cost-per-part in high-speed, continuous manufacturing environments.
The foundation of any turning center determines its ultimate machining capability. Engineers design these bases using massive cast iron blocks to absorb heavy vibrations. The geometric layout of these castings defines how the machine handles physical stress.

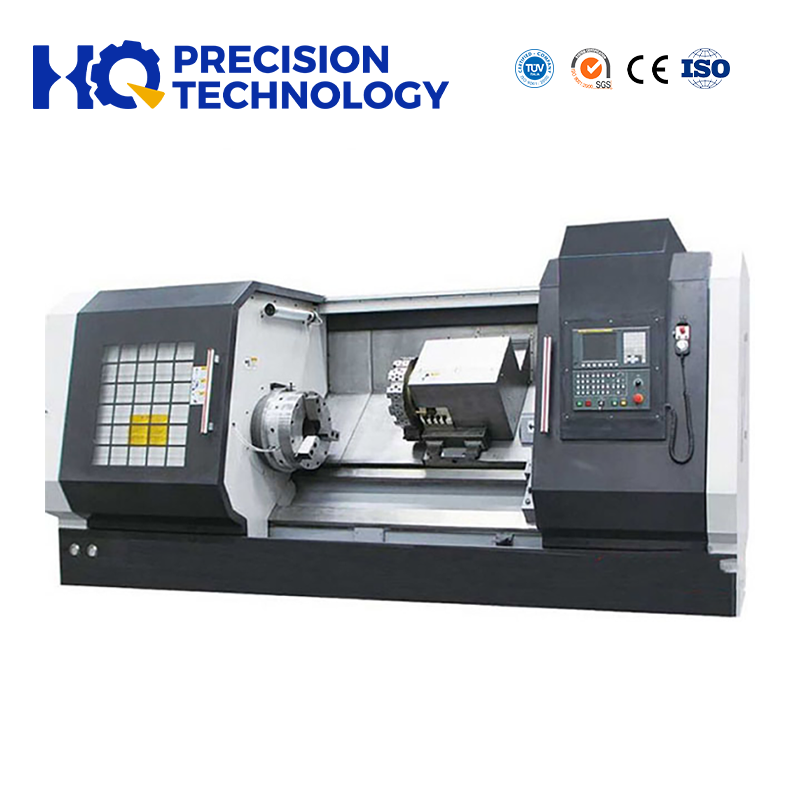

Traditional horizontal guideways represent the oldest and most familiar machine architecture. The saddle and tailstock sit perfectly level on a flat plane. This horizontal orientation provides an exceptionally wide base of support. Operators can easily mount massive, oversized workpieces without clearance issues. The wide stance handles heavy, irregular parts brilliantly.

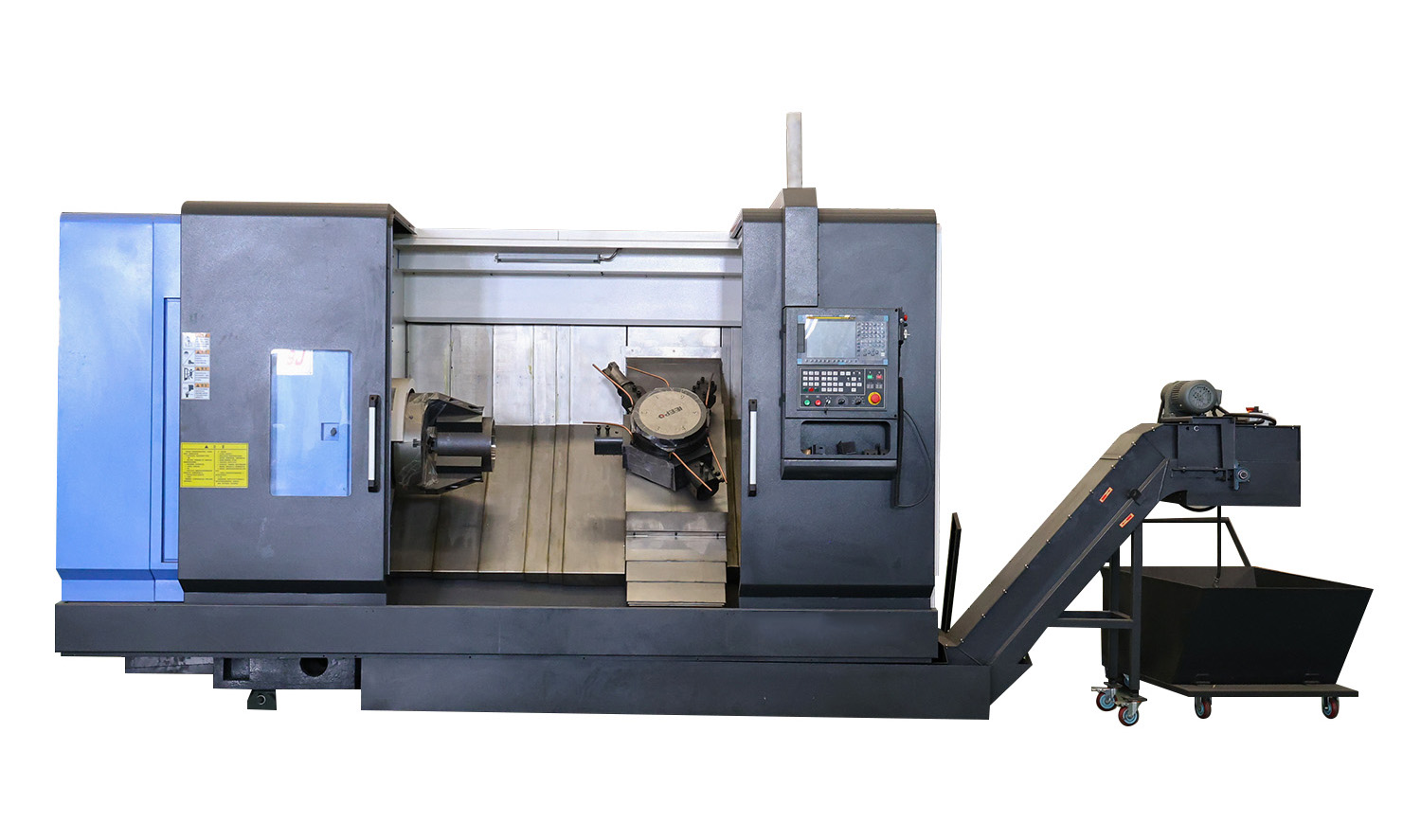

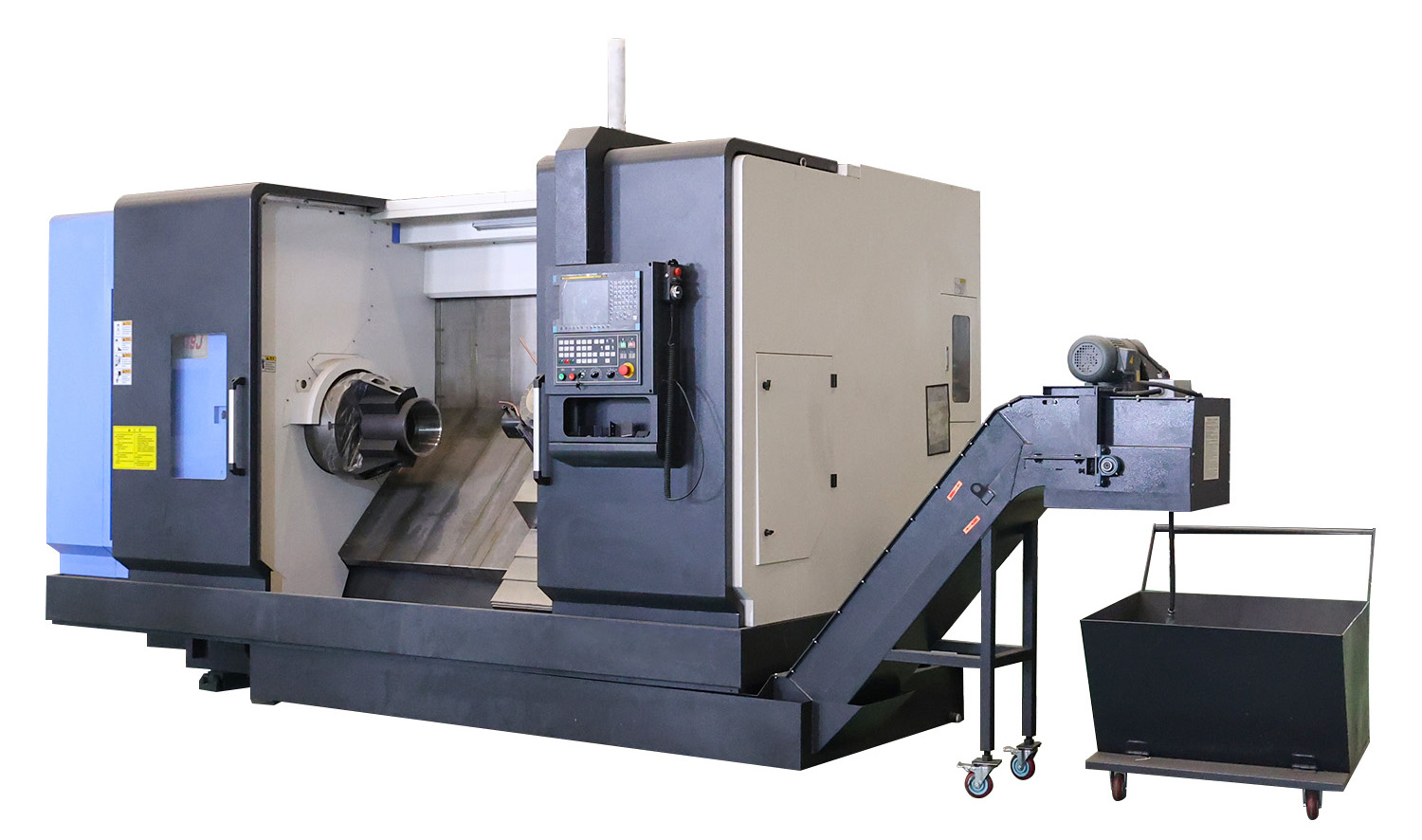

Modern production facilities increasingly rely on angled architectures. Manufacturers pour these bases as single-piece castings. They typically angle the guideways at 30, 45, or 60 degrees from the floor. This slope fundamentally alters the machine's center of gravity. The slanted angle brings the spindle closer to the operator. It also forces cutting tools to approach the workpiece from an optimized downward trajectory.
Buyers must exercise extreme caution when reviewing machine specifications. Some budget-friendly machines utilize a "wedge" design. Builders take a standard flat bed and bolt an angled wedge onto it. They market this as a slant bed. This mock setup improves chip flow slightly. However, it completely lacks the inherent structural dampening of a true single-piece casting. A true casting provides the actual rigidity benefits required for aggressive cutting.
Common Mistake: Never assume an angled enclosure guarantees a true slant bed casting underneath. Always verify the single-piece casting specification before purchasing.
 |  |
Evaluating a machine requires looking past basic spindle speeds and horsepower ratings. The base geometry directly influences four critical operational dimensions. These variables determine your ultimate part quality and daily uptime.
Managing metal chips efficiently separates profitable runs from constant bottlenecks. Slant bed designs use gravity as a free, reliable mechanism. Gravity naturally pulls chips and heavy coolant away from the workpiece. The debris slides directly into the collection pan below. Conversely, horizontal designs force chips to pool directly on the bed. Operators must frequently pause production for manual clearing. Pooled chips risk scoring the guideways or causing catastrophic tool breakage during recutting.
Heat acts as the invisible enemy of tight tolerances. Machine castings expand as spindle bearings and cutting friction generate severe temperatures. Slant designs feature an elongated cross-sectional area. Fluid flows rapidly down the incline, cooling the metal dynamically. This design minimizes thermal drift beautifully. It proves absolutely critical when performing precision turning over a grueling three-shift operation. Flat horizontal designs suffer from uneven heat buildup. This uneven expansion often causes problematic spindle-to-tailstock misalignment during long continuous runs.
Tool life depends heavily on cutting rigidity. On an angled machine, the cutting tool sits significantly closer to the primary guideway. Physics dictates that cutting forces push directly into the bed. This creates massive compression, which neutralizes chatter. This compression improves surface finish and extends expensive tool life. On a horizontal layout, cutting forces often push away from the bed. This lifting action creates microscopic vibrations. These micro-vibrations can easily compromise extreme tolerance requirements.
Shop floor real estate always carries a premium value. Angled configurations inherently boast a much smaller machine footprint. They utilize vertical space far more efficiently. Additionally, ergonomics improve dramatically. Operators enjoy easier spindle access when loading heavy parts or changing complex tooling. They do not have to lean awkwardly over a wide, horizontal casting.
Horizontal machines remain absolutely vital in specific manufacturing sectors. They provide unmatched versatility for certain part profiles. A standard flat bed CNC lathe excels when handling massive, awkward dimensions.
These machines fit perfectly into low-volume job shops. Repair facilities and internal maintenance departments rely heavily on them. These environments prioritize flexibility over raw, continuous speed.
Horizontal machines handle heavy structural shafts effortlessly. They accommodate large-diameter flanges and highly irregular cast iron blanks. The open architecture prevents clearance collisions with bulky, asymmetrical parts.
Lower upfront capital investment compared to heavily engineered alternatives.
Significantly easier to set up for complex, one-off custom parts.
Superior swing capacity allows for turning massively oversized diameters.
Open access makes manual crane loading of heavy billets straightforward.
Higher operator intervention required for constant chip management.
Slower tool indexing reduces throughput on multi-tool part recipes.
Horizontal layouts are notoriously less suited for bar feeder automation.
Coolant pooling can degrade expensive cutting fluids prematurely.
Best Practice: Equip your horizontal machines with heavy-duty box ways if you plan to exclusively cut hardened alloys or perform deep interrupted cuts.
When speed and repeatability dictate success, angled architectures dominate the conversation. The modern slant bed lathe represents the backbone of advanced manufacturing cells.
High-volume production houses depend on these rigid platforms exclusively. Aerospace contractors, medical device manufacturers, and automotive Tier 1 suppliers deploy them aggressively. These sectors demand zero variance across thousands of parts.
These frames excel at cutting high-volume, complex precision parts. They handle components requiring multi-axis operations seamlessly. You will frequently see them equipped with live tooling or advanced Y-axis capabilities for off-center milling.
Built specifically for raw speed and continuous, unattended automated runs.
Delivers supreme accuracy across massive batches due to thermal stability.
Provides significantly longer tool life due to high structural rigidity.
Enclosed designs contain high-pressure coolant perfectly without leaking.
Requires a much higher initial capital expenditure to acquire.
Restricts the maximum turning diameter compared to a similarly sized horizontal machine.
Complex repairs to internal guideways often require specialized factory technicians.
Improper leveling during installation nullifies the inherent precision benefits.
Modern machine shops survive by maximizing spindle uptime. You must evaluate equipment based on its ability to run unattended safely. An angled slant bed CNC lathe fundamentally changes how you schedule production shifts.
Angled machines utilize exceptionally fast servo motors and rapid turret indexing. These upgrades slash seconds off every single cycle. Over a grueling production week, these saved seconds translate into massive volume increases. Furthermore, enhanced rigidity drastically reduces your daily scrap rates. Tools do not deflect under pressure, ensuring every part passes strict quality control inspections.
You must contrast the wear-and-tear profiles of both designs carefully. Horizontal box ways endure constant chip friction. Tiny metal shards often wedge beneath the wipers, scoring the sliding surfaces over time. Conversely, angled machines typically utilize heavily protected linear guides or shielded box ways. Gravity keeps the abrasive chips far away from sensitive mechanical components. This smart separation extends routine maintenance intervals significantly.
Scaling a business requires removing manual labor bottlenecks. Evaluate how easily each machine integrates with peripheral equipment. Angled setups accommodate hydraulic bar feeders effortlessly. They accept robotic gantry loaders and pneumatic parts catchers without major physical modifications. Horizontal machines struggle with these integrations. Their wide footprint and manual chip clearing requirements actively fight against true "lights-out" manufacturing.
Choosing your next turning center requires a structured, logical approach. You must align your facility's daily reality with the machine's geometric strengths. Standardized metal machining workflows demand specific architectural features.
Your ratio of part variety to total volume dictates your path. High volume coupled with low part mix strongly demands an angled configuration. You set the job up once and let it run for weeks. Conversely, a low volume paired with a high mix of massive parts requires a horizontal configuration. You need the flexibility to change massive setups daily.
Consider your most demanding blueprint specifications carefully. If operations demand holding sub-micron tolerances over continuous 12-hour runs, rule out standard horizontal setups immediately. Thermal drift will fight your operators constantly. You need the thermal stability of an angled, single-piece casting to maintain quality across long shifts.
Evaluation Metric | Slant Bed Architecture | Flat Bed Architecture |
|---|---|---|
Part Volume | Excellent for high-volume runs | Ideal for low-volume job shops |
Max Turning Diameter | Restricted by angled enclosure | Massive open swing capacity |
Chip Evacuation | Gravity-assisted, highly efficient | Prone to pooling, requires manual clearing |
Automation Integration | Seamless (Bar feeders, robotics) | Challenging due to physical footprint |
Before issuing a purchase order, systematically execute these final verification steps:
Calculate your exact shop floor space. Include the footprint required for chip conveyors and external coolant tanks.
Analyze your core family of parts. Document their maximum size, average weight, and specific material hardness.
Request physical test cuts from manufacturers. Demand documented time studies verifying cycle times on your exact material.
Neither machine geometry is universally superior across all manufacturing scenarios. Your specific production demands dictate the correct structural choice entirely. A traditional horizontal layout provides massive swing capacity and easy setup for bulky, irregular parts. You can rely on them heavily for repair work and specialized job shop operations.
Conversely, an angled architecture provides the rigid foundation necessary for relentless speed. The single-piece casting absorbs vibrations, maintains thermal neutrality, and manages chips brilliantly. If you plan to scale operations using bar feeders and robotics, this geometry is non-negotiable. Flat bed CNC lathes remain the reliable workhorses for heavy, large-scale metal cutting. Slant bed lathes are the mandatory investment for scaling automated, high-speed precision turning securely.
A: Yes, for single parts or short runs. However, thermal drift and chip buildup make it significantly harder to maintain that precision across large production batches. Operators must constantly compensate for structural expansion as the horizontal casting heats up unevenly throughout the shift.
A: The single-piece angled casting is fundamentally more complex to pour and machine during manufacturing. They also typically feature higher-end linear guideways, faster servo motors, and fully enclosed sheet metal designs built specifically to handle high-pressure coolant in automated environments.
A: A wedge design merely bolts an angled structure onto a traditional horizontal base. It improves chip flow slightly but completely lacks the inherent structural rigidity and superior vibration dampening of a true casting that is poured as a single, heavily ribbed slanted unit.
