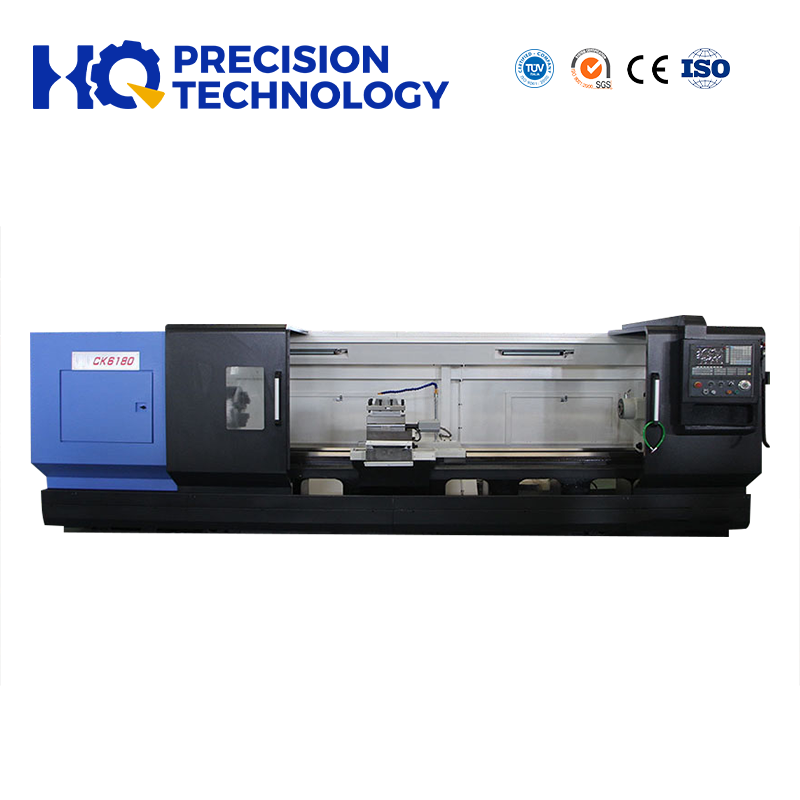

Product Introduction
This series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc. Fanuc or other brand CNC controller, hydraulic or power turret, pneumatic or hydraulic chuck, hydraulic tailstock, full-shield are optional.
Product Advantage
1.One-piece bed adopts high strength iron to ensure rigidity and precision
Our Good Rigidity Lathe, a type of High precision CNC Lathe, features a one - piece bed crafted from high - strength iron. This design guarantees exceptional rigidity and precision, crucial for metal processing. It's suitable for OEM/ODM Lathe needs and various applications like Flat bed lathes.
2.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
The ultrasonic frequency quenched guide - ways in this High efficiency Lathe provide outstanding wear - resistance. This is a key advantage for a multi - functional CNC Lathe, reducing downtime and maintenance costs in metal processing operations.
3.Carriage and guide-way contact surface use Turcite B to maintain accuracy
The carriage and guide - way contact surface in our Universal Lathe uses Turcite B. This material helps maintain accuracy over long - term use, making it a reliable choice for diverse machining tasks in a Metal Processing Lathe.

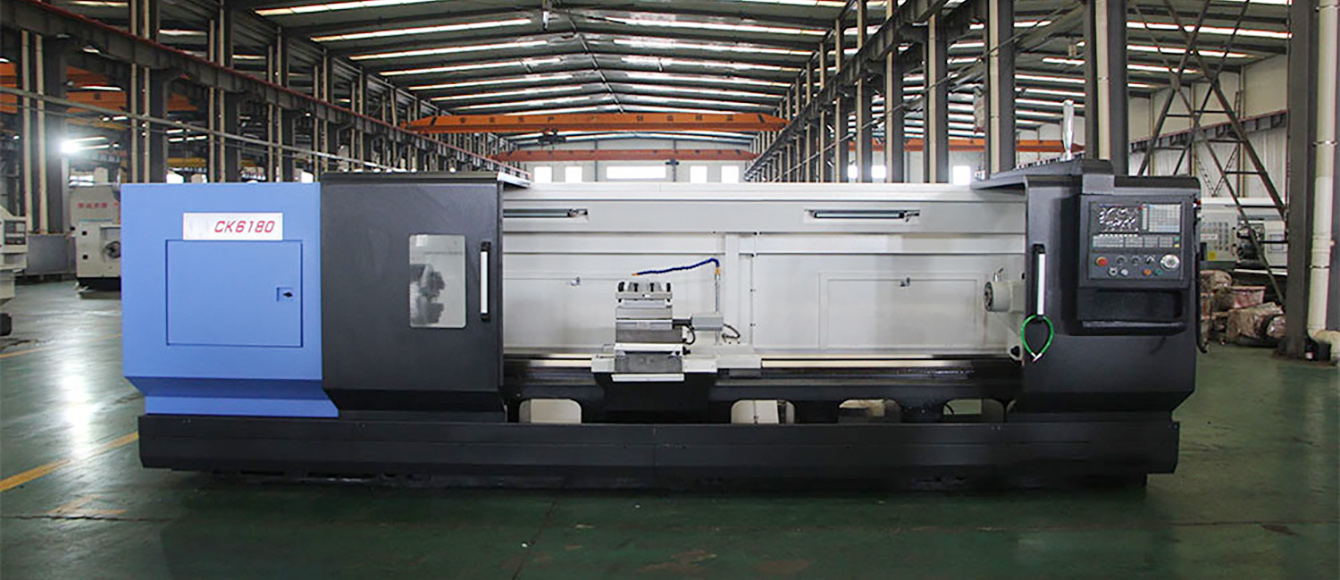

Detail Pictures
CNC Lathe |
High precision CNC Lathe |
High precision Lathe |
Lathe |
Multi-functional CNC Lathe |
Slant Bed Lathe |
Technical Parameters
| SPECIFICATION | UNIT | CK6180(600) | CKQ61100 | |||
| Manual | HYD. | Manual | HYD. | |||
| Capacity | Swing over bed | mm | 800 | 1000 | ||
| Swing over cross slide | mm | 480 | 680 | |||
| Distance between centers | mm | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | |||
| Guideway width | mm | 600 | 600 | |||
| Max. load capacity | T | 4 | 4 | |||
| Spindle | Spindle bore | mm | 104 | 104 | ||
| Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | |||
| Spindle nose type | 一 | C11 | C11 | |||
| Spindle speed steps | 一 | VF. 3 steps | HYD. 4 steps | VF. 3 steps | HYD. 4 steps | |
| Spindle speed range | rpm | 10-800 | 17-800 | 10-800 | 17-800 | |
| Chuck | mm | φ400 3-jaw manual | φ400 3-jaw manual | |||
| Turret | TurretAool post | - | NC turret 4 position | NC turret 4 position | ||
| Tool shank size | mm | 32x32 | 40x40 | |||
| Feed | X axis travel | mm | 420 | 520 | ||
| Z axis travel | mm | 1250/1750/2750 | 1250/1750/2750 | |||
| X axis rapid traverse | mm/min | 4000 | 4000 | |||
| Z axis rapid traverse | mm/min | 6000 | 6000 | |||
| Tailstock | Tailstock quill diameter | mm | φ120 | φ120 | ||
| Tailstock quill taper | - | MT6 | MT6 | |||
| Tailstock quill travel | mm | 250 | 250 | |||
| Motor | Main spindle motor | kW | 15 | 15 | ||
| Coolant pump motor | kW | 0.125 | 0.125 | |||
| Dimension | Width x Height | mm | 1950x1900 | 1900 x 2100 | ||
| Length | mm | 4000/4500/5500/6500/7500/8500 | 4000/4500/5500/6500/7500/8500 | |||
| Weight | Net weight | T | 5.0/5.4/6.1/6.8/7.5/8.2 | 5.4/5.8/6.5/7.2Z7.9/8.6 | ||
| Please note: swing diameter and bed length can customize according to real work demand, machine can choose servo motor direct driving structure turning center with C axis. | ||||||
Products Uses
1. Precision Machinery Part Production
CNC lathes are extensively deployed in the production of precision machinery parts. They are able to precisely turn, drill, and thread components like engine shafts in the automotive industry, maintaining micron - level accuracy to ensure seamless fit and optimal performance.
2. High - volume Hardware Manufacturing
For high - volume production of hardware items such as screws, nuts, and bolts, CNC lathes prove invaluable. Their automated operation allows for continuous, efficient processing, significantly boosting productivity and reducing manufacturing costs.
3. Complex Mold Component Machining
In the mold - making industry, CNC lathes are crucial for machining complex mold components. They can accurately shape cores and cavities with intricate geometries, meeting the high - precision requirements essential for producing high - quality molds.
4. Customized and Small - batch Production
When it comes to customized parts or small - batch production, CNC lathes offer great flexibility. Operators can quickly change programs to accommodate different design specifications, making them ideal for prototyping and fulfilling diverse customer demands.
Product Video
FAQ
Q: What types of lathes do you offer?
A: We specialize in a diverse range of lathes. Our offerings include high - precision CNC lathes, traditional engine lathes, compact bench lathes, and robust heavy - duty industrial lathes. Each category has models with varying spindle speeds, swing diameters, and automation levels to meet different customer needs.
Q: Can you customize lathes for specific requirements?
A: Absolutely. Our company provides comprehensive OEM/ODM services. We can customize spindle configurations, bed lengths, and integrate various control systems like Siemens and Fanuc. Additionally, we offer automation integration. Share your specific specs, and we'll design a tailor - made solution.
Q: How long is the production lead time?
A: Typically, the production lead time for our products is 15 - 25 days. However, if the lathe you're interested in is in stock, we can arrange delivery within 7 days. The exact duration hinges on the model and quantity of your order.
Q: Where is your factory located? How can I visit there?
A: Our factory is strategically located in Yishui County, Shandong Province, China. We warmly welcome clients to conduct quality inspections and factory audits. Just let us know your visit plan, and we'll arrange proper reception.
