CK61160C、G、G/I，CK61200C、G、G/I，CK61250C、G、G/I
HQ
| Quantity: | |
|---|---|
Product Introduction

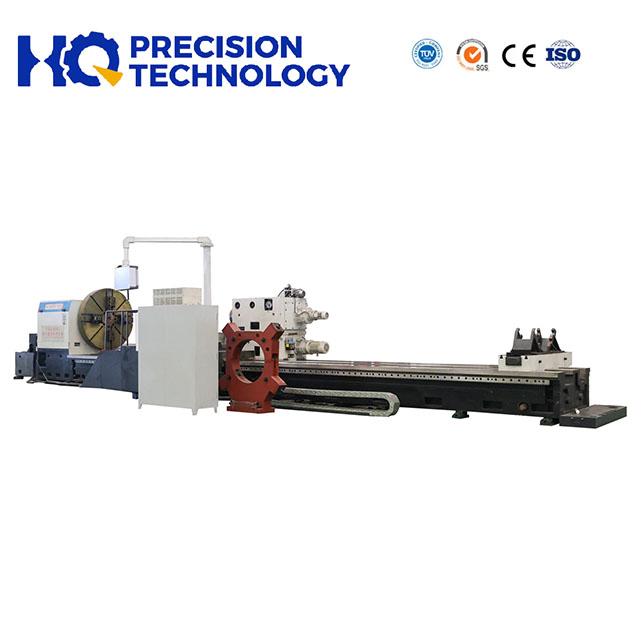

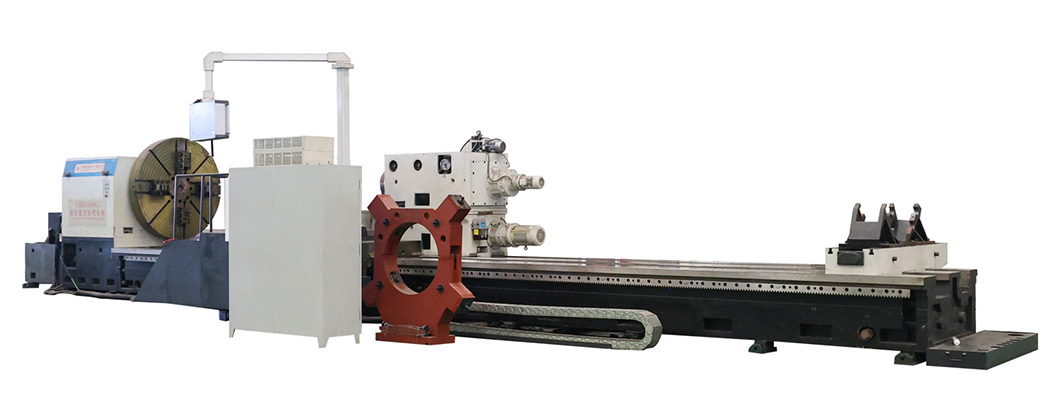

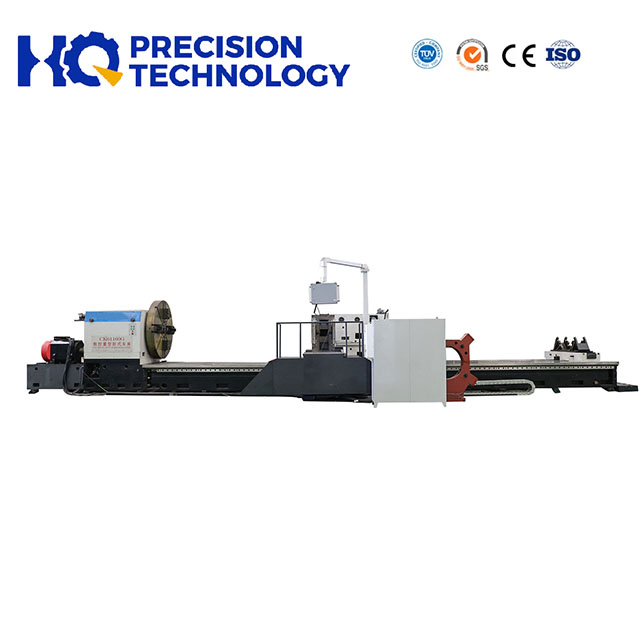

Developed based on our decades of manufacturing experience and global cutting-edge technologies, this heavy duty horizontal lathe series adopts advanced design & manufacturing methods including 3D modeling, simulation and finite element analysis. Featuring modular configurations, the integrated mechatronic machine tool combines precision mechanical design, electrical, hydraulic and automatic control technologies for multi-category high-precision processing.
Product Advantage
FEATURES
The machine tool has many advantages, such as high static and dynamic stiffness, long service life, high efficiency safe and reliable functions, easy operation and beautiful appearance.

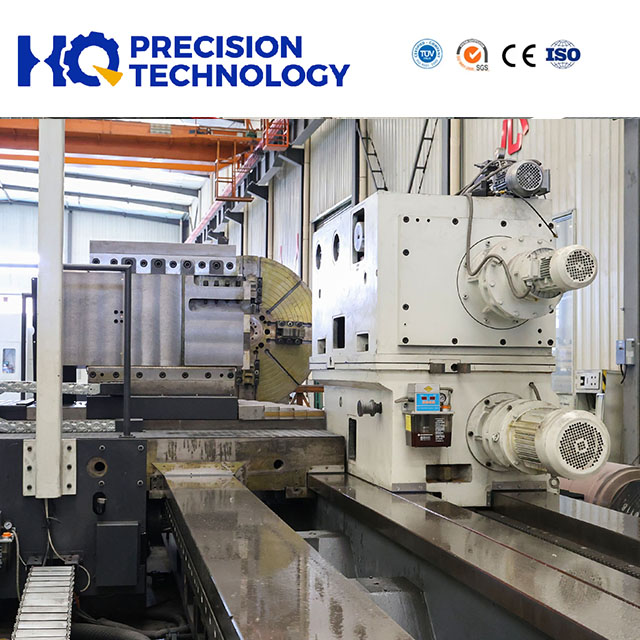

●The spindle of the spindle box is a through-axis structure,which adopts high-precision double-column cylindrical roller bearing support,with high precision and good stability.
●The main drive is driven by AC spindle servo motor or DC motor,with hydraulic two gears,stepless speed regu- lation in gear,wide speed regulation range and good adaptability.
●The bed guide way adopts integral three-guide rail or integral four-guide rail,and adopts fine grinding process- ing method.The main guide rail surface of the bed body is treated by medium frequency quenching, and the
hardness can reach HRC 52.
●The tailstock is an integral box structure,the mandrel in the sleeve adopts double row short cylindrical roller bearing with high precision and adjustable radial clearance.The sleeve and tailstock movement are both pow- er-driven, and equipped with a force measuring device.
●The turret horizontal adopts ball screw,longitudinal adopts high precision rack and double tooth rod gap struc- ture, improving the transmission precision of the turret.

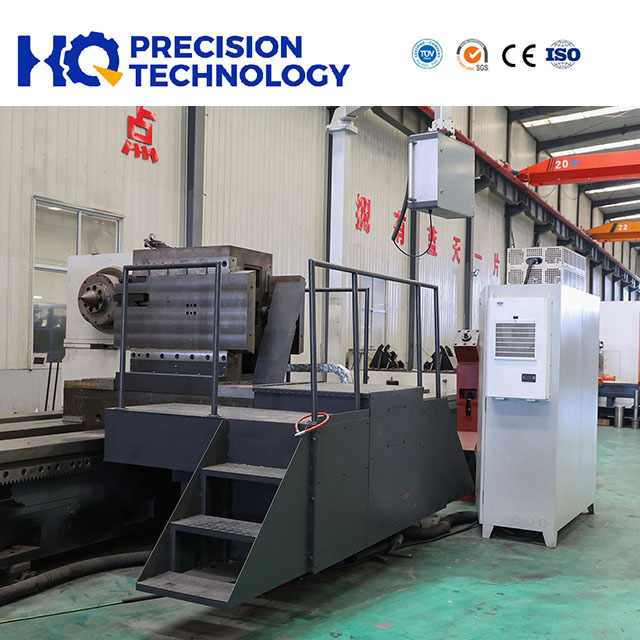

●The machine is equipped with walking platform and hanging button station for easy operation.
●According to user requirements,we can provide double turrets,milling and boring devices,grinding devices, chip conveyors,tool cooling systems,etc.
Technical Parameters
SPECIFICATION | UNIT | CK61160C、G、G/I | CK61200C、G、G/I | CK61250C、G、G/I |
Maximum Swing Over Bed | mm | 600 | 2000 | 2500 |
| Maximum Swing Over Cross Slide | mm | 1250 | 1600 | 2000 |
Maximum Workpiece Length | mm | 4000-20000 | ||
Bed Guideway width | mm | 1615 | 1850 | 2050 |
Bed Guideway Type | Integral three rails | |||
Guideway Load Capacity | T | 32T、40T、50T | ||
Spindle Bore Taper | - | 32T:1:4, φ100mm/ 40T、50T:1:4, φ125mm | ||
Spindle Nose Type | 1:30 Extended spindle head | |||
Spindle Speed Stages | 2-speed hydraulic | |||
Spindle Speed Range | r/min | 0.8-100r/min | ||
Spindle Front Bearing | mm | 32T:320/40T:400/50T:460 | ||
| K78Four-Jaw Independent Chuck | mm | 1600 | 2000 | 2200 |
ToolHolder Type | Frame turret | |||
Turret Tool Travel | 350 | |||
Xfeed axis Max stroke | mm | 500+350 | 700+350 | 930+350 |
Zfeed axis Maxstroke | mm | 4000-20000 | ||
| Rapid Traverse Speed of X Feed Axis | mm/min | 4000 | ||
| Rapid Traverse Speed of Z Feed Axis | mm/min | 4000 | ||
Tailstock Sleeve Diameter | mm | 32T:320/40T,50T:400 | ||
| Front TapeTailstock Sleeve | 32T为1:4,φ100mm/40T、50T为1:4,φ125mm | |||
Tailstock Sleeve Travel | mm | 300 | ||
| Spindle Motor | KW | 90KW | ||
width x Height | mm | 3260×3200 | 3460×3200 | 3660×3200 |
Length (L) | mm | 9900-25900 | ||
Workshop Real Scene

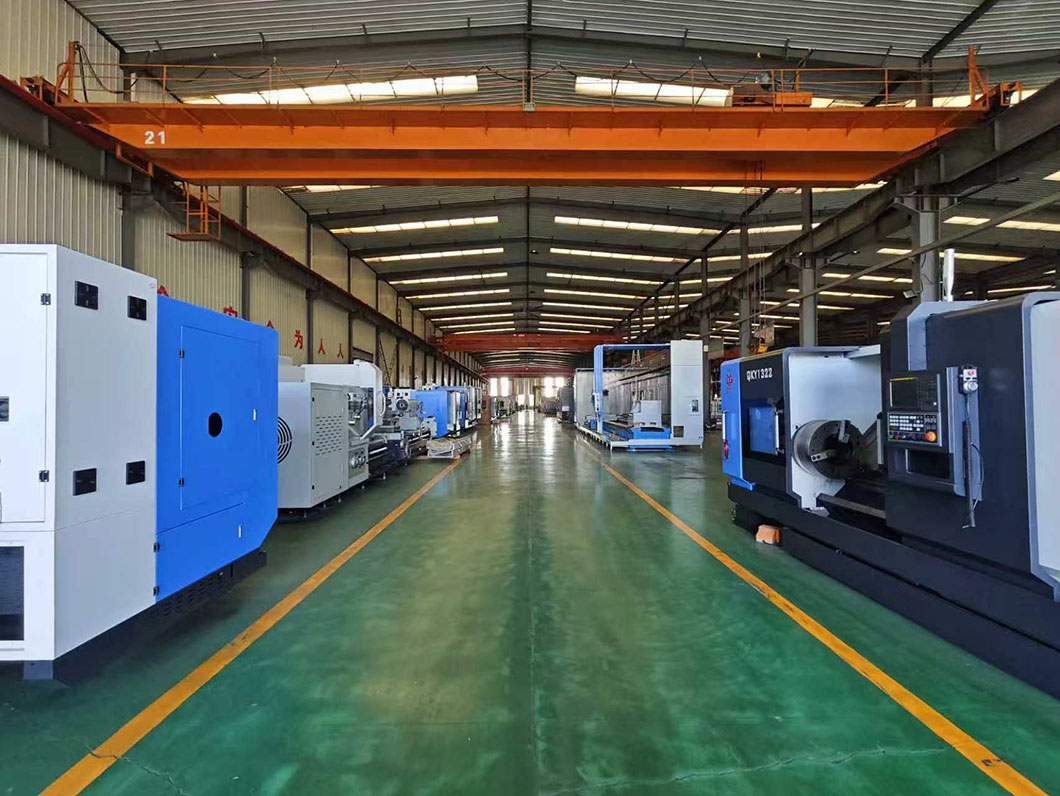

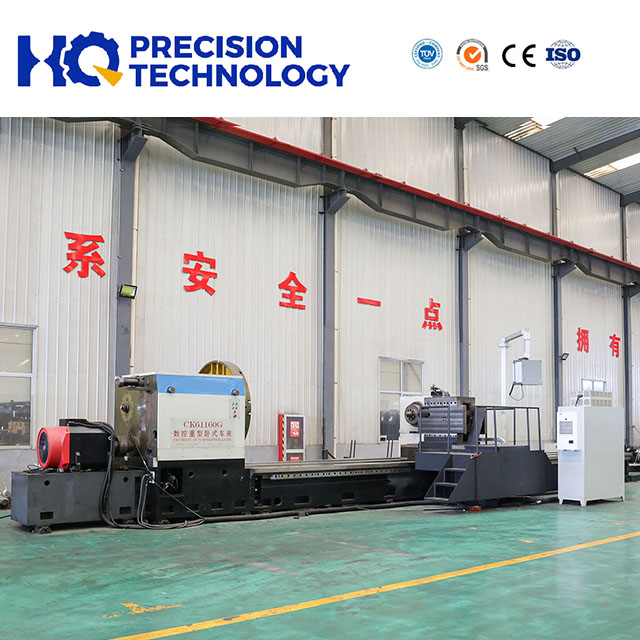

As an original manufacturer with over 70 years of experience in lathe production, our factory covers a plant area of 20,000 square meters. Factory audits can be scheduled in advance. You are welcome to visit our workshop to witness the entire lathe production process on site.
Packing & Transport

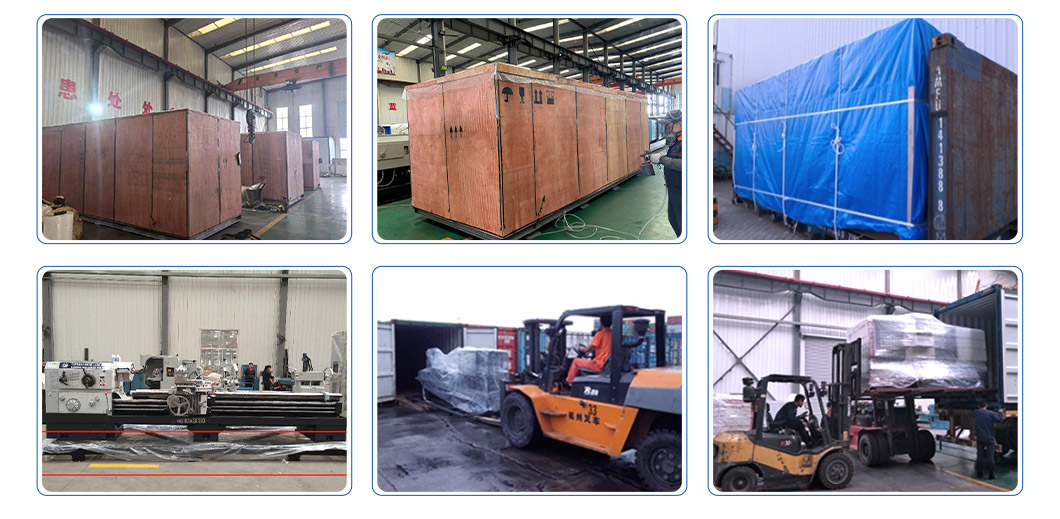

We provide three packaging solutions: unpackaged, pallet-mounted and full wooden case packaging. Our goods are mainly shipped via sea freight and land transportation. We fully accommodate each client’s personalized requests. Once an order is confirmed, our professional team will thoroughly check and fully comply with all your customized specifications.
