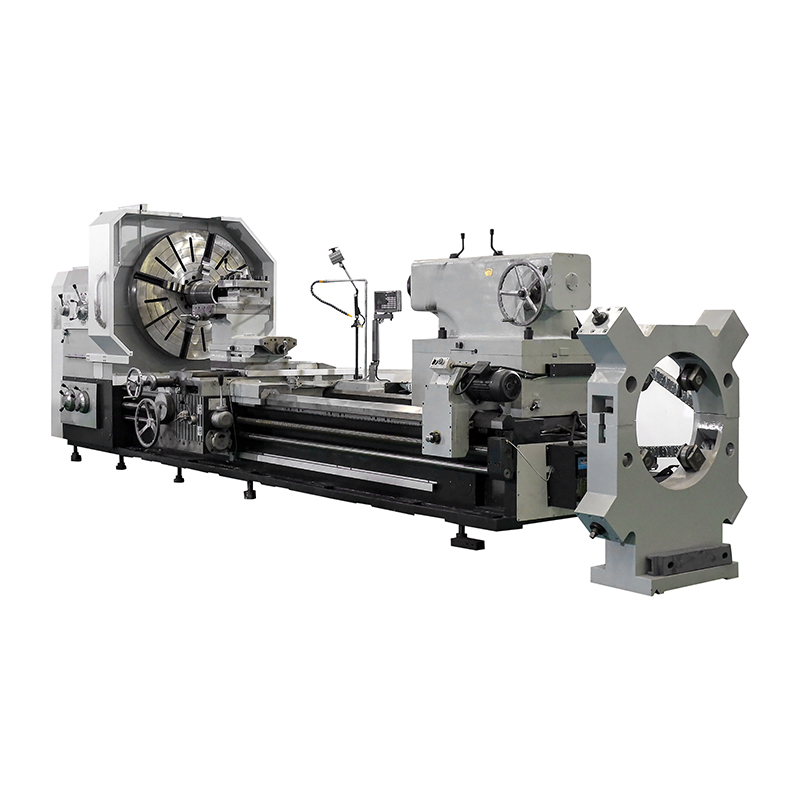

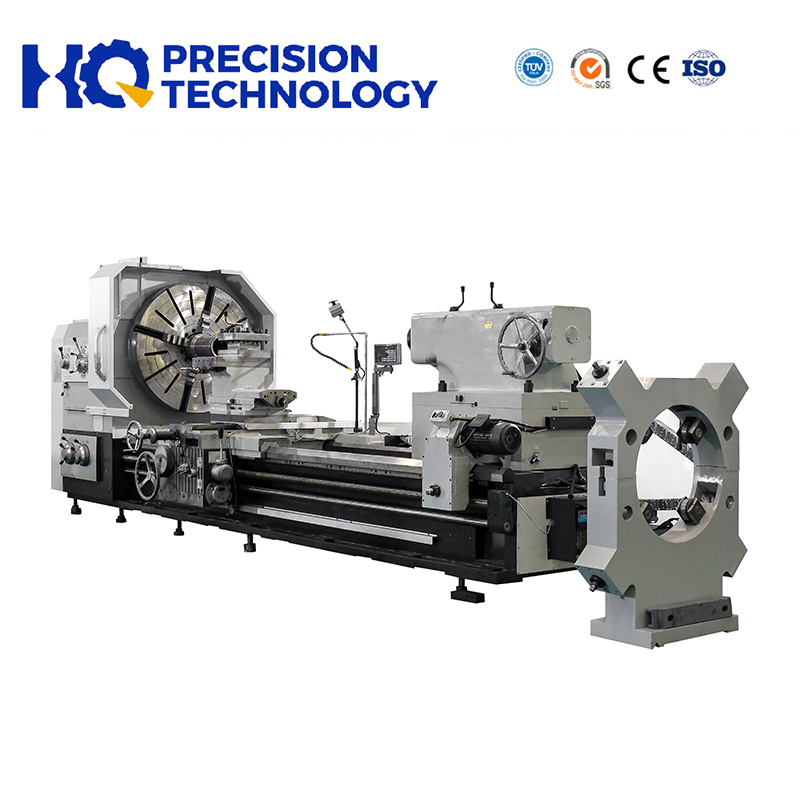

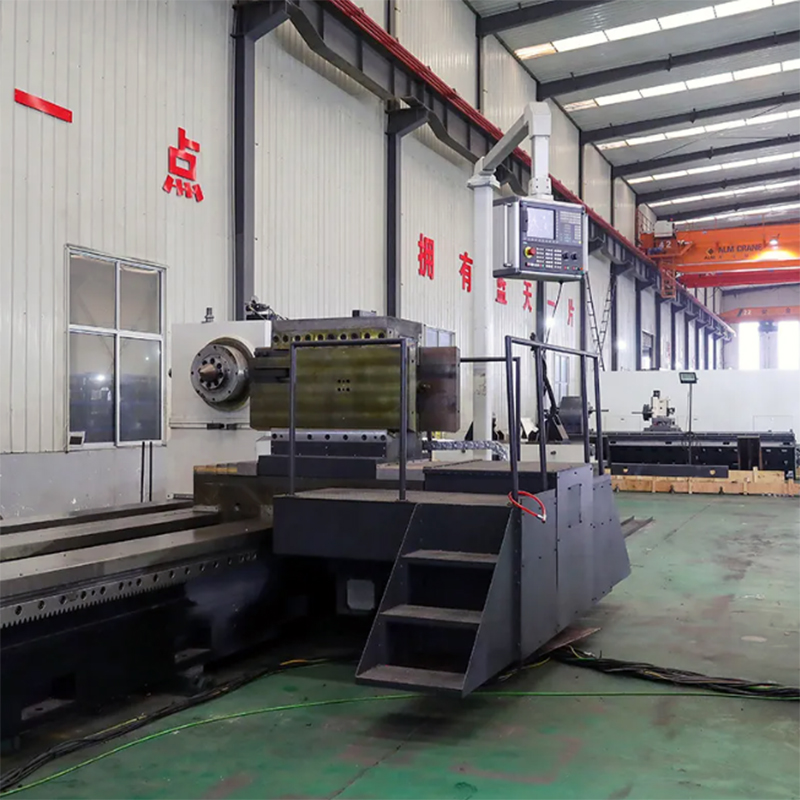

The CW61125H heavy-duty horizontal lathe is a conventional manual metal processing machine, matched for heavy machinery workshops, energy equipment processing plants and large component manufacturing scenarios. The series includes three models: CW61125H, CW61140H and CW61160H, with bed swing diameters ranging from 1300mm to 1700mm and a maximum load capacity of 15 tons. The equipment is used for turning oversized cast iron, carbon steel and non-ferrous metal workpieces, completing cylindrical surfaces, conical surfaces, thread cutting, drilling and oil groove machining processes.

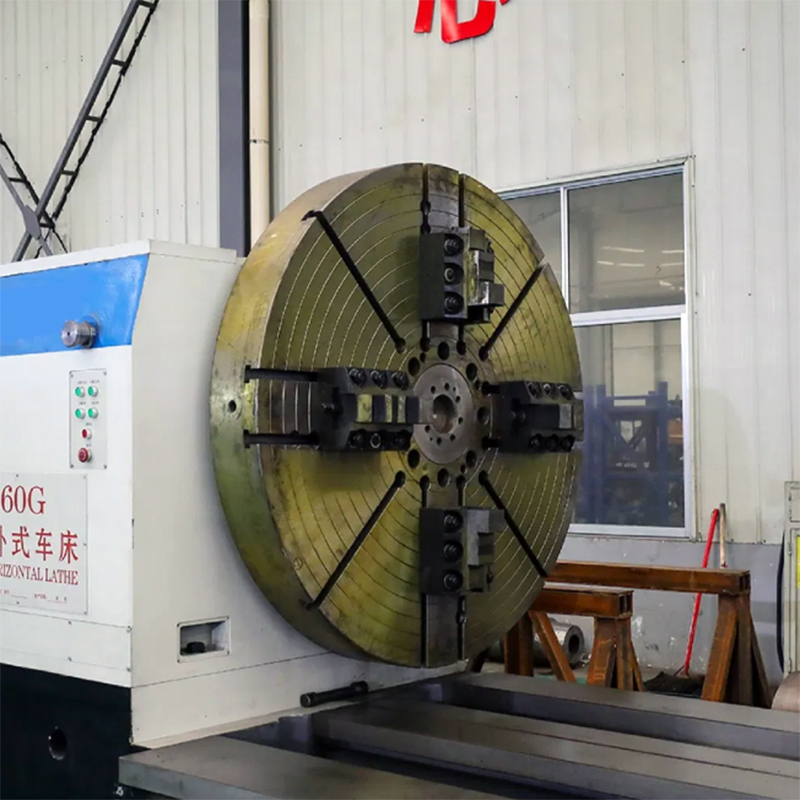

The machine adopts a 1100mm fixed-width guideway and four-stage frequency conversion spindle speed regulation structure. The bed length can be customized from 3000mm to 10000mm to adapt to ultra-long shaft and large-diameter disc workpieces. The equipment is equipped with a large-caliber spindle bore and four-jaw manual chuck structure, which fits the clamping and processing requirements of irregular heavy-duty metal blanks.

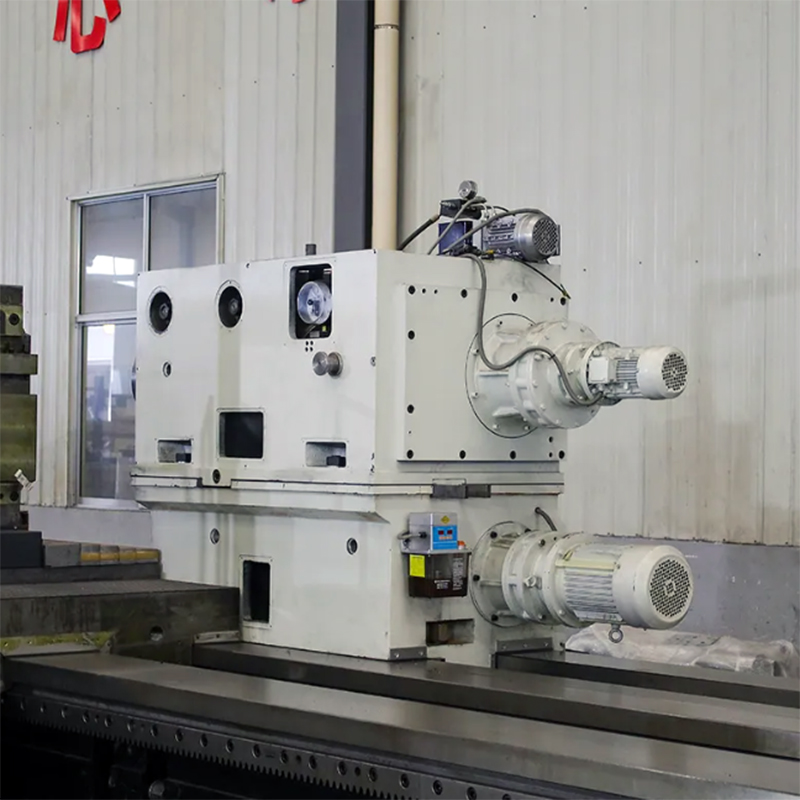

The whole machine bed is cast with high-strength cast iron with thickened internal rib structures. Guideway surfaces are treated with ultrasonic frequency quenching. The carriage contact surface adopts plastic lining technology to adjust surface friction parameters. The spindle adopts an extended nose structure with large bearing specifications to bear heavy cutting loads. The high-power spindle motor matches low-speed high-torque output parameters for bulk material removal processing.
The equipment uses integrated cast iron bed molding, with internal stress eliminated by vibration aging technology. The 1100mm wide guideway undergoes overall quenching and precision grinding treatment to form unified surface hardness. The thickened bed wall and internal rib structure maintain structural stability under 15-ton static load conditions. The guideway structure supports long-term continuous heavy cutting operation modes.
The spindle adopts a 1:30 extended spindle nose, with a 240mm front bearing assembly and a 130mm spindle bore. Four-stage frequency conversion speed regulation covers four fixed speed ranges of 2–37r/min, 23–70r/min, 37–110r/min and 70–200r/min. The X-axis feed range is 0.05–6mm/r, and the Z-axis feed range is 0.1–12mm/r. A 4-station manual turret is configured with 45×45mm tool shank specifications for heavy-duty tool installation.

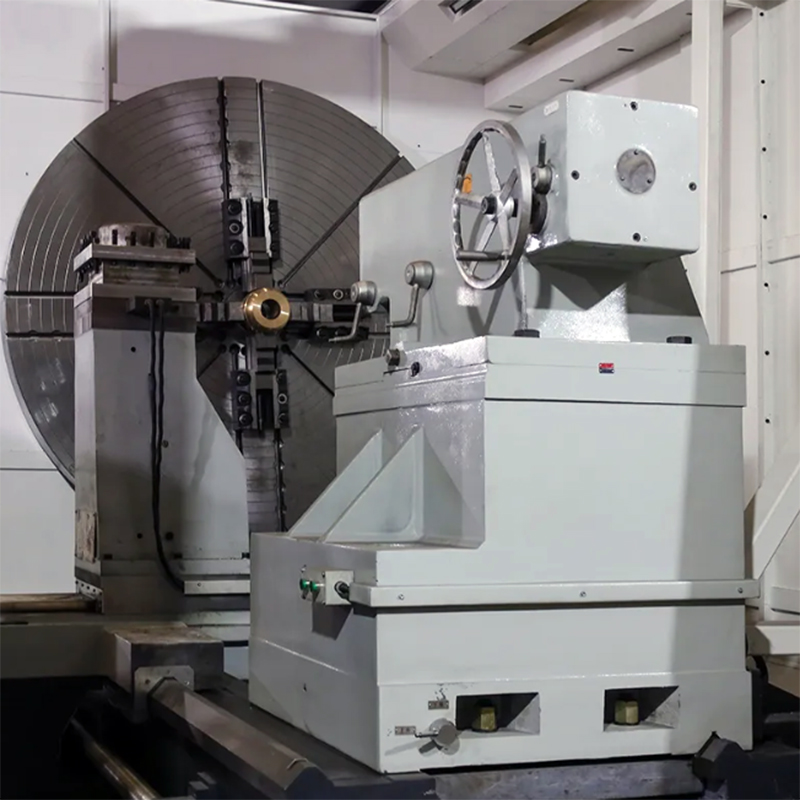

The tailstock is equipped with a 260mm diameter quill tube with Metric 80 taper and 300mm effective travel. The main spindle motor power is 15kW, and the rapid traverse motor power is 1.5kW. The standard configuration is a φ1250 four-jaw manual chuck, which provides multi-point clamping support for large-diameter workpieces. The overall power parameters match the material removal demand of heavy metal blank processing.
Item | Specification | Unit | CW61125H | CW61140H | CW61160H |
|---|---|---|---|---|---|
Processing Range | Swing over bed | mm | φ1300 | φ1500 | φ1700 |
Swing over cross slide | mm | φ850 | φ1050 | φ1250 | |
Max. workpiece length | mm | 3000-10000 | 3000-10000 | 3000-10000 | |
Guideway width | mm | 1100 | 1100 | 1100 | |
Max. load capacity | T | 15 | 15 | 15 | |
Spindle | Spindle bore | mm | φ130 | φ130 | φ130 |
Spindle bore taper | Metric 140 | Metric 140 | Metric 140 | ||
Spindle nose type | 1:30 extended spindle nose | 1:30 extended spindle nose | 1:30 extended spindle nose | ||
Spindle speed steps | 4-step frequency conversion | 4-step frequency conversion | 4-step frequency conversion | ||
Spindle speed range | r/min | 2-37, 23-70, 37-110, 70-200 | 2-37, 23-70, 37-110, 70-200 | 2-37, 23-70, 37-110, 70-200 | |
Spindle front bearing | mm | 240 | 240 | 240 | |
Chuck size | mm | φ1250 4-jaw manual | φ1250 4-jaw manual | φ1250 4-jaw manual | |
Turret | Turret type | 4-station manual turret | 4-station manual turret | 4-station manual turret | |
Tool shank size | mm | 45×45 | 45×45 | 45×45 | |
Feed System | X-axis travel | mm | 650 | 750 | 750 |
Z-axis travel | mm | 2850-9850 | 2850-9850 | 2850-9850 | |
X-axis feed range | mm/r | 56/0.05-6 | 56/0.05-6 | 56/0.05-6 | |
Z-axis feed range | mm/r | 56/0.1-12 | 56/0.1-12 | 56/0.1-12 | |
X-axis rapid traverse | mm/min | 1870 | 1870 | 1870 | |
Z-axis rapid traverse | mm/min | 3740 | 3740 | 3740 | |
Metric thread range | mm | 44/1-120 | 44/1-120 | 44/1-120 | |
Inch thread range | TPI | 31/28-3/8 | 31/28-3/8 | 31/28-3/8 | |
Tailstock | Tailstock quill diameter | mm | φ260 | φ260 | φ260 |
Tailstock quill taper | Metric 80 | Metric 80 | Metric 80 | ||
Tailstock quill travel | mm | 300 | 300 | 300 | |
Motor | Main spindle motor | kW | 15 | 15 | 15 |
Rapid traverse motor | kW | 1.5 | 1.5 | 1.5 | |
Dimension | Width × Height | mm | 2000×1950 | 2250×2050 | 2250×2150 |
Length | mm | 7700-14700 | 7700-14700 | 7700-14700 | |
Weight | Net weight (3m version) | kg | 19070 (+1050kg/m) | 19760 (+1050kg/m) | 20400 (+1050kg/m) |
The equipment supports customized bed extension, tailstock reinforcement and CNC system retrofitting. Special fixture configurations can be matched for roller and pipeline workpiece processing scenarios.
The CW61125H heavy conventional lathe is applied to process ship propeller shafts, hull connecting flanges and marine valve parts. The 15-ton load parameter meets the clamping and turning requirements of large marine metal components.
The equipment is used for processing paper drying rollers, textile printing rollers and rubber coating rollers. The large swing diameter parameter adapts to the outer circle turning of cylindrical roller parts in light industrial production equipment.
Workshops for engineering machinery process hydraulic cylinder barrels, equipment shaft sleeves and mining gear blanks with this lathe. The low-speed high-torque output parameters adapt to the processing of thick alloy steel blanks.
The machine supports thread cutting and turning of pipeline flanges and pressure vessel connecting parts, matching the dimensional standards of conventional petrochemical mechanical connectors.

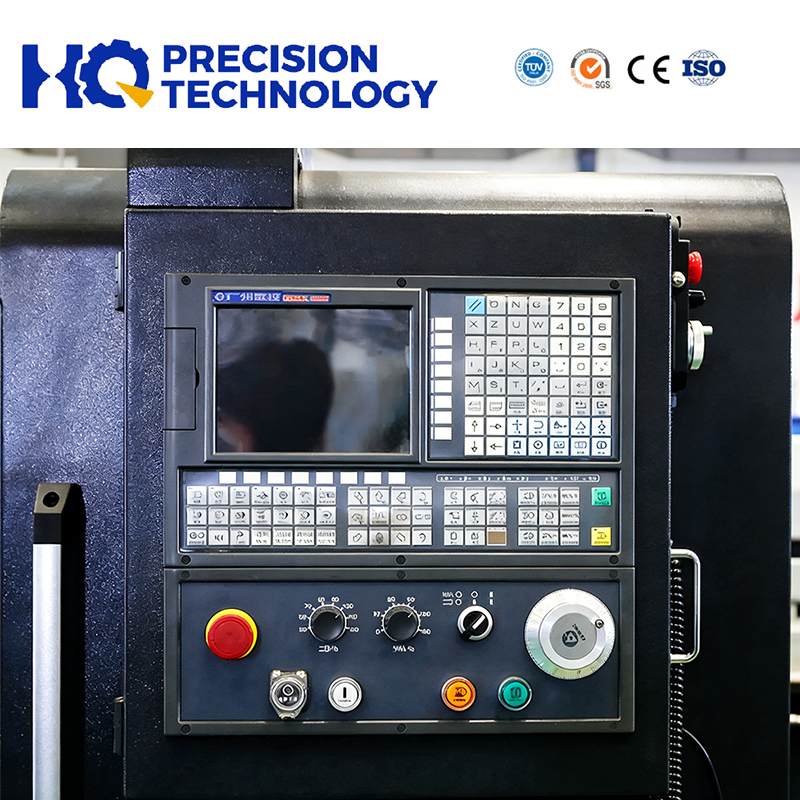

CNC system retrofitting services are available. The factory supports installation of GSK, Siemens and Fanuc control systems, including electrical cabinet transformation, servo drive assembly and post-upgrade precision calibration.
The standard customizable bed length ranges from 3000mm to 10000mm. Extended bed structures of 12000mm to 14000mm can be produced through OEM customization for ultra-long shaft workpieces.
The brand provides 24/7 online technical consultation and on-site installation, commissioning and maintenance services. The equipment passes ISO9001 quality system certification, with complete operation documents and spare parts supply channels.
The manufacturing factory was established in 1952, with fixed assets of over 600 million yuan and more than 60 professional technical engineers. The enterprise holds 30 machining equipment patents and maintains an annual output of 1000 lathe units, with standardized mass production processes.
