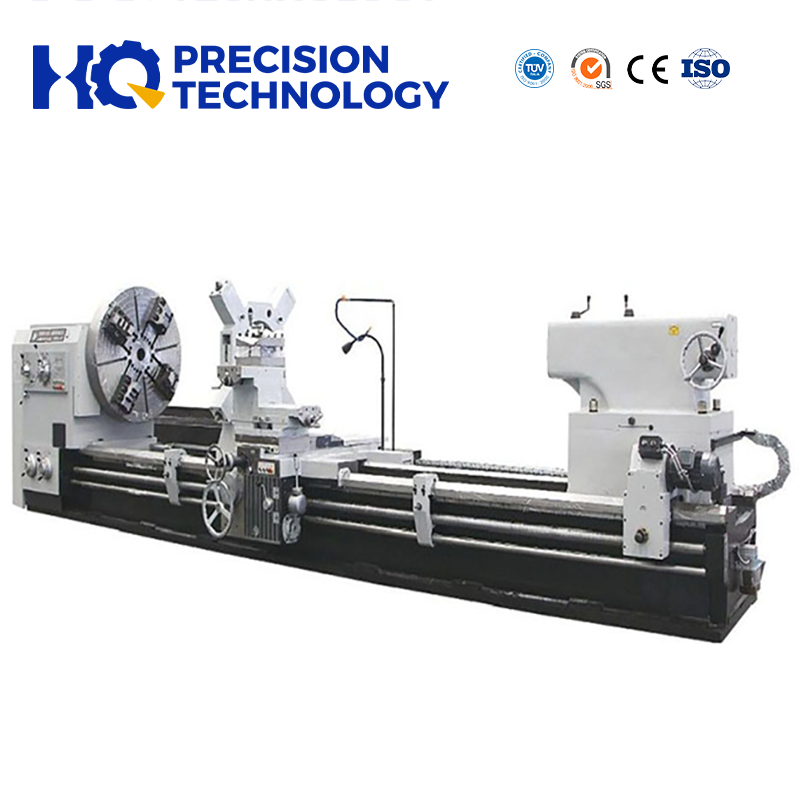

Technical Parameters
Technical specifications | Unit | CK61160A | CK61200A | CK61220A | CK61250A |
Maximum rotation diameter on the bed | mm | φ1600 | φ2000 | φ2200 | φ2500 |
Maximum cutting diameter on tool holder | mm | φ1250 | φ1600 | φ1800 | φ2000 |
Maximum workpiece length | mm | 4000-20000 | |||
Bed rail span | mm | 1350 | |||
Guide rail load-bearing range | T | 25 | |||
Spindle bore taper | Short cone flange type, Taper1:4, φ80 | ||||
Spindle head type | 1:30 Extended spindle head | ||||
Spindle speed range | r/min | 1-200 | |||
Specifications of four-jaw single-action chuck | mm | φ1250 | φ1600 | φ1600 | φ2000 |
Tool holder vertical and horizontal feed | mm/min | 1-500 | |||
Tool holder vertical and horizontal fast moving speed | mm/min | 4000 | |||
X feed axis maximum travel | mm | 500 | 700 | 900 | 900 |
Tailstock sleeve front end taper hole | Short cone flange type, Taper1:4, φ80 | ||||
Tailstock sleeve moving distance | mm | 300 | |||
Sleeve moving speed | mm/min | 50 | |||
Tailstock fast moving speed | mm/min | 2000 | |||
Spindle motor | KW | 65KW | |||
Performance characteristics
Our Flat Bed CNC Lathe is a high performance machining tool designed to meet the diverse needs of modern manufacturing. It combines advanced CNC technology with a robust flat bed structure, offering precision, reliability, and versatility. The lathe is engineered to handle a wide range of materials, from metals such as steel, aluminum, and copper to plastics and composites. With its user friendly interface and high speed operation, it is suitable for both small batch production and large scale manufacturing.
1. High Precision: Equipped with high quality linear guides and precision ball screws, our Flat Bed CNC Lathe ensures extremely accurate machining. The positioning accuracy can reach up to ±0.001mm, enabling the production of complex and high tolerance parts.
2. Powerful Spindle: The lathe features a high torque spindle motor that can achieve a maximum speed of [X] RPM. This powerful spindle allows for efficient cutting of various materials, even hard metals, and ensures smooth operation during high speed machining.
3. Multi Axis Control: It comes with multi axis control, typically including X and Z axes, and can be optionally equipped with additional axes such as C axis for more complex machining operations. This multi axis functionality enables the creation of intricate shapes and features, such as threads, grooves, and contours.
4. Automatic Tool Changer: Our lathe is integrated with an automatic tool changer (ATC) system. The ATC can hold multiple tools, usually ranging from [X] to [Y] tools, allowing for quick and seamless tool changes during the machining process. This significantly reduces non cutting time and increases overall productivity.
5. Robust Construction: The flat bed design provides excellent stability and rigidity. The machine base is made of high quality cast iron, which effectively absorbs vibration during machining, ensuring consistent accuracy and surface finish.

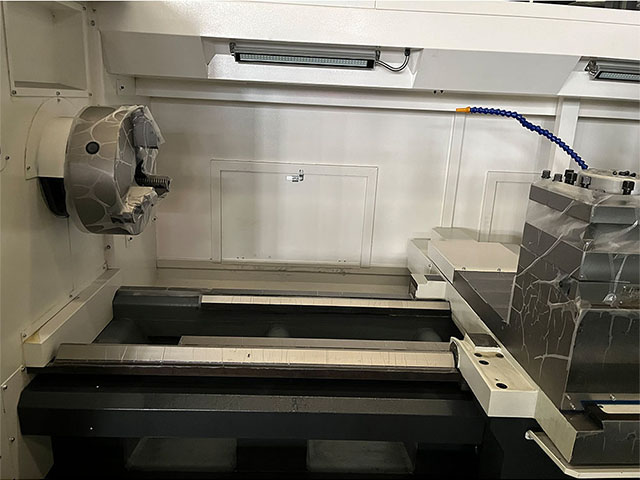

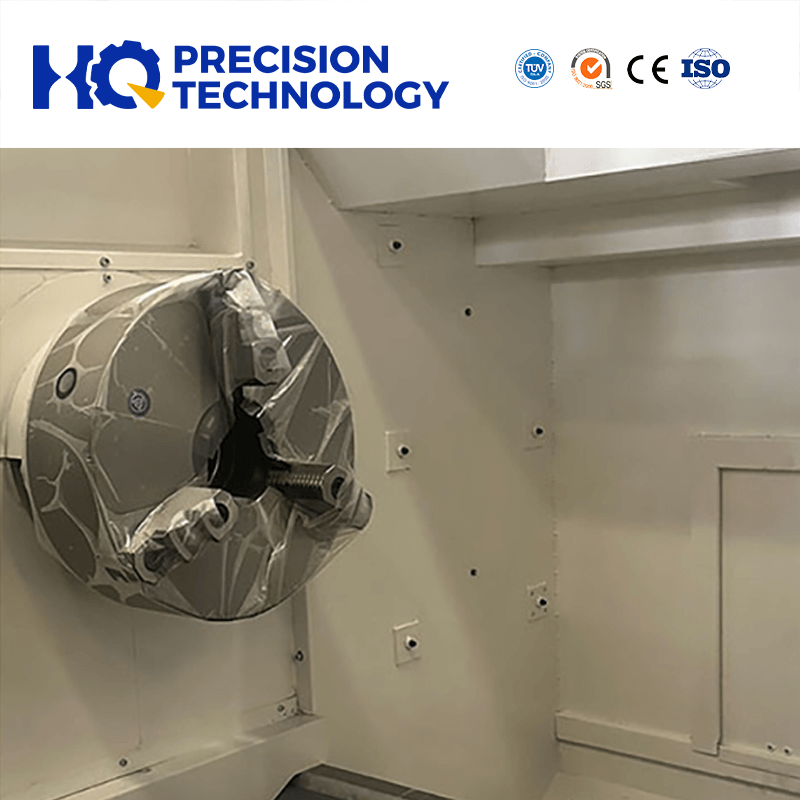

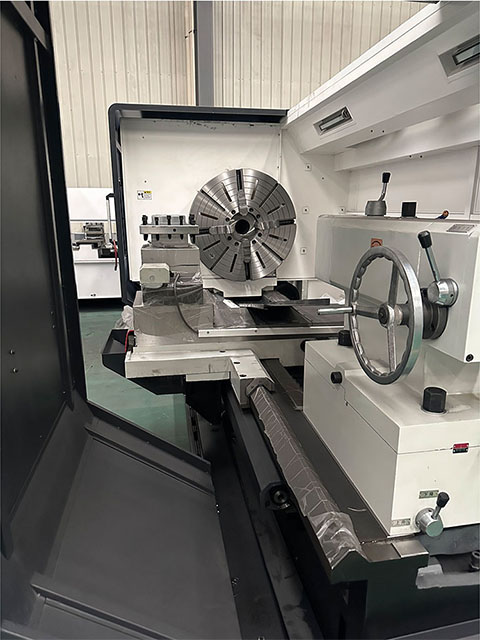

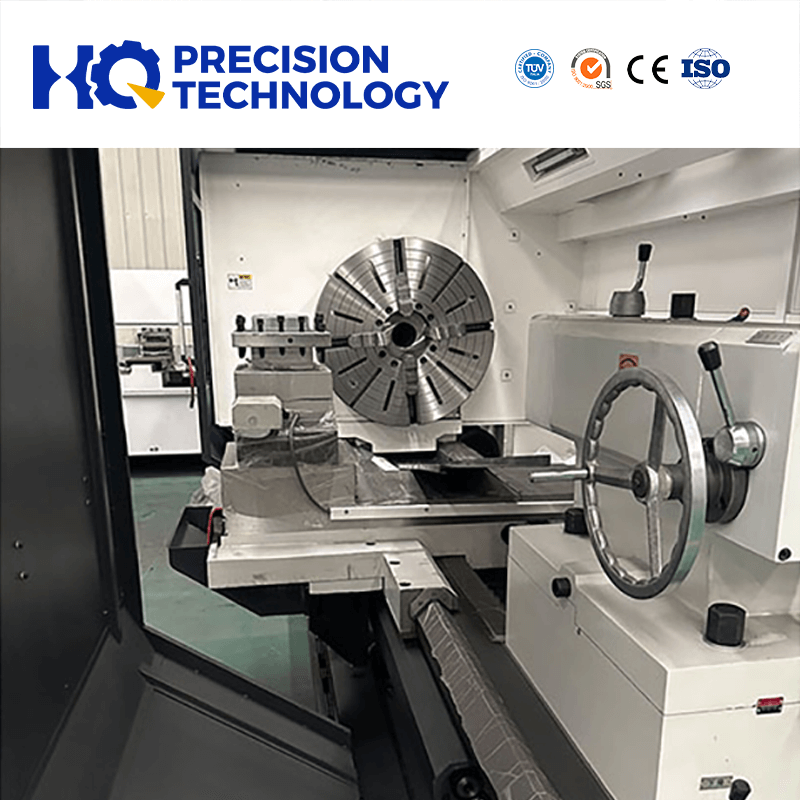

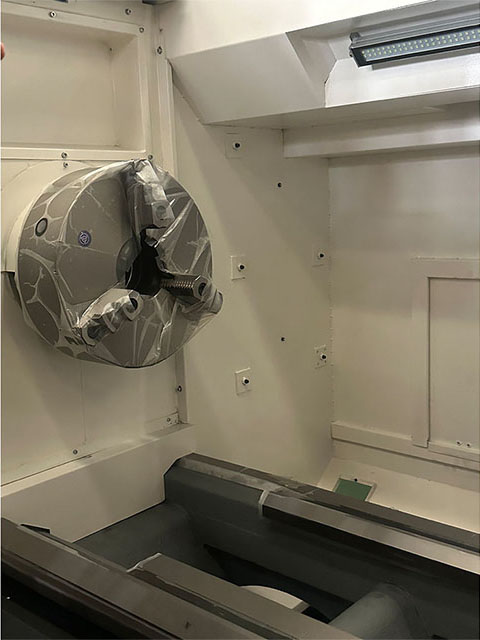

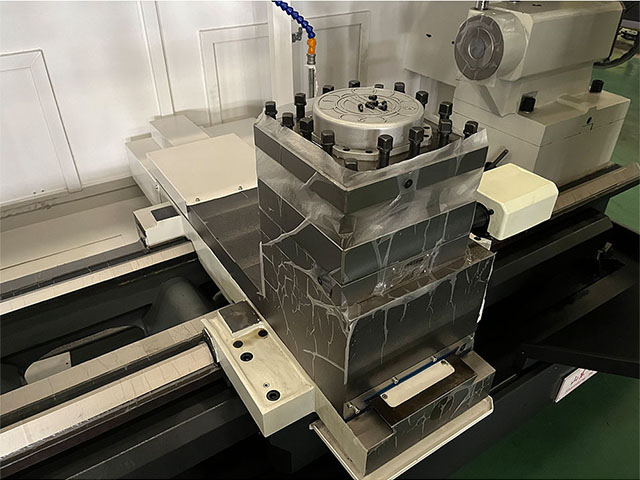

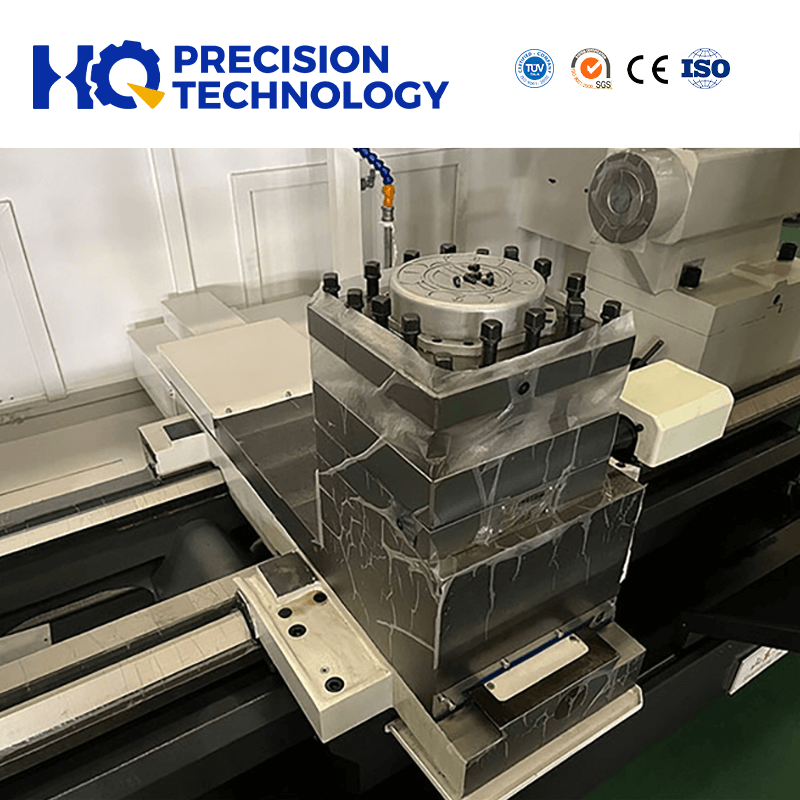

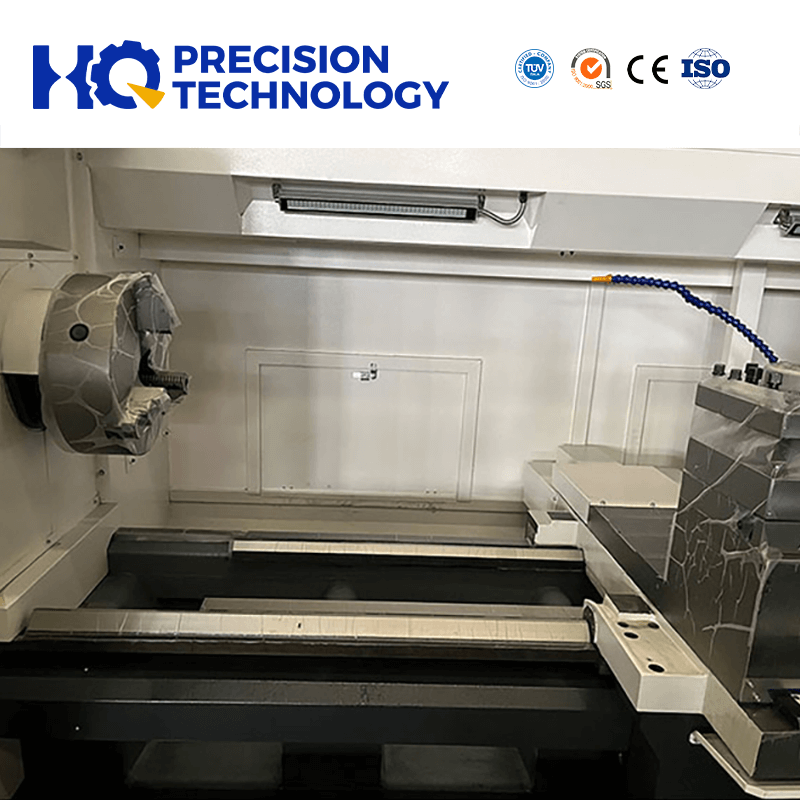

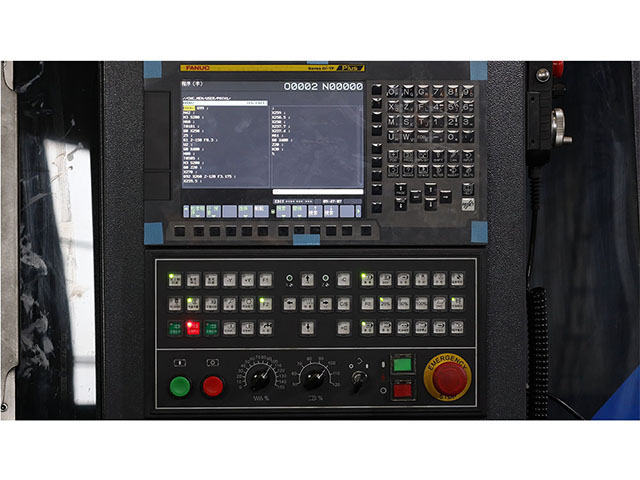

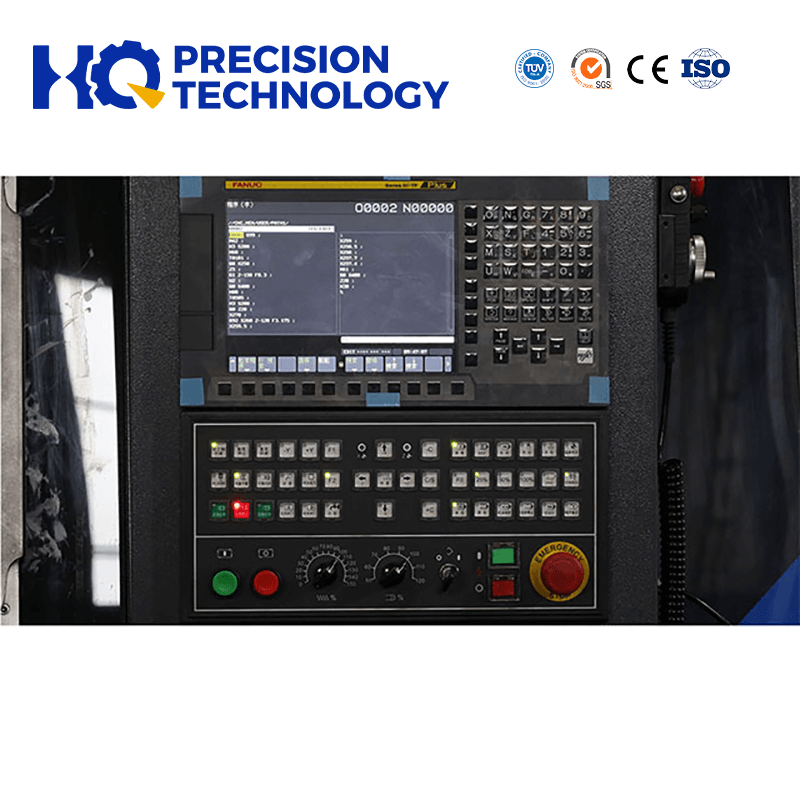

Product Detail Photos
 |  | ||
 |  |  | |
