Product Introduction
This series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc. Optional Fanuc or other brand CNC controller, hydraulic or power turret, pneumatic or hydraulic chuck, hydraulic tailstock, full-shield.
Product Advantage
1.One-piece bed adopts high strength iron to ensure rigidity and precision
Our Good Rigidity Lathe, crafted as a high - end CNC Lathe, features a one - piece bed made of high - strength iron. This design maximizes rigidity, minimizes vibration, and ensures precision during metal turning operations. Ideal for OEM/ODM projects, it serves various applications from Flat bed lathes to universal lathes.
2.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
The ultrasonic frequency quenched guide - ways in this High Efficiency Lathe play a crucial role. They offer enhanced durability and wear - resistance, reducing maintenance needs. Suitable for multi - functional CNC lathes, they are essential for long - term, accurate operation in metal lathe work.
3.Carriage and guide-way contact surface use Turcite B to maintain accuracy
The contact surface between the carriage and guide - ways in our High Precision Lathe uses Turcite B. This advanced material minimizes friction, maintaining consistent accuracy. It's a key feature for CNC lathes involved in precision metal turning and diverse OEM/ODM manufacturing tasks.
Detail Pictures

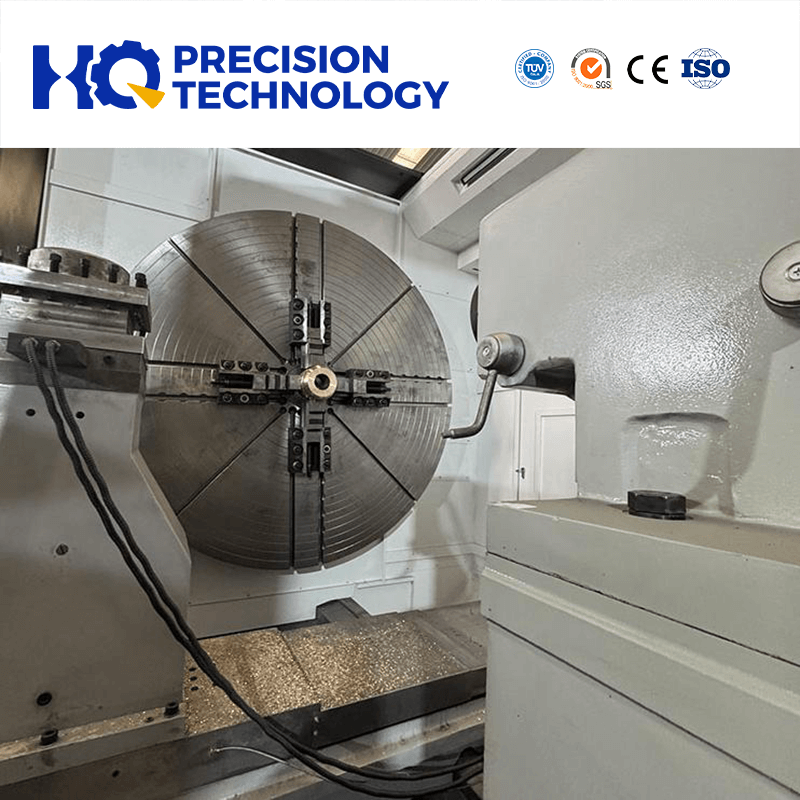

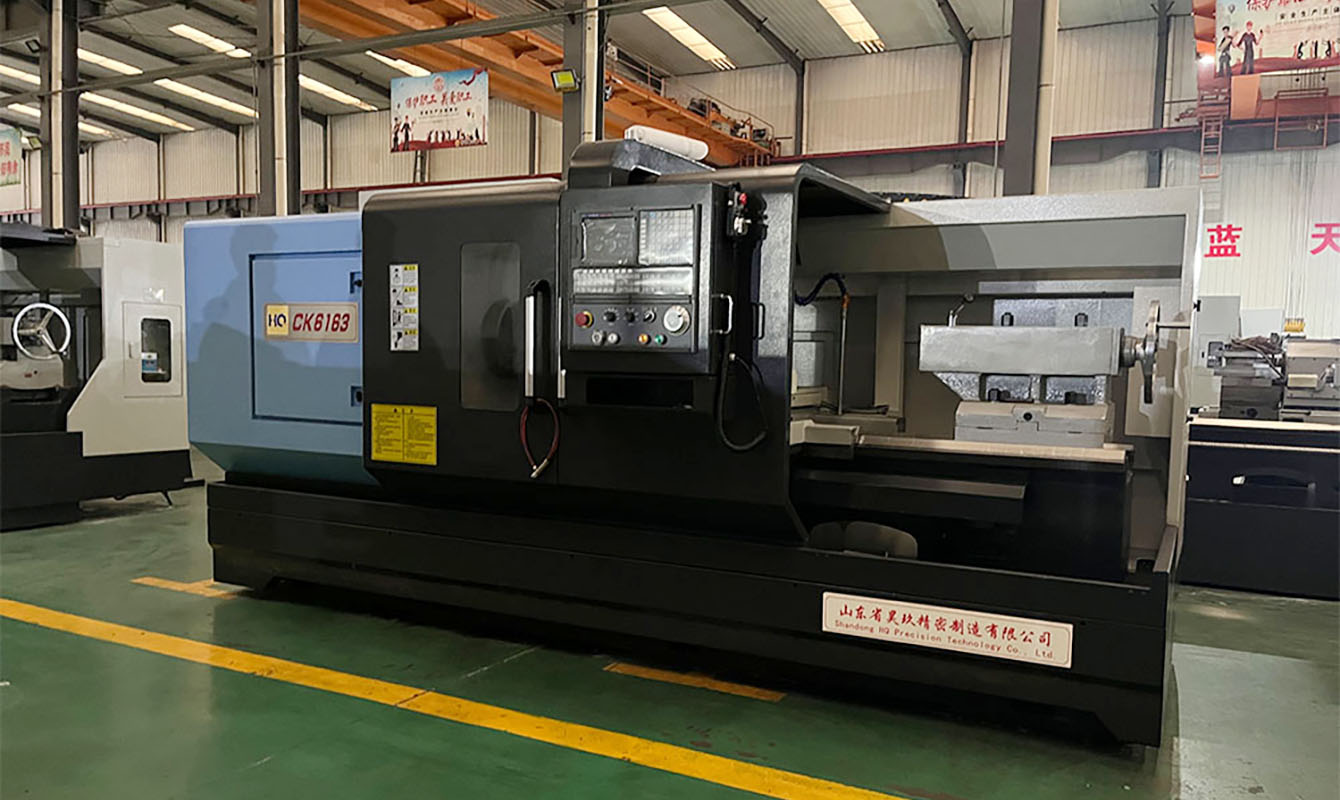

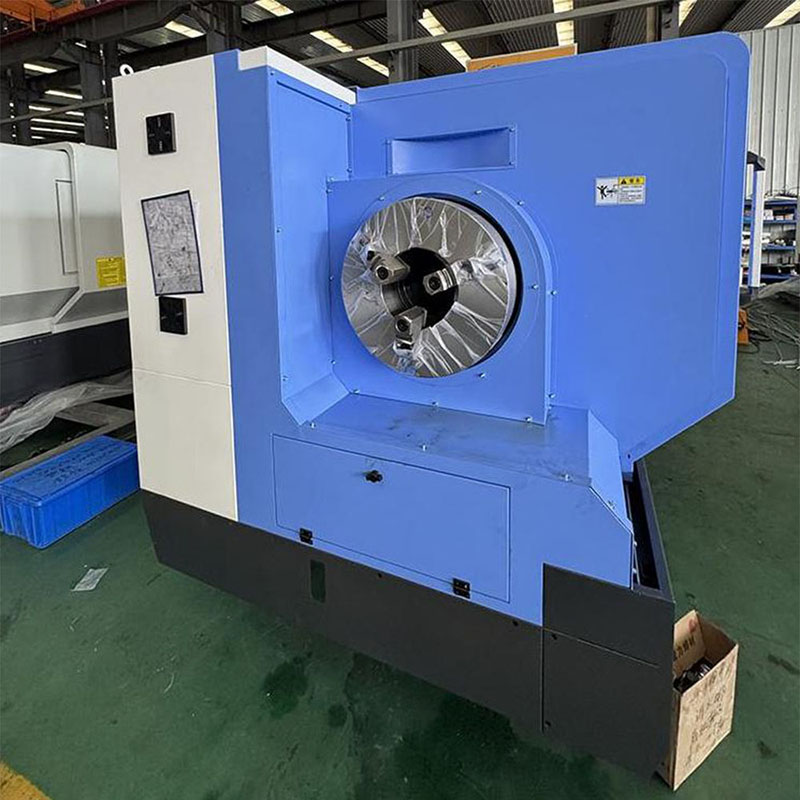

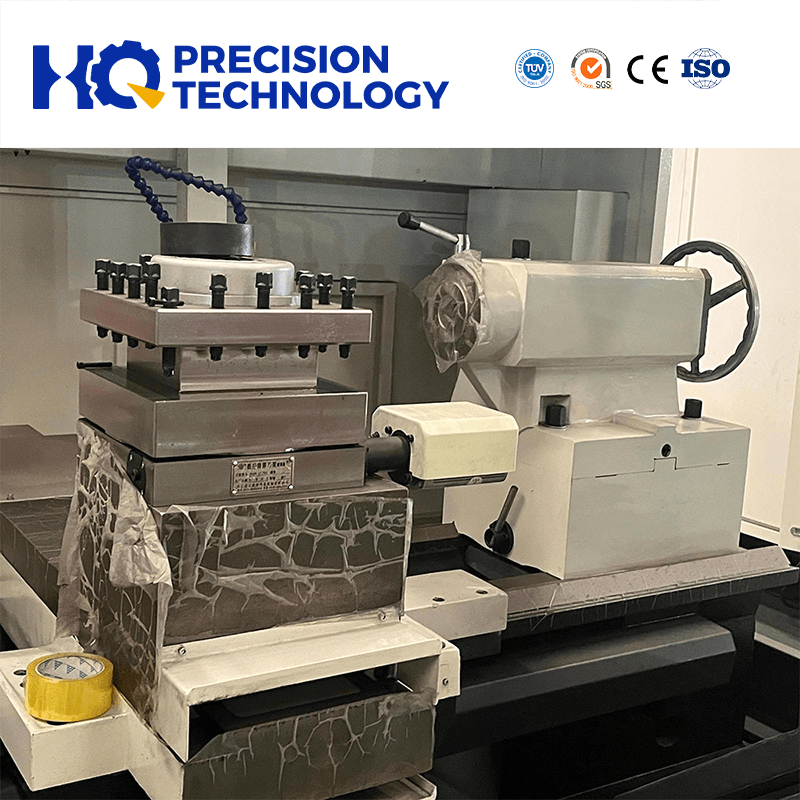

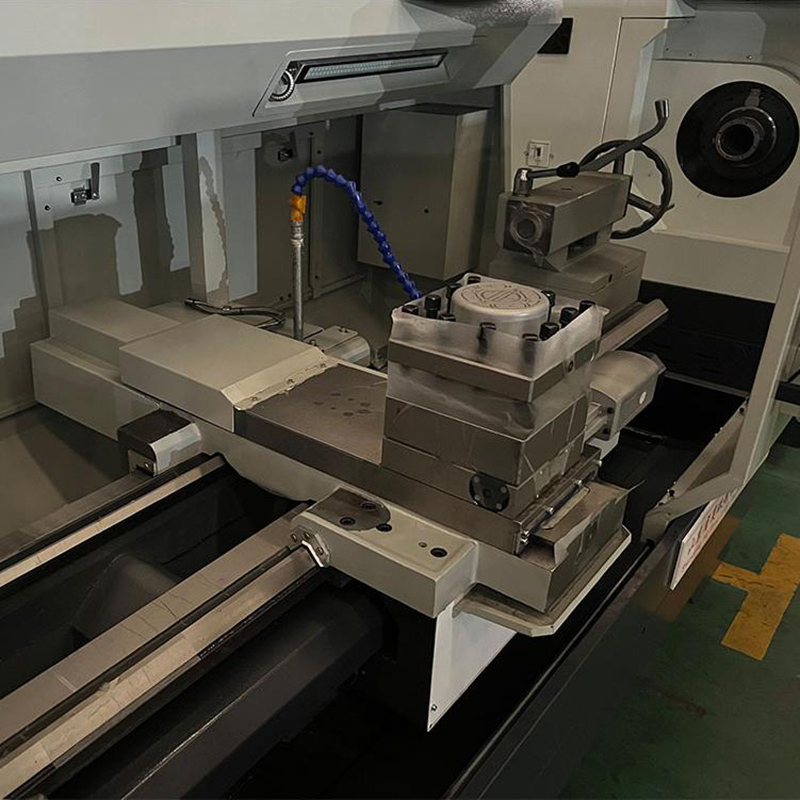

CNC Lathe |

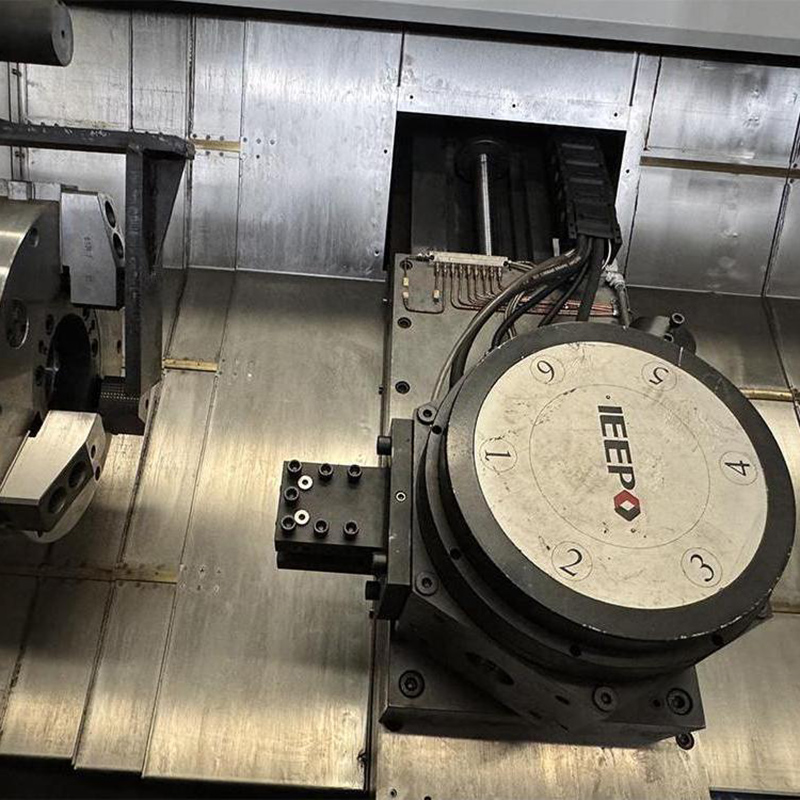

High precision CNC Lathe |
High precision Lathe |

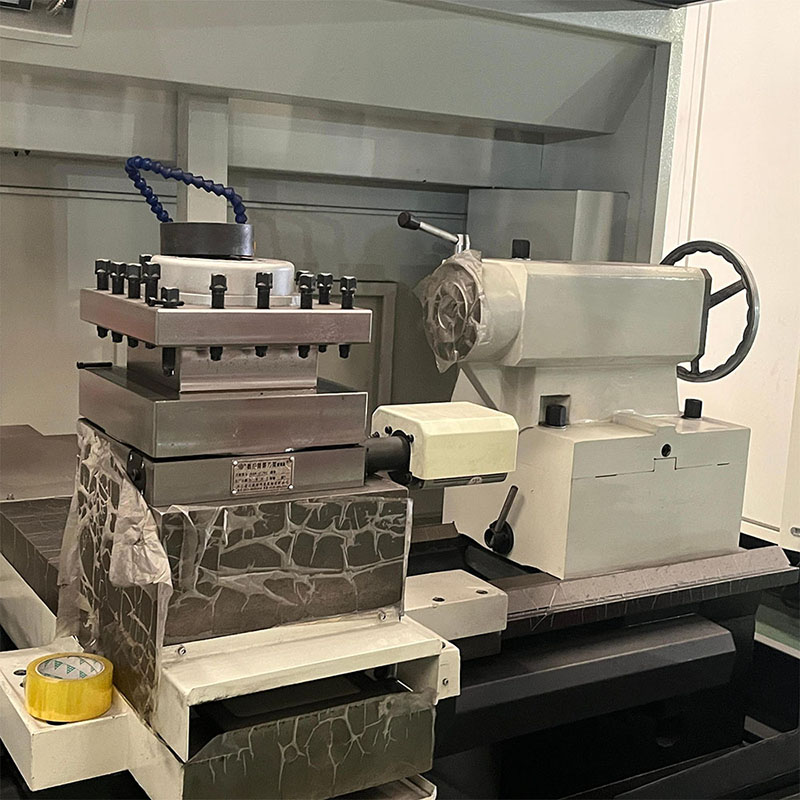

Lathe |

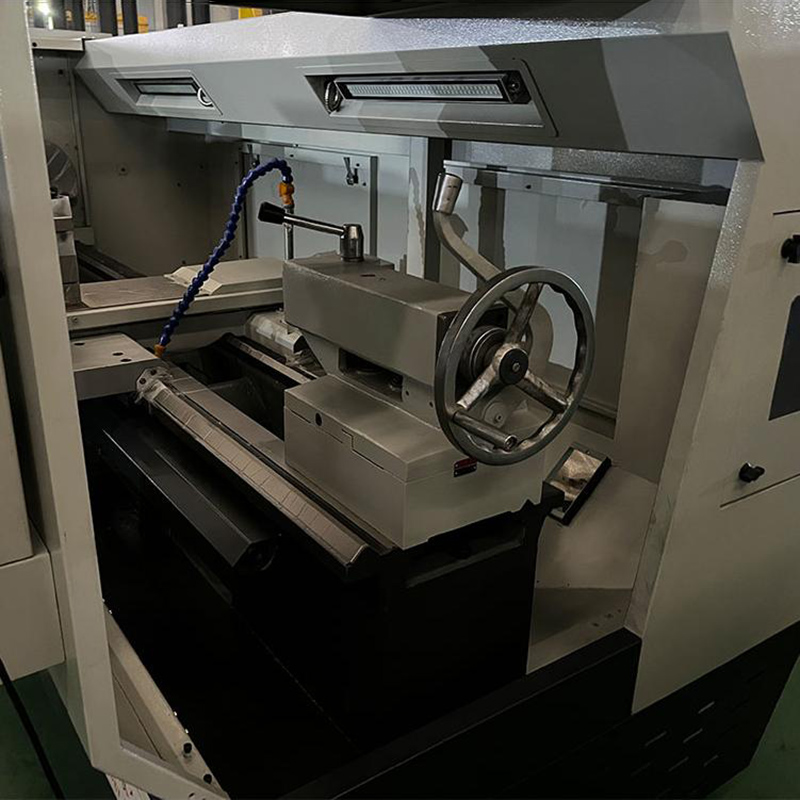

Multi-functional CNC Lathe |

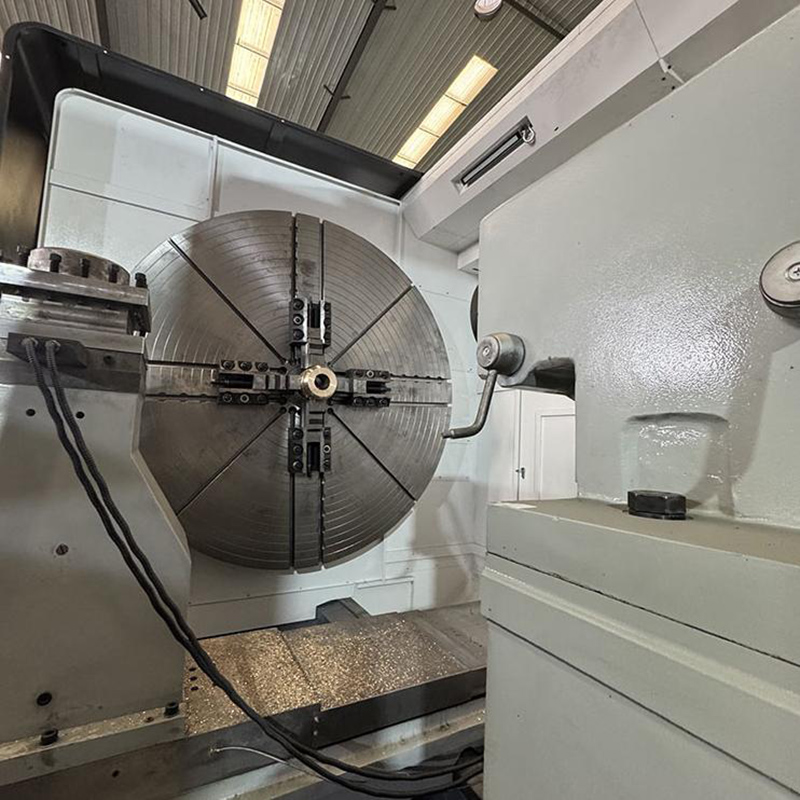

Slant Bed Lathe |
Technical Parameters
| SPECIFICATION | UNIT | CK6163 | CKQ6180(550) | |||
| Manual | HYD. | Manual | HYD. | |||
| Capacity | Swing over bed | mm | 630 | 800 | ||
| Swing over cross slide | mm | 350 | 520 | |||
| Distance between centers | mm | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | |||
| Guideway width | mm | 550 | 550 | |||
| Max. load capacity | T | 3 | 3 | |||
| Spindle | Spindle bore | mm | 104 | 104 | ||
| Spindle bore taper | 一 | Metric φ120/MT5 | Metric φ120/MT5 | |||
| Spindle nose type | 一 | C11 | C11 | |||
| Spindle speed steps | 一 | VF. 3 steps | HYD, 4 steps | VF. 3 steps | HYD, 4 steps | |
| Spindle speed range | rpm | 20-1000 | 17-1000 | 20-800 | 17-800 | |
| Chuck | mm | φ315 3-jaw manual | φ315 3-jaw manual | |||
| Turret | Turret/tool post | - | NC turret 4 position | NC turret 4 position | ||
| Tool shank size | mm | 32x32 | 32x32 | |||
| Feed | X axis travel | mm | 320 | 420 | ||
| Z axis travel | mm | 1350/1850/2850 | 1350/1850/2850 | |||
| X axis rapid traverse | mm/min | 4000 | 4000 | |||
| Z axis rapid traverse | mm/min | 6000 | 6000 | |||
| Tailstock | Tailstock quill diameter | mm | 4>100 | 4.1 | ||
| Tailstock quill taper | MT5 | MT5 | ||||
| Tailstock quill travel | mm | 250 | 250 | |||
| Motor | Main spindle motor | kW | 11 | 11 | ||
| Coolant pump motor | kW | 0.125 | 0.125 | |||
| Dimension | Width x Height | mm | 1750x1850 | 1850x1900 | ||
| Length | mm | 3800/4300/5300/6300/7300/8300 | 3800/4300/5300/6300/7300/8300 | |||
| Weight | Net weight | T | 3.8/4.2/4.9/5.677.3 | 4.3/47/5.4/6.1/6.8/7.5 | ||
| Please note: Swing diameter and bed length can customize according to real work demand, machine can choose servo motor direct driving structure turning center with C axis. | ||||||
Products Uses
1. Machinery Parts Manufacturing
Flat - bed CNC lathes excel in fabricating intricate machinery parts like motor shafts and gear shafts. They are widely used in automotive and aerospace industries, ensuring high - precision and consistent production.
2.Hardware Processing
When manufacturing standard hardware items such as nuts and bolts, flat - bed CNC lathes demonstrate high processing efficiency. Their parameter adjustment allows for mass production of various - sized products, cutting down costs.
2. Mold Manufacturing
In mold production, flat - bed CNC lathes are crucial for precisely machining cores and cavities. They can handle complex shapes with high precision, contributing to the creation of top - quality molds.
3. Repair and Custom Processing
For equipment repair or customized parts, flat - bed CNC lathes offer flexibility. Their adaptable processing techniques enable efficient production of small - batch, diverse products.
Product Video
FAQ
Q: What types of lathes do you offer?
A: We specialize in a diverse range of lathes. Our offerings include high - precision CNC lathes, traditional engine lathes, compact bench lathes, and robust heavy - duty industrial lathes. Each category has models with varying spindle speeds, swing diameters, and automation levels to meet different customer needs.
Q: Can you customize lathes for specific requirements?
A: Absolutely. Our company provides comprehensive OEM/ODM services. We can customize spindle configurations, bed lengths, and integrate various control systems like Siemens and Fanuc. Additionally, we offer automation integration. Share your specific specs, and we'll design a tailor - made solution.
Q: How long is the production lead time?
A: Typically, the production lead time for our products is 15 - 25 days. However, if the lathe you're interested in is in stock, we can arrange delivery within 7 days. The exact duration hinges on the model and quantity of your order.
Q: Where is your factory located? How can I visit there?
A: Our factory is strategically located in Yishui County, Shandong Province, China. We warmly welcome clients to conduct quality inspections and factory audits. Just let us know your visit plan, and we'll arrange proper reception.
