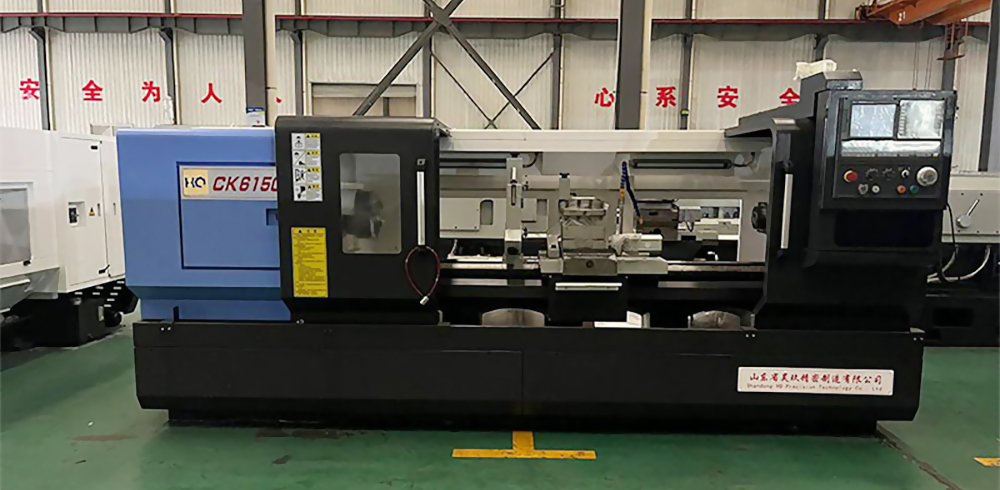

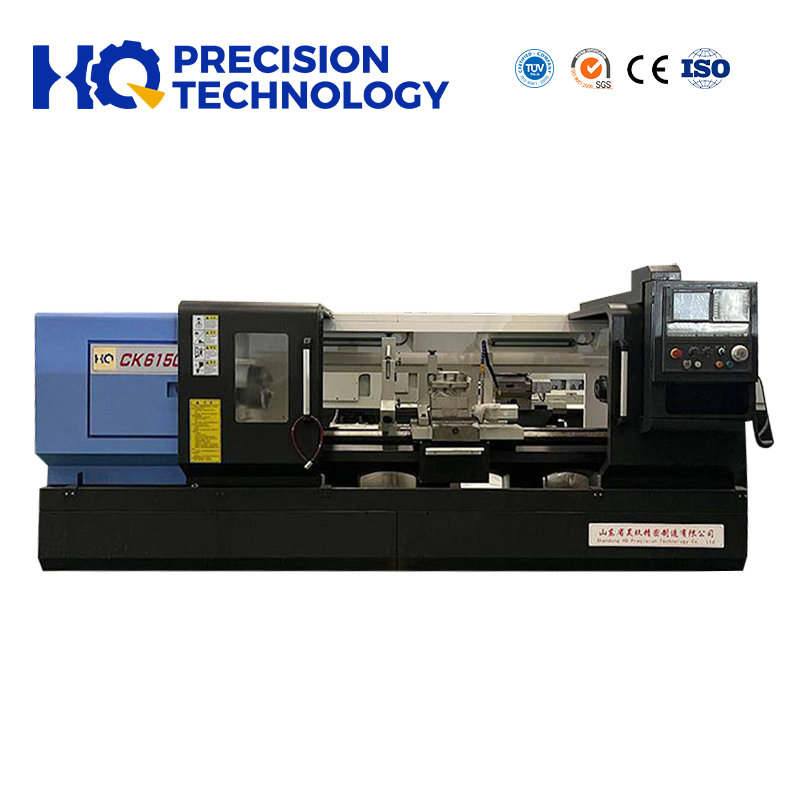

Product Introduction
This series CNC lathe is universal standard light duty automatic machining equipment for metal processing, suitable to process small and mid-size shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
Product Advantage
1. Our Double Guideway CNC Lathe stands out with double V guide - ways. This design enhances stability, allowing for smooth operation. Ideal for high - precision and high - efficiency lathe tasks, it's perfect for metal lathe jobs.
2. Equipped with mid - position lead - screw installation, this High Precision Lathe ensures top - notch accuracy. It minimizes errors during operation, making it suitable for both universal lathe and slant bed lathe applications.
3. The guide - way and lead - screw of our CNC Lathe feature full protect covers. This shields against chip damage, maintaining the lathe's good rigidity and making it a reliable choice for metal lathe work.
4. Constructed with a one - piece bed of high - strength iron, this Good Rigidity Lathe offers enhanced rigidity and precision. It's suitable for heavy - duty operations, from metal lathe to OEM/ODM projects.
5. Our lathe's ultrasonic frequency quenched guide - ways provide excellent wear - resistance. This extends the lifespan, making it a long - term investment for high - efficiency lathe and metal lathe operations.
6. Using Turcite B on the carriage and guide - way contact surface, this High Precision Lathe maintains accuracy. It reduces friction, crucial for smooth operation in slant bed lathe applications.
Detail Pictures
CNC Lathe |
High precision CNC Lathe |
High precision Lathe |
Lathe |
Multi-functional CNC Lathe |
Slant Bed Lathe |
Technical Parameters
| SPECIFICATION | UNIT | CK6150 | CK6156 | |||
| Manual | Manual | Manual | Manual | |||
| Capacity | Swing over bed | mm | 500 | 500 | 500 | 560 |
| Swing over cross slide | mm | 270 | 270 | 270 | 300 | |
| Distance between centers | mm | 1000/1500/2000 | 1000/1500/2000 | 1000/1500/2000 | 1000/1500/2000 | |
| Guideway width | mm | 400 | 400 | 400 | 460 | |
| Max. load capacity | T | 1 | 1 | 1 | 2 | |
| Spindle | Spindle bore | mm | 82 | 105 | 160 | 82 |
| Spindle bore taper | - | Metric 090/MT5 | - | - | Metric 4>90/MT5 | |
| Spindle nose type | - | C8 | - | - | C8 | |
| Spindle speed steps | - | VF. 3 steps | VF. 3 steps | VF. 3 steps | VF. 3 steps | |
| Spindle speed range | rpm | 80-1500 | 80-1000 | 80-800 | 80-1500 | |
| Chuck | mm | φ250 3-jaw manual | φ320 3-jaw manual | φ400 3-jaw manual | φ250 3-jaw manual | |
| Turret | TurretAod post | - | NC turret 4 positoi | NC turret 4 position | NC turret 4 positoi | NC turret 4 positoi |
| Tool shank size | mm | 25x25 | 25x25 | 25x25 | 25x25 | |
| Feed | X axis travel | mm | 270 | 270 | 270 | 320 |
| Z axis travel | mm | 850/1350/1850 | 850/1350/1850 | 850/1350/1850 | 850/1350/1850 | |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 6000 | |
| Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 8000 | |
| Tailstock | Tailstock quill diameter | mm | 4>75 | . 75 | . 75 | <t>75 |
| Tailstock quill taper | - | MT5 | MT5 | MT5 | MT5 | |
| Tailstock quill travel | mm | 150 | 150 | 150 | 150 | |
| Motor | Main spindle motor | kW | 7.5 | 7.5 | 7.5 | 7.5 |
| Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | |
| Dimension | Width x Height | mm | 1600x1600 | 1650x1700 | 1650x1700 | 1750x1850 |
| Length | mm | 2700/3200/3700 | 2950/3450/3950 | 2950/3450/3950 | 3000/3500/4000 | |
| Weight | Net weight | T | 2.7/3.0/3.4 | 27/3.0/3.4 | 2.7/3.013.4 | 3.113.438 |
| Please note: Swing diameter and bed length can customize according to real work demand, machine can choose servo motor direct driving structure turning center with C axis. | ||||||
Products Uses
1. Machinery Parts Manufacturing Flat - bed CNC lathes excel in fabricating intricate machinery parts like motor shafts and gear shafts. They are widely used in automotive and aerospace industries, ensuring high - precision and consistent production.
2.Hardware Processing: When manufacturing standard hardware items such as nuts and bolts, flat - bed CNC lathes demonstrate high processing efficiency. Their parameter adjustment allows for mass production of various - sized products, cutting down costs.
3. Mold Manufacturing In mold production, flat - bed CNC lathes are crucial for precisely machining cores and cavities. They can handle complex shapes with high precision, contributing to the creation of top - quality molds.
4. Repair and Custom Processing For equipment repair or customized parts, flat - bed CNC lathes offer flexibility. Their adaptable processing techniques enable efficient production of small - batch, diverse products.
Product Video
FAQ
Q: What types of lathes do you offer?
A: We specialize in a diverse range of lathes. Our offerings include high - precision CNC lathes, traditional engine lathes, compact bench lathes, and robust heavy - duty industrial lathes. Each category has models with varying spindle speeds, swing diameters, and automation levels to meet different customer needs.
Q: Can you customize lathes for specific requirements?
A: Absolutely. Our company provides comprehensive OEM/ODM services. We can customize spindle configurations, bed lengths, and integrate various control systems like Siemens and Fanuc. Additionally, we offer automation integration. Share your specific specs, and we'll design a tailor - made solution.
Q: How long is the production lead time?
A: Typically, the production lead time for our products is 15 - 25 days. However, if the lathe you're interested in is in stock, we can arrange delivery within 7 days. The exact duration hinges on the model and quantity of your order.
Q: Where is your factory located? How can I visit there?
A: Our factory is strategically located in Yishui County, Shandong Province, China. We warmly welcome clients to conduct quality inspections and factory audits. Just let us know your visit plan, and we'll arrange proper reception.
