The Role And Importance of Chucks in Horizontal Lathe Machines

Views: 0     Author: Site Editor     Publish Time: 2025-08-07      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

As a professional supplier of horizontal lathes, I've noticed through daily interactions with clients and handling after-sales issues that many customers don't have a comprehensive understanding of the functions and significance of each component in a lathe. Among the numerous components of a horizontal lathe, the chuck plays an extremely crucial role. Today, I'll delve into the role of the chuck in a horizontal lathe.

What is a Chuck?

A chuck is like the "palm" of a lathe. It is an important fixture installed on the lathe spindle. Generally, there are two common types of chucks: the three-jaw chuck and the four-jaw chuck. A three-jaw chuck clamps the workpiece by having its three jaws move simultaneously towards the center, featuring automatic centering and rapid clamping. A four-jaw chuck has four independent jaws, each of which can be adjusted individually, enabling it to hold irregularly shaped workpieces with greater flexibility.

Classification of Chucks

Based on the driving method, chucks are mainly classified as follows:

1. Manual Chucks: Such as three-jaw self-centering chucks and four-jaw single-action chucks.

2. Hydraulic Chucks: Driven by a hydraulic system, providing stable clamping force.

3. Pneumatic Chucks: Suitable for light-duty and high-speed machining.

4. Electric Chucks: Highly automated and ideal for CNC lathes.

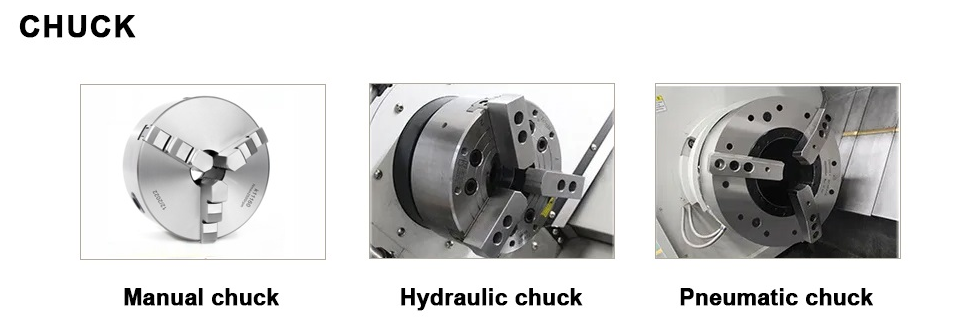

HQ Lathe Machine

Functions of Chucks

1. Precise Clamping of Workpieces

The most fundamental and important function of a chuck is to clamp workpieces. During lathe machining, the workpiece needs to be fixed at a specific position for rotation and cutting. With its powerful clamping force, the chuck can firmly secure the workpiece on the spindle, ensuring that the workpiece won't loosen or shift under the action of high-speed rotation and cutting forces. For example, when machining a metal shaft, the chuck will tightly grip the shaft, allowing it to rotate stably with the spindle. This ensures that the cutting tool can accurately remove material and machine the shaft to the required dimensions and shape.

2. Achieving Workpiece Centering

Centering is another key function of the chuck. For circular workpieces, accurate centering is of utmost importance. The three-jaw chuck excels in this regard. Its three jaws move synchronously, automatically aligning the center of the workpiece with that of the lathe spindle. This way, during the machining process, the rotation center of the workpiece remains stable, ensuring that the machined workpiece has high coaxiality. For instance, when machining bearing rings, inaccurate centering can result in the inner bore and outer circle of the ring being non-coaxial, affecting the assembly and performance of the bearing.

3. Adapting to Workpieces of Different Shapes and Sizes

Different types of chucks have varying adaptabilities. Three-jaw chucks are suitable for clamping circular, regular hexagonal, and other regularly shaped workpieces. They can also quickly clamp workpieces within a certain size range. Four-jaw chucks are more flexible and can hold square, elliptical, and irregularly shaped workpieces. By individually adjusting the position and clamping force of each jaw, they can meet the machining requirements of various complex workpieces. For example, when machining some irregularly shaped mechanical parts, the four-jaw chuck can be precisely adjusted according to the shape and size of the part to ensure firm clamping.

4. Transmitting Rotational Power

The chuck is installed on the lathe spindle and is tightly connected to it. When the spindle rotates, the chuck transmits the rotational power to the clamped workpiece, enabling the workpiece to rotate at the set speed. This allows the cutting tool to perform various turning operations on the rotating workpiece, such as external turning, internal boring, and face turning.

Impacts of Chuck Failures

1. Reduced Machining Accuracy

If the chuck fails, such as when the jaws are worn or centering is inaccurate, it can cause the workpiece to shift during the machining process, seriously affecting machining accuracy. The machined workpiece may have dimensional deviations, shape errors, and other problems, failing to meet design requirements. For example, if the chuck fails to center accurately when machining an axis with a diameter of 50mm, the machined axis may have inconsistent diameters, affecting the product's quality and performance.

2. Decreased Machining Efficiency

Chuck failures can also lead to frequent issues such as workpiece loosening and insufficient clamping during the machining process. This requires operators to constantly stop the machine for adjustment and re-clamping, increasing auxiliary time and reducing machining efficiency. Moreover, frequent start-stop operations may damage other components of the lathe.

3. Increased Safety Risks

When the chuck doesn't function properly, the workpiece may suddenly loosen or fly out during rotation, posing a serious threat to the operator's life safety. At the same time, chuck failures may also trigger other failures in the lathe, such as spindle damage, further expanding the scope of the accident.

The Importance of Chucks

From the above introduction, it's clear that chucks play a pivotal role in horizontal lathes. They are the foundation for ensuring machining accuracy. Only when the chuck can accurately clamp and center the workpiece can high-quality products be machined. Meanwhile, the performance of the chuck directly affects machining efficiency and production safety. A high-quality chuck can enhance the overall performance of the lathe, reduce production costs, and create greater economic benefits for enterprises.

Our Horizontal Lathe Products

At our company, we fully understand the importance of chucks for lathes. Therefore, we are very strict in selecting and configuring chucks during product design and production. Our horizontal lathes are equipped with a variety of high-quality chucks to meet the machining needs of different customers.

1. Ordinary Chucks

Our K11/72/78 series ordinary three-jaw self-centering chucks and short-cone chucks are general-purpose chucks for our small and medium-sized economical CK series CNC lathes and QK series CNC pipe thread lathes. Designed for high-precision machining of small and medium-sized workpieces, they feature an advanced jaw synchronization mechanism and a high-rigidity structural design. This enables them to quickly and accurately center and firmly clamp workpieces, ensuring stable positional accuracy during turning, boring, and other machining operations. These chucks are ideal for batch machining of various shaft and disk parts, significantly improving machining efficiency and product consistency.

2. Pneumatic Chucks

If you need to tackle larger-sized, more precise workpieces and higher-efficiency machining challenges, our Yichuan KYQZ65 series pneumatic chucks are the perfect choice. These chucks offer ultra-fast clamping and high-precision positioning, making them the preferred solution for automated machining. They consume 60% less energy than hydraulic chucks and have low annual maintenance costs, along with an oil-free and environmentally friendly design. The unique air-cut pressure retention function and a quiet operation below 80dB ensure safety and reliability. They are especially suitable for batch machining of precision parts in the medical and food industries. Our mid-to-high-end high-speed precision QK1322 series lathes are usually equipped with pneumatic chucks, which are popular for their fast response, low energy consumption, high efficiency, and simple maintenance.

3. Hydraulic Chucks

We also offer oil cylinder-specific hydraulic chucks, which are specially configured to meet the unique requirements of oil cylinder machining. The Zhonghe V/K/N/TH series hydraulic chucks are suitable for various scenarios such as rough and semi-finish machining of oil cylinder tubes (long tubes) and end face turning of piston rods. They are commonly equipped on our CKY slant-bed series oil cylinder lathes. The hydraulic system can provide a stable clamping force of 5-20 tons, suitable for heavy-duty cutting of steel oil cylinder tubes. In terms of structural design, these chucks fully consider key factors such as sealing and coaxiality during oil cylinder machining. Through unique jaw shape design and precise positioning devices, they can achieve high-precision clamping and positioning of oil cylinder tubes. During machining, they can effectively reduce vibration and deformation, ensuring the machining accuracy of the inner bore and outer circle of the oil cylinder as well as the surface quality, greatly improving the overall performance and reliability of oil cylinder products.

4. Customized Chuck Solutions

In addition to standard series chucks, we also provide customized chuck solutions for customers. Based on customers' special machining requirements, we can design and manufacture exclusive chucks to meet their needs for machining special workpieces.

Why Choose Our Products?

70+ Years of Production Experience

As a professional machine tool manufacturer established in 1952, we have been dedicated to machine tool research and development and manufacturing for over 70 years, accumulating profound industry experience and technical expertise. From traditional lathes in the 1960s and 1970s to today's intelligent CNC systems, our 70 years of technological iterations have always led industry development trends. As one of the first enterprises to obtain national machine tool manufacturing qualifications, we have won more than 50 technical patents and industry awards.


Quality and Durability

Our horizontal lathes are built to last. We use high-quality materials and advanced manufacturing processes to ensure that our lathes are reliable and durable.


High-Quality Accessory Selection

We equip each of our horizontal lathes with carefully selected precision accessories to ensure that the performance and quality of each accessory can meet various machining requirements. Whether it's chucks, turrets, tailstocks, or guide rails, they all feature high precision, high reliability, and long service life.


Support for OEM/ODM

As a professional machine tool supplier, we have significant advantages in OEM. With strong technical capabilities, we can customize products according to customer needs, precisely meeting requirements for performance and precision. We strictly control quality to provide reliable products. Our efficient production and flexible delivery ensure timely completion of orders. In terms of ODM, our innovative design team can create novel solutions and provide one-stop services, following up from design to promotion to reduce operational costs and risks for customers.


Professional Team Support

We have a professional technical team with extensive experience in lathe design and manufacturing, capable of providing comprehensive technical support and services to customers. Whether it's lathe installation and commissioning, operation training, or troubleshooting, our technical team can respond promptly and solve problems for customers. Many of our senior workshop technicians have over 20 or 30 years of rich experience and still stick to their posts. They have a complete understanding of the technological evolution from traditional turning and milling to modern CNC machining and can detect extremely minor machining errors by touch, having a muscle memory-level mastery of each component of the headstock, bed, and tailstock.


Comprehensive After-Sales Service

We prioritize customer satisfaction and provide comprehensive after-sales service. We have established a complete after-sales service system, regularly following up with customers to understand their usage and needs, and promptly providing maintenance suggestions and technical support. At the same time, we offer a sufficient supply of lathe spare parts to ensure that customers can replace them in a timely manner when needed, reducing downtime.

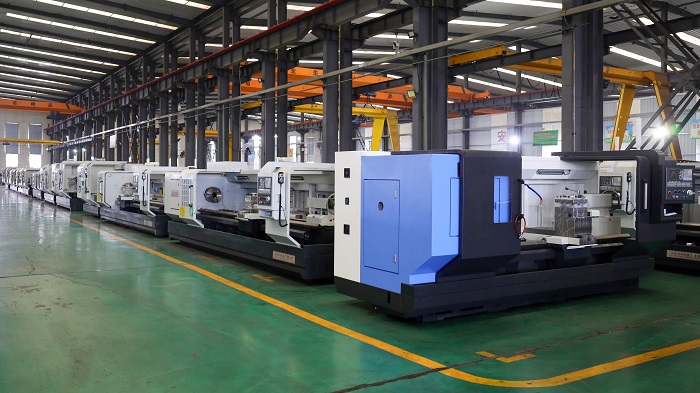

7G3A7644
