Selecting the correct CNC lathe guideway width is a foundational decision that dictates part tolerance, tool life, and overall production capacity. You cannot afford to guess when specifying machine structure. An undersized guideway leads directly to harmonic chatter and dimensional instability. You will likely see scrapped parts and premature machine wear during heavy cuts. When operators attempt to push undersized equipment, they encounter fierce vibrations. These vibrations travel straight into the tooling, destroying expensive carbide inserts instantly. On the other hand, an oversized, unnecessarily wide guideway inflates floor space requirements. You gain extra mass, but it might not deliver a proportional return on performance. Procurement and production teams need a reliable way to make this choice. We aim to provide a transparent, engineering-based framework here. You can use it to evaluate guideway width against your specific manufacturing demands. This guide reveals how different stances handle extreme cutting forces.
Guideway width directly determines lathe rigidity, dictating the machine's ability to absorb vibration during interrupted cuts or hard turning.
A 550mm guideway lathe serves as the optimal baseline for most medium-to-heavy industrial applications (e.g., automotive shafts, standard energy sector components).
Stepping up to a 600mm CNC lathe or larger is required for ultra-heavy-duty machining (e.g., aerospace alloys, large oil and gas forgings) where cutting forces would deflect narrower beds.
The choice between linear ways and box ways must be aligned with your chosen guideway width to maximize the structural benefits of the casting.

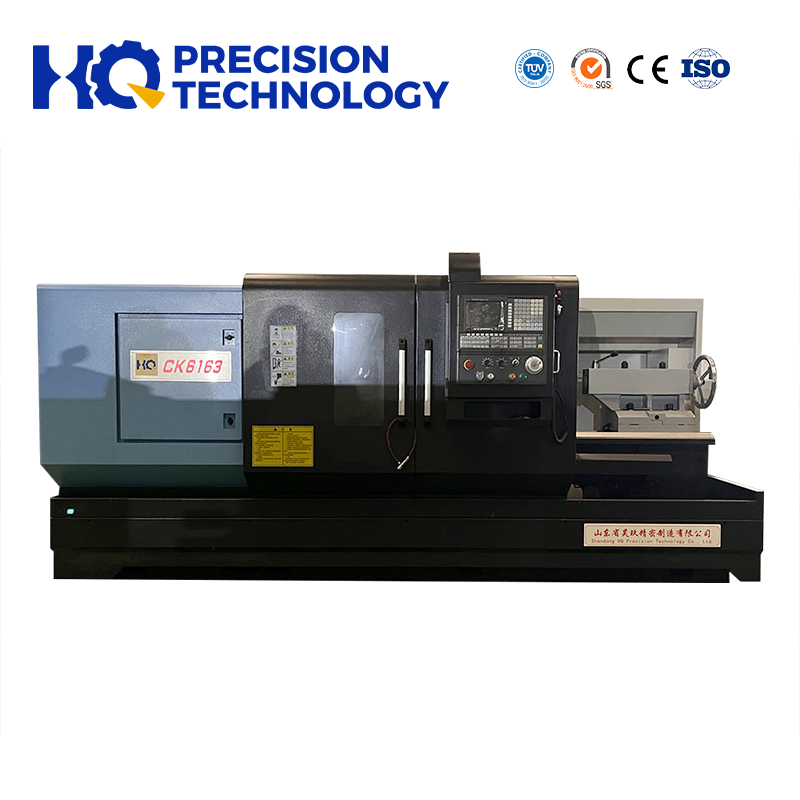

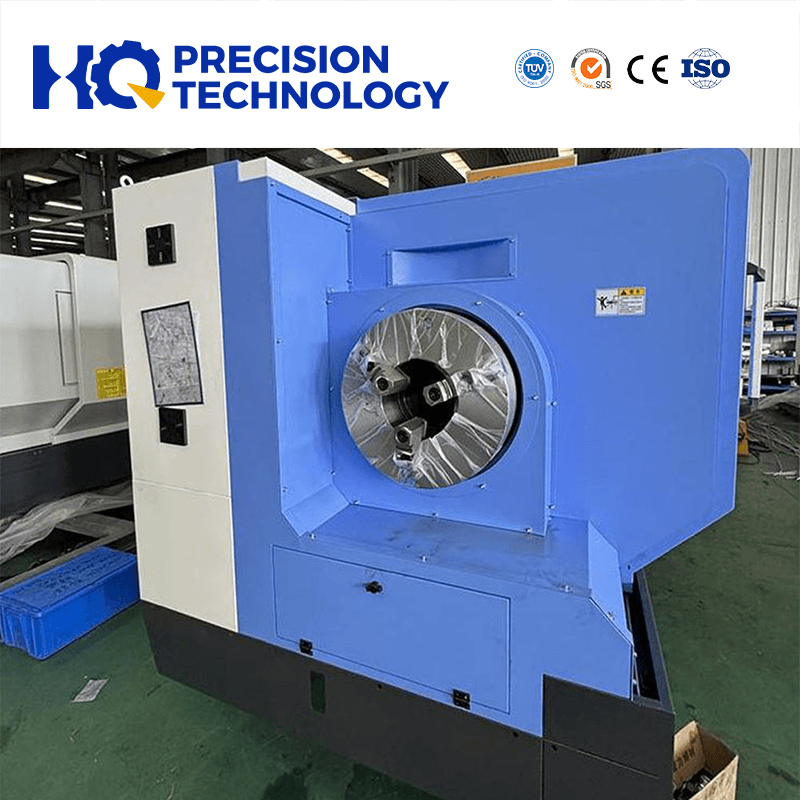

Machine performance relies entirely on its mechanical foundation. The distance between the parallel rails forms the machine's "stance". A wider stance naturally increases lathe rigidity. This wider base directly improves resistance to torsional forces. Torsional forces cause the machine bed to twist during aggressive machining operations. Think of the spindle turning a large, heavy workpiece. The cutting tool pushes against this rotating mass. This collision creates a lever effect. It attempts to twist the machine saddle off its cast iron base. A narrow bed cannot effectively counter this rotational energy. The saddle will microscopicly lift or deflect.
A broader guideway lowers the machine's center of gravity. It widens the physical support base beneath the moving saddle. This geometry acts like a wide-stanced athlete preparing for a heavy impact. It absorbs radial and axial cutting forces efficiently. Consequently, this design directly minimizes tool deflection. Deflection remains the primary culprit behind poor surface finishes. It causes out-of-tolerance parts and unpredictable machining cycles. You prevent these issues simply by starting with the right structural geometry.
Many buyers hold a common misconception about machine tool strength. They believe raw mass alone equals rigidity. Pouring more cast iron into a narrow bed does not solve vibration issues. The geometric distribution of that mass matters far more. Moving the guideways further apart provides true dynamic stiffness. It creates a highly stable platform for high-performance turning. We see this principle universally applied across advanced manufacturing. Geometric leverage will always outperform dead weight. Proper width ensures your cutting tool remains perfectly stationary relative to the part.
You must match your chosen stance to the right structural design. The casting layout only works when paired properly with the right rails. Engineers typically choose between two primary rail systems. You cannot swap these out later, so the initial choice carries immense weight.
Box ways feature solid, rectangular cast iron tracks. Manufacturers machine and hand-scrape these tracks directly into the machine bed. They offer massive surface area contact between the saddle and the bed.
They pair perfectly with wide stances for structural harmony.
They maximize vibration dampening during extreme roughing operations.
They deliver unparalleled load-bearing capacity for heavy, unbalanced parts.
They excel in low-speed, high-torque cutting environments.
You should specify box ways for interrupted cuts on hardened steel. They absorb shock better than any other configuration. The lubricating oil film between surfaces acts as a hydraulic damper. This eliminates micro-vibrations before they ever reach the cutting edge. Modern box ways often utilize specialized anti-friction materials like Turcite. Workers meticulously scrape this material to ensure perfect oil distribution. It prevents stick-slip phenomena during microscopic positioning moves.
Linear ways use rolling elements to support the saddle. They ride on precision-ground steel rails bolted firmly to the bed.
They offer exceptionally low friction for smooth movement.
They allow for much higher rapid traverse rates between cuts.
They provide superior positioning accuracy during complex contouring tasks.
They require less overall motor torque to initiate movement.
You must carefully evaluate stiffness when choosing this option. Ensure the manufacturer uses an appropriately sized heavy duty guide rail. They should use roller-type blocks rather than standard ball-type blocks. Roller blocks provide line contact instead of point contact. This becomes critical if you require wide-stance rigidity for heavier parts. Proper preloading of these roller blocks further enhances dynamic stiffness. It eliminates any potential play between the rail and the bearing block.
Specifying the right size prevents mismatched equipment on your floor. You do not want to over-specify and waste factory space. You also cannot afford to under-specify and ruin production quality. Let us examine the two most common heavy-turning platforms. Understanding their distinct boundaries helps you match the machine to your true production needs.
A 550mm guideway lathe handles the majority of industrial turning tasks. It provides an excellent balance of speed and structural integrity. Optimal use cases include general heavy turning and long shaft production. It excels at batch manufacturing of steel cylinders. Standard hydraulic components run perfectly on this platform. The 550mm stance supports substantial tailstock pressure. It keeps long workpieces stable during aggressive metal removal.
However, it does have specific operational limitations. You might experience marginal vibration under extreme cutting conditions. Pushing maximum spindle loads on exotic alloys tests its structural limits. Materials like Inconel, Waspaloy, and Titanium generate tremendous shear forces. The 550mm bed might struggle slightly if pushed to its absolute capacity. Operators often have to back off their feed rates slightly. This compromise prevents chatter but extends cycle times on harder materials.
Stepping up to a 600mm CNC lathe changes the dynamic entirely. This platform tackles jobs that smaller machines simply cannot touch safely. Optimal use cases focus on massive, dense components. Oilfield drill pipes require this exact level of stability. Heavy marine engine components demand a 600mm stance. Large-diameter aerospace forgings also fit perfectly into this category. The extra 50mm translates to exponentially higher torsional resistance.
The performance yield is immediately noticeable on the shop floor. It easily handles highly aggressive depths of cut (DOC). You can mount incredibly heavy part payloads on the chuck. It does all this without compromising surface finish. Geometric accuracy remains flawless even under maximum tooling pressure. You can run large U-drills and heavy boring bars without fear of resonance. The sheer mass and geometric stance absorb everything.
Guideway Width Comparison Matrix
Specification Category | 550mm Guideway Platform | 600mm Guideway Platform |
|---|---|---|
Primary Industrial Role | Versatile heavy industrial turning | Ultra-heavy-duty specialized machining |
Ideal Material Types | Carbon steels, cast iron, standard alloys | Titanium, Inconel, hardened superalloys |
Dynamic Vibration Resistance | High stability | Exceptional, maximum dampening |
Common Target Components | Automotive shafts, hydraulic cylinders | Oilfield drill pipes, marine engine parts |
Selecting your machine requires a highly structured approach. You must map physical machine dimensions to your daily production realities. Guesswork leads to compromised manufacturing capabilities. Use this specific checklist to guide your engineering evaluation. Discuss these points thoroughly with your tooling engineers and shop floor managers.
Assess Material Hardness: Harder materials drastically change cutting dynamics. They generate much higher cutting forces at the insert edge. These forces try to violently push the tool away from the part. Machining aerospace alloys necessitates wider guideways to resist this push-off. Softer steels simply do not demand the same extreme stance. Evaluate the toughest material you plan to cut regularly.
Calculate Part Aspect Ratio: Look closely at your length-to-diameter ratios. Long, slender parts create unique challenges. They act like a lever against the cutting tool. Exceptional tailstock and bed rigidity become absolutely mandatory. A wider stance prevents tapering across long turning passes. It keeps the tool exactly where you programmed it, eliminating dimensional drift.
Define Tooling Strategy: Consider how aggressively you plan to machine. High-feed, aggressive tooling removes material rapidly. This process generates massive kinetic energy inside the enclosure. A wider, heavier bed absorbs this energy safely. It stops harmonic chatter from ruining your insert geometries. Modern high-performance carbide requires this level of structural support to function properly.
Evaluate Thermal Stability: Machining generates intense, concentrated heat. This heat transfers directly into the machine casting. Wider castings dissipate heat differently than narrow ones. They have more mass to absorb thermal expansion evenly. Always evaluate the manufacturer's thermal compensation engineering. Proper design prevents the bed from warping during extended continuous cycles. Symmetric casting designs help control thermal growth predictably.
Applying this framework prevents costly surprises after installation. You align your physical equipment directly with actual engineering requirements. This ensures your operators have the right foundation to hit required tolerances.
Wider guideways introduce specific facility challenges. You cannot simply drop a massive machine onto any standard concrete floor. Preparation is crucial for long-term operational success. Highlight these often-overlooked facility requirements early in the planning phase. Addressing them late causes massive installation delays.
Foundation Requirements
A wider machine stance demands specialized support beneath it. A massive lathe with heavy-duty box ways generates immense dynamic loads. It requires a thicker, reinforced concrete foundation. This engineered base prevents bed twisting over time. Standard shop floors usually lack the necessary depth and rebar reinforcement. They may crack or settle unevenly under the operational weight. This settling destroys machine alignment and ruins part tolerances. You might need to pour isolated concrete pads. Contractors often use specialized epoxy leveling compounds to guarantee a perfect mount.
Maintenance Realities
Larger structures require modified maintenance protocols. Wider box ways present more surface area to lubricate constantly. They naturally consume more way lube during regular operation. You must also implement stricter wiper maintenance. Wide flat tracks remain highly vulnerable to tiny metal chips. Failing to replace way wipers allows chip ingress. This scores the cast iron and degrades precision rapidly. You must train operators to monitor these lubrication systems closely. Automated lubrication units must be checked weekly to ensure proper flow to all distribution blocks.
Floor Space (Footprint)
You must calculate the true footprint of the equipment. Do not just measure the casting dimensions. Factor in the wider footprint of the enclosure doors. You need additional clearance for large chip conveyors pulling massive volumes of swarf. Automation integration also requires significant extra room. Gantry loaders and robotic cells need space to maneuver safely. Maintenance personnel need access panels cleared for regular servicing. Plan your factory layout to accommodate these wider turning centers long before delivery day.
Your procurement strategy requires balance and objective data. Do not automatically default to the widest available bed. Instead, match the machine's stance to your 80th-percentile heaviest job. This logical approach covers your most demanding regular work. It avoids wasting floor space on rare edge cases that you might never encounter. A properly sized stance guarantees structural strength where you actually need it.
Take specific action steps before signing a purchase order. Require vendors to provide comprehensive cutting demonstration data. Ask for depth of cut (DOC) metrics on specific metals. Demand verified surface finish results. Make sure they run these tests on materials identical to your production runs. This data proves the structure can handle your specific operational stresses. Finalize the machine size only after validating these real-world performance metrics. You want proof, not just promises, that the guideway handles the pressure.
A: No. Guideway width and type are cast and machined into the fundamental structure of the machine bed. It is not an aftermarket upgrade. You must determine your structural requirements before purchasing. The factory sets the rail stance permanently during the initial casting and machining process.
A: Generally, yes. Wider, heavier saddles on box ways have more mass and friction. This results in slightly slower rapid rates compared to narrower, linear-way machines. The larger motor and heavier structural components prioritize vibration dampening over sheer speed. It trades rapid positioning time for superior cutting stability.
A: A wider stance increases lathe rigidity, which drastically reduces micro-vibrations at the cutting edge. This structural stability prevents premature insert chipping. It extends overall tool life significantly. When the machine absorbs the operational chatter, your expensive carbide inserts do not have to absorb the shock.
