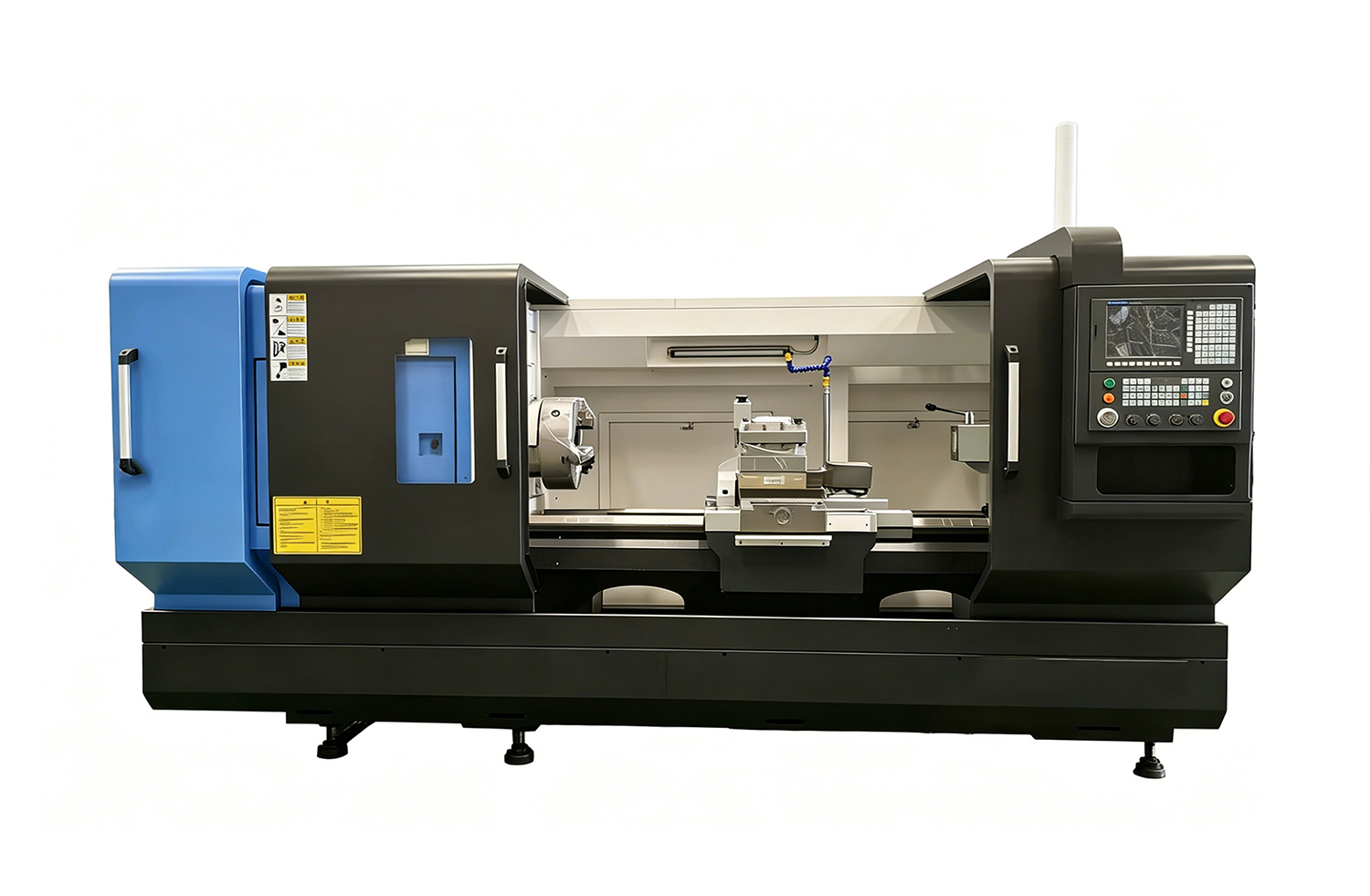

Precision requirements for heavy-duty metal pipes remain strictly uncompromising today. Sectors like oil and gas, chemical processing, and municipal water systems demand flawless threads to prevent catastrophic pressure leaks. Traditional machining setups often struggle under the continuous high-torque demands of these critical industries. The QK1313 CNC pipe threading lathe emerges as a specific, standardized flat-bed solution designed to overcome these challenges. It balances heavy-duty rigidity against the need for highly accurate, high-torque thread cutting. We wrote this guide to set an objective, evaluation-focused baseline for your manufacturing needs. This article breaks down the technical capabilities, implementation requirements, and operational limitations of the QK1313. Procurement and engineering teams will easily determine if this equipment fits their active production line. You will learn how to evaluate its structural design, control systems, and ideal industrial applications.
Dual Capability: Engineered for high-precision internal thread cutting and external thread cutting without requiring secondary machine setups.
Structural Baseline: Utilizes a heavy-duty flat-bed architecture, prioritizing vibration dampening over rapid chip clearance during large-diameter metal pipe threading.
Controller Agnostic: Compatible with premium (Siemens/Fanuc) and economy (GSK/KND/HNC) control systems, allowing buyers to align tech stacks with operational budgets.
Ideal Use Case: Best suited for mid-range pipe diameters (typically up to ~130mm spindle bore, depending on manufacturer variations); larger applications must step up to the QK1325.

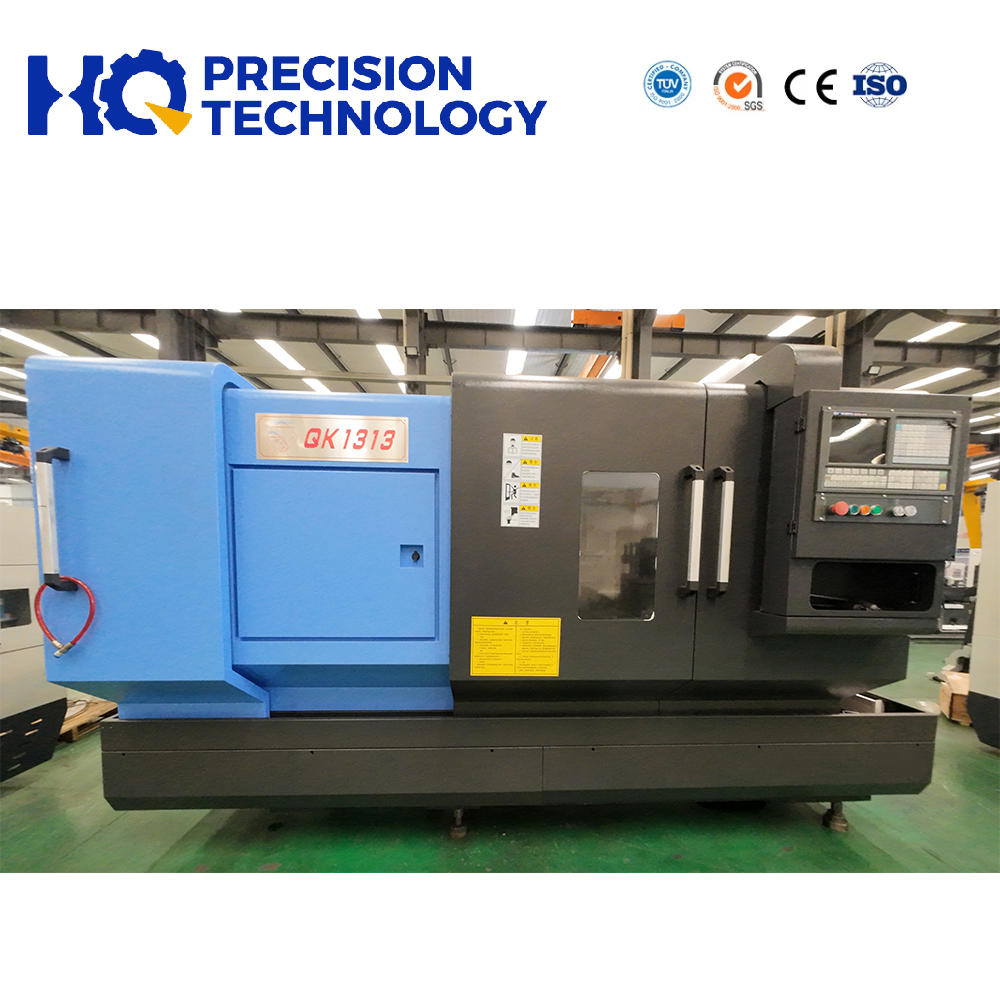

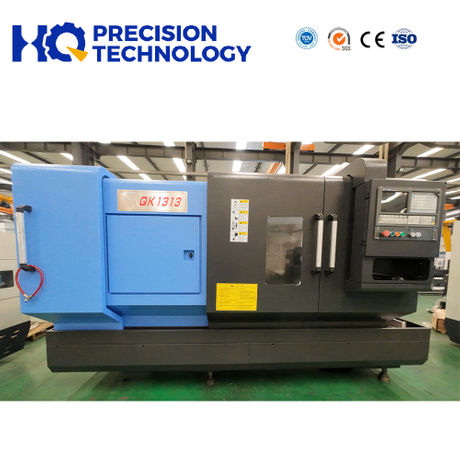

The standard spindle bore defines the operational limit of any pipe lathe. The QK1313 features a highly capable 130mm spindle bore capacity. This specific dimension allows operators to process mid-range pipes effortlessly. Manufacturers generally design these machines to handle a maximum swing over the bed of roughly 630mm. Workpiece lengths often extend up to 1500mm or 3000mm depending on your specific bed configuration. You can process carbon steel, stainless steel, and complex alloy pipes reliably. High-tensile materials pose no significant challenge. The robust spindle drive motors deliver ample torque to cut through difficult alloys without stalling. Below is a baseline specification breakdown.
Technical Parameter | Standard Specification (QK1313) |
|---|---|
Spindle Bore Diameter | 130 mm |
Max. Swing Over Bed | 630 mm |
Max. Workpiece Length | 1500 mm / 3000 mm options |
Supported Materials | Carbon Steel, Stainless, High-Alloy |
Engineering teams frequently debate structural designs when selecting a new lathe. The flat-bed architecture of this pipe machining lathe relies on simple physics. A massive, flat cast-iron base places the center of gravity directly over the foundation. This creates superior stability for heavy, long pipes. Slant beds offer advantages elsewhere. They excel at rapid chip evacuation using gravity. However, a flat bed excels at vibration dampening. Heavy pipes generate intense harmonic vibrations during rotation. Flat-bed designs absorb these forces effectively. The trade-off involves slower chip evacuation. Operators must actively manage chip build-up during long cycles. You cannot rely on gravity alone to clear the cutting zone.
Threading mechanics vary significantly based on tool engagement. External thread cutting requires rigid OD (outside diameter) turning tools. Operators can program straight or tapered profiles easily. Standard turrets index these tools rapidly. Conversely, internal thread cutting demands long boring bars. These extended tools face greater risks of deflection. Deflection ruins thread pitch accuracy and surface finish. To prevent this, the QK1313 utilizes specialized chucking systems. You will typically find dual front and rear chucks installed. The rear chuck stabilizes the trailing end of the pipe. The front chuck grips near the cutting zone. This dual-grip method ensures the pipe remains perfectly rigid. Tool chatter disappears, and precision improves dramatically.
Control system selection dictates your daily workflow efficiency. Buyers can choose between high-end systems and cost-effective alternatives. Premium systems like Siemens and Fanuc dominate complex shop floors. They support highly automated multi-axis operations seamlessly. These platforms offer advanced diagnostics and unparalleled processing speeds. However, they carry premium price tags. Economy B2B alternatives like GSK, KND, and HNC provide excellent value. They serve shops requiring standard API threading programs perfectly. These budget-friendly controllers avoid excessive software overhead. You get robust, reliable performance without paying for unused macro capabilities. Shops running repetitive, standardized pipes often prefer these accessible interfaces.
Modern machine shops demand streamlined workflows to maintain profitability. The right CNC threading machine must support automated accessories. Auto-feeding mechanisms reduce manual pipe handling significantly. Pneumatic and hydraulic chuck options decrease part-clamping times. Operators push a pedal instead of wrestling heavy manual chuck wrenches. You must assess the skill level required for your operators. High-end Siemens systems might require specialized programming training. Economy systems often feature simplified conversational programming. Operators can input custom thread pitches quickly on these interfaces.
Identify the exact thread profiles needed for production.
Select a controller offering built-in canned threading cycles (e.g., G76).
Integrate a hydraulic dual-chuck system for faster changeovers.
Implement auto-loaders if batch volumes exceed daily manual limits.
Matching spindle capacity to your product mix ensures maximum efficiency. The QK1313 offers a mid-range capacity centered around its 130mm bore. This suits standard utility piping, medium casing, and structural tubes. The QK1325 steps up into heavy-duty territory. It features a much larger bore, typically 250mm or greater. You need the QK1325 for massive oilfield casings and municipal mains. Pushing a 130mm machine beyond its limits causes premature spindle wear. You must measure your largest typical pipe before finalizing a purchase. Spindle clearance requires strict compliance.
Over-specifying your machine degrades your financial return significantly. Buying a massive QK1325 for QK1313-sized jobs wastes valuable resources. Larger machines consume far more electrical power per cycle. They occupy a vastly larger factory footprint. You also sacrifice rapid traverse rates. Heavier casting saddles move slower across the bed ways. Cycle times increase unnecessarily on smaller parts. You must match the machine size to the component size. The QK1313 hits the sweet spot for medium-diameter processing. It delivers high torque without sluggish axis movements. Your operations remain lean, fast, and highly productive.
Use the following checklist to lock in the right model for your specific production floor.
Pipe Diameter: Verify if your maximum outer diameter fits comfortably inside the 130mm bore limit.
Wall Thickness: Ensure your material thickness aligns with the spindle motor torque ratings.
Batch Volume: Assess if you need the nimble rapid traverse of the QK1313 for high-volume, mid-sized batches.
Floor Space: Measure available foundation space to ensure a massive QK1325 will not disrupt forklift traffic.
Utility Supply: Check your electrical panel limits. Larger machines draw significantly higher amperage during heavy cuts.
Sizing Comparison Chart | ||
Feature | QK1313 Model | QK1325 Model |
|---|---|---|
Typical Spindle Bore | 130 mm | 250 mm+ |
Ideal Application | Medium casings, utility pipes | Large drill pipes, main lines |
Axis Agility | High (faster traverse) | Moderate (heavier casting) |
Power Consumption | Moderate | High |
The oil and gas sector demands absolute perfection in pipe connections. Metal pipe threading for OCTG applications requires strict adherence to API standards. Standard American Petroleum Institute threads include BTC (Buttress Thread Casing) and LTC (Long Thread Casing). The QK1313 cuts these profiles reliably day after day. Advanced CNC encoders synchronize the spindle rotation and Z-axis feed flawlessly. This synchronization produces perfect taper angles. Drill pipe casing and downhole tubing rely on these precise tapers to hold immense subsurface pressures. An imperfect thread leads to costly blowouts. This machine ensures your shop meets these critical compliance metrics consistently.
Chemical processing plants transport highly corrosive and volatile fluids safely. High-pressure chemical transfer lines require leak-proof internal threads. You cannot tolerate micro-fissures or torn thread crests. The flat-bed rigidity of this lathe shines here. It prevents microscopic tool chatter during internal boring and threading cycles. Operators can achieve premium metal-to-metal seals. Specialized alloy pipes used in chemical plants are notoriously difficult to machine. They work-harden quickly and destroy tooling. The continuous high torque of the QK1313 allows operators to push carbide inserts through these tough materials cleanly.
Continuous production runs demand verifiable quality. You must maintain specific surface finish (Ra) values across hundreds of parts. Thread pitch accuracy cannot drift as the machine warms up. Heavy cast-iron beds minimize thermal expansion issues. Precision ball screws maintain positional accuracy over long shifts. Quality control inspectors verify these metrics using thread gauges and profilometers. When properly programmed and maintained, this machine delivers consistent Ra values. You will encounter fewer rejected parts. Scrap rates drop, and overall material yield increases substantially. Consistency drives profitability in high-volume pipe machining.
A heavy flat-bed CNC lathe requires serious site preparation. You cannot simply place it on a standard warehouse floor. Proper installation demands a dedicated reinforced concrete foundation. We typically see a minimum concrete depth of 300mm to 500mm depending on soil conditions. Vibration-isolation pads or deep anchor bolts are mandatory. If the foundation flexes, the machine bed will twist. A twisted bed destroys alignment and thread accuracy immediately. Engineering teams must review the manufacturer's foundation drawings months before delivery. Planning ensures a smooth installation. Skipping this step guarantees ongoing geometry errors.
Transitioning operators from manual lathes to a CNC platform presents real challenges. Manual operators understand metal cutting instinctively. However, they often struggle with digital tool offset calibration. A manual machinist feels the cut; a CNC operator manages data. You must anticipate friction points during this transition. Setting Z-axis zero points and managing wear offsets requires specific training. Programming tapers manually feels intuitive, but coding them requires understanding G-code geometry. Management should pair experienced manual machinists with younger, tech-savvy operators. This pairing accelerates the adoption curve. Cross-training bridges the gap between old-school machining and modern digital control.
Heavy metal threading generates massive amounts of abrasive debris. Preventative maintenance keeps the spindle turning and the axes moving smoothly. The dual-chuck system represents a primary vulnerability. Fine metal dust and dried coolant easily pack into the chuck scroll gears. You must mandate weekly tear-downs and cleanings of these chuck jaws. Spindle lubrication demands strict adherence to OEM schedules. Contaminated coolant destroys pumps and causes severe rust on the bed ways.
Monitor coolant concentration daily using a refractometer.
Clean the flat bed manually every shift to prevent chip pile-ups.
Grease the rear chuck bearings according to exact running hours.
Inspect the way wipers weekly to ensure chips stay out of the ball screws.
Proactive care eliminates unexpected breakdowns. Ignore these vulnerabilities, and repair costs will skyrocket.
The QK1313 represents a highly specialized, rigid, and capable solution for mid-sized pipe production. It masters complex internal and external thread profiles easily. You gain exceptional stability from its heavy-duty flat-bed architecture. It delivers measurable quality improvements provided its 130mm spindle bore aligns with your specific product mix. Avoid the trap of over-sizing your equipment. Match your machine to your exact production reality.
Verify Dimensions: Cross-check your maximum pipe outer diameters against the 130mm bore limit.
Request Cycle Times: Ask manufacturers for estimated threading cycle times based on your specific API profiles.
Confirm Control Systems: Select either premium (Siemens) or economy (GSK) controllers based on your required automation level.
Prepare Your Foundation: Review structural concrete requirements immediately to prevent installation delays.
A: The machine features a standard ~130mm spindle bore limit. It comfortably processes pipes slightly smaller than this dimension to allow for chuck clearance. Always check specific manufacturer datasheets, as exact casting tolerances and chuck configurations can vary slightly between different builds.
A: Yes. Operators can seamlessly transition between internal and external cuts. Standard multi-position turret setups hold both boring bars and OD turning tools simultaneously. CNC programming executes the switch without requiring you to unclamp or re-chuck the pipe.
A: We recommend Siemens or Fanuc for shops needing high-level automation, robotic integration, or complex multi-axis networking. Choose GSK or HNC if you run a budget-conscious shop focused solely on repetitive, standardized API pipe threading.
A: Yes. Flat beds are inherently harder to clear than gravity-assisted slant beds. Chips tend to pool around the cutting zone. You must install high-pressure coolant systems and enforce strict manual chip-clearing protocols during long, continuous production runs.
