Scaling production through bulk machinery purchases carries significant financial and operational risks. A misstep in procurement can stall assembly lines and drain capital resources. The baseline is clear. A standard CK6136i CNC lathe is a highly capable, economical solution for fundamental turning tasks. However, manufacturing variances between vendors drastically impact unit-to-unit consistency. Buying one reliable machine is straightforward. Securing fifty identical machines requires strict oversight and rigid quality control.
This article serves as a rigorous, vendor-neutral checklist. It helps procurement managers and facility directors evaluate suppliers objectively. You will learn how to mitigate quality fade across large orders. We will also explore ways to calculate true landed costs without unexpected surprises. By following these guidelines, your CK6136i CNC lathe procurement strategy will shift from a gamble to a guaranteed operational win.
Bulk CK6136i CNC lathe procurement requires mandatory unit-by-unit QA testing, not just batch sampling, to ensure consistent spindle accuracy.
Total Cost of Ownership (TCO) relies heavily on control system standardization (e.g., FANUC, Siemens, or GSK) to minimize operator retraining.
Vendor evaluation must prioritize verifiable supply chains for critical components (guideways, ball screws, bearings) over baseline pricing.
Secure airtight Service Level Agreements (SLAs) for spare parts availability and after-sales support before finalizing Letters of Credit (L/C).
You must assess your long-term production forecasting before placing a bulk order. The standard 360mm swing over bed looks generous on paper. However, maximum workpiece length constraints often limit real-world capabilities. Compare these baseline specifications against your actual daily turning needs. A machine operating at maximum capacity degrades faster over time. We recommend leaving a 20% buffer between your typical workpiece size and the machine limits. This approach preserves guideway longevity and maintains machining accuracy.
Spindle bore dimensions directly dictate automation potential. You need to verify the spindle bore diameter immediately. Vendors typically offer a 52mm standard size. Larger options exist for specialized bar stock applications. A mismatched bore forces operators into costly secondary operations. You might have to pre-cut bar stock manually. This negates the efficiency gains of a bulk machinery upgrade. Always match the bore size to your standard raw material dimensions.
Control system choices impact factory floor efficiency immensely. GSK controllers often serve as the economical standard. They perform well for basic operations. However, FANUC or Siemens upgrades might suit your current factory ecosystem better. Evaluate these options carefully. Standardizing your control systems reduces G-code compatibility issues. It also allows operators to move seamlessly between different machines. Consistent interfaces mean fewer scrapped parts during the initial operator learning curve.
Spindle motor power dictates material removal rates. Specify your required motor power clearly. Vendors usually offer 4kW or 5.5kW options. You must also designate preferred servo drive brands. Insist on complete transparency regarding continuous versus peak torque ratings. Many low-cost suppliers advertise peak torque to inflate machine capabilities. Continuous torque represents the true cutting power during extended shifts. Clear specifications here prevent unexpected spindle stalling during heavy roughing cuts.
Critical Component Verification Checklist
Component Category | Standard Expectation | Verification Method |
|---|---|---|
Spindle Bearings | NSK, SKF, or FAG | Photographic proof before cabinet sealing |
Linear Components | PMI or HIWIN (if upgraded) | Itemized Bill of Materials (BOM) |
Electrical Relays | Schneider or Omron | Live video audit of electrical panel |
Never bypass a factory audit for bulk orders. You must demand valid ISO 9001 and CE certifications upfront. Request live video audits of the assembly floor. Third-party inspections offer even greater security. Pay special attention to the casting aging process. Cast iron beds require proper natural or artificial aging. This process relieves internal material stresses. Skipping this step leads to bed warping and permanent accuracy loss months after installation.
Component swapping is a common tactic among lower-tier vendors. You must require an itemized Bill of Materials (BOM). This document must identify the country of origin for every critical part. Specify brands for key components. Expect premium bearings from NSK or SKF. Look for PMI or HIWIN linear components if you request upgrades. Tie these specific brand requirements directly to your procurement contract. This stops vendors from substituting cheaper domestic alternatives.
Batch sampling fails completely for bulk machinery orders. You must mandate geometric accuracy tests for every single machine. Spindle runout test reports are equally critical. Demand these documents for each individual unit before crating begins. A single out-of-tolerance machine disrupts automated production cells. Serialized test reports hold the vendor accountable for absolute consistency across the entire fleet.
A vendor's financial health guarantees your project's success. Review their export history thoroughly. Analyze their preferred payment terms carefully. A standard structure is 30% T/T advance and 70% L/C at sight. This protects both parties. Assess their capacity to absorb financial penalties for delayed shipments. A supplier operating on razor-thin margins will cut corners if delays occur. Stable vendors accept penalty clauses without hesitation.

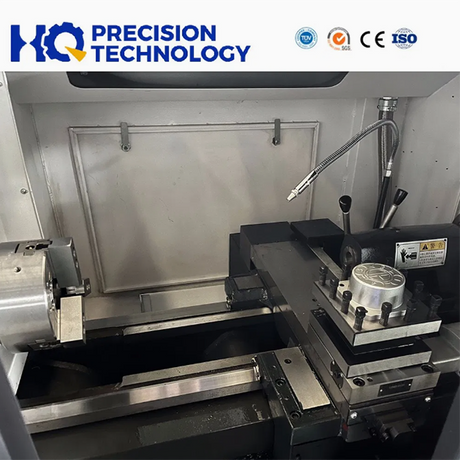

Tooling configurations directly influence cycle times. You must compare different tool post dynamics. The standard 4-station electric tool post works for simple geometries. A 6-station setup or gang-tooling arrangement handles complex parts better. Base your decision on cycle time requirements. Consider your daily tool change frequency. A flat-bed lathe equipped with gang tooling offers rapid, sub-second tool changes. This drastically improves high-volume production output.
Workholding choices dictate your automation readiness. Specify your chuck types explicitly. Manual 3-jaw chucks suit low-volume, variable production. Hydraulic or pneumatic chucks become mandatory for automated bar feeding. Tailstock configurations require similar scrutiny. Choose between a manual quill and a hydraulic quill. Hydraulic tailstocks integrate perfectly into robotic loading cells. They reduce operator fatigue and ensure consistent clamping pressure.
Effective chip management keeps production lines moving. Assess the standard chip pan against optional chip conveyors. Standard pans require manual operator intervention. Conveyors automate chip removal completely. You must also evaluate coolant pump pressure limits. Standard pumps handle surface turning easily. Deep-hole drilling applications demand high-pressure coolant systems. Upgrading the pump prevents premature tool wear and clears chips effectively.
Operator safety remains non-negotiable. Scrutinize the sheet metal guarding carefully. Ensure all access doors feature reliable interlock switches. These switches halt the spindle if an operator opens the door during cycles. The machine must meet local occupational safety requirements. OSHA compliance is mandatory in North America. CE compliance covers European markets. Do not accept machines with exposed leadscrews or inadequate splash guards.
Shipping terms dictate your financial liability during transit. You must weigh FOB (Free on Board) against CIF (Cost, Insurance, and Freight). FOB gives you control over freight forwarder selection. It often results in better shipping rates. CIF places the logistical burden on the vendor. Choose the term based on your internal logistics capabilities. Always clarify exactly when liability transfers from the vendor to your organization.
Maritime transit is notoriously harsh on bare metal machinery. Specify export packaging standards in your contract. Require vacuum-sealed, moisture-proof packing bags. Include plenty of desiccant inside these bags. The machines must sit within heavy-duty, fumigated wooden cases. These wooden cases prevent rust and physical damage during extended ocean voyages. Poor packaging turns precision equipment into scrap metal before it ever reaches your floor.
Spatial efficiency drives down per-unit freight costs. You need to calculate container packing precisely. Determine how many machines fit securely in a 20ft container. Compare this against a 40ft High Cube (HC) container.
Request the exact crated dimensions from the vendor.
Map out the floor plan of the shipping container.
Account for essential dunnage and heavy-duty strapping space.
Optimizing this layout saves thousands of dollars in bulk freight expenses.
Upfront quotes rarely reflect the final invoice. You must factor in localized customs duties. Tariffs change frequently based on geopolitical factors. Port handling fees also add up quickly. Finally, calculate heavy-rigging costs for factory floor placement. Moving a 2,000kg machine from the loading dock to the production cell requires specialized contractors. Include these hidden variables to understand your true capital expenditure.
Bulk installation requires robust technical backing. Clarify the vendor's commissioning support before signing. Determine if they provide remote video assistance. Ensure they supply comprehensive, English-language schematics. Large orders often justify dispatching on-site technicians. Ask if the vendor covers travel costs for their engineers. Smooth commissioning prevents week-long delays in getting your new production line operational.
Warranty contracts often contain deceptive loopholes. Audit the agreement to separate electrical components from mechanical castings. Electrical parts usually carry a strict 12-month warranty. Mechanical beds might offer longer protection. Identify and challenge exclusions related to general "wear and tear." Demand clear definitions of covered failures. Ambiguous warranty language always favors the manufacturer during a dispute.
Machine downtime destroys production schedules. You must negotiate a guaranteed timeline for replacement parts. Secure a strict Service Level Agreement (SLA). Confirm that the vendor maintains domestic inventory for standard consumables. This includes belts, limit switches, and specialized fuses. Waiting three weeks for a proprietary relay shipped from overseas is unacceptable. Your SLA should enforce penalties for delayed part dispatch.
New machinery requires immediate operator competency. Request comprehensive operation manuals prior to machinery arrival. Ask for detailed maintenance schedules. Insist on clear electrical diagrams in your local language. Distribute these resources to your maintenance team early. Pre-arrival training flattens the learning curve. It ensures your operators can run the machines safely and efficiently from day one.
Successful procurement relies on a highly structured approach. First, align the technical specifications with your exact production reality. Next, enforce rigorous quality assurance protocols to guarantee unit consistency. Finally, lock down airtight logistics and post-sale contracts. This critical path protects your capital investment from start to finish.
Never prioritize the lowest upfront quote blindly. Cheap baseline pricing usually masks compromised component transparency. It also indicates poor post-sale reliability. A slightly higher initial investment in verified components pays massive dividends through reduced downtime.
Your next step should be risk mitigation. We recommend starting with a single-unit pilot order. Alternatively, initiate a comprehensive third-party factory audit. Complete these actions before committing to a massive bulk contract. This protects your supply chain and ensures lasting operational success.
A: Standard manufacturing cycles typically run 30 to 45 days for bulk orders. Transit time adds another 3-6 weeks depending on your destination port. Complex customizations, such as specialized robotic interfaces or upgraded control systems, may extend the manufacturing phase by an additional two weeks.
A: Retrofitting is possible but highly complex. You must plan for it during the initial order. Ensure you select the appropriate spindle bore size. You also need a hydraulic chuck and a compatible control system interface. Upgrading manual machines to accept bar feeders later usually proves cost-prohibitive.
A: You must detail this in your pre-shipment inspection terms. Request high-resolution video documentation. Ask the inspector to open the electrical cabinets and record relay brands. They should also photograph bearing serial numbers directly on the spindle assembly before the final covers go on.
A: It depends on your current setup. FANUC requires a higher initial capital expenditure. However, it drastically reduces training time if your operators already know the system. It also retains a higher resale value. If you run a standalone cell, standard controllers might be more economical.
