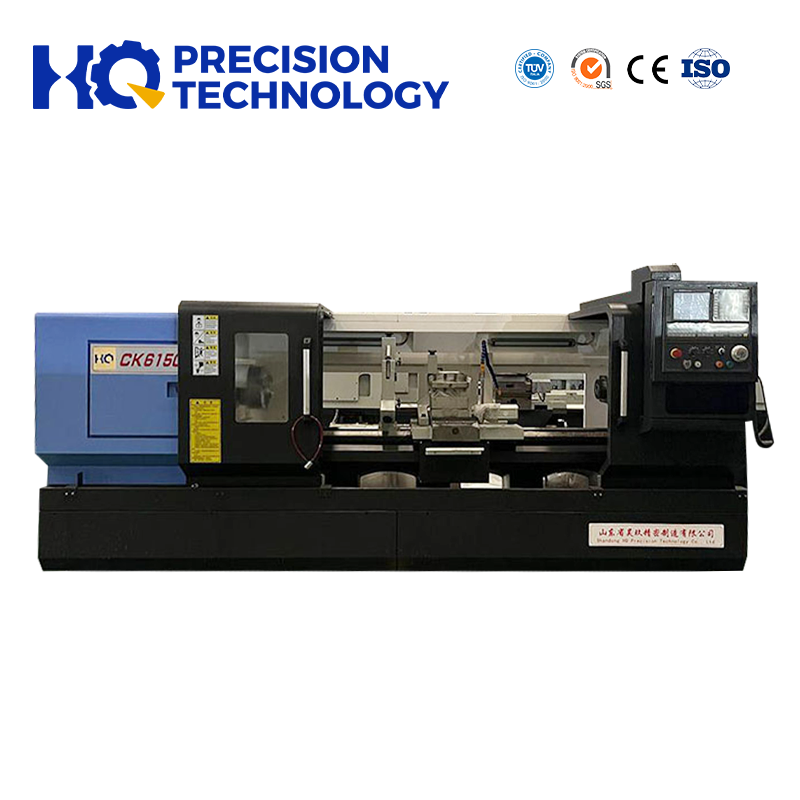

How to Inspect Turning Milling Center Before Shipment?

Procuring high-value CNC equipment involves massive financial and operational stakes. Factory Acceptance Testing (FAT) serves as your final defense line before shipment. This crucial process protects your capital investment. Discovering discrepancies after the machine arrives triggers absolute disaster. Finding alignment issues or missing custom features on your shop floor causes severe production delays. You also risk entering costly, prolonged disputes trying to fix errors locally.

We provide a rigorous, evidence-based framework for pre-shipment inspections. You will learn how to verify physical builds against your original purchase orders. We will show you how to validate geometric tolerances accurately. You will also discover essential steps to ensure your equipment is fully ready for safe transit. Implement these strategies to guarantee a seamless installation and immediate productivity.

Key Takeaways

• Always cross-reference the physical machine's data plates and components with the agreed-upon turning milling machine specifications in your contract.
• Demand standardized geometric and kinematic accuracy reports (e.g., laser calibration, ball-bar testing) directly from the supplier.
• Mandate a dynamic test cut that mimics your actual production environment, especially if purchasing a complex parts turning milling machine.
• Withhold final sign-off and payment until all custom integrations and automation features are fully validated on the supplier's floor.

1. Establish the Baseline: Verifying Turning Milling Machine Specifications

Supply chain shortages frequently force manufacturers to substitute internal components. Builders might swap a specific servo motor brand. They may change guideway suppliers to meet deadlines. These unauthorized changes directly impact long-term reliability. They also complicate your future part availability for routine maintenance. Catching these deviations early saves significant headaches later.

You must perform a stringent document audit onsite. Treat this step as a rigorous financial audit.

1. Compare the Purchase Order (PO) line-by-line against the physical build.
2. Locate and record the serial numbers stamped directly on the machine bed.
3. Verify the serial numbers on all spindles and the CNC control unit.
4. Document any discrepancies immediately in your master inspection log.

Next, inspect critical sub-assemblies closely. Confirm the exact brand and model of linear guideways. Verify the ball screws and servo motors match your contract exactly. Inspect the tool turrets carefully. Ensure they align perfectly with your approved turning milling machine specifications. Never accept verbal assurances for component substitutions.

Electrical setups require equal scrutiny. Verify the required voltage matches your facility exactly. Check the transformer requirements before shipping. Look for localized compliance certifications. CE or UL markings must be physically present on the nameplate.

2. Mechanical and Visual Audit: Inspecting the Core Hardware

Evaluating a turning milling machine requires deep physical scrutiny. A premium machine must feature a flawless physical build. Inspect the main casting surfaces under bright light. Look for porosity, rough patching, or micro-cracks. These flaws indicate poor foundry quality. Substandard castings absorb vibration poorly during heavy cutting. Next, evaluate the sheet metal enclosures. Check the fit and finish around every door seam. Ensure all seals are completely coolant-tight. Leaky enclosures create massive safety hazards on your shop floor.

Fluid and lubrication systems demand close attention. Examine the routing of all hydraulic lines. Trace the pneumatic lines from the manifold to the endpoint. Look for dangerous crimps in the hoses. Ensure no hoses are exposed to sharp chip zones. A severed hydraulic line halts production instantly. Inspect the automatic lubrication system thoroughly. Cycle the lube pump manually. Confirm oil flows properly to all way surfaces. Verify oil reaches the ball screw nuts.

A pristine exterior often hides rushed internal wiring. Never judge the equipment by its paint job alone. Demand open electrical cabinets during your inspection.

• Verify clear wire labeling matching the electrical schematics.
• Check for proper grounding on all high-voltage components.
• Assess general routing cleanliness inside the main panel.
• Ensure cooling fans or cabinet chillers function correctly.

Messy panels often signal poor overall quality control. Sloppy wiring complicates future troubleshooting immensely. Address messy panels before authorizing shipment.

3. Precision Validation: Geometric and Kinematic Accuracy

Static geometry and positional accuracy remain non-negotiable. Dual turning and milling operations demand flawless alignment. If axes drift slightly, complex parts fail inspection. You cannot compensate for bad base geometry using software alone. Physical squareness must exist in the iron.

Begin by testing the spindles and turrets. Use certified test bars for these checks. Mount high-end dial indicators on magnetic bases. Measure both main and sub-spindle runout accurately. High runout ruins surface finishes instantly. Verify the turret indexing repeatability. Rotate the turret multiple times. Ensure exact alignment to the spindle centerline after every index.

Do not accept historical accuracy data. Require the builder to perform live calibration tests. Watch the laser interferometer testing in person. They must share results for linear positioning accuracy. Verify repeatability based on ISO 230-2 standards. Request Renishaw ball-bar test results next. These tests verify circularity perfectly. They also prove simultaneous axis interpolation capabilities.

4. Dynamic Performance: Test Cutting for Complex Parts

Static accuracy never guarantees dynamic rigidity. Cutting loads introduce massive physical forces. Heat buildup expands metal predictably. A complex parts turning milling machine must prove its capability under stress. Real-world conditions reveal weaknesses invisible during static testing.

Supply your own challenging test part design. Alternatively, use a standard NAS 979 test part. This part must require simultaneous 4-axis or 5-axis motion. Standard test cuts expose servo lag quickly. Monitor the equipment closely during heavy roughing passes. Watch for abnormal vibration across the machine bed. Listen for chatter or unusual spindle noise. High-speed finishing passes test the spindle bearing integrity.

Measure the finished part immediately after the cut. Use a Coordinate Measuring Machine (CMM) for verification. Evaluate the surface finish roughness (Ra). Check all dimensional tolerances against the promised baseline. If the part fails, the machine fails the FAT.

5. Validating Automation and Custom Capabilities

Many buyers invest in a custom turning milling machine to boost unattended throughput. Software and automation integration frequently become common failure points. You must test these interconnected systems rigorously. An idle robot loader ruins your ROI.

Start by testing live tooling and Y-axis movements. Test the physical engagement of driven tools. Measure the available torque under heavy milling loads. Stalling live tools ruins expensive inserts. Verify the Y-axis stroke limits carefully. Check its rigidity during off-center milling operations. Deflection here creates tapered walls on milled features.

Automation testing requires prolonged, uninterrupted cycles. Short tests hide thermal issues.

• Cycle the bar feeder continuously for 30+ minutes.
• Run the parts catcher repeatedly to identify mechanical hangups.
• Test robotic loading interfaces to spot network communication faults.
• Trigger emergency stops during automation cycles to verify safe recovery.

Verify all custom macro programs perform correctly. Check high-pressure coolant systems for leaks. Ensure tool breakage detection software is installed properly. Test the laser measurement systems by intentionally dulling a tool. The system must catch the error and halt production.

6. Finalizing the FAT with Your Turning Milling Machine Supplier

Inspection data means nothing without decisive action. You must handle the gathered data systematically. Review every anomaly found during testing. Never dismiss small errors. Small issues compound into major breakdowns later.

Document every single discrepancy thoroughly. Log minor cosmetic issues and major functional defects alike. Capture high-resolution photos of leaks or poor wiring. Record timestamped videos of abnormal spindle noises. Require a written mitigation plan from your turning milling machine supplier. Do this before signing any release documents. They must commit to fix dates.

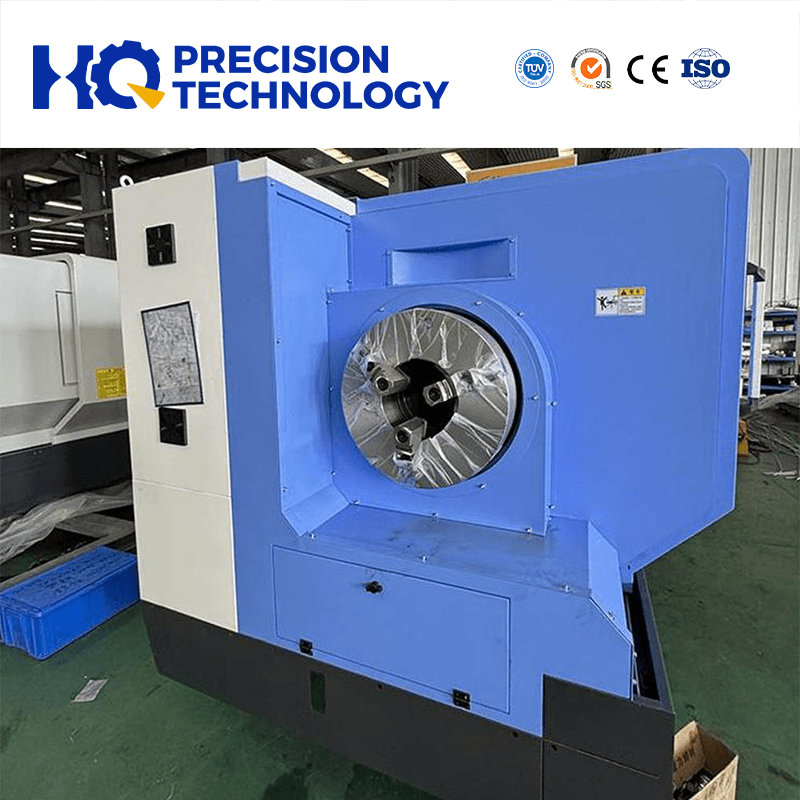

Shipping preparation introduces major transit risks. Confirm the protocol for applying cosmoline or heavy rust inhibitors. Salt air destroys bare metal quickly during ocean freight. Verify how moving parts will be secured. The turret, spindle head, and tailstock must be physically bracketed. Heavy steel brackets prevent shifting. Securing these massive components prevents bearing damage during rough transit. Verify moisture-absorbing desiccant packs are placed inside the electrical cabinets.

Conclusion

A rigorous pre-shipment inspection shifts defect resolution risks back to the manufacturer. Catching errors at the factory saves immense downtime upon final installation. You avoid wasting weeks waiting for replacement parts to cross oceans. Always formalize the FAT checklist inside your initial purchasing contracts. Ensure builders allocate sufficient testing time before the final shipping date. Take charge of your physical inspection to guarantee immediate, day-one productivity on your shop floor.

FAQ

Q: Should I hire a third-party inspector if I cannot visit the manufacturer overseas?

A: Yes. Hiring a local, certified CNC metrology expert is highly recommended. The cost of a third-party inspector is a fraction of the downtime required to fix a defective machine post-delivery. They bring objective measuring tools and deep factory evaluation experience.

Q: What documentation must be included in the shipping crate?

A: You must receive foundation and layout drawings. Ensure electrical diagrams and pneumatic schematics are present. The crate must include parameter backup USBs and comprehensive operator manuals. Always verify the signed geometric accuracy inspection report is packed securely inside.

Q: Who is responsible if the machine passes inspection at the factory but arrives out of alignment?

A: This depends on your clarified Incoterms (e.g., FOB vs. CIF/DDP). It highlights the importance of comprehensive marine and freight insurance. The factory inspection establishes a definitive baseline. It proves the equipment was built correctly before the final logistics handover.
