Production managers face a constant, stressful challenge daily. You must maintain strict dimensional accuracy across medium-to-high volume runs. Simultaneously, you cannot afford inflated cycle times. Sacrificing speed for precision severely hurts profitability. On the other hand, sacrificing precision for speed creates unacceptable scrap rates. You need a turning center balancing both extremes perfectly.

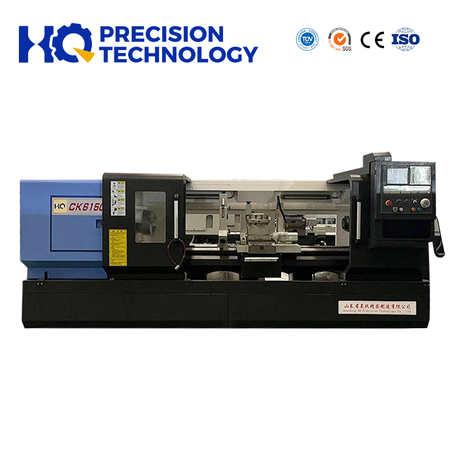

We position the CK6150 CNC lathe as a widely adopted, mid-size turning solution. It brilliantly balances heavy bed rigidity and operational flexibility. This machine serves as the backbone for countless machine shops globally. It handles everything from automotive shafts to complex flange discs.
This guide provides an objective framework for buyers. You will learn how to evaluate if the CK6150 fits your specific batch manufacturing requirements. We focus closely on machine specifications, floor customization, and operational efficiency. By the end, you will discover exactly how this equipment sustains throughput without compromising tight tolerances.
Operators know the struggle intimately. You set up a turning machine for a 500-part run. The first ten pieces measure perfectly. By piece 50, tool wear begins subtly. By piece 200, thermal expansion alters the machine's geometry. Dimensions drift unexpectedly. You must pause production immediately. You adjust offsets. You lose valuable cycle time. This tension defines the ultimate bottleneck in batch turning operations.
A successful batch machining setup looks distinctly different. It requires sub-minute part loading. It demands zero-deviation tolerances over a full 500-part run. It results in virtually zero scrap. Achieving this requires immense structural stability. Light-duty machines simply vibrate too much under continuous heavy cuts. They cannot sustain the necessary heat dissipation.
The CK6150 series directly addresses these exact bottlenecks. Both flat-bed and slant-bed variants utilize heavy, cast-iron bases. This dense material absorbs cutting frequencies effortlessly. Automated G-code execution ensures the tool path remains identical every single time. Operators no longer rely on manual finesse. They rely on programmable, repeatable precision. This translates directly to faster, more reliable batch completions.
Raw numbers on a brochure mean little without context. You must map standard CK6150 CNC lathe specifications directly to your production floor outcomes. Every dimension dictates a specific capability.

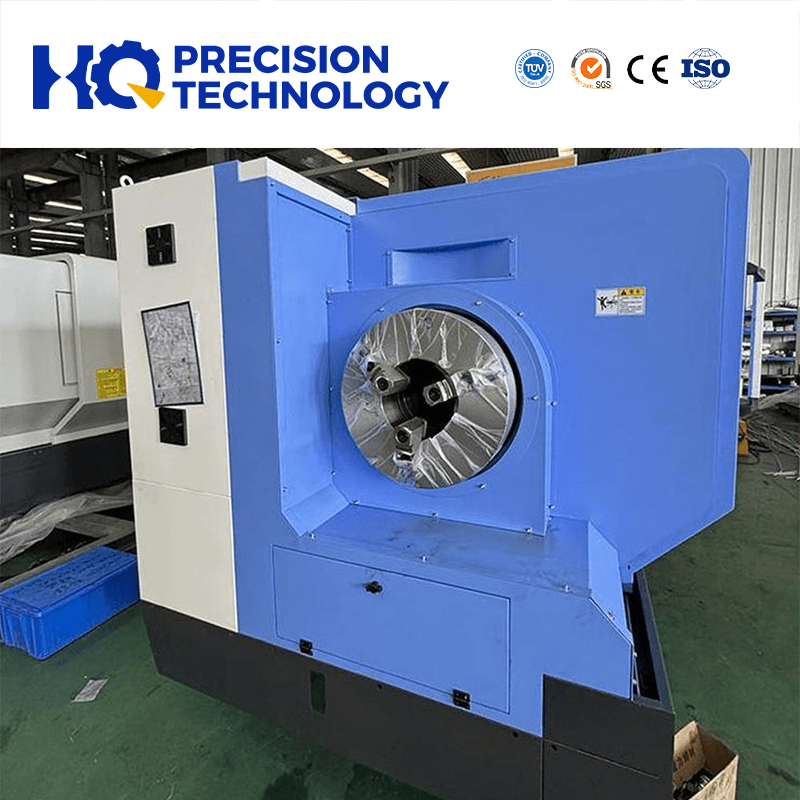

Consider the typical 500mm swing over the bed. This generous work envelope dictates the exact types of batches you can accept. You can easily clear large flange discs or bulky castings. Paired with a substantial maximum workpiece length, you can turn long automotive shafts between centers. You gain immense versatility.
Spindle bore capacity represents another critical throughput driver. A larger spindle bore allows you to feed thicker bar stock directly through the headstock. This eliminates pre-cutting raw materials into small blanks. It directly impacts continuous batch flow. Furthermore, hardened and ground guideways sustain accuracy over thousands of rapid traverses. They resist premature wear.
| Specification Category | Typical Parameter | Direct Production Benefit |
|---|---|---|
| Swing Over Bed | 500 mm | Accommodates larger diameter flanges and odd-shaped castings safely. |
| Spindle Bore Size | 52 mm to 82 mm (Varies) | Enables automated bar feeding for uninterrupted high-volume machining. |
| Guideway Type | Hardened & Ground Box Ways | Dampens heavy cutting vibrations, extending insert life significantly. |
| Main Motor Power | 7.5 kW to 11 kW | Provides sufficient torque for aggressive roughing passes on steel. |
We must establish a crucial trust point here. Maximum spindle speeds always look impressive on spec sheets. However, actual optimal cutting speeds depend entirely on your tooling quality and material hardness. Running a machine at maximum RPM constantly accelerates wear. Smart operators program speeds maximizing tool life, not just spindle limits.
Modern control systems transform raw iron into an intelligent production cell. Standard CNC controllers from FANUC, Siemens, or GSK play a vital role. They handle complex macro-programming effortlessly. You can program repetitive tasks, sub-routines, and rapid tool offsets. This drastically reduces the time between active cutting phases.
Tool management dictates your non-cutting time. A basic 4-way electric post works for simple profiles. However, complex parts require 6-way or 8-way hydraulic turrets. Rapid indexing between tools minimizes dead time in any batch machining CK6150 CNC lathe setup. Hydraulic turrets lock into place rigidly. They prevent chatter during aggressive grooving or threading cycles.
Extended batch runs inevitably generate heat. Thermal deformation presents a harsh reality. As the spindle runs for eight hours, the metal expands. This expansion shifts the tool centerline. The CK6150 mitigates this tolerance drift actively. Robust lubrication distributes oil constantly across the ways. High-volume coolant systems flood the cutting zone. They pull heat away from the workpiece and the machine casting simultaneously. Your fiftieth part measures exactly like your first.
Astute buyers rarely settle for strictly off-the-shelf configurations. If your batches require specific handling, you must adapt the machine. Scalability matters immensely. You can configure a custom CK6150 CNC lathe to eliminate specific operator bottlenecks on your floor.
However, we must warn about implementation risks. Adding third-party automation requires careful integration. The external equipment must communicate flawlessly with the machine’s PLC (Programmable Logic Controller). Mismatched peripherals cause severe downtime. A bar feeder pushing stock before the chuck fully opens will crash the machine. Always ensure your vendor pre-programs these handshakes.
Looking beyond the initial purchase price reveals the true operational reality. High-volume runs consume resources rapidly. You must evaluate the ongoing costs of power consumption, coolant management, and tooling inserts. Aggressive batch machining drains fluids and dulls carbide fast.
Maintaining accuracy requires strict discipline. You cannot ignore preventative maintenance. To keep a CK6150 accurate during high-volume runs, shops must implement rigid schedules.
Finally, assess operator adoption carefully. Existing machinists face a learning curve when transitioning. Moving from manual lathes to a CNC interface requires training. Even moving between different controller brands (e.g., from GSK to FANUC) takes time. Budget for proper training days. Untrained operators slow down batch cycles out of caution or make costly collision errors.
Your relationship with the vendor matters as much as the iron itself. Demand a rigorous vendor evaluation framework during the RFQ phase. Do not accept vague promises. You need concrete proof of machine capability.
Always require Factory Acceptance Testing (FAT). Send the vendor your specific batch part drawing and raw material. Make them cut your part before shipping the machine. If they cannot hit your tolerances on their own assembly floor, they will not hit them on yours.
Post-sale support defines your long-term success. Evaluate your CK6150 CNC lathe supplier based on their local service network. Ask about warranty terms explicitly. Inquire about spare parts availability, especially for proprietary electronic boards and servos. A machine sitting idle waiting for a shipped part destroys batch deadlines.
Take an actionable next step today. When contacting a vendor, request a spindle run-out test report. Furthermore, ask them to provide a simulated time-study for your most common component. This proves they understand your specific production goals.
The CK6150 does not act as a magic bullet. Instead, it serves as a highly capable, rigid foundation. It requires the right specifications, upgraded workholding, and quality tooling to truly master batch production. When configured correctly, it eliminates thermal drift and slashes loading times.
We encourage buyers to analyze their current operations closely. Calculate your current cost-per-part using manual or older equipment. Compare those numbers against the estimated cycle times of a fully automated CK6150 setup. The efficiency gains usually justify the upgrade quickly.
Direct your next steps clearly. Contact engineering sales teams for a custom cycle-time analysis. Review detailed spec sheets side-by-side. Build the exact turning cell your production floor desperately needs.
A: The CK6150 excels at machining carbon steels, cast iron, aluminum, and brass. Its heavy cast-iron bed provides excellent rigidity for aggressive roughing on these materials. While it handles standard stainless steels well, machining exotic super-alloys (like Inconel or Titanium) in large batches may push its rigidity limits, requiring specialized tooling and slower feeds.
A: Yes, retrofitting is possible. However, you must plan ahead. Ensure your initial spindle bore size accommodates your future bar stock diameters. More importantly, verify the machine's PLC has open I/O ports and logic capability to interface safely with a third-party bar feeder later.
A: Slant bed lathes offer superior chip evacuation and better operator ergonomics, making them ideal for ultra-high-volume, automated environments. The flat bed CK6150 offers exceptional cost-effectiveness and heavy-duty stability. Flat beds often accommodate heavier, longer workpieces at a lower initial investment price point.
A: Standard off-the-shelf configurations usually ship within 30 to 45 days. Highly customized machines featuring automated chucks, specialized turrets, or bar feeder integrations typically require 60 to 90 days. This extended timeline allows for proper factory integration, rigorous alignment, and mandatory Factory Acceptance Testing (FAT).
