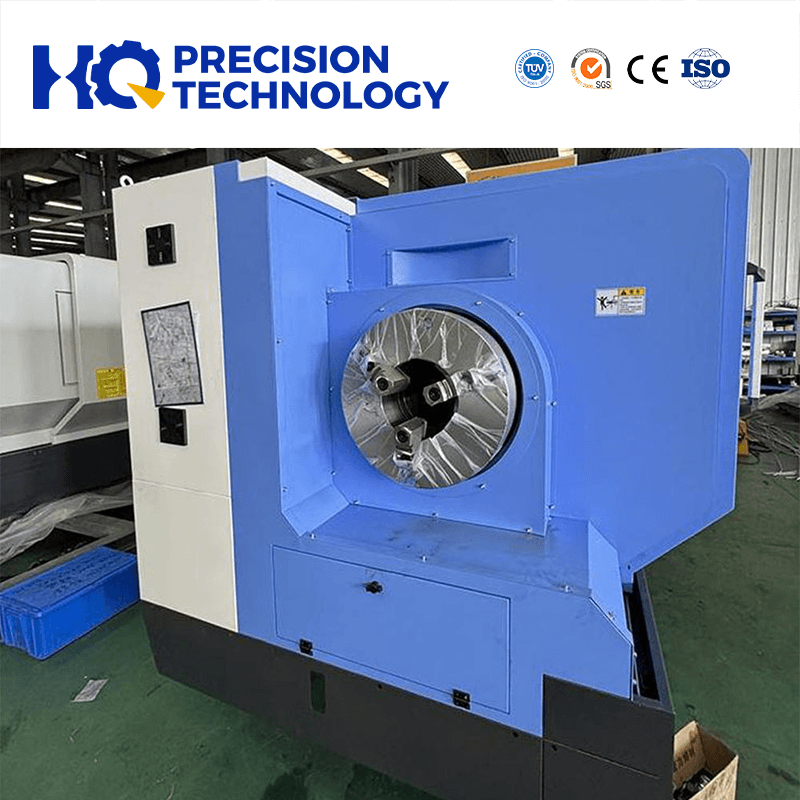

Which Heavy-Duty Lathe Design Fits Large Shafts?

Machining massive components like marine propeller shafts, turbine rotors, and oil drill collars introduces extreme operational challenges. You face severe material deflection, intense machining chatter, and massive weight-bearing stress daily. Standard production lathes simply fail in these environments. Even when scaled up, these conventional machines lack crucial torsional rigidity. They also miss the low-RPM torque necessary to execute deep, interrupted cuts on oversized forgings.

This guide provides a robust framework to evaluate large-capacity machines based on strict structural engineering principles and verifiable performance metrics. You will learn how to bypass polished brochure claims and accurately assess bed architecture, torque charts, and raw load capacities. We will explore everything from mitigating foundational installation risks to selecting the correct steady rests. By understanding these core dynamics, buyers can confidently specify equipment capable of handling their most demanding long-span turning applications safely and accurately.

Key Takeaways

• Bed Architecture Dictates Capability: Single-piece cast iron flat beds with wide box ways are mandatory for absorbing low-frequency vibrations inherent in large shaft turning.
• Support Over Swings: For high L/D (Length-to-Diameter) ratio shafts, center distance and steady rest integration matter more than maximum swing over bed.
• Torque Outweighs Horsepower: Evaluating spindle torque at low RPMs is more critical than peak horsepower for heavy material removal rates.
• Foundation Costs are Hidden Factors: True heavy-duty machines require isolated, reinforced concrete foundations, significantly impacting total cost of ownership.

The Physics of Large Shaft Machining: Framing the Core Problem

The Length-to-Diameter (L/D) ratio fundamentally dictates how a workpiece behaves during turning operations. When you machine a long, slender shaft, gravity constantly pulls the center downward. This natural sag creates an unsupported bridge effect. As the cutting tool presses against this sagging center, the material deflects away from the insert. This physical deflection causes severe dimensional inaccuracies. Machinists often call this the "barrel effect" because the shaft becomes measurably thicker in the middle.

Heavy, interrupted cuts on hardened steel or exotic alloys amplify these challenges. The cutting tool constantly slams into irregular forged surfaces. These violent impacts generate severe harmonic vibrations. Such low-frequency shockwaves travel directly through the cutting tool and into the machine structure. Standard spindle bearings cannot survive this environment. They quickly pit and fail under the repetitive sheer stress. You need highly specialized angular contact thrust bearings to absorb this punishment safely.

Finally, we must consider the static versus dynamic load challenge. The static load represents the sheer dead weight of the workpiece. A 30-ton marine shaft constantly compresses the machine guideways simply by resting between centers. Once the spindle turns and the tool engages, dynamic cutting forces multiply this stress exponentially. This combined pressure aggressively tests the underlying structural integrity of your equipment.

Heavy Duty Lathe Specifications: Minimum Baselines for Large Shafts

When you evaluate a machine, you must establish strict structural baselines. The most critical metric is load capacity between centers. However, you must specifically demand weight ratings measured without the use of steady rests. Some manufacturers inflate their numbers by assuming multiple support points. Evaluating the raw, unsupported capacity reveals the true structural strength of the bed casting. A machine relying heavily on rests just to bear static weight lacks inherent rigidity.

Next, examine the spindle bore and headstock gearing carefully. High peak horsepower numbers look impressive on paper. Yet, horsepower means very little without mechanical advantage. Large diameter shafts require incredibly low RPMs to maintain safe surface speeds. You need massive, gear-driven headstocks to deliver peak cutting force at 10 to 50 RPMs. When reviewing heavy duty lathe specifications, prioritize robust torque charts over simple horsepower ratings.

The tailstock remains equally critical for massive loads. Evaluate the tailstock quill diameter and overall thrust capacity. You should look for heavy-duty built-in live centers and adjustable hydraulic quill pressure. Programmable positioning helps operators secure immense loads safely and consistently. An inadequate tailstock risks catastrophic workpiece ejection during heavy roughing operations.

Marketing sheets often mislead buyers through clever phrasing. For instance, a brochure might highlight a massive maximum swing over bed. This number indicates the absolute largest diameter you can fit over the ways. However, the functional turning diameter over the cross slide is significantly smaller. Always base your purchasing decisions on functional turning clearances rather than theoretical maximums.

Structural Design Evaluation: Bed Types and Guideways

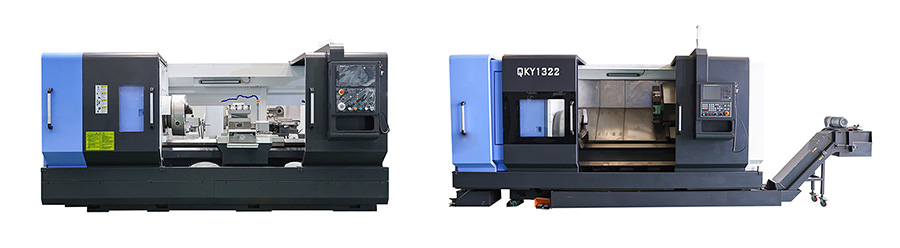

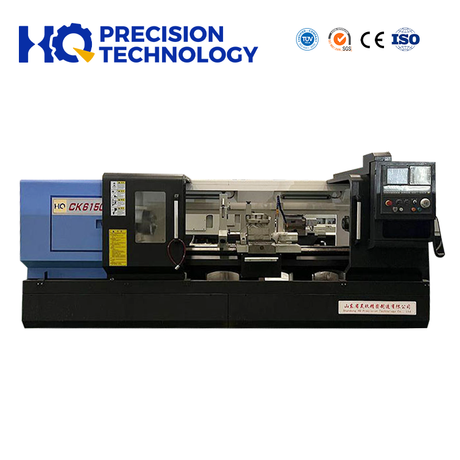

The foundational geometry of the machine bed determines its ultimate capability. Slant bed designs dominate modern CNC turning because they evacuate chips effortlessly. However, flat bed designs distribute sheer vertical weight far more effectively. When you operate a large shafts heavy duty lathe, gravity acts as your biggest obstacle. A traditional flat bed channels massive workpiece weight directly downward into the foundation. Slant beds force the linear rails to handle awkward offset loads, accelerating mechanical wear.

Guideway technology acts as another non-negotiable factor. The debate between box ways and linear roller guides ends definitively in heavy-duty applications. You absolutely need hardened and ground box ways. These friction-based guides provide massive surface area contact. They create a critical dampening effect against low-frequency chatter. Linear roller guides move faster and reduce friction. However, their microscopic contact points risk premature crushing under heavy, interrupted cuts.

The following chart illustrates why friction guides outperform roller variants across key heavy-machining criteria:

Material composition heavily dictates thermal and structural stability. You cannot build a rigid machine from inferior cast iron. The bed must utilize heavily ribbed Meehanite or an equivalent high-grade cast iron. This premium metallurgy successfully resists twisting forces. It maintains critical geometric alignment even when ambient factory temperatures fluctuate wildly throughout the year.

Workholding and Support: Critical Accessories for Long Spans

Long spans demand robust mid-point support to counteract the natural deflection ratio. Steady rests and follower rests become your most vital accessories. Traditional manual roller rests remain economical but require constant operator adjustment. Self-centering hydraulic steady rests provide far better operational consistency. They actively maintain uniform gripping pressure as the workpiece temperature rises during aggressive turning. For ultra-long shafts, pass-through programmable steady rests act as a game changer. They retract and reposition automatically, allowing the carriage to cut the entire length seamlessly.

Chucking systems require equal scrutiny. You rarely grip perfectly round stock during the initial roughing phases. Dual-chuck configurations help stabilize extremely long or awkwardly balanced components. Heavy-duty 4-jaw independent chucks are mandatory for gripping irregular, raw forged ends. Unlike basic 3-jaw scroll chucks, 4-jaw systems let operators dial in exact runout corrections on highly imperfect castings.

Many large shafts, including oil and gas drill collars, require hollow internals. This demands excellent boring bar integration. Heavy-duty tool posts must handle massive, extended boring bars without inducing chatter. Specialized deep-hole boring attachments often mount directly to the carriage casting. This rigid, direct-mount setup absorbs internal cutting forces far better than standard turret mounts.

Assessing a Custom Heavy Duty Lathe vs. Standard Configurations

Standard models easily cover most industrial applications. A standard heavy duty lathe offers proven reliability, documented performance, and faster delivery times. However, specific use cases push manufacturers toward bespoke solutions. Machining proprietary aerospace alloys might require highly specialized high-pressure coolant delivery systems. Projects involving marine shafts exceeding 20 meters dictate fully custom bed lengths. Extreme multitasking—where turning, milling, and deep-hole drilling happen simultaneously—often necessitates a custom heavy duty lathe.

Customization always introduces significant operational trade-offs. You achieve a precise fit for your specific part family. Conversely, you face heavily extended lead times. Completely bespoke, one-off designs lack years of proven field testing. Unforeseen software bugs or mechanical quirks often emerge during initial production runs. Furthermore, the initial capital expenditure for bespoke engineering is substantially higher.

Leading machine tool builders recognize these risks and offer modular customization instead. This approach acts as a highly practical compromise. Builders design standard, field-tested core modules. You can specify exact bed lengths in modular increments. You can swap headstock gearboxes or tailstock configurations as needed. This strategy delivers tailored dimensions using reliable, proven components. You successfully mitigate operational risk while achieving exactly what your large shafts require.

Vetting Your Heavy Duty Lathe Supplier: Implementation and Lifecycle Risks

Implementing massive machine tools is incredibly complex. The concrete foundation beneath your machine is just as critical as the machine itself. A heavy bed will twist and distort if placed on inadequate flooring. A credible heavy duty lathe supplier will proactively demand structural soil testing at your facility. They will provide detailed, heavily reinforced concrete foundation drawings months before delivery. Rebar-enforced isolation pits separate the machine from adjacent factory floor vibrations, ensuring perfect long-term alignment.

Aftermarket support ultimately defines your long-term machining success. Even the most robust components eventually wear down under constant stress. You must meticulously evaluate your supplier's domestic parts inventory. Critical wear items like specialized spindle bearings, heavy-duty ballscrews, and turret internals must sit on local shelves. Waiting months for an overseas shipment paralyzes your primary production capabilities.

Safety and compliance integration cannot be an afterthought. Massive rotating inertia poses severe risks to your machine operators. Ensure the equipment fundamentally meets strict local safety standards, including CE or OSHA requirements. Demand heavy-duty interlocking guards designed to contain heavy chip loads and potential tool breakage. Verify the presence of rapid emergency braking systems capable of halting a 40-ton spinning mass safely.

Conclusion

Selecting equipment for oversized shafts demands a rigorous, evidence-based approach. You must strip away marketing jargon and focus purely on structural engineering and machining physics. Large-scale turning leaves absolutely no room for lightweight structural components or compromised linear guideways.

To successfully navigate the procurement process, follow these critical shortlisting steps:

1. Eliminate Linear Guides: Disqualify any machine using linear roller guides on its primary load-bearing axes for massive shafts.
2. Demand Torque Data: Require verifiable, low-RPM torque charts before considering any spindle horsepower specifications.
3. Request Test Simulations: Ask the supplier to run a test cut simulation using your exact shaft material and maximum dimensions.
4. Detail Workholding: Require a complete engineering layout of the proposed steady rest configurations and estimated cycle times.

By rigorously applying these structural standards, you ensure your next machine tool investment performs reliably under the most extreme industrial conditions.

FAQ

Q: What is the maximum weight a heavy-duty lathe can hold between centers without a steady rest?

A: This depends entirely on the machine's specific bed casting and tailstock thrust. Mid-range heavy lathes handle 5 to 10 tons, while ultra-heavy models exceed 50 tons. Always consult the manufacturer's load capacity chart.

Q: Do I need a CNC or manual heavy-duty lathe for large shafts?

A: For one-off repair work (like marine propeller re-turning), a manual or teach-in flat-bed lathe is often sufficient. For production runs or complex profiles (tapers, threading), CNC is required for repeatability and cycle time reduction.

Q: How much does foundation work add to the cost of a heavy-duty lathe?

A: Depending on the soil stability and machine weight (which can exceed 100,000 lbs), reinforced concrete pits and isolation padding can add 10% to 20% to the total project cost.

Q: Why is low-RPM torque more important than spindle horsepower?

A: Large diameter shafts require lower RPMs to maintain safe and optimal surface speeds (SFM). High horsepower is useless if the machine lacks the mechanical gearing to deliver cutting force (torque) at those low speeds.
