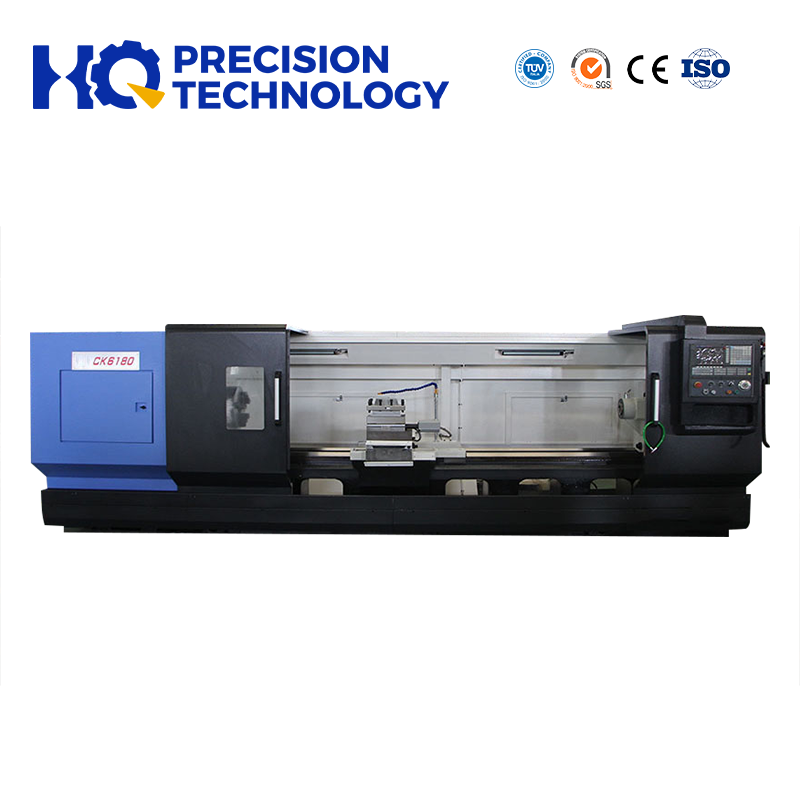

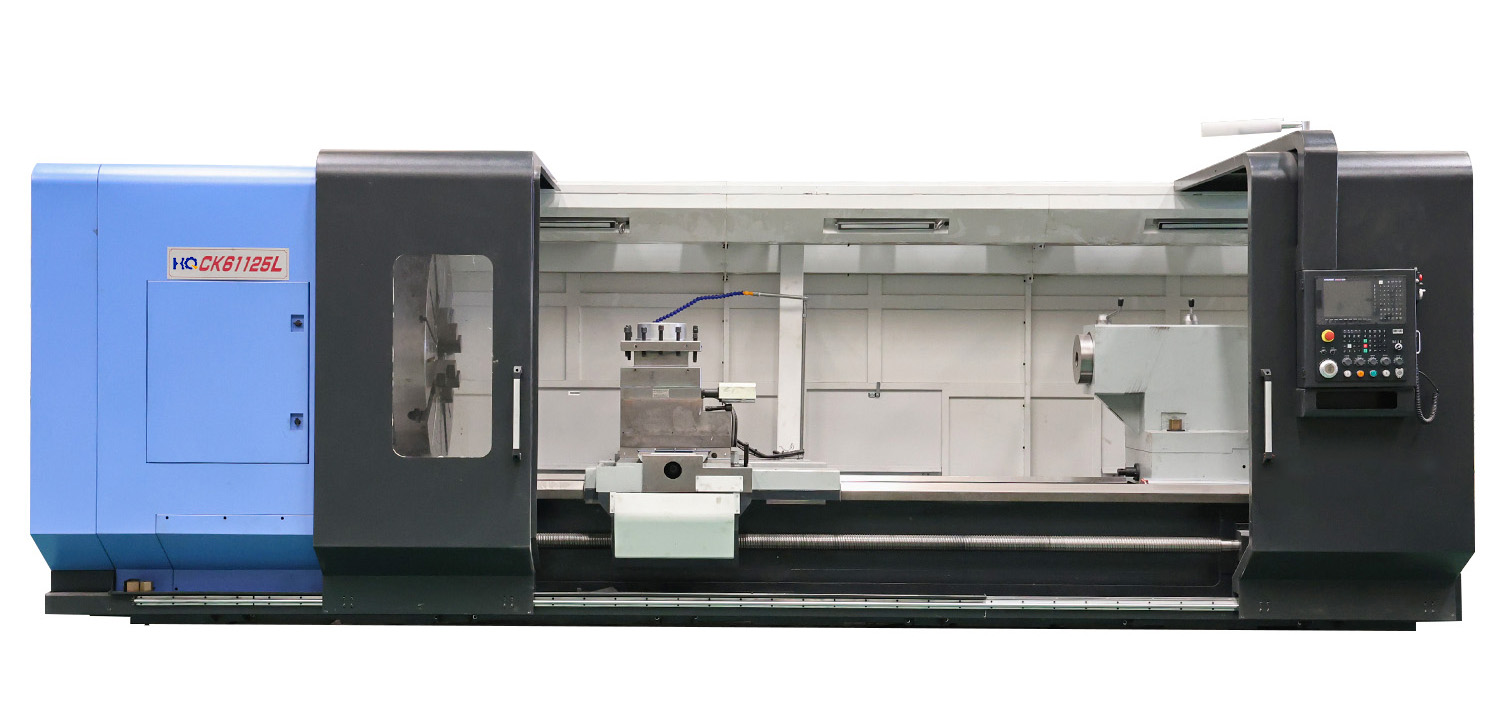

Every major equipment purchase requires balancing return on investment against application fit. Machining massive structural parts demands exceptional capacity and uncompromising rigidity. Because of this, a flat bed CNC lathe frequently proves the most cost-effective choice. You just need to understand its true operational limits. Modern manufacturing often pushes buyers toward highly automated slant bed models. However, we must validate the enduring relevance of flat bed architectures. They dominate heavy-duty metal turning and easily support large swing requirements. They also serve perfectly as bridge machines for shops transitioning into digital control.
This guide delivers a strict framework for evaluating machine specifications. You will learn to navigate structural trade-offs and mitigate serious implementation risks. We will help you select a reliable vendor confidently. Align your next investment directly to your shop floor reality. We will explore structural differences, core evaluation metrics, and hidden operational risks. Follow these guidelines to secure the best equipment.
Application Dictates Geometry: Flat bed lathes offer superior swing-over-bed capacity per dollar, making them ideal for large plate workpieces and long shaft machining.
The Chip Evacuation Trade-off: Flat beds require deliberate chip management strategies compared to gravity-assisted slant beds.
Specification Priorities: For shafts, prioritize Z-axis travel and tailstock rigidity; for plates, prioritize swing over cross slide and low-RPM spindle torque.
Total Cost of Ownership (TCO): Base your shortlist on standard vs. proprietary control systems, tooling availability, and local service SLAs, not just base machine price.
Shops often over-capitalize on complex multi-axis slant bed machines. They buy advanced technology for simple 2-axis turning tasks. This creates unnecessary financial overhead. We see a better cost-to-capacity ratio in traditional flat bed designs. A horizontal bed design focuses entirely on fundamental turning strength.
The structural layout allows for massive swing capacities. You achieve this at a significantly lower price point than equivalent slant beds. A robust flat cast iron base easily handles bulky workpieces. It provides a stable platform for oversized flanges or long hydraulic cylinders. You avoid paying for unnecessary Y-axis capabilities.
Operator adoption also happens much faster. Ergonomic and visual similarities to manual lathes flatten the learning curve. Machinists transitioning to digital control feel comfortable immediately. They understand the horizontal layout intuitively. Manual machinists can monitor the cutting zone from familiar angles. This builds operator confidence rapidly.
We identify two distinct application sweet spots here. First, this architecture excels at heavy roughing of long shafts. Second, it perfectly handles facing large-diameter plate parts. You gain raw cutting power where it matters most. It simply outperforms lighter machines during deep interrupted cuts.
You must evaluate structural rigidity carefully before purchasing. Slant beds offer excellent dynamic stiffness for high-speed operations. Conversely, heavily ribbed flat beds excel differently. They absorb low-frequency vibrations during heavy interrupted cuts perfectly. The massive cast iron footprint dampens resonance effectively. This ensures superior surface finishes on forged steel components.
Chip and coolant management presents the primary drawback. A flat bed design inherently causes chip pooling around the workpiece. You must decide if this presents a dealbreaker for your shop. High-volume aluminum turning makes poor chip evacuation unacceptable. Low-volume, heavy steel part production makes it entirely manageable. Operators simply pause the cycle to clear stringy steel chips.
Footprint and automation also demand careful consideration. Flat beds typically consume significantly more floor space. They prove harder to integrate alongside standard bar feeders. Robotic loaders struggle more than they would facing a slant bed counterpart. The horizontal span forces automation systems to reach further.
Feature | Flat Bed Lathe | Slant Bed Lathe |
|---|---|---|
Vibration Dampening | Excellent for low-frequency, heavy cuts | High dynamic stiffness for rapid speed |
Chip Evacuation | Requires deliberate manual intervention | Gravity-assisted, automated clearance |
Automation Fit | Challenging robotic integration | Seamless bar feeder pairing |
Swing Capacity per Dollar | Extremely high value | Premium cost for large swings |
 |  |
Distance between centers directly dictates your maximum capacity. Z-axis travel determines exactly how long your part can be. Define your bed length based on maximum part length. Always add required tool clearance to this measurement. You must leave room for drills and boring bars. A cramped Z-axis travel causes disastrous tool crashes.
Tailstock and steady rest integration remain non-negotiable requirements. Shaft machining requires heavy-duty programmable or manual tailstocks. You must easily mount steady rests for long, slender items. This prevents deflection under heavy cutting loads. Without these supports, you ruin tight tolerances quickly. Look for programmable tailstocks to reduce setup times. They lock into position hydraulically for maximum rigidity.
Spindle bore size requires equal attention from buyers. Through-hole capacity allows passing long bar stock through the spindle. You keep the unsupported overhang extremely short. This maximizes rigidity and improves surface finish instantly. A larger spindle bore accommodates stepped shafts easily. It eliminates harmful harmonics during high-speed rotation. We recommend sizing your bore at least ten percent larger than your typical stock.
Machine tool builders construct guide ways using different methods. Box ways provide exceptional vibration dampening for heavy shaft roughing. They handle massive cutting forces effortlessly. Linear guideways offer faster rapid traverse rates. However, they sometimes struggle under severe interrupted cuts. We highly recommend box way construction for demanding shaft applications. The increased friction adds valuable dampening characteristics. You sacrifice slight rapid speeds for massive rigidity gains.
We must clarify two easily confused metrics immediately. Swing over bed differs greatly from swing over cross slide. Swing over cross slide acts as the true limiting factor. It determines your maximum facing capacity for a large plate workpiece. Always check this dimension first. Manufacturers often advertise the larger swing over bed number. Do not let this marketing tactic mislead you.
Turning large-diameter plates requires specific power characteristics. You need high spindle torque at low speeds. This maintains consistent surface feet per minute (SFM). A weak spindle will stall under heavy facing cuts. Constant surface speed programming demands robust low-end torque.
Many modern machines use direct-drive spindles to reduce maintenance. This works well for small aluminum parts. However, steel plates require immense low-end power. A multi-speed gearbox provides the mechanical advantage needed. It prevents the spindle from stalling during heavy plunge cuts. Always request a torque curve chart from the manufacturer. Verify peak torque occurs at your typical cutting speeds.
Chucking capabilities also define safety and success. Large plates demand heavy-duty workholding solutions.

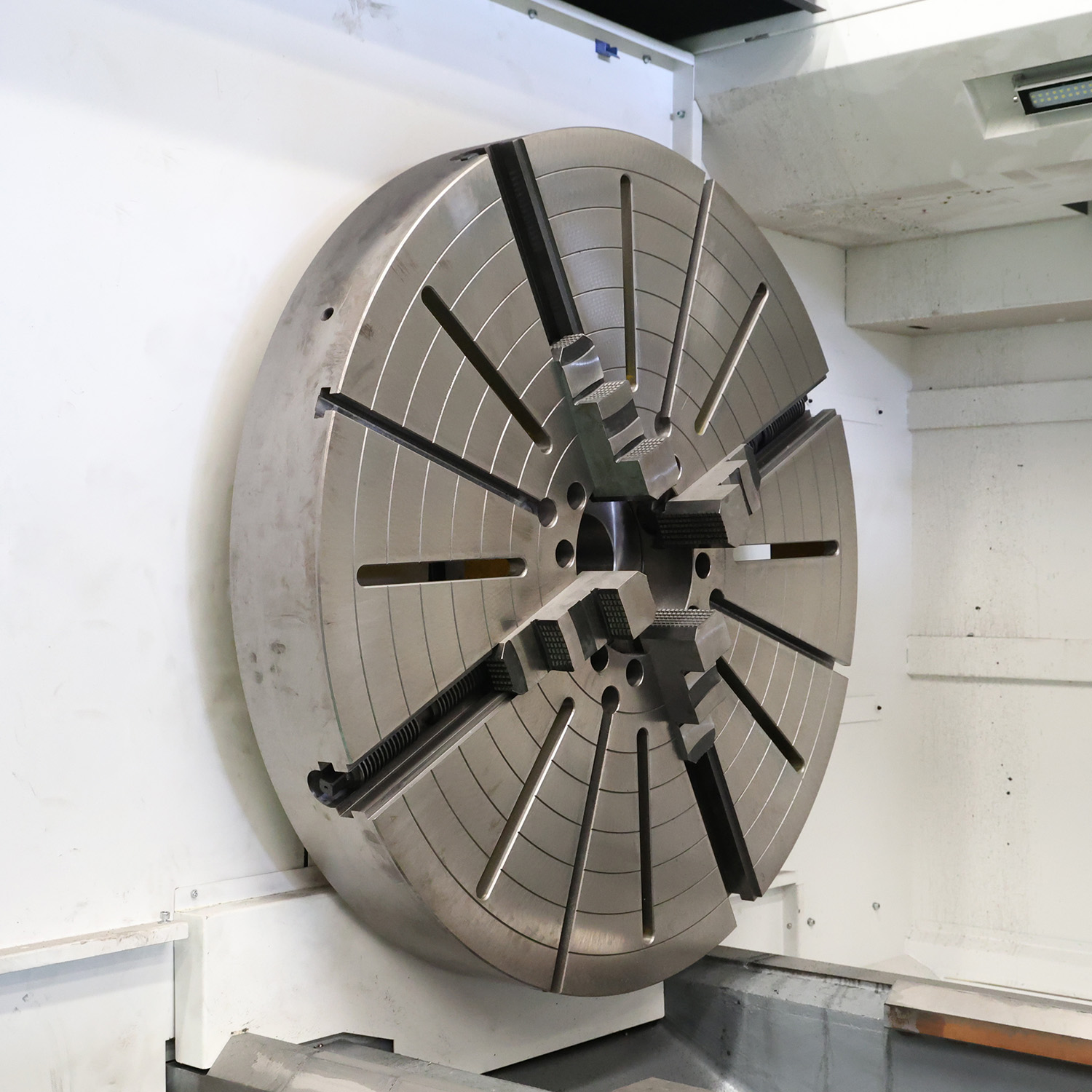

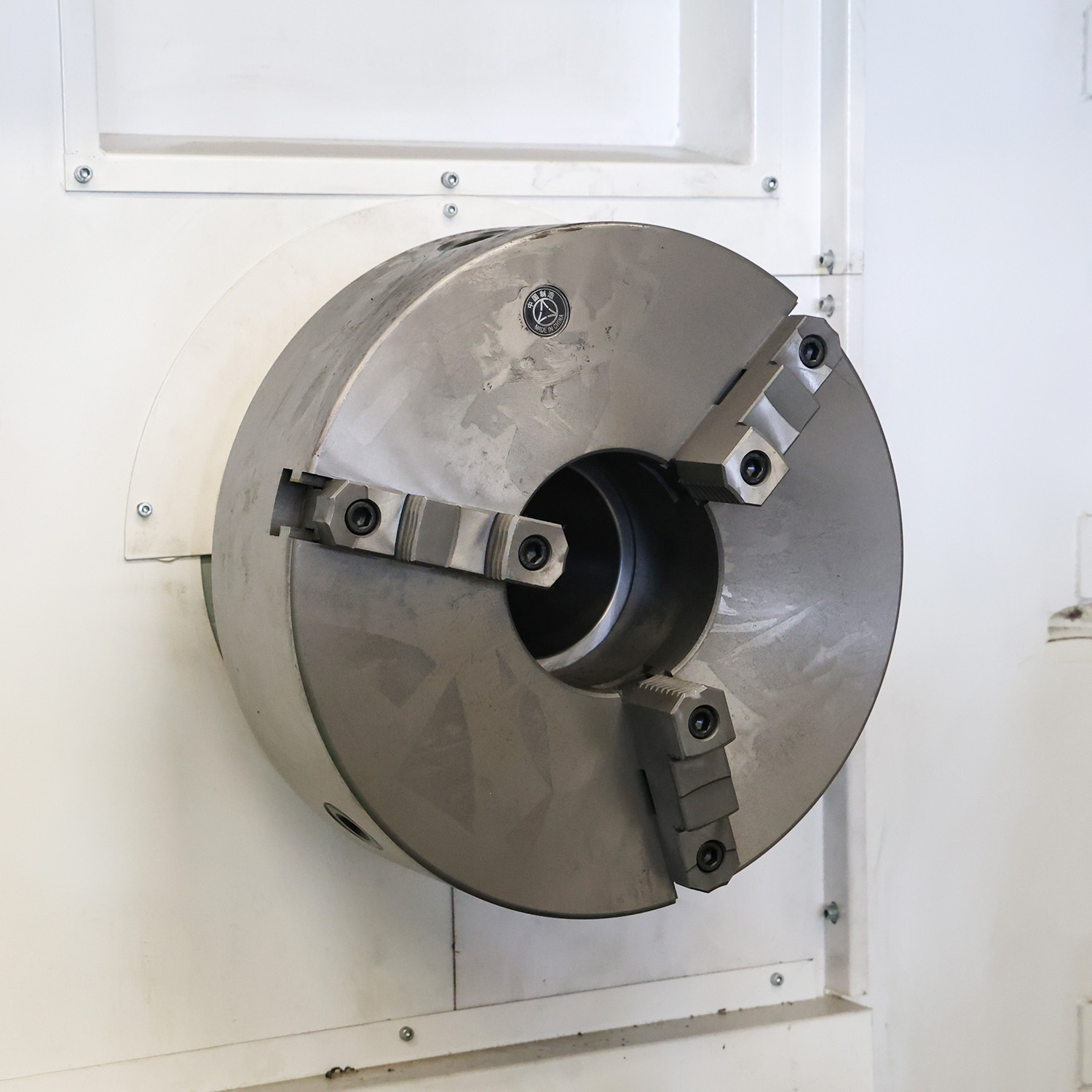

Specify robust 3-jaw or 4-jaw independent chucks for irregular shapes.
Demand industry-standard A-type spindle noses for universal compatibility.
Ensure the hydraulic system secures heavy, unbalanced plates safely.
Evaluate jaw stroke limits to accommodate varying plate diameters.
Control system lock-in creates severe long-term problems. We strongly warn against proprietary, closed-loop controllers. You should advocate for widely adopted industry standards. Brands like Fanuc, Siemens, or Mitsubishi offer exceptional reliability. They ensure long-term availability of replacement parts. Finding experienced programmers becomes much easier. Proprietary systems often force you into expensive software upgrade cycles.
Tooling interference presents another serious operational risk. A flat bed lathe turret setup can cause unexpected collisions. Machining large plates brings cutting tools dangerously close to chuck jaws. Evaluate your tool block configurations prior to purchase. Simulate your tool paths using CAM software beforehand. This highlights potential crash points between long boring bars and the enclosure.
Foundation and leveling require substantial preparation. Long beds need massive concrete foundations underneath them. Precise leveling prevents structural bed twist entirely. Twisted beds directly impact your geometric tolerances. They create unwanted tapers along the length of your parts.
Thermal growth presents another hidden variable. Heavy cutting generates enormous amounts of heat. The cast iron bed absorbs this heat unevenly. This causes the machine geometry to shift slightly throughout the day. Premium builders incorporate thermal compensation sensors. These sensors adjust tool offsets automatically. Budget machines skip this feature entirely. You must rely on frequent manual offset adjustments instead.
Here are common mistakes regarding foundations:
Pouring concrete without checking soil load-bearing capacity.
Ignoring proper curing times before installing the machine.
Failing to re-level the machine after its first month of operation.
You must strictly follow the manufacturer foundation guidelines.
Evaluating a CNC turning machine vendor requires strict vetting. You must hold suppliers accountable to real-world performance. Promises on a brochure rarely reflect shop floor realities.
The Test Cut Requirement: Advise your team to demand a time-study. Perform a test cut using your own material. Verify cycle times and surface finish claims firsthand. Provide the vendor with a challenging part print. Evaluate how their application engineers approach the setup.
Service Level Agreements (SLAs): Evaluate vendors based on local technician availability. Ask about spindle rebuild turnaround times. Check their local spare parts inventory levels. A cheap machine becomes incredibly expensive during prolonged downtime. Demand written guarantees regarding service response times.
Warranty Exclusions: Look past the standard headline warranty. Examine specific exclusions carefully. Watch out for clauses regarding spindle bearings, crash damage, and way wipers. Some vendors void warranties if you use third-party coolants. Read the fine print to protect your capital investment.
Choosing the right architecture requires an objective assessment. You must match machine capacity directly to part geometry. We accept specific operational trade-offs for structural rigidity. A flat cast iron bed delivers unmatched value for large-diameter work. It anchors your heavy roughing operations dependably.
Take immediate action to formalize your requirements. Map out your largest and heaviest parts today. Define your required geometric tolerances clearly. Draft an RFQ focused entirely on spindle torque, swing capacity, and control system preferences. Include specific criteria for tool interference zones. Secure a machine designed precisely for your most demanding applications.
A: Yes. You can achieve identical tolerances assuming the machine features high-quality linear or box ways. Proper thermal compensation plays a massive role. You must understand thermal growth management differs between the two designs.
A: It generally requires more manual effort than a slant bed. You should utilize high-pressure coolant and integrated chip conveyors. However, operator intervention often remains necessary when machining stringy materials.
A: We recommend conversational programming options. Platforms like Siemens ShopTurn or Fanuc Manual Guide i work exceptionally well. They allow operators to program simple shaft and plate parts without needing deep G-code knowledge.
