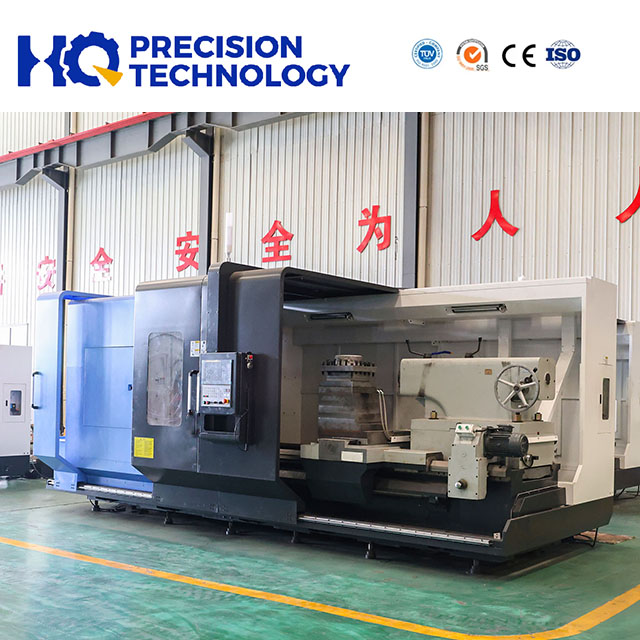

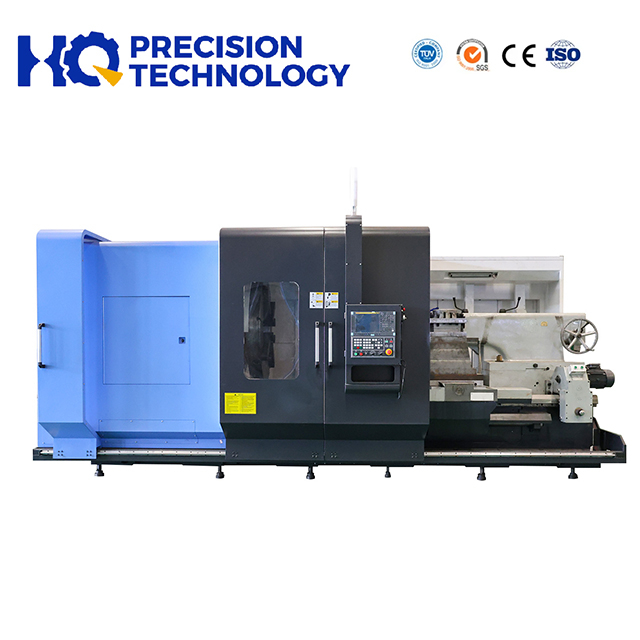

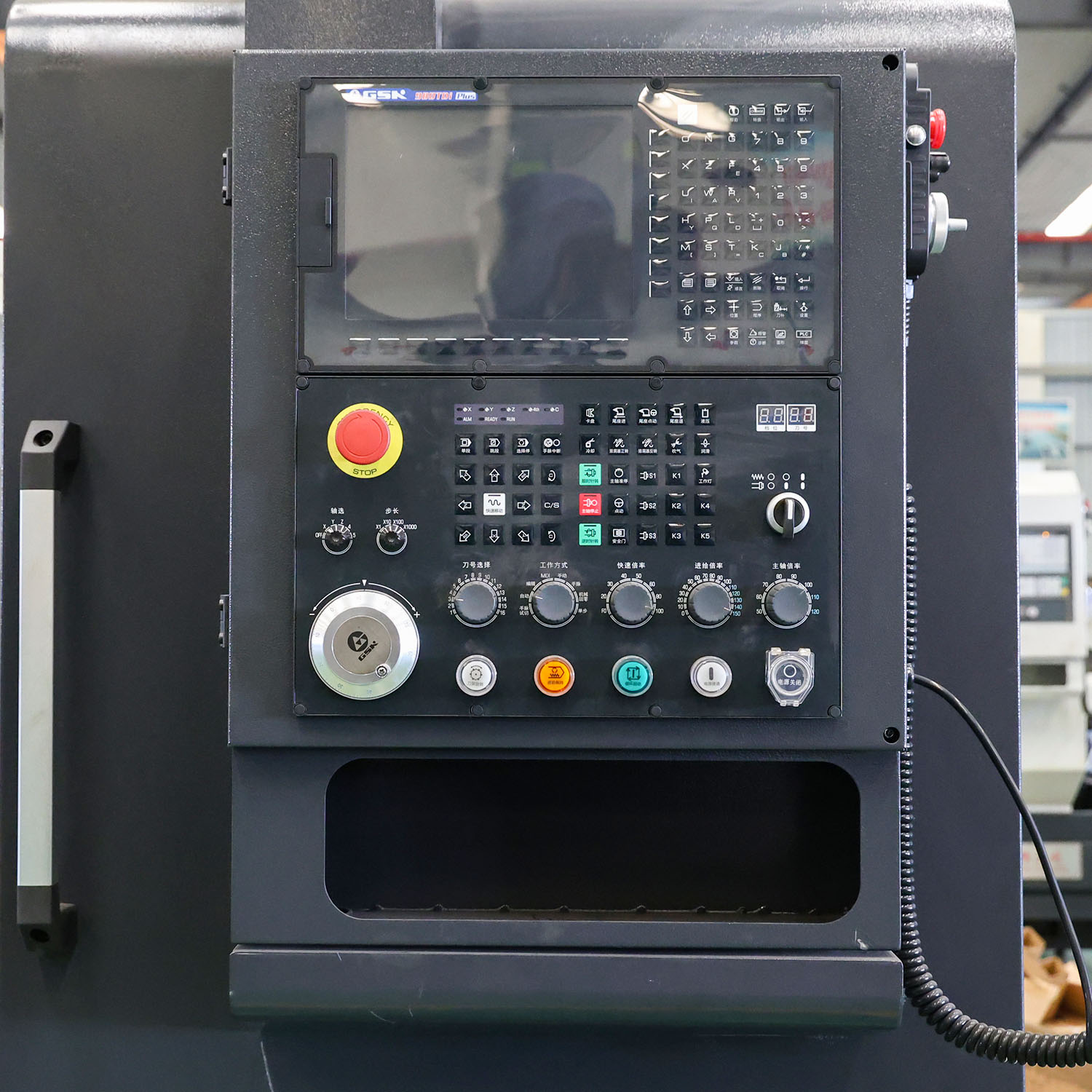

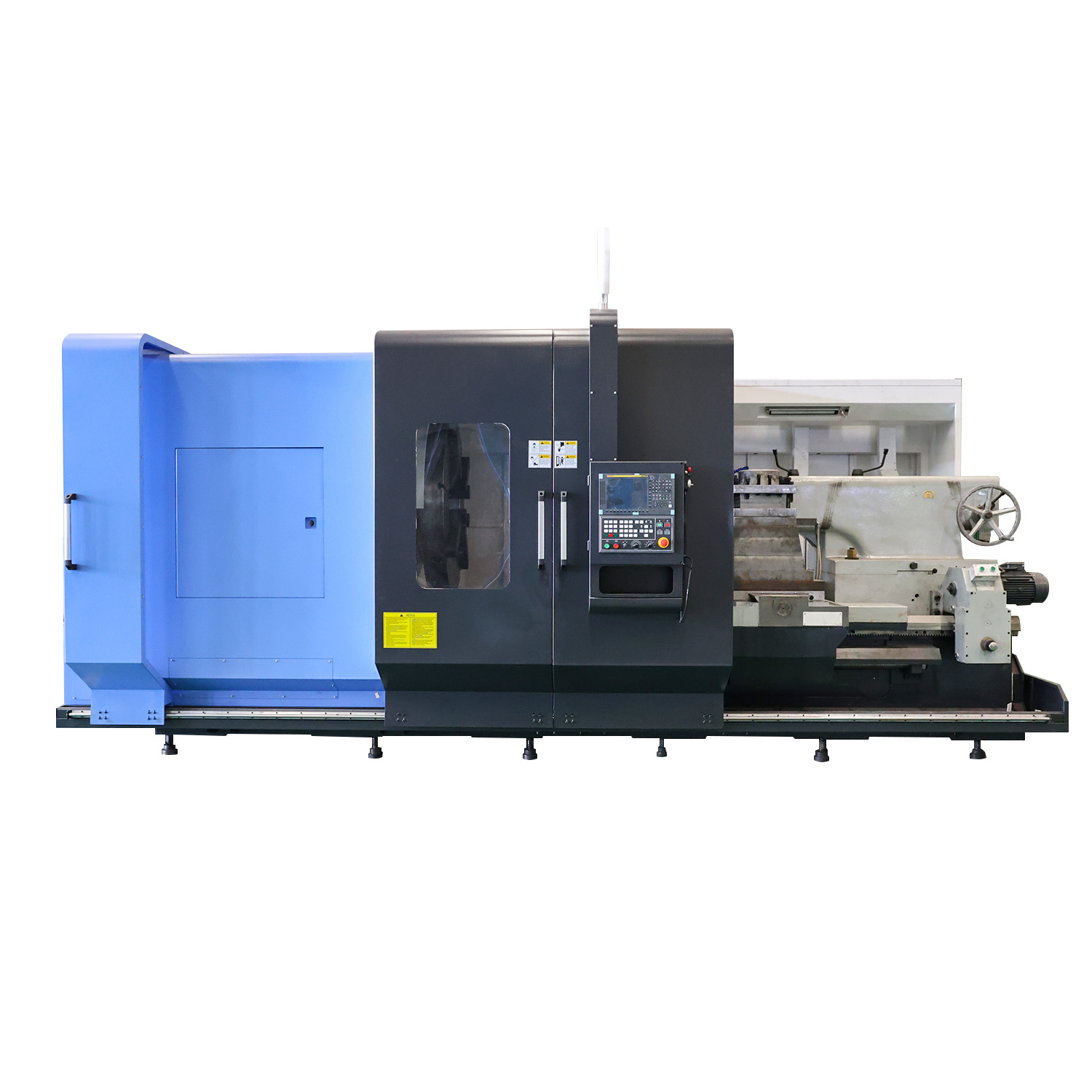

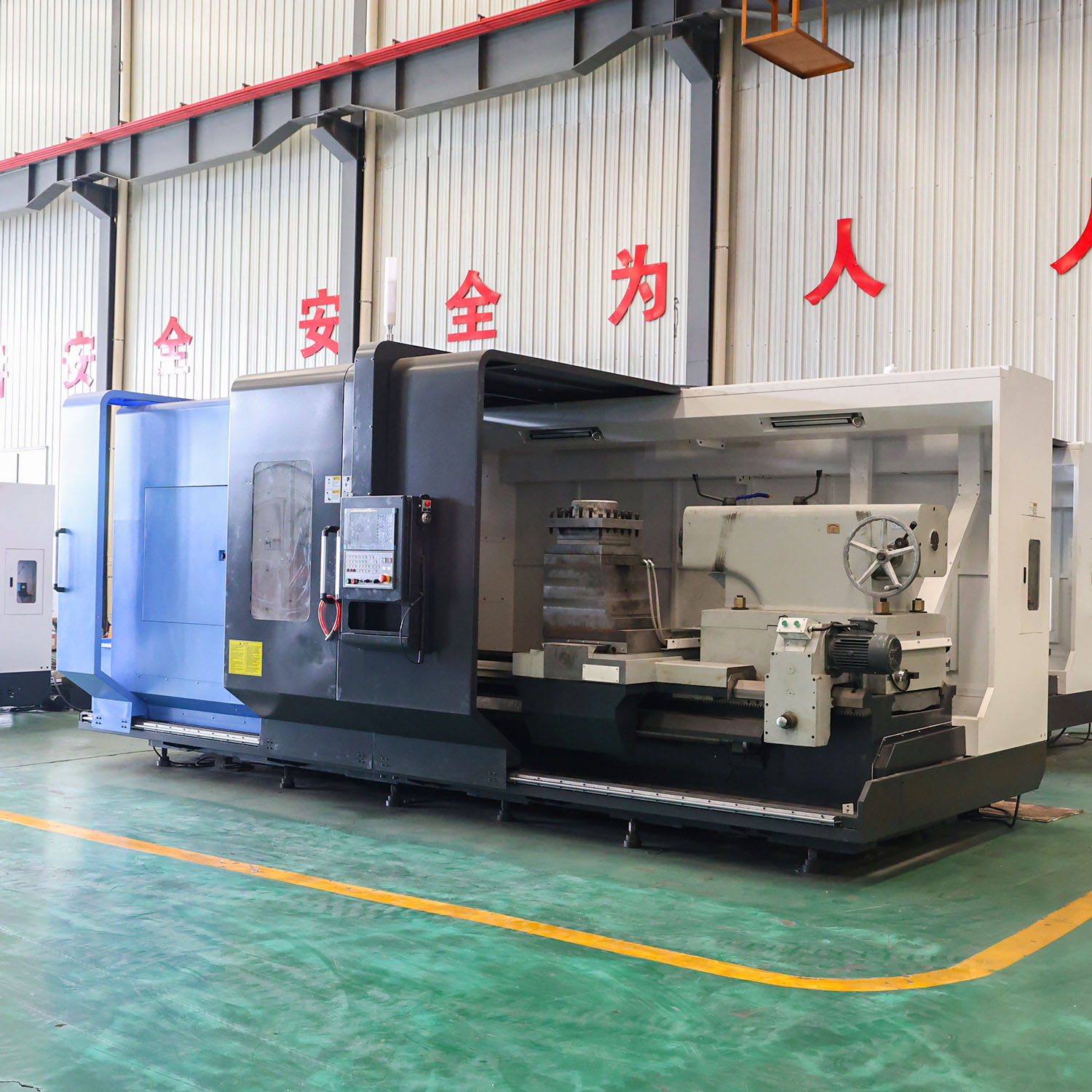

This cnc pipe threading lathe is a heavy-duty horizontal cnc lathe , a dedicated pipe threading lathe for oil casing, tubing, drill tools and large pipeline thread machining. This two-axis linkage horizontal CNC lathe features a large hollow spindle bore of Φ280~640mm, allowing thick steel pipes to pass through the spindle directly.
It supports semi-finishing, finishing turning, axial drilling and tapping, capable of machining cylindrical, conical, spherical and complex rotary surfaces to meet high-precision processing needs of large sleeve, shaft and disc workpieces. Equipped with standard CNC system, semi-closed loop control ensures stable precision and continuous heavy cutting performance for pipe threading mass production.
SPECIFICATION | UNIT | QK1343 | QK1350 | QK1363 | |
| Swing over bed | mm | 1000 | 1200 | 1500 |
Swing over cross slide | mn | 610 | 710 | 900 | |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | |
Pipe threading range | mm | 270-430 | 330-510 | 330-630 | |
Guideway width | mm | 755 | 765 | 1100 | |
Max.load capacity | T | 6 | 6 | 10 | |
| Spindle bore | mm | 440 | 520 | 640 |
Spindle speed steps | - | VF.3 steps | VF.3 steps | VF.3 steps | |
Spindle speed range | rpm | 10-210 | 10-200 | 1-170 | |
Chuck | mm | φ1000 4-jawelectric | φ1250 4-jaw manual | ||
Turret | Turret/tool post | NC turret 4 position | |||
Tool shank size | mm | 40×40 | 50×50 | 50×50 | |
| X axis travel | mm | 520 | 520 | 750 |
Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 | |
X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |
Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | |
| Tailstock quill diameter | mm | 160 | 160 | φ260() |
Tailstock quill taper | - | MT6 | MT6 | Metric 80 | |
Tailstock quill travel | mm | 300 | 300 | 300 | |
Motor
| Main spindle moor | kW | 22 | 22 | 37 |
Coolant pump motor | KW | 0.25 | 0.25 | 0.25 | |
Dimension
| Width x Height | mm | 2220×2120 | 2300×2200 | 2500×2500 |
Length | mm | 5000/6500 | 5000/6500 | 5600/7100 | |
Weight | Net weight | T | 13.0/14.0 | 15.0/16.0 | 18.0/19.3 |
Please note: machine bed length can be customized according to real work demand. | |||||
Adopt one-piece HT300 cast flat bed with 1100mm wide guideway span. Multiple aging treatments eliminate casting stress; medium-frequency quenched grinding guide rails resist deformation under heavy cutting. Flat layout optimizes chip removal and workpiece loading & unloading, reducing chip accumulation during long-hour pipe threading.

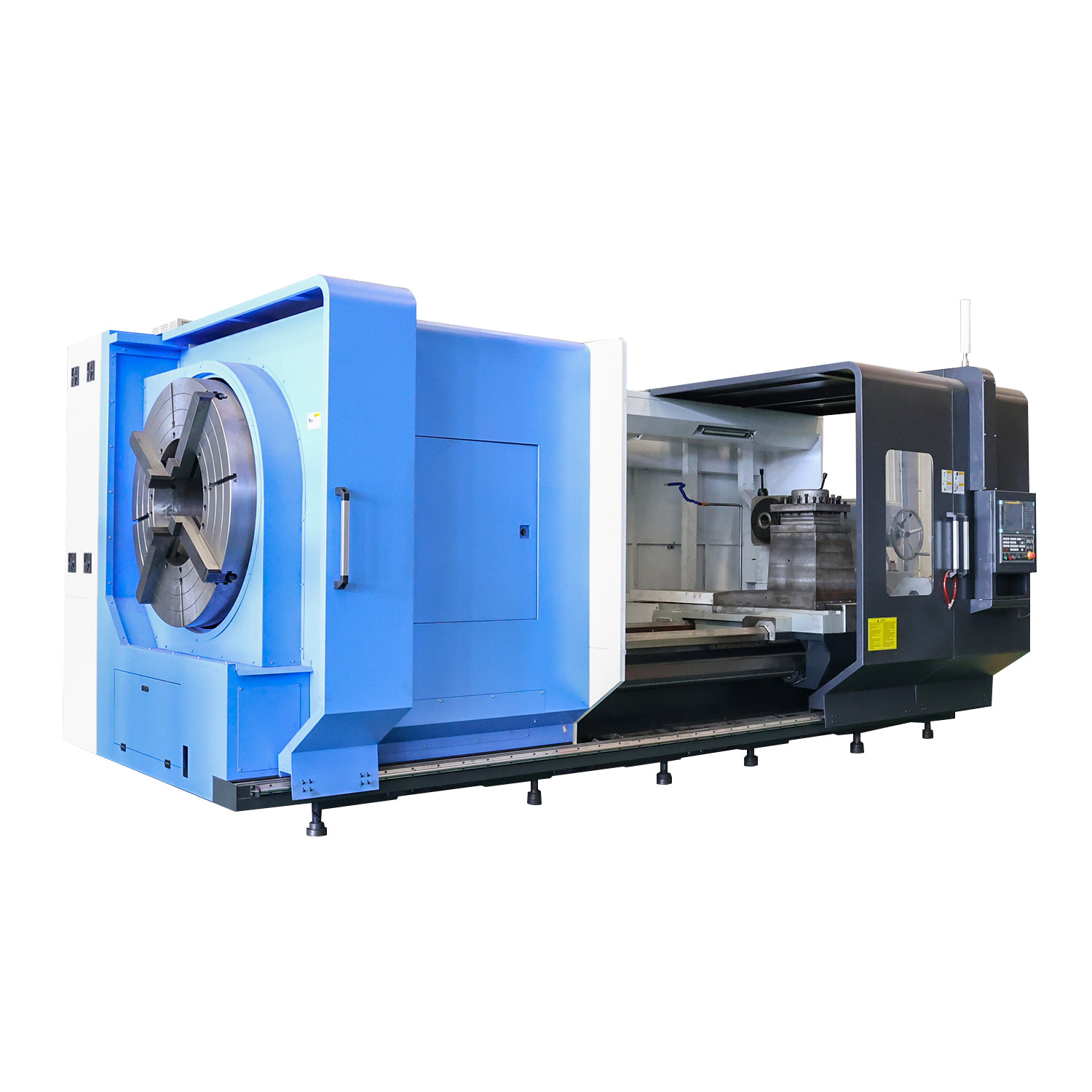

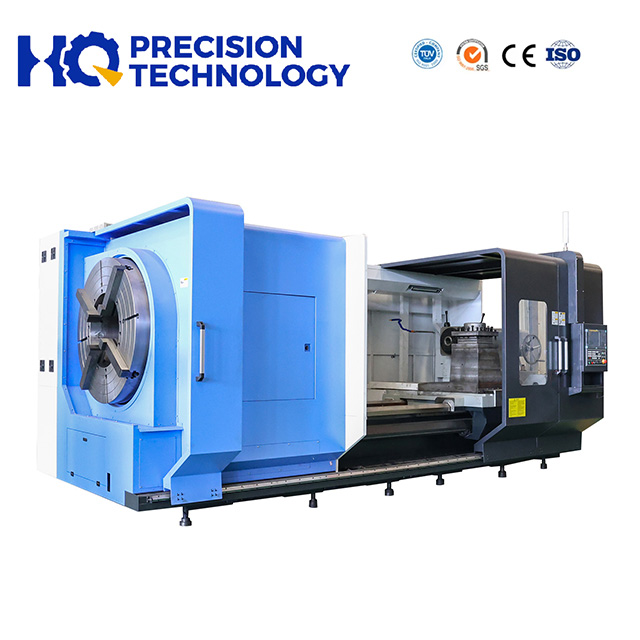

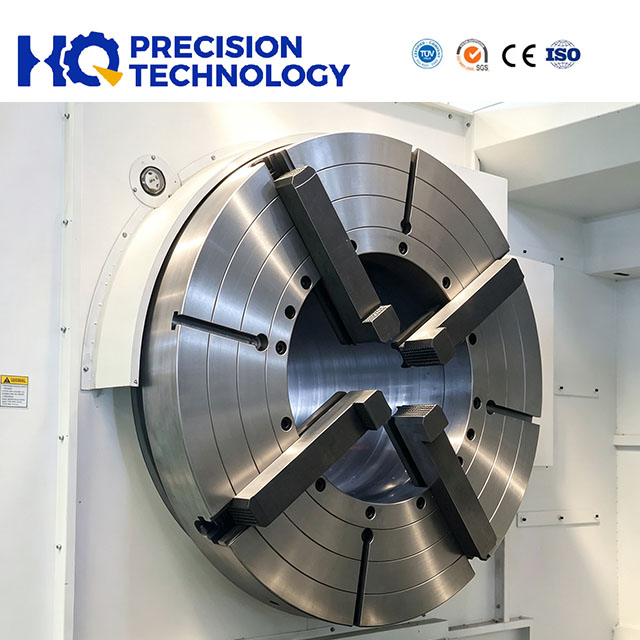

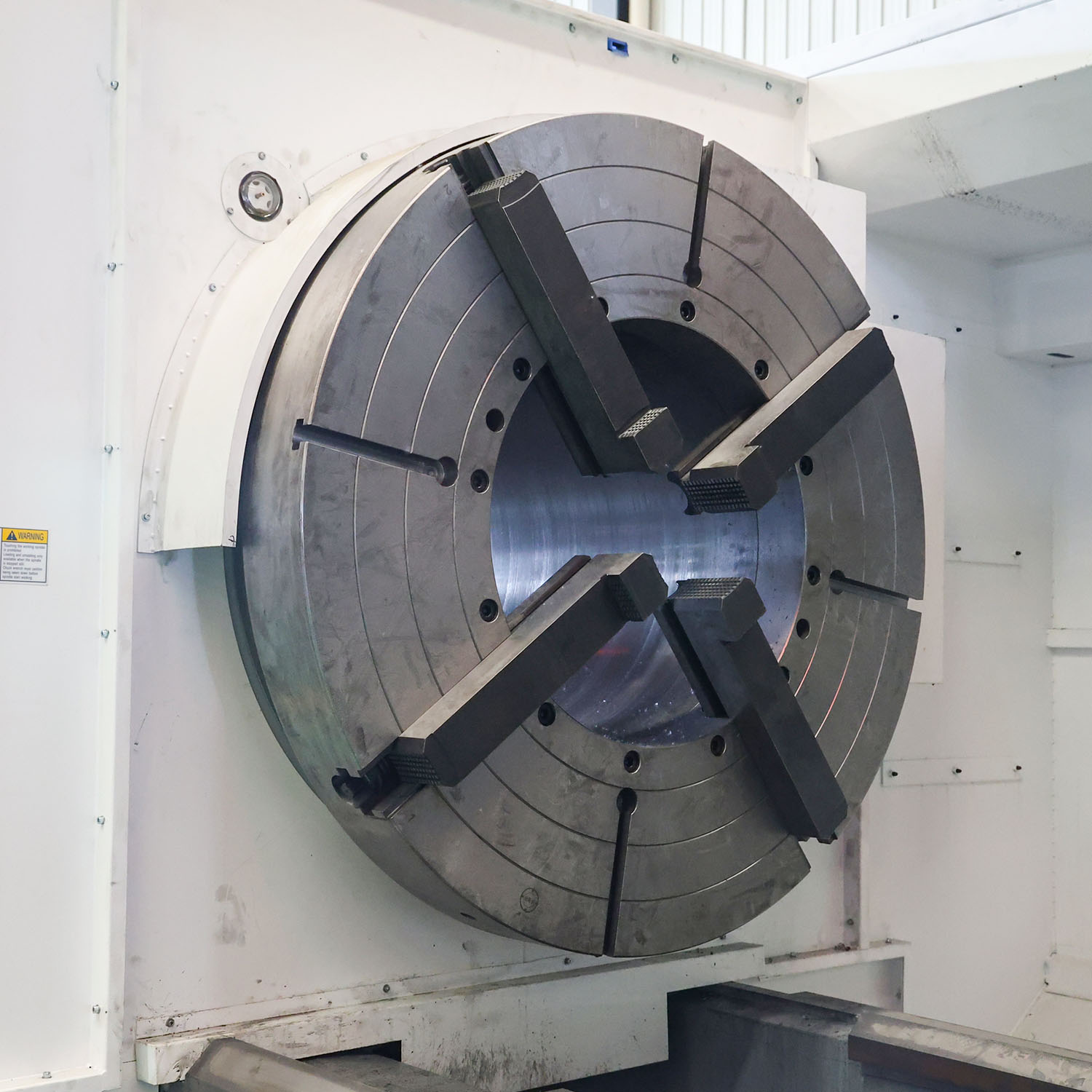

The core highlight of this pipe threading lathe is Φ640mm through spindle bore, avoiding pipe cutting for long thick tubes. Symmetrical thermal balance spindle box with preloaded precision bearings, matched with 37kW variable frequency main motor, 3 manual speed gears (1–170rpm). Low thermal deformation stabilizes thread accuracy for 24-hour non-stop operation. Two Φ1250mm four-jaw independent chucks clamp heavy pipes firmly and suppress cutting vibration.
X, Z axes use large-pitch high-precision ball screws directly connected to servo motors via flexible couplings. Rapid feed speed: X 4m/min, Z 6m/min, minimum setting unit 0.001mm. Fully sealed screw guards prevent iron scraps and coolant damage, repeat positioning accuracy X:0.011mm, Z:0.018mm to guarantee consistent API thread precision.
Domestic famous brand vertical four-station electric tool holder, with 50×50mm heavy-duty tool section. Smooth indexing, high positioning precision and short tool change auxiliary time, greatly lifting batch pipe threading efficiency.
Large customizable spindle bore: Max customized bore up to 800mm, process super large seamless steel pipes ordinary cnc pipe threading lathe cannot handle
One-stop API thread processing: No secondary auxiliary equipment, cut 30% auxiliary processing cost
High rigidity heavy cutting: Integral cast bed & reinforced spindle structure support stable heavy cutting, extend cutter service life
Customizable bed length: Max extend working length to 12 meters for ultra-long pipe production
Complete after-sales: 12-month full machine warranty, 24h online response, 48h on-site maintenance
This cnc pipe threading lathe serves heavy industrial pipe machining sectors with strict thread standards and large workpiece passing demand:
Oil & gas industry: API standard casing, tubing, drill collars, couplings
Mining exploration: Drill tool joint threads, thick wall pipe connectors
Heavy equipment: Large flanges, pressure vessel sleeves, heavy shafts
The cnc pipe threading lathe covers full thread specifications: API Spec 5B, API Spec 5CT, API Spec 7-1, API Spec 7-2 oil special threads, standard metric & imperial straight/taper pipe threads, as well as customized special threads.
Full set of machine tools, metric 80 center, leveling pads, foundation anchor bolts
Operation manual, factory precision inspection certificate, FANUC system operation & maintenance manual, tool holder guide, packing list
Free 1-working-day operation & maintenance training for 2 technicians. Dual acceptance: pre-acceptance in factory, final acceptance after on-site commissioning, formal acceptance records for quality traceability.
Extended bed: Custom processing length up to 12 meters for ultra-long oil pipes
Enlarged spindle bore: Custom through bore max 800mm for extra-large conduits

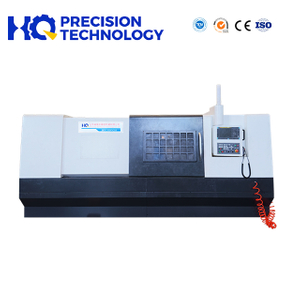

Optional U-axis: Compound turning & milling integrated function

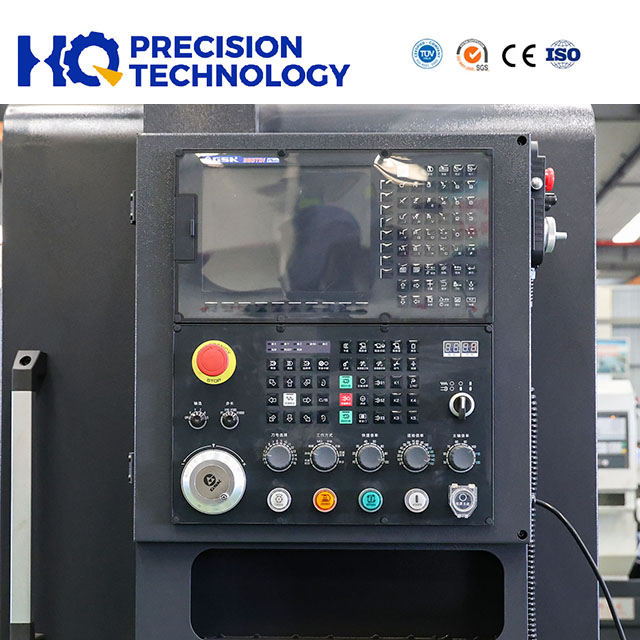

Alternative Siemens CNC system instead of FANUC
Automatic pipe loading/unloading device for unmanned production lines
