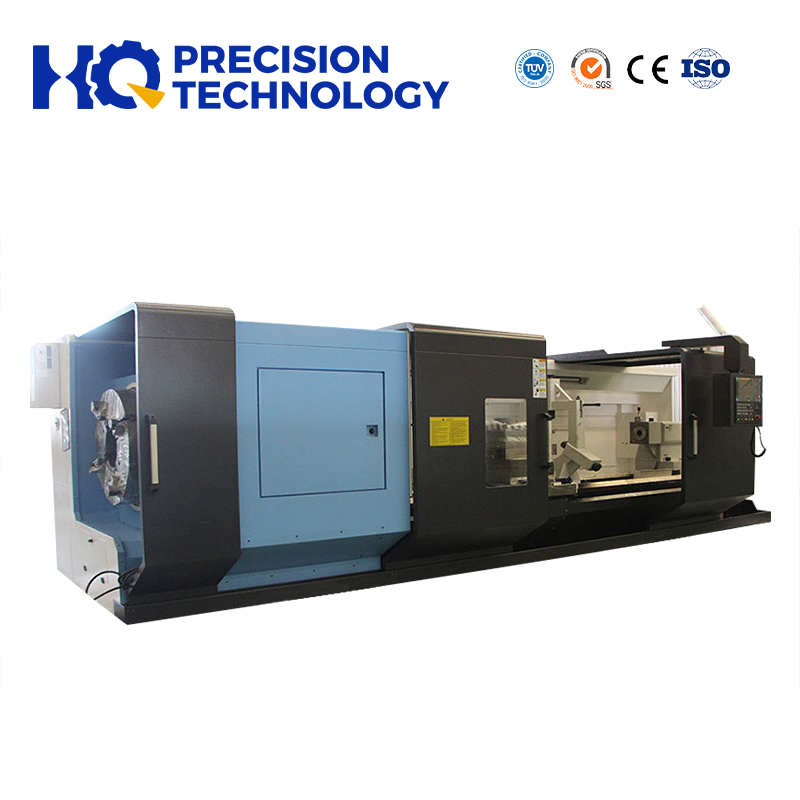

Product Introduction
This series of Heavy Duty Lathe, specifically a Heavy Duty CNC Pipe Threading Lathe, combines the features of a Horizontal Lathe and a Flat Bed Lathe. It's designed for machining large - sized internal and external pipe threads, including metric, inch, module, DP, and taper threads. As a High precision CNC Lathe and Universal Lathe, it also has all the common functions of a normal CNC Lathe. Widely used in industries like petroleum exploitation, mining, chemical piping, and geological prospecting, it's an ideal Metal Processing Lathe and suitable for OEM/ODM Lathe projects. It serves as high - efficiency equipment for processing and repairing drilling pipes, rods, and thread couplings.
Product Advantage
1. Big Spindle Bore and Double Chuck for Big - diameter Pipe Processing
Our Heavy Duty Lathe, designed as a Pipe Threading Lathe and CNC Lathe, features a big spindle bore. Paired with a double chuck system, it's tailored for processing large - diameter pipes. This setup is crucial for Metal Processing Lathe applications, ensuring seamless handling in OEM/ODM Lathe projects.
2. One - piece Bed for Rigidity and Precision
The one - piece bed of our High precision CNC Lathe, constructed from high - strength iron, offers exceptional rigidity. As a Horizontal Lathe and Flat Bed Lathe, it minimizes vibrations during operations. This rigidity is fundamental for maintaining precision in pipe threading tasks.
3. Ultrasonic Frequency Quenched Guide - ways for Wear - resistance
In our Universal Lathe, which doubles as a Pipe Threading Lathe, the guide - ways are treated with ultrasonic frequency quenching. This enhances wear - resistance, reducing maintenance needs. It's an advantage in long - term Metal Processing Lathe operations.
4. Turcite B - coated Contact Surfaces for Accuracy
Our CNC Lathe uses Turcite B on the carriage and guide - way contact surfaces. This material helps maintain accuracy over time, whether in a Horizontal Lathe or Pipe Threading Lathe configuration. It's beneficial for consistent performance in OEM/ODM Lathe work.
Detail Pictures
CNC Lathe |
High precision CNC Lathe |
Pipe Threading Lathe |
Lathe |
Multi-functional CNC Lathe |
CNC Pipe Threading Lathe |
Technical Parameters
| SPECIFICATION | UNIT | QK1327 | QK1332 | QK1338 | |
| Capacity | Swing over bed | mm | 1000 | 1000 | 1000 |
| Swing over cross slide | mm | 610 | 610 | 610 | |
| Distance between centers | mm | 500-6000 | 1500-6000 | 1500-6C00 | |
| Pipe threading range | mm | 130-270 | 190-320 | 190-380 | |
| Guideway width | mm | 755 | 755 | 755 | |
| Max.load capacity | T | 6 | 6 | 6 | |
| Spindle | Spindle bore | mm | 280 | 330 | 390 |
| Spindle speed steps | - | VF.4 steps | VF.3steps | VF.3 steps | |
| Spindle speed range | rpm | 10-320 | 10-280 | 8-205 | |
| Chuck | mm | φ800 4-jaw electric | φ780 4-jaw electric | φ850 4-jaw manual | |
| Turret | Turret/tool post | NC turret 4 positian | |||
| Tool shank size | mm | 40x40 | 40×40 | 40×40 | |
| Feed | Xaxis travel | mm | 520 | 520 | 520 |
| Z axis trave | mm | 500-6000 | 500-6000 | 500-6000 | |
| Xaxis rapid traverse | mm/min | 4000 | 4000 | 4000 | |
| Z axis rapid travorsO | mm/min | 5000 | 5000 | 6000 | |
| Tai stock | Tailstock quil diameter | mm | 160 | 160 | 160 |
| Tailstock quilltape | - | MT6 | MT6 | MT6 | |
| Tailstock quill travel | mm | 300 | 300 | 300 | |
| Motor | Main spindle motor | kW | 22 | 22 | 22 |
| Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | |
| Dimension | WidthxHeight | mm | 2050×2050 | 2080×2080 | 2220×2120 |
| Lengh | mm | 49509450 | 5000/9500 | 5000/9500 | |
| Weight | Net weight | T | 10.5/15.6 | 11.5/15.9 | 12.0/16.4 |
| Pleasenote mashine bed length can cuslomieacordng torel wcrk demand esdra-longbed hearysuy lahecan cusiomie simplfedCNC pipe threadinglathe wihoutproteie cover. | |||||
Products Uses
1. Oil and Gas Industry
In the oil and gas sector, CNC pipe threading lathes are crucial. They precisely thread large - diameter pipes used in pipelines. The high - precision control ensures leak - free connections, vital for transporting oil and gas safely over long distances, meeting strict industry standards.
2. Automotive Manufacturing
For automotive production, these lathes are used to thread pipes in exhaust systems. They can quickly and accurately create the required threads, ensuring proper assembly and reducing noise and emissions, contributing to the overall performance of vehicles.
3. Aerospace Engineering
In aerospace, CNC pipe threading lathes play a key role. They are employed to thread pipes in hydraulic and fuel systems. The high - precision machining guarantees the safety and reliability of these critical systems in aircraft, where any failure can have severe consequences.
4. General Industrial Machinery
In general industrial machinery, these lathes are used to thread pipes for various applications, such as in pneumatic and coolant systems. They offer flexibility in handling different pipe sizes and materials, ensuring efficient operation of industrial equipment.
Product Video
FAQ
Q: What types of lathes do you offer?
A: We specialize in a diverse range of lathes. Our offerings include high - precision CNC lathes, traditional engine lathes, compact bench lathes, and robust heavy - duty industrial lathes. Each category has models with varying spindle speeds, swing diameters, and automation levels to meet different customer needs.
Q: Can you customize lathes for specific requirements?
A: Absolutely. Our company provides comprehensive OEM/ODM services. We can customize spindle configurations, bed lengths, and integrate various control systems like Siemens and Fanuc. Additionally, we offer automation integration. Share your specific specs, and we'll design a tailor - made solution.
Q: How long is the production lead time?
A: Typically, the production lead time for our products is 15 - 25 days. However, if the lathe you're interested in is in stock, we can arrange delivery within 7 days. The exact duration hinges on the model and quantity of your order.
Q: Where is your factory located? How can I visit there?
A: Our factory is strategically located in Yishui County, Shandong Province, China. We warmly welcome clients to conduct quality inspections and factory audits. Just let us know your visit plan, and we'll arrange proper reception.
