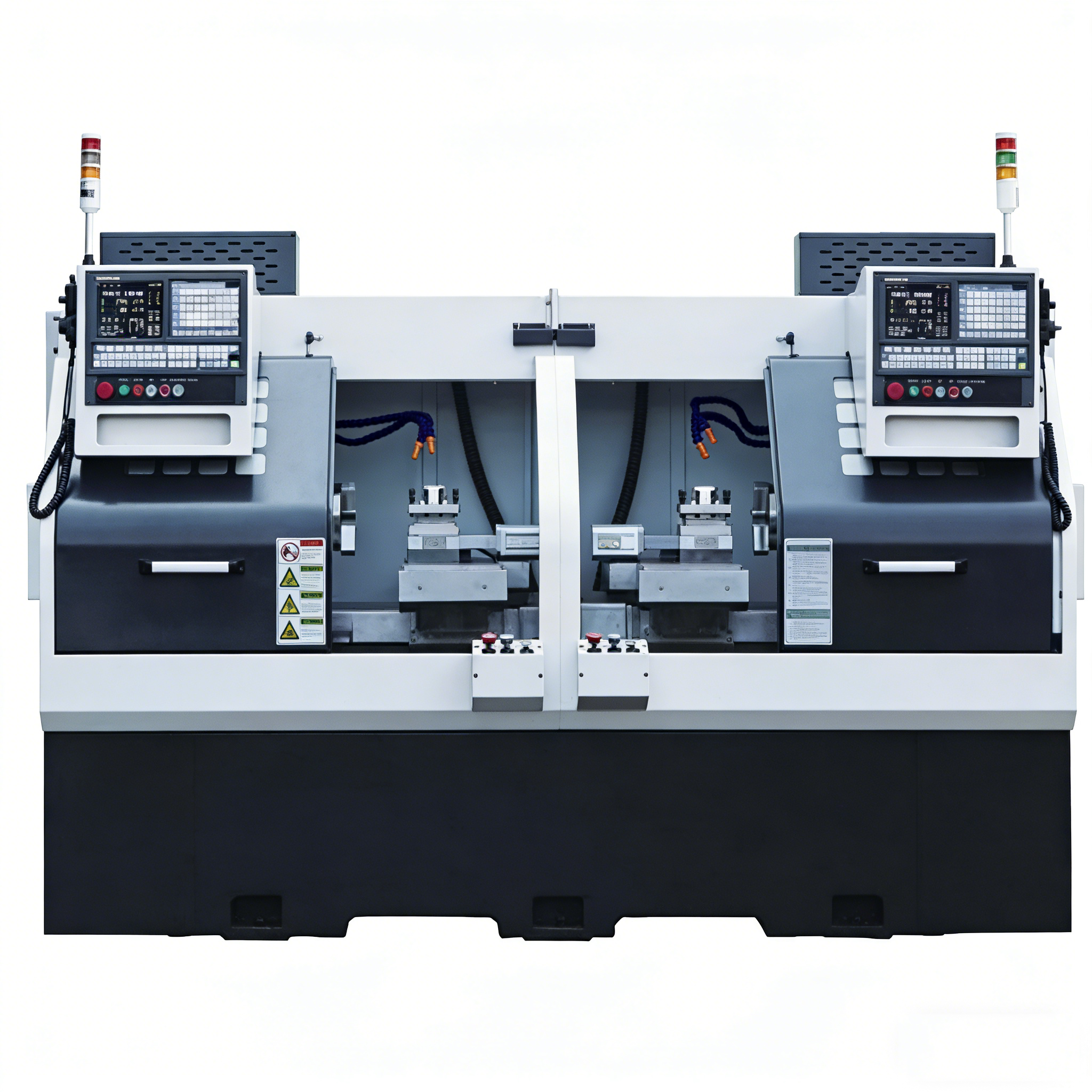

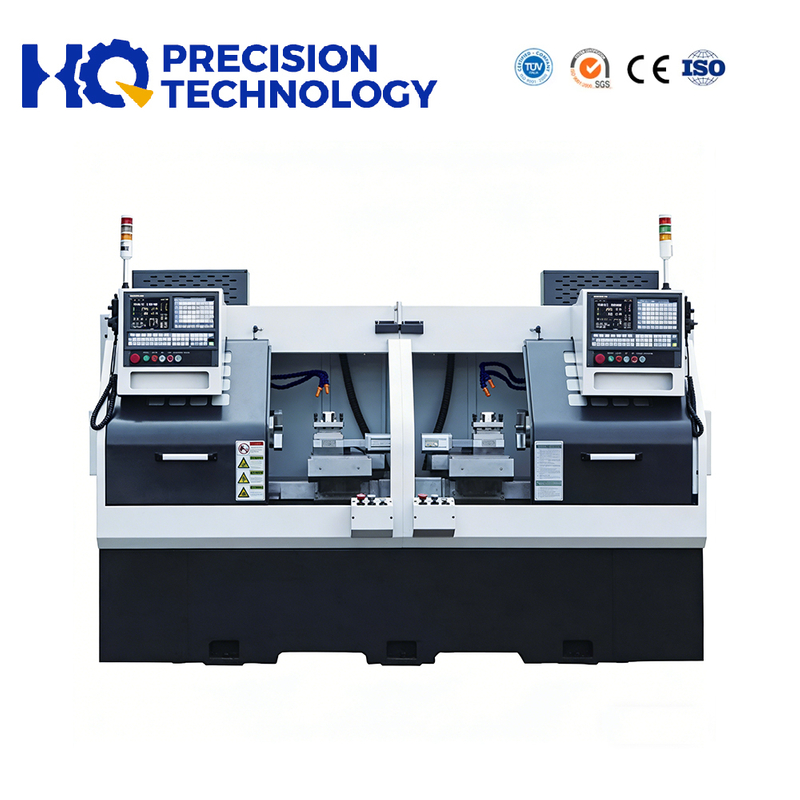

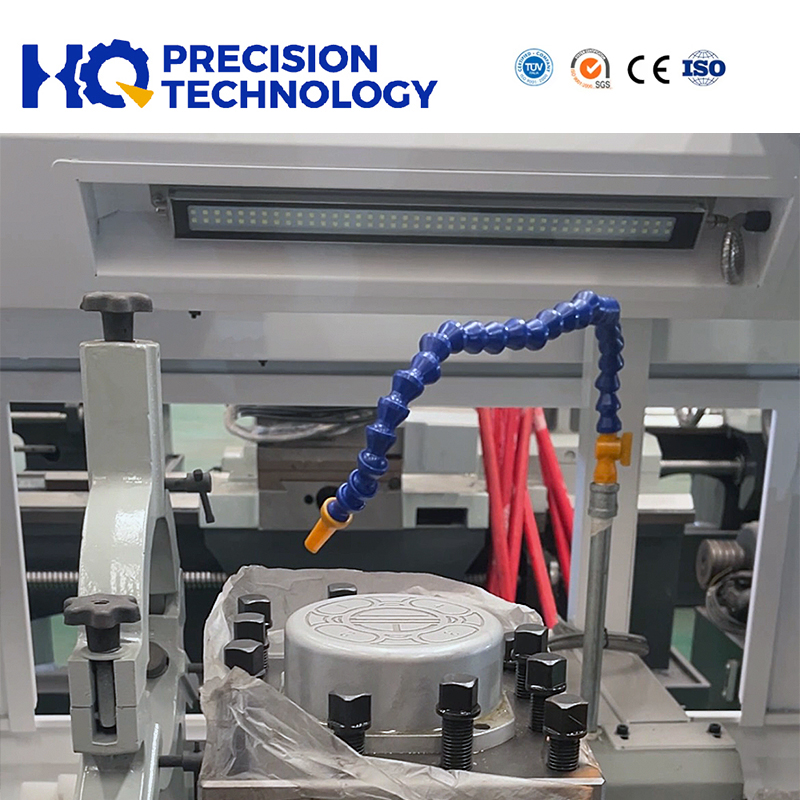

![]() | Use of Double Head CNC Lathe: |

| SPECIFICATION | UNIT | FJ-CK42ST | FJ-CK72ST | FJ-CK120ST | FJ-CK160ST | FJ-CK200ST | FJ-CK280ST | |
Capacity | Spindle through hole diameter range | mm | 10-42 | 20-72 | 40-120 | 60-160 | 80-200 | 120-280 |
| Processing workpiece length range | mm | 60-450 | 80-600 | 100-900 | 120-900 | 270-2200 | 300-3000 | |
| 2-Z axis travel (Z left/Z right) | mm | 450 | 450 | 450 | 450 | 1200 | 1500 | |
| Bed rail span | mm | 460 | 460 | 460 | 460 | 460 | 600 | |
| Spindle | Spindle diameter | mm | 42 | 72 | 120 | 160 | 200 | 280 |
| Spindle speed range | r/min | 100~2000rpm | 100~2000rpm | 100~1500rpm | 100~1000rpm | 100~800rpm | 100~800rpm | |
| Servo main motor power | kW | 5.5 | 5.5/7.5 | 75/11 | 11/15 | 11 | 15 | |
Feed | Feed motor (X/Z) | Nm | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 |
| Feed axis rapid moving speed (2-X/Z) | m/min | X:6/Z:8 | X:6/Z:8 | X:6/Z:8 | X:6/Z:8 | X:6/Z:8 | X:6/Z:8 | |
| Feed axis maximum travel (2-X/Z) | mm | 320/450 | 320/450 | 320/450 | 320/450 | 320/600 | 320/1500 | |
| Minimum feed setting unit | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm |

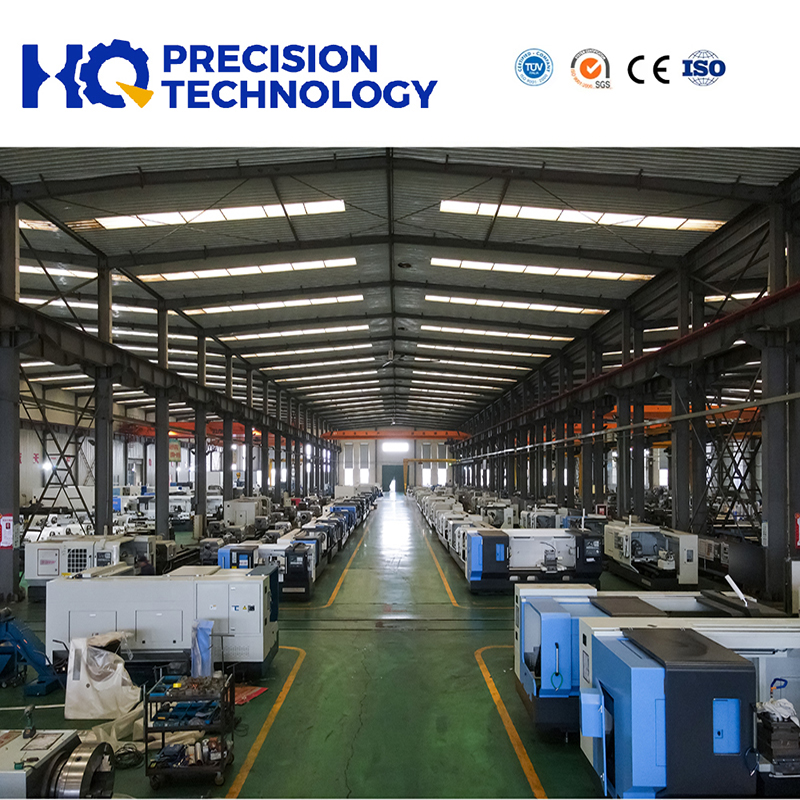

Shandong HQ Precision Technology Co., Ltd. is located in Yishui, Shandong Province, China. It is a professional r&d enterprise of medium and large lathe series, a national high-tech enterprise and a civil-military integration enterprise in Shandong Province. Our factory was founded in 1952 and was a designated pipe thread lathe manufacturer of the former Ministry of National Machinery Industry. It was restructured in 2013 and we started to export recent years. At present, the company covers an area of 200 000 square meters, fixed assets of more than 600 million yuan, more than 500 employees, with more than 60 engineers and technicians.





A: We specialized in all kinds of machines, our main products include general CNC lathes, pipe thread lathes, cylinder lathes, heavy-duty lathes, turning and milling machines, machining centers and various industry-specific machines, including all kinds of lathes with flat bed and inclined bed structures.
A: We are a designated lathe manufacturer in China, founded in 1952, with a history of more than 70 years.
A: FOB, CFR and CIF all acceptable.
A: Usually, one machine takes 15-20 days. For mass production purchase order at big quantity, it could be discussed with each other case by case.
5. Q: Can you do OEM?
A: Yes, we have the ability to do OEM / ODM to meet clients' requirements.
Contact me now for more information~!
