High-precision CNC Lathe For Oil Cylinder Processing CKY6146YG CKY6156YG CKY6163YG CKY6171YG

Share to:

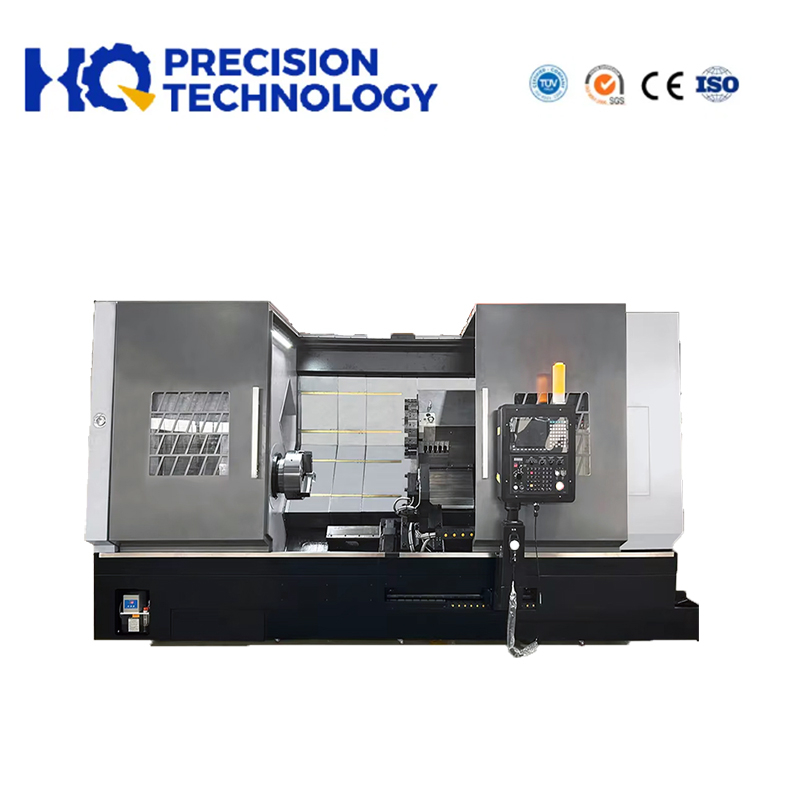

High-precision CNC Lathe For Oil Cylinder Processing CKY6146YG CKY6156YG CKY6163YG CKY6171YG

This series adopts a dual-spindle structure, primarily engineered for machining key components in the hydraulic and coal machinery industries, including oil cylinders, pistons, guide sleeves, movable columns, and piston rods.Fitted with a high-performance CNC system, it supports linear, oblique, and circular interpolation. It is capable of turning cylindrical surfaces, profiles, spherical surfaces, and conical surfaces, as well as cutting straight, tapered metric or inch threads with precision.

Model:
CKY6146YG CKY6156YG CKY6163YG CKY6171YG
Brand:
HQ

Availability:

Quantity:



Inquire Add to Basket

Product Description

CNC Lathe For Oil Cylinder Processing

详情2

⏭ DETAILS

⏭ Product Parameters

	SPECIFICATION	UNIT	CKY6146YG	CKY6156YG	CKY6163YG	CKY6180YG
	Swing over bed	mm	560	630	780	1050
		mm	460	560	630	780
Capacity	Swing over cross slide	mm	400	500	600	800
	Distance between centers	mm	1500/2000/3000	2000/3000/4000	3000/4000/5000	3000/4000/5000
	Slant bed layout angle	o	45/75	75	75	75
Spindle	Spindle nose type		A2-8	A2-8	A2-11	A2-11
	Spindle bore	mm	80	80	90	100
	Spindle speed steps		Stepless
	Spindle speed range	rpm	50-1200	50-1200	50-1000	50-800
	Hydraulic chuck	in	10	12	15	20
	Main spindle motor	kW	15	18.5	22	30
Sub-spindle	Hydraulic chuck	in	8	10	12	15
Turret	Turret/lool post	-		Hydraulic turret 12 position
Turret	Tool shank size	mm	25x25	32x32	32x32	32x32
Feed	X axis travel	mm	245	315	335	400
	Z axis travel	mm	1550/2050/3050	2050/3050/4050	3050/4050/5050	3050/4050/5050
	Motor torque(X/Z)	Nm	22/22	22/22	22/22	22/30
	Minimum setting unit(X/Z axis)	mm	0.001	0.001	0.001	0.001
Chip conveyor	Coolant pump motor	kW	0.37	0.37	0.37	0.37
Dimension	Width x Height	mm	1750x1800	2350 x 2500	2350x2500	2570x2600
Dimension	Length (chip conveyor included)	mm
M Weight	Net weight	T	12.5/15/18	18/20/22	28/32/36	28/32/36

⏭ STANDARD CONFIGURATIONS

Shandong HQ Precision Technology Co., Ltd. is located in Yishui, Shandong Province, China. It is a professional r&d enterprise of medium and large lathe series, a national high-tech enterprise and a civil-military integration enterprise in Shandong Province. Our factory was founded in 1952 and was a designated pipe thread lathe manufacturer of the former Ministry of National Machinery Industry. It was restructured in 2013 and we started to export recent years. At present, the company covers an area of 200 000 square meters, fixed assets of more than 600 million yuan, more than 500 employees, with more than 60 engineers and technicians.

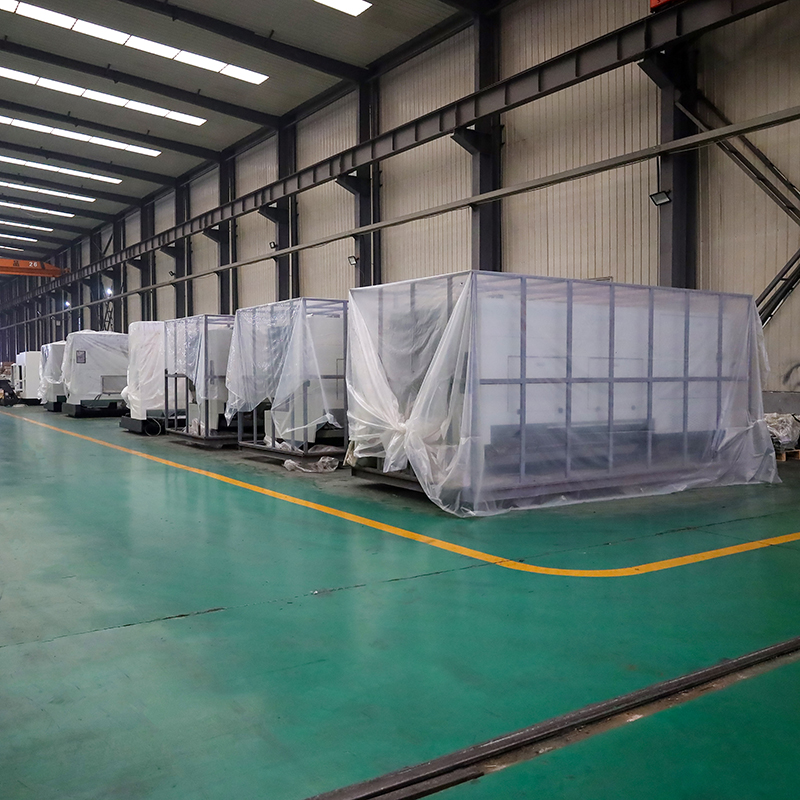

⏭ Packing&Shipping

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Linyi City ,Shandong Province,China. Yes,You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the MOQ?
A: 1 set .

6: Can the machine be customized according to customers?
A:Yes, we provide OEM and ODM service. Our aim is to provide the most suitable and convenient machine for every customer.

Please connect me promptly if you have any needs!
