Upgrading your factory's machining capabilities requires massive capital expenditure. It demands strict planning and strategic foresight from every stakeholder. Procurement and engineering teams often face a difficult dilemma during the buying process. Standard machines provide faster lead times. They also offer highly attractive upfront costs. However, they frequently create severe bottlenecks during continuous or specialized production runs. Pushing an off-the-shelf lathe beyond its intended limits inevitably sacrifices precision. You will also sacrifice machining speed.
This article serves as a straightforward, evidence-based evaluation tool for your next equipment purchase. You will discover the exact inflection point where standard equipment begins to fail. We will show you exactly when upgrading to engineered solutions becomes a mathematical necessity. By evaluating volume thresholds and tooling constraints, you will learn how to scale your floor profitably. We will help you escape the trap of forced compromises.
Standard CNC turning center specifications are sufficient for 70% of job shops, but high-volume or complex geometries demand engineered solutions.
Customization is rarely all-or-nothing; it ranges from tailored automation integrations (like robotic loaders) to fully bespoke spindle and turret configurations.
An automotive parts CNC turning center often requires customization to hit stringent Cpk (Process Capability) requirements and cycle time reductions.
The decision to build a custom CNC turning center must be justified by a Total Cost of Ownership (TCO) and ROI analysis, not just upfront machine price.
Vetting a CNC turning center supplier requires assessing their track record in post-installation support, compliance, and integration capability.
High-volume production quickly exposes the hidden limits of off-the-shelf equipment. Standard models often rely heavily on manual loading. This operator dependency cripples your profitability during continuous shifts. Chip management inefficiencies also force operators to pause production frequently. When volume scales upward, these tiny delays compound into massive financial losses. We often see standard machines choke entirely on high-volume runs.
Aerospace and medical components require absolute precision over long operating hours. Standard models struggle significantly to maintain thermal stability under continuous heavy cuts. They simply lack the structural rigidity necessary for holding tight aerospace tolerances. Heat generation causes minor structural shifting inside the machine bed. This shifting ruins surface finishes and pushes parts out of spec. You cannot afford dimensional drift in medical manufacturing.
Off-the-shelf turrets often lack adequate space for specialized live tooling. They may not support the complex multi-axis operations needed today. You cannot finish complex geometric parts in a single setup. Operators must move the part to a secondary milling machine. This extra handling introduces severe alignment errors. It also destroys your target cycle times completely.
You must watch for critical symptoms indicating equipment failure. Recognizing these signs early prevents catastrophic production delays. We compiled a checklist of symptoms showing a clear mismatch in your current CNC turning center specifications.
Unpredictable scrap rates spiking during extended production shifts.
Excessive secondary operations required to finish a single part.
Abnormal tool wear appearing faster than the manufacturer predicts.
Thermal growth causing dimensional drift after several hours of operation.
Frequent chip entanglement forcing operators to halt the spindle manually.
Customization is rarely a rigid, all-or-nothing decision. You can scale modifications based on exact production needs. We divide these upgrades into three distinct engineering levels. Each level targets a specific bottleneck in your daily workflow.
Level 1: Automation and Handling Add-ons. This level focuses entirely on eliminating operator dependency. You can integrate custom bar feeders into the loading sequence. Gantry loaders and robotic arms also streamline raw material handling. These additions allow the machine to run unattended overnight. They maximize spindle uptime while reducing human error significantly.
Level 2: Workholding and Tooling Modifications. Unique part geometries often defeat standard hydraulic chucks. You might need specialized steady rests for long, slender shafts. Custom turret configurations allow you to pack more live tools. These tailored modifications ensure absolute part stability during aggressive cutting cycles. They prevent unwanted vibrations from destroying delicate surface finishes.

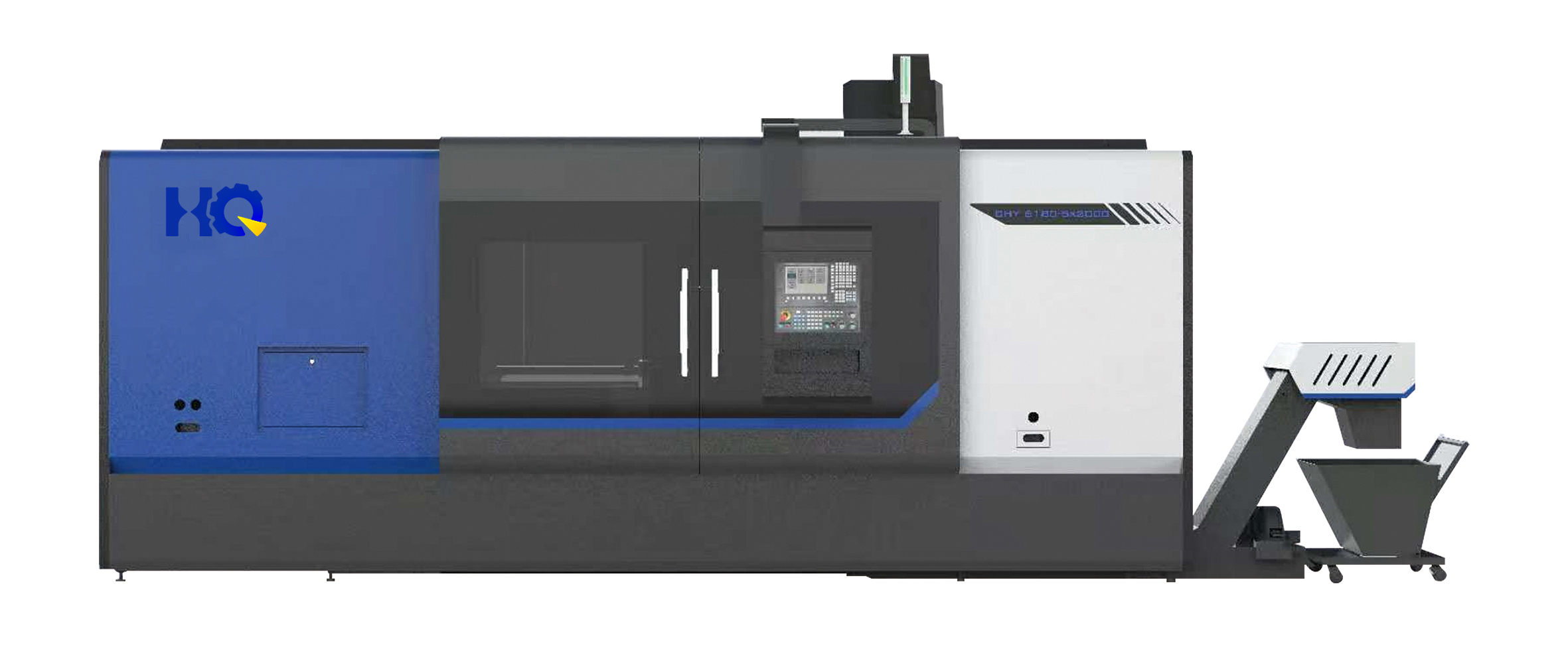

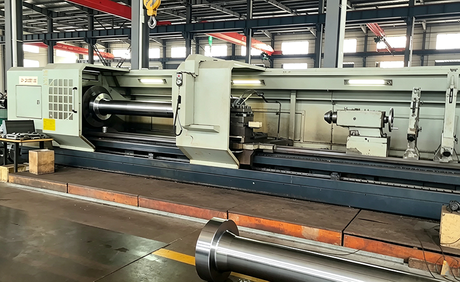

Level 3: Core Machine Engineering. This tier involves fundamentally altering the machine's structural DNA. You might demand larger spindle bore sizes for oversized tubing. Upgrading to heavy-duty linear guideways improves vibration dampening immensely. Adding complete Y-axis or sub-spindle capabilities transforms the workflow entirely. This results in a fully engineered custom CNC turning center built specifically for your part family.
You must acknowledge the inherent risks involved here. Increased customization extends delivery lead times significantly. It also complicates routine maintenance because replacement parts become proprietary. We advise buyers to customize only what directly impacts cycle time. Do not engineer custom features unless they improve quality measurably. Over-engineering a solution wastes capital and creates unnecessary maintenance headaches.
Automotive Tier 1 and 2 suppliers face brutal cost-down pressures constantly. OEMs demand cheaper parts every single quarter. Furthermore, suppliers must achieve absolute zero-defect manufacturing to survive. Recalls destroy reputations and incur massive financial penalties. Standard equipment simply cannot meet these aggressive modern standards reliably.
A dedicated automotive parts CNC turning center solves these exact challenges perfectly. Automotive applications often require highly custom multi-spindle setups. These dual-spindle designs slash cycle times by machining both ends simultaneously. Specialized automated probing ensures in-line inspection catches errors instantly. Custom workholding prevents the deformation of delicate, thin-walled automotive components. This engineered grip distributes clamping pressure evenly across the fragile part.
You must establish strict metrics to evaluate this investment's success. Predictable cycle times are absolutely mandatory for automotive supply chains. We measure success by tracking direct cost-per-part reduction carefully. Floor space optimization also plays a critical role in factory layouts. Finally, the machine must integrate seamlessly into existing factory ERP/MES systems. This connectivity provides real-time production data to floor managers immediately.
Metric Evaluated | Standard Setup | Custom Setup |
|---|---|---|
Cycle Time Consistency | Fluctuates heavily by operator | Highly predictable and stable |
Scrap Rate (Thin Walls) | High deformation risk | Near zero defects |
In-Line Inspection | Manual post-process checking | Automated integrated probing |
Floor Space Usage | Requires 2-3 separate machines | Single unified machine footprint |
Custom machines undeniably carry a high price premium upfront. Procurement teams often experience sticker shock during the initial quoting phase. However, you must meticulously map this price against long-term operational savings. A customized setup drastically reduces costly manual labor hours. It systematically lowers scrap rates by removing human handling errors. Faster throughput translates directly into higher monthly billing capacity. Every CNC turning center must ultimately justify its presence on your floor financially.
Forcing standard equipment to perform specialized jobs creates massive hidden expenses. You will suffer from rapidly increased tooling wear. The spindle works harder, leading to frequent and unpredictable machine downtime. Operator fatigue also spikes when handling awkward manual setups constantly. These daily inefficiencies bleed your profit margins completely dry. The cost of compromise always exceeds the price of customization eventually.
You need a realistic formula for evaluating your expected return. We advise targeting a strict 12- to 24-month payback period. This calculation depends heavily on your projected annual production volumes. Calculate your current cost per part, including operator wages and wasted scrap. Compare it against the projected cost per part from the custom proposal. Multiply the savings by your annual volume to find the payback timeline exactly.
We must maintain total transparency regarding economic viability here. Full factory customization is rarely economically viable for low-volume job shops. High-mix environments change parts too frequently to justify bespoke robotic loaders. You should reserve deep customization for long-running, highly repeatable part families.
Choosing the right manufacturing partner determines your ultimate success or failure. You must relentlessly verify a vendor's core engineering competence. Check if the CNC turning center supplier possesses genuine application engineering expertise. Avoid vendors acting merely as generic hardware resellers. True partners study your blueprints and propose optimized machining strategies proactively. They understand cutting dynamics, material science, and automation integration intimately.
Many buyers express deep skepticism regarding direct machine imports from overseas manufacturers. You must confront these supply chain realities objectively and carefully. Evaluate their local support networks and immediate parts availability rigorously. A cheap machine becomes incredibly expensive if it waits weeks for imported replacement parts. You must also verify their warranty enforcement policies in your specific region to ensure compliance.
Never sign a purchase order without strict contractual safeguards. Insist on Factory Acceptance Testing (FAT) clauses in your final contract. You must watch the machine cut your part at their facility first. Furthermore, demand Site Acceptance Testing (SAT) after installation on your floor. The equipment is not fully yours until it meets target tolerances in your building.
We highly advise taking one crucial next step immediately. Request a comprehensive time-study based on your exact part prints. Ask them to perform a physical test-cut before finalizing your vendor shortlist. Real-world chips on the floor reveal a supplier's true capabilities instantly.
Customizing a turning center represents a critical strategic scaling decision. It is never an arbitrary upgrade meant to look impressive on the factory floor. Standard machines definitely serve an essential purpose in mixed-production environments. However, specialized production lines always win on final profit margins through targeted engineering. Precise hardware upgrades eliminate manual bottlenecks and enforce highly predictable quality standards.
You should begin compiling your current cycle times and part drawings immediately. Document your most painful production bottlenecks clearly. Identify the operations producing your highest scrap volumes. Armed with this data, you can schedule a technical consultation confidently. An experienced application engineer will review your metrics thoroughly. They will help you transform your manufacturing floor into a highly profitable operation.
A: Customizing equipment typically adds 12 to 24 weeks to the standard delivery schedule. This timeline depends heavily on the specific engineering complexity required. Minor automation add-ons take less time to source and install. Conversely, altering core machine structural elements requires extensive redesign and testing phases. You should plan your production forecasts accordingly to absorb this waiting period.
A: You must differentiate between aftermarket automation and structural factory builds. You can usually retrofit aftermarket robotic loaders or bar feeders later. However, core specifications like spindle bore size or linear guideway structures must be custom-built at the factory. Attempting to modify heavy structural elements post-installation is dangerous and compromises overall machine rigidity.
A: A supplier needs highly specific data to engineer an accurate solution. You must provide detailed 2D and 3D CAD models of your part. They also require your target cycle times and annual production volumes. Material specifications and exact floor space constraints are equally critical. Providing incomplete data leads to inaccurate quoting and mismatched machinery.
