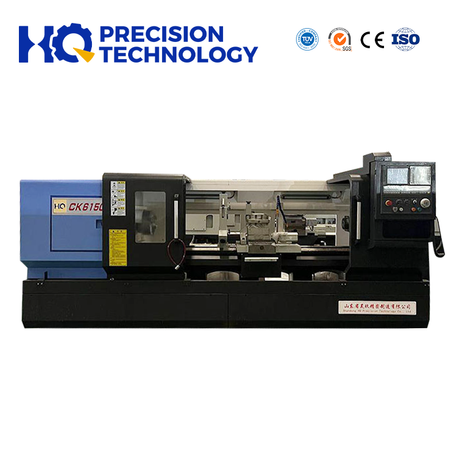

How to Size Pipe Threading Lathe for Oil and Gas Pipes?

Views: 0     Author: Site Editor     Publish Time: 2026-08-04      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Purchasing an oil and gas pipes pipe threading lathe is a high-stakes capital expenditure for any modern manufacturing facility. Oversizing wastes capital and valuable floor space. Undersizing limits production capacity and risks failing strict industry tolerances. Standard CNC lathes simply cannot handle the severe overhang, extreme vibration, and specialized thread profiles required for Oil Country Tubular Goods (OCTG). Processing drill pipe and heavy-wall casing demands dedicated equipment built specifically for API 5CT threads.

We provide procurement and engineering teams with a rigid, spec-driven framework. You will learn exactly how to size the right machine for your unique tubular products. We also cover evaluating manufacturers based on operational realities rather than marketing claims. By following this guide, you can match machine capabilities directly to your daily production needs and avoid costly procurement mistakes.

Key Takeaways

  • **Spindle Bore is Dictator:** The lathe’s spindle bore must exceed the maximum outer diameter (OD) of the largest pipe you intend to process, factoring in coupling and upset dimensions.
  • **Dual Workholding is Mandatory:** Oil and gas pipes require dual (front and rear) chuck configurations to prevent whip and maintain thread concentricity.
  • **Rigidity Over Speed:** Heavy-wall casing and tubing require high-torque spindles and heavy-duty cast iron beds to eliminate chatter during heavy material removal.
  • **Supplier Accountability:** A qualified pipe threading lathe supplier must provide Factory Acceptance Testing (FAT) proving API thread compliance before delivery.

Mapping OCTG Production Requirements to Machine Capabilities

You cannot size a machine properly without a clear baseline of your production targets. Machining OCTG products involves diverse dimensions, materials, and tolerances. You must establish exactly what goes into the chuck before looking at machinery.

Define the Target Pipe Range

Identify the exact physical parameters of your workpieces. You need to map out the minimum and maximum outer diameters (OD). You must also define the wall thickness and overall lengths of the pipes. Different tubulars demand wildly different machine capabilities.

  • Drill Pipe: Features heavy walls and upset tool joints. Requires high rigidity and clearance for the upset ends.
  • Casing: Typically features large diameters but relatively thinner walls. Demands massive spindle bores and careful chuck pressure control.
  • Tubing: Smaller in diameter but often extremely long. Requires excellent steady rest support to prevent deflection.

Industry Standard Compliance

Your chosen machine must reliably cut standard industry profiles. API 5CT thread profiles represent the baseline for oilfield machining. The lathe control system and tooling setup must handle Buttress Thread Casing (BTC), Long Thread Casing (LTC), and Short Thread Casing (STC). Furthermore, you might process premium proprietary threads like VAM. These premium profiles demand specialized seal geometries. They require extreme positioning accuracy and advanced CNC macro capabilities.

Production Volume Assessment

Match the machine's automation level to your facility's operational tempo. High-mix, low-volume repair shops handle constant changeovers. They benefit from semi-CNC features, manual interventions, and quick-change tooling. Conversely, high-volume manufacturing facilities run identical pipes for days. They require fully automated CNC solutions. Automated systems maximize throughput and ensure absolute consistency across thousands of threads.

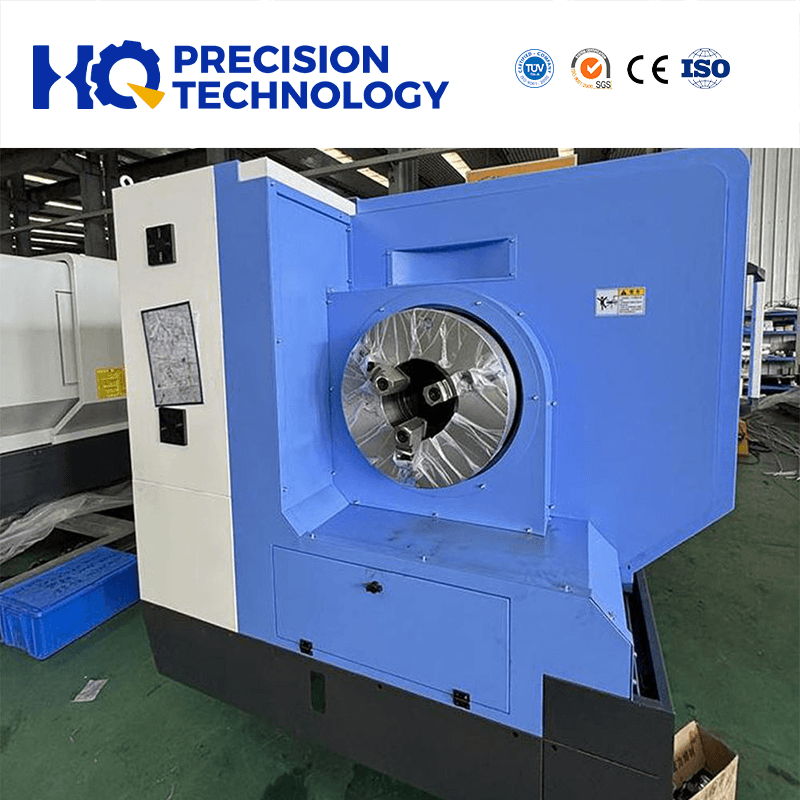

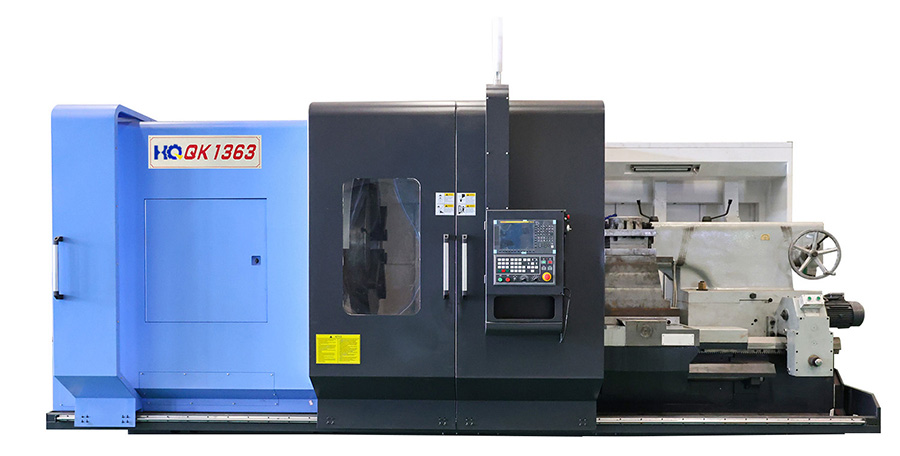

Pipe threading lathe sizing and specifications

Core Pipe Threading Lathe Specifications to Evaluate

Once you define your production matrix, you must translate it into hard machinery data. Evaluating pipe threading lathe specifications requires understanding how dimensional capacities interact during heavy machining.

Spindle Bore Sizing Formula

The spindle bore is the absolute dictator of machine capacity. It must exceed the maximum OD of your largest pipe. However, you cannot simply match the exact pipe diameter. You must factor in couplings, upset dimensions, and safe clearance margins. A strict rule dictates sizing the bore appropriately for the max OD.

For example, machining a 13-3/8" casing requires a spindle bore of at least 14". This provides necessary clearance. It prevents the pipe from binding inside the spindle during loading. It also accommodates slight pipe bow, which is common in long OCTG products.

Spindle Bore Sizing Chart

Max Pipe OD (Inches) Application Type Minimum Recommended Spindle Bore Clearance Margin
4-1/2" Drill Tubing 5" to 5.5" Medium
9-5/8" Standard Casing 10" to 10.5" High
13-3/8" Large Casing 14" to 14.5" High
20" Surface Casing 21" to 22" Maximum

Swing Over Bed and Cross Slide

Swing defines the maximum diameter that can rotate over the machine ways. You must size the swing to accommodate more than just the pipe itself. Dual chucks are massive. You need adequate swing to clear the outer diameter of these chucks. Furthermore, you must account for pipe coupling attachments spinning at high speeds. If your cross slide swing is too tight, you risk severe tooling collisions.

Center Distance / Bed Length

Center distance determines how much pipe you can support outside the spindle. Guide your bed length sizing based on the maximum length of the pipe being threaded. You must also factor in steady rest placement. A long bed allows you to mount heavy-duty steady rests. This support is critical for threading long pup joints or tubing sections without dangerous whip.

Workholding, Rigidity, and Cutting Power

Securing the pipe and driving the cutting tool through tough alloys defines a true pipe threading lathe. Standard chucking and light-duty spindles fail instantly in this environment.

The Necessity of Dual Chucks

Single chucks fail for long oilfield pipes. They cannot stabilize the massive overhanging weight. Oil and gas pipes require dual chucks mounted on the front and rear of the headstock. This configuration locks the pipe on two planes. It prevents hazardous pipe whip and maintains vital thread concentricity.

You must choose between hydraulic and pneumatic dual chuck systems carefully. Your choice depends heavily on pipe wall thickness.

  1. Hydraulic Chucks: Best for heavy-wall drill pipe. They deliver massive gripping force. However, they can crush thin-wall casing if improperly regulated.
  2. Pneumatic Chucks: Ideal for thin-wall casing and tubing. They provide a compressible, spring-like grip. This prevents pipe deformation while maintaining secure workholding.

Spindle Motor Torque and Gearing

Cutting coarse API threads generates immense resistance. You will often machine tough alloys like P110 and Q125 grades. These materials destroy weak machine tools. You need low-speed, high-torque spindle drives. Direct-drive spindles often lack low-end grunt. Look for mechanical gearboxes. Geared headstocks multiply torque at low RPMs, allowing the tool to shear through heavy material without stalling or chattering.

Bed Construction

Machine mass directly equals thread surface finish. Advise your engineering team to look for one-piece cast iron beds. Cast iron naturally dampens the intense vibrations generated by heavy threading. You must also evaluate the guideways. Wide, hardened box ways absorb cutting forces better than linear guide rails.

You will encounter both slant bed and flat bed designs. Slant beds offer superior chip evacuation and ergonomics for continuous automated production. Flat beds provide unmatched stability for extremely heavy, large-diameter surface casings.

When to Specify a Custom Pipe Threading Lathe

Off-the-shelf machines often fall short in specialized OCTG manufacturing. When your production process demands unique workflows, you must specify a custom pipe threading lathe.

Automated Material Handling

Handling 40-foot lengths of heavy casing manually is dangerous and slow. You can integrate custom material handling systems directly into the lathe's control loop. Discuss adding hydraulic pipe kickers and automated loading racks. These systems feed pipes continuously. Bespoke steady rests can automatically open and close via CNC commands, allowing seamless pipe advancement without operator intervention.

Custom Control Macros

Standard G-code programming is inefficient for complex OCTG profiles. Evaluate CNC controllers, such as Fanuc or Siemens, equipped with specific macro programs. Custom macros simplify cutting tapered threads. The operator only inputs basic pipe parameters, and the macro calculates the complex toolpaths. You should also demand automated tool wear compensation. This feature automatically adjusts offsets as the tough alloys wear down the carbide inserts, ensuring every thread remains within API tolerances.

Specialized Tooling Turrets

Your threading cycle times dictate your turret choice. Assess the need for specialized tooling configurations. Heavy-duty VDI turrets provide rigid support for large boring bars required in internal coupling threads. Alternatively, custom gang-tooling setups offer lightning-fast tool changes. Gang tooling works exceptionally well for smaller diameter tubing where minimizing chip-to-chip time is critical.

Shortlisting Your Pipe Threading Lathe Supplier

Finding a machine is easy; finding a qualified partner is difficult. You must hold your pipe threading lathe supplier accountable through rigid vetting processes.

Demonstrable E-E-A-T in OCTG

Verify the supplier’s track record specifically in the oil and gas sector. General machining experience does not translate to OCTG success. Ask for case studies involving API 5CT compliance. A credible supplier understands the nuances of pipe bow, taper variations, and premium thread sealing surfaces. They should speak your technical language natively.

FAT and Try-Out Capabilities

Never accept delivery based on a dry run. You must insist on a rigorous Factory Acceptance Test (FAT). Require the supplier to run your specific pipe material and thread profile. Bring your own API ring and plug gauges to their facility. Prove the machine cuts a compliant thread under real-world conditions before signing the final approval document.

Service and Spare Parts Availability

Machine downtime halts your entire supply chain. Evaluate the supplier's service infrastructure strictly on uptime potential. Ask for their mean-time-to-repair (MTTR) Service Level Agreement (SLA). Ensure they maintain deep local inventory of critical wear parts. You need immediate availability for replacement chuck jaws, specialized cutting inserts, and spindle bearings. A machine waiting weeks for a proprietary part is a massive operational liability.

Conclusion

Sizing your equipment correctly guarantees operational success in the demanding OCTG sector. It is always a precise balance. You must balance maximum pipe OD against the spindle bore. You must match thread complexity with advanced CNC capabilities. Finally, you must conquer material toughness through uncompromising machine rigidity.

Your next step is highly actionable. We recommend buyers compile a specific "Pipe Matrix" before contacting vendors. Document your exact OD, Length, Weight, Material Grade, and Thread Type ranges. Send this matrix to vendors as a rigid Request for Quotation (RFQ) baseline. This eliminates vague marketing promises and forces suppliers to engineer a solution tailored to your shop floor realities.

FAQ

Q: How much larger should the spindle bore be than my maximum pipe OD?

A: Typically, you need it to be 0.5 to 1 inch larger than your maximum pipe OD. This extra space allows for safe clearance. It accommodates slight pipe bow and ensures the pipe does not bind against the spindle interior during loading and unloading.

Q: Can a standard CNC lathe be converted for oil and gas pipe threading?

A: Generally no. Standard lathes lack the mandatory dual-chuck capacity. They also do not feature the oversized spindle bores required for tubular goods. Furthermore, they lack the heavy-duty torque gearing needed to cut coarse threads into tough alloys.

Q: What is the difference between flat bed and slant bed pipe threading lathes?

A: Flat beds are typically better for extremely heavy, large-diameter pipes and manual operator interventions. Slant beds offer better chip evacuation and superior ergonomics. They are generally preferred for high-speed, automated CNC production lines.
