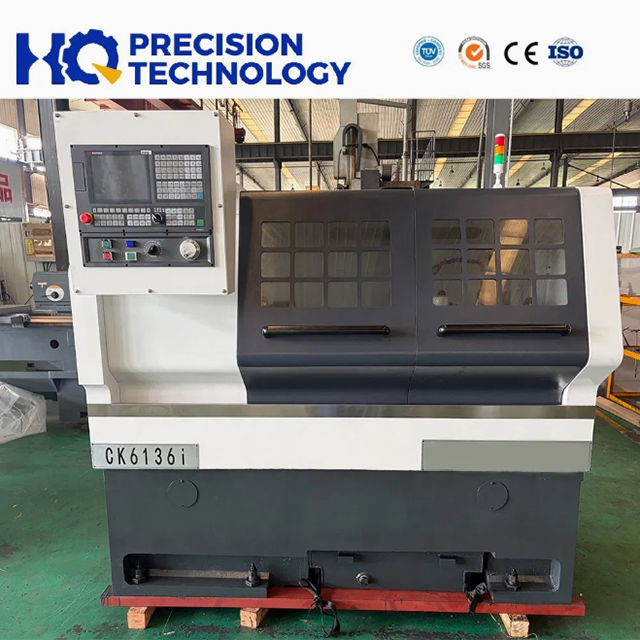

How to Match CK6136i horizontal CNC lathe to Different Application Requirements

Selecting a CNC lathe based purely on top-line specifications often leads to immediate production bottlenecks. You might buy a highly capable machine. However, its ultimate success relies entirely on aligning its mechanical realities with your specific shop-floor demands. Procurement teams frequently face the difficult challenge of matching equipment capabilities to exact material tolerances and daily production volumes. Without a clear alignment strategy, you risk under-equipping your facility or overspending on completely unnecessary features.

This article provides a grounded, decision-stage framework. It helps you evaluate your daily operational needs against actual machine capabilities. You will learn how to configure the setup for optimal performance. We will show you how to navigate inherent mechanical constraints effectively. By the end, you can confidently match the right configuration to your daily production environment, minimizing costly downtime.

Key Takeaways

• The CK6136i excels in low-to-medium volume production and educational settings, offering high rigidity for general turning tasks.

• Matching applications requires auditing three core constraints: spindle bore diameter, required chip evacuation rates, and desired automation levels.

• While flat-bed lathes like the CK6136i offer excellent cost-to-performance ratios, they require deliberate configuration (chuck type, tool post, controller) to match specific industry tolerances.

Evaluating the Baseline: What the CK6136i is Engineered to Handle

You must look past the marketing brochure to understand real machine capacities. Defining the operational envelope prevents severe misapplications later. The standard specification lists a 360mm swing over the bed. It also highlights a 150mm swing over the cross slide. Practically, these metrics limit your maximum turning diameter. If you turn large pipe flanges, the cross slide clearance dictates your entire tooling setup. You cannot simply squeeze larger parts into the workspace. The carriage geometry strictly limits physical clearances.

Next, we must consider the spindle bore diameter. Standard bore capacities typically range from 40mm to 52mm. This measurement dictates your maximum raw bar stock size. If you plan to use automated bar feeders, your raw material must clear this bore easily. A 50mm bar will not feed reliably through a 52mm bore without dangerous vibrations. You must leave adequate clearance for safe spindle rotation.

Spindle speeds and torque profiles also dictate true cutting performance. The main spindle motor has a distinct mechanical sweet spot. High torque delivery at lower RPMs easily handles aggressive roughing cuts on tough mild steel. Conversely, higher RPM ranges provide the smooth surface finish required for aluminum or brass components. You must match your primary material to these specific torque bands.

Procurement teams need a fast way to qualify or disqualify equipment. We use a success criteria matrix for this exact purpose. It instantly highlights raw dimensions and weight-bearing limits. This prevents wasting time on machines that physically cannot handle your parts.

Table 1: Success Criteria Matrix for Part Sizing

Best Practices: Always subtract at least 10% from the maximum stated capacities. This safety margin prevents severe tool chatter and extends spindle bearing life.

Common Mistakes: Ignoring the cross slide swing. Many buyers only look at the bed swing. They quickly realize their larger parts collide with the tool post during facing operations.

Mapping CK6136i CNC Lathe Applications by Production Environment

Different production floors demand highly specific capabilities from their equipment. Understanding how to deploy CK6136i CNC lathe applications helps you maximize machine utilization. We see this machine thrive in four distinct manufacturing environments.

1. General Job Shops (High-Mix, Low-Volume): Job shops survive on rapid adaptability. They run custom shafts on Monday and threaded bushings on Tuesday. The machine offers incredible flexibility for these rapid changeovers. Operators can swap standard tooling quickly. They can adjust programs on the fly. This flexibility keeps spindle uptime high during mixed-batch runs.

2. Automotive & Plumbing Components: These industries demand reliable threading, grooving, and facing. The machine handles brass, cast aluminum, and mild steel fixtures effortlessly. Plumbers need accurate pipe threads. Automotive suppliers need tight tolerances on suspension bushings. The rigid cast-iron bed dampens vibrations perfectly during these high-speed threading cycles.

3. Educational and Training Facilities: Technical schools require specific safety and learning features. The inherent stability of a flat-bed design offers excellent cutting visibility. Students can safely watch the tool engage the material. Accessible programming interfaces help beginners grasp G-code fundamentals. This makes it an industry-standard choice for vocational training programs.

4. Maintenance & Repair Operations (MRO): Repair facilities tackle unpredictable challenges daily. They often utilize the machine for complex reverse-engineering tasks. Cycle time remains secondary to ultimate precision here. A mechanic might need to recreate a single broken drive shaft. They can manually jog the axes, take careful test cuts, and dial in the final dimensions perfectly.

Configuring the Flat-Bed Lathe to Your Specific Workflow

You must configure your flat-bed lathe to match your exact floor operations. A poorly configured machine frustrates operators and ruins expensive materials. Configuration starts directly with the controller system.

The controller acts as the brain of the machine. Entry-level controllers, like the GSK series, serve budget-conscious shops exceptionally well. They provide straightforward conversational programming. Operators can learn the interface in a few days. Conversely, premium systems from Fanuc or Siemens target advanced facilities. These shops require seamless integration into complex CAM workflows. If your shop already runs Fanuc, stick with it. Operator familiarity heavily reduces accidental crashes.

Tooling and turret options dictate your cycle times heavily. You must evaluate your part complexity before choosing a tool post.

• 4-Way Electric Tool Post: This remains the standard choice for simple, multi-pass turning. It indexes reliably. It holds standard square shank tools securely. It works best when parts require fewer than four unique cutting tools.

• 6-Way or Gang-Type Tooling: You should upgrade to these options for complex parts. Gang tooling eliminates tool post indexing time entirely. It reduces cycle times drastically for high-volume small parts. You can mount drills, boring bars, and threading tools simultaneously in a single dense setup.

Workholding and automation configurations also demand careful review. Manual 3-jaw chucks work fine for low-volume repair work. They allow operators to indicate irregular parts manually. However, hydraulic or pneumatic chucks become absolutely essential for medium-batch production. They guarantee consistent clamping force across hundreds of parts. Furthermore, hydraulic tailstocks reduce operator fatigue significantly during long shaft work.

Best Practices: Always match the controller brand to your existing shop floor equipment. Cross-training operators on entirely new control logic invites expensive mistakes.

Implementation Realities: Risks, Constraints, and Limitations

We must transparently discuss the physical realities of operating this equipment. Every machine design carries inherent compromises. A CK6136i CNC lathe presents distinct chip evacuation challenges compared to slant-bed models. Gravity does not naturally pull chips away from the cutting zone here. A flat bed allows chips to accumulate directly on the guideways. Therefore, it requires more manual intervention for chip clearing. Operators must stop the machine periodically to sweep the bed. This reality negatively affects continuous, unattended high-volume production runs.

Thermal deformation also impacts long-term precision. The massive cast iron bed handles normal vibrations beautifully. However, it absorbs significant heat during prolonged, heavy-duty cutting operations. Heat transfers from the hot chips directly into the machine casting. This thermal expansion causes microscopic shifts in the tool geometry. You must allow the machine to warm up properly before cutting tight-tolerance parts.

Operator skill dependencies remain a major factor. Manufacturers often market these machines as entry-level friendly. While true, maximizing tool life still requires fundamental machining expertise. Achieving tight tolerances on tricky materials like stainless steel demands experience. An unskilled operator can easily program a rapid move into the chuck. The machine will do exactly what they tell it to do.

Infrastructure requirements often surprise new buyers. You must conduct an honest assessment of your available floor space. The machine requires wide clearances for maintenance access and chip removal. Furthermore, power supply stability remains non-negotiable. The machine strictly requires a balanced 3-phase power supply. Voltage fluctuations will cause surface finish inconsistencies. You must also maintain stable ambient operating conditions. Extreme temperature swings in your shop will destroy your repeatable accuracy.

Common Mistakes: Forgetting to account for the physical footprint of the electrical cabinet and the chip cart. Buyers often place the machine too close to a wall, making daily maintenance impossible.

Shortlisting Logic: Making the Final Procurement Decision

Making a final procurement decision requires strict logical evaluation. You must compare your specific part drawings against the machine's absolute limits. Sometimes, stepping down to a conventional manual lathe makes sense for purely one-off maintenance tasks. Manual machines require zero programming time. Conversely, you might need to step up to a slant-bed turning center. If your parts require live tooling for off-center drilling, a standard 2-axis machine will not suffice.

Vendor validation forms the backbone of a safe purchase. You must vet your suppliers rigorously. Ask specific questions about warranty terms. Verify the domestic availability of critical replacement parts. You need to know if they stock replacement ball screws and linear guideways locally. Extended downtime waiting for overseas shipping destroys production schedules. Additionally, inquire about remote diagnostic support. A vendor who can troubleshoot PLC alarms over the phone saves you thousands in service call fees.

Comparative Assessment Chart: Choosing the Right Platform

Your immediate next steps should involve physical testing. We strongly encourage buyers to request test cuts before issuing any purchase orders. Send the vendor your toughest material and your most critical part drawings. A successful run-off proves the machine can hold your specific tolerances under actual cutting loads.

Conclusion

The CK6136i is not a magic bullet for all turning needs. However, it remains a highly effective, economical workhorse when matched correctly to the right application envelope. We have explored how its swing dimensions, spindle bore limits, and flat-bed architecture dictate its best use cases. It shines brilliantly in educational settings, job shops, and medium-batch component manufacturing. By understanding its thermal realities and chip evacuation constraints, you can optimize your shop floor layout accordingly.

Your next action is clear. Gather your three most commonly machined part drawings. Compare their maximum diameters and lengths against the machine’s dimensional limits outlined above. If you remain unsure about tooling clearances or controller compatibility, contact a dedicated applications engineer. Request a bespoke configuration audit to ensure the machine arrives ready to generate immediate value.

FAQ

Q: What is the maximum continuous running time for the CK6136i before thermal drift affects tolerances?

A: Generally, you can run the machine continuously for 4 to 6 hours before thermal drift becomes measurable. We recommend a 20-minute warm-up program at the start of each shift. This stabilizes the spindle bearings and the cast iron bed, ensuring consistent precision throughout the day.

Q: Can the CK6136i be retrofitted with a bar feeder later?

A: Yes, you can retrofit a bar feeder. However, your machine must already feature a hydraulic or pneumatic chuck system. Manual chucks cannot interface with automated feeding cycles. You must also ensure your raw material diameter strictly clears the 52mm spindle bore limitation.

Q: How does the programming differ if I choose a GSK controller over a Fanuc controller?

A: Both systems utilize standard ISO G-code. However, GSK offers a highly conversational interface aimed at faster entry-level programming. Fanuc provides deeper customization and macro variable programming. If your operators only know Fanuc, cross-training them on GSK will take a few days of hands-on adjustment.

Q: What are the foundation and leveling requirements for optimal precision on this flat-bed model?

A: The machine requires a reinforced concrete foundation at least 150mm thick. You must use precision machine levels to adjust the foundation bolts during installation. Improper leveling twists the cast iron bed, which destroys turning accuracy and drastically accelerates guideway wear.
