Industrial tube processing involves incredibly high stakes. Selecting the wrong equipment causes major problems. It leads to scrapped expensive materials. You risk severe API compliance failures. Costly downtime ruins production schedules. Machine shops face immense pressure to deliver perfect threads. You must bridge the gap between bold marketing claims and actual operational reality. A truly reliable machine perfectly balances spindle capacity, structural rigidity, and control precision.
This guide offers an evidence-based framework to simplify the process. We look far beyond basic specifications. You will learn to evaluate tooling integration, production scalability, and hidden implementation factors. Our goal is to help you build a highly efficient, profitable threading operation.
Spindle bore size and dual-chuck configurations are the non-negotiable baselines for large-diameter work.
Upgrading to a CNC pipe threading machine is justified by batch volume and the need for complex API/premium thread profiles.
Total Cost of Ownership (TCO) evaluation must include machine head tooling costs, foundation requirements, and preventative maintenance intervals.
Proper threading lathe selection hinges on matching the machine's rigidity and torque to the specific yield strength of the materials being processed (e.g., heavy-wall OCTG).
Success criteria must come first. Define your core business problem clearly. Are you trying to reduce cycle times on long production runs? Maybe you want to bring expensive thread repair back in-house. Scaling production is another common goal for growing shops. Knowing your exact target outcome guides your entire equipment search.
Next, evaluate material and yield strength variables. Hardness directly impacts the machining process. Wall thickness on casing, tubing, or drill pipes dictates your mechanical needs. Heavy materials demand massive motor torque. They also require immense bed rigidity to prevent deflection. Common OCTG materials like L80, P110, or Q125 grade steel punish weak machines. You must size your equipment to handle your toughest daily materials.
Industry standards demand flawless precision. You need equipment capable of holding extremely tight tolerances. Cutting API 5CT and premium thread connections leaves zero room for error. A failed connection in the field causes catastrophic leaks or blowouts. The lathe must perform aggressive cuts without any vibration or chatter. Quality oil pipe threading relies on this unwavering stability. Buyers should always ask manufacturers for case studies proving API compliance capabilities.
We recommend creating a checklist of your most demanding jobs. Document the maximum outer diameter, the hardest steel grade, and the strictest tolerance required. Use this document as your baseline filter when speaking to equipment vendors.
Spindle bore capacity represents your starting point. The spindle bore must safely clear the maximum outer diameter of your pipe. Always account for upset ends. A pipe body might measure 6 inches. However, upset ends require significantly more clearance. If you buy a machine strictly based on nominal pipe size, you will severely limit your capabilities.
Bed width and casting rigidity matter immensely. You must evaluate the structural mass of the machine base. Heavier, wider cast-iron beds absorb and dampen vibration effectively. This damping is vital during aggressive threading passes on hard alloys. A rigid large bore lathe minimizes tool wear. It extends the life of your carbide inserts. Thin, lightweight beds vibrate excessively and ruin thread finish.
Understand the critical difference between swing over bed and swing over carriage. Swing over bed tells you the maximum part size you can physically load. Swing over carriage determines tool clearance during actual cutting operations. The carriage measurement is your true limiting factor. Many buyers make the mistake of looking only at the swing over bed.
Spindle speed and torque curves dictate cutting efficiency. Match the gearbox capabilities to your tooling. Heavy threading requires massive torque at low RPMs. Some machines use direct-drive systems, while others rely on geared headstocks. You need to achieve the optimal surface feet per minute (SFM). Carbide threading inserts require specific SFM ranges to break chips cleanly. Running too slow causes material tearing. Running too fast burns out expensive inserts.
Table: Lathe Swing Specifications Comparison
Specification Metric | Definition | Operational Impact |
|---|---|---|
Swing Over Bed | Maximum diameter fitting over the lathe ways. | Determines maximum raw material size for loading. |
Swing Over Carriage | Maximum diameter clearing the cross slide. | Determines maximum size for active machining and tool clearance. |
Spindle Bore | Internal diameter of the main spindle. | Limits the maximum pipe OD that can pass through the headstock. |

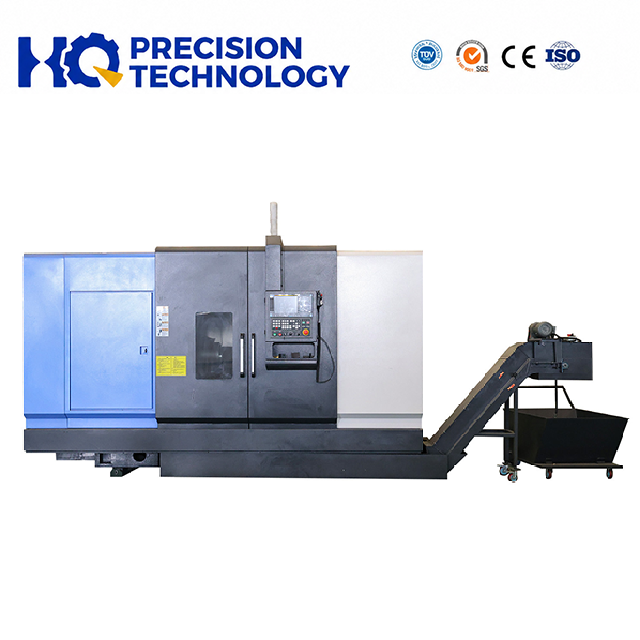

Choosing the right control architecture impacts daily operations dramatically. You should upgrade to a CNC pipe threading machine for high-volume production environments. Automation dramatically speeds up processing. CNC is mandatory for complex, multi-start, or variable-pitch threads. Modern premium threads require automated tool wear compensation to stay within tolerance. Quick changeovers between different pipe sizes also justify the CNC investment. Modern shops struggle to find skilled manual machinists. CNC controls help bridge this skills gap.
However, conventional manual machines still serve an important purpose. Low-volume, high-mix maintenance shops often prefer them. Simple, standardized repair operations benefit from manual control. Some experienced machinists prioritize operator feel over automation. A skilled operator can feel tool pressure and adjust feed rates instantly. Manual lathes also require significantly less capital investment upfront.
Control system selection requires careful thought. Look for specialized conversational programming macros. Brands like Fanuc or Siemens offer macros specifically designed for pipe threading. These built-in cycles drastically reduce operator programming errors. They make training new operators much easier. Instead of writing lines of G-code, the operator simply inputs pipe diameter, pitch, and thread length.
Consider these points when selecting a control system:
Evaluate your daily part volume and batch sizes.
Review the geometric complexity of your required thread profiles.
Assess the programming skill level of your current operators.
Check the availability of conversational threading macros from the vendor.
Factor in the availability of local technicians who can service the specific control brand.

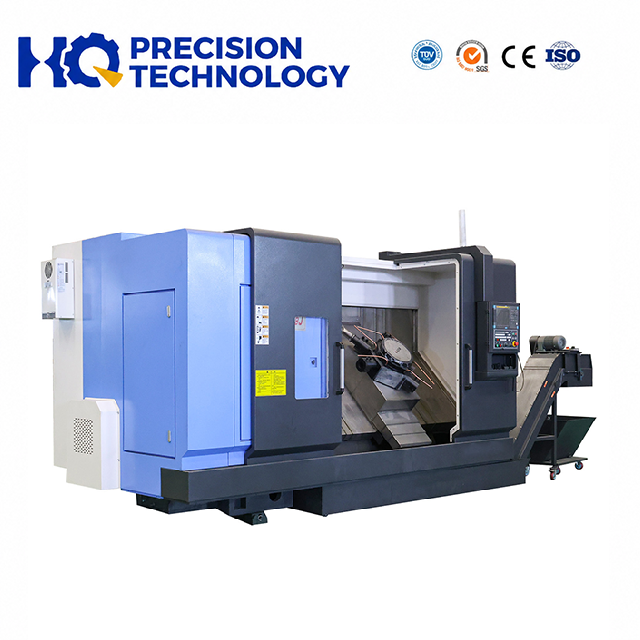

Effective workholding prevents disastrous machining errors. Dual chuck systems are an absolute necessity. You need robust front and rear chucks. They stabilize long, overhanging pipes and prevent dangerous whip. Long pipes spinning at high speeds act like unguided missiles without proper support. A high-quality pipe threading lathe will always feature heavy-duty front and rear chuck integration. Do not attempt large-diameter pipe work with a single chuck.
Compare pneumatic and hydraulic chucks carefully. Hydraulic chucks provide massive gripping force for thick, heavy materials. They secure the pipe aggressively during heavy cuts. Pneumatic chucks offer faster cycle speeds. They also reduce the risk of tube deformation on thin-walled materials. Crushing a thin pipe ruins the workpiece before machining even begins. You must match the chuck type to your primary material thickness.
Machine head and turret durability cannot be ignored. Heavy threading induces massive lateral forces on the machine. You must assess the rigidity of the tool post or CNC turret. Weak turrets deflect under cutting pressure. This deflection immediately leads to unacceptable taper errors. Look for heavy VDI or BMT style turrets. They lock securely into place and resist pushing forces. A vibrating turret destroys carbide inserts rapidly.
Material handling integration streamlines your entire workflow. Evaluate how the lathe interfaces with surrounding equipment. Automatic pipe loaders reduce manual lifting and improve safety. Steady rests support the middle of the pipe during long threading cycles. Hydraulic kick-out systems safely eject finished parts onto a rack. Integrating these systems reduces operator fatigue and increases daily output.
Installation realities require careful, early planning. Heavy-duty equipment demands serious foundation work. You must review the concrete depth requirements provided by the manufacturer. Standard shop floors rarely support the weight of a massive machine. Proper leveling pads and epoxy grouting are critical to maintain machine alignment. A sagging foundation ruins thread accuracy over time. We recommend consulting a structural engineer before delivery.
Hidden operational costs often catch buyers off guard. You must budget for high-capacity chip conveyors. Aggressive threading produces massive amounts of stringy, razor-sharp chips. A standard chip pan overflows within hours. High-pressure coolant systems are also essential. They flush chips out of the cutting zone and cool the inserts. Do not forget the recurring cost of specialized threading inserts. Premium thread profiles require custom-ground carbide tools.
Vendor support dictates your long-term success. Vet the manufacturer's service agreements carefully. Ask about turnaround times for spindle rebuilds. Ensure replacement electronic boards are stocked domestically. Waiting weeks for parts from overseas destroys profitability. Field service technician availability is vital for minimizing downtime. Ask the vendor for references from other local shops.
Use sound shortlisting logic for your final decision. Create a weighted matrix comparing machines. Balance the upfront capital expenditure against projected operational benefits. Projected cycle-time reductions and scrap rate improvements easily justify higher initial costs. Smart threading lathe selection requires looking past the initial price tag. Focus heavily on machine uptime, tooling costs, and scrap reduction.
Selecting the perfect lathe requires immense diligence and planning. You must align the machine's mechanical limits with strict industry standards. A rigid machine body ensures vibration-free cutting. Robust dual chucks keep long pipes perfectly stable. Powerful control systems handle complex thread geometries effortlessly.
Actionable next steps for your procurement journey:
Compile a detailed list of your most common pipe dimensions and target thread types.
Request physical test cuts directly from the machine manufacturer.
Supply your own raw material and API thread gauges for these run-off tests.
Verify foundation and power requirements with your facility manager before finalizing the purchase order.
Confirm local service technician availability for the specific control system you choose.
A: Standard spindle bores typically range from 6 to 14 inches or more. Your specific minimum depends entirely on your casing sizes. You must size the bore to clear the maximum outer diameter of your pipe, including any upset ends. A 9-inch to 10-inch bore covers a wide majority of common oilfield tubing and casing repair needs.
A: A pipe threading machine is specifically built for long workpieces. It features dual chucks on the front and rear to stabilize overhanging tubes. The spindle bore is significantly larger than a standard turning center. Additionally, the bed design is optimized to handle the extreme lateral forces generated during heavy, aggressive thread cutting.
A: Taper errors stem from misalignment or deflection. An unlevel bed causes the carriage to drift. Misaligned tailstocks or steady rests push the pipe off-center. High tool pressure also deflects weak turrets. Prevent taper errors by pouring a proper concrete foundation, frequently checking machine level, and utilizing highly rigid tool posts.
A: Yes, it is entirely possible. Highly skilled machinists use specialized taper attachments to cut API threads manually. However, this method has limitations. Manual threading lacks the efficiency, speed, and strict repeatability of CNC machines. Manual equipment is best suited for low-volume repair work rather than large-scale production.
