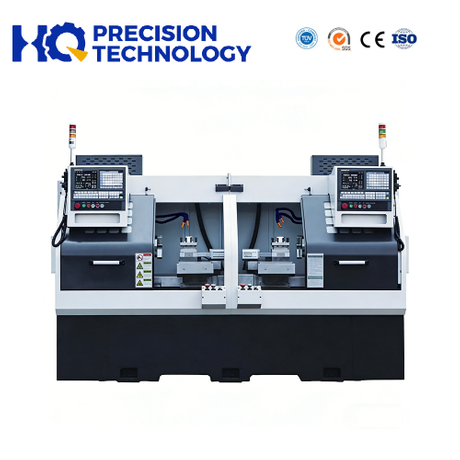

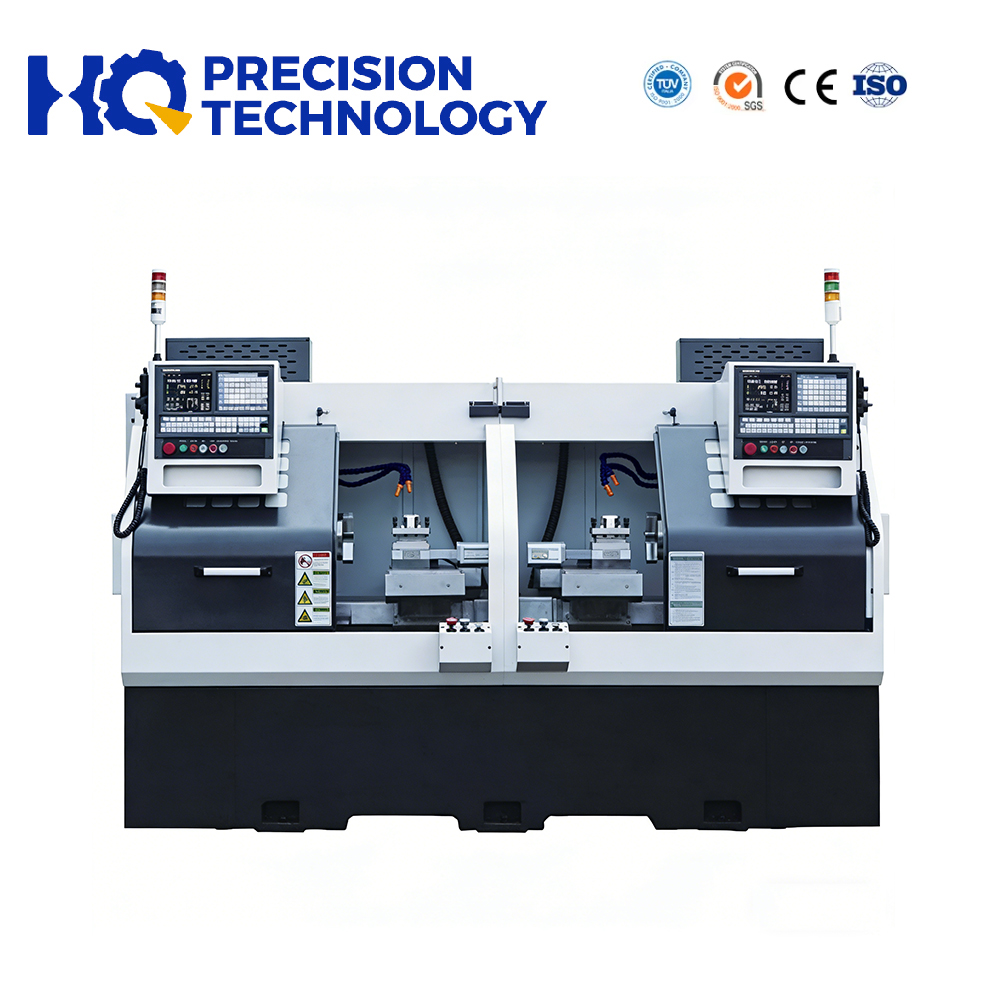

CNC Double Head Lathe For High-Efficiency Two-End Machining

Views: 0     Author: Site Editor     Publish Time: 2026-07-26      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Traditional turning processes often create a fundamental bottleneck on the shop floor. You must handle a part twice to perform opposite-end operations. This double handling instantly doubles your labor requirements. It introduces dangerous concentricity errors. It also heavily bloats your Work in Progress (WIP) inventory. To solve these critical production delays, modern manufacturers are adopting a smarter approach. The CNC double head lathe serves as a strategic upgrade. It allows facilities to achieve true "Done-in-One" processing. This article provides manufacturing engineers and production managers with an objective, hype-free framework. You will learn how to properly evaluate, specify, and justify a dual-spindle or double-head architecture. We will explore key dimensions like process consolidation, precision gains, and automation readiness. By the end, you will understand exactly how to deploy these advanced machines for maximum throughput and profitability.

Key Takeaways

  • Process Consolidation: Integrating two-end machining eliminates secondary setups, drastically reducing cycle times and handling errors.

  • Precision Gains: Transferring parts between synchronized spindles improves TIR (Total Indicator Runout) and part-to-part consistency.

  • ROI Dependencies: Justification relies heavily on batch sizes and operator capability; it is not a plug-and-play solution for every shop floor.

  • Automation Readiness: Maximum throughput is achieved when paired with bar feeders, gantry loaders, and integrated chip management.

The Business Case for Double Head Turning

Single-spindle setups hide massive operational costs. Many managers underestimate the true cost of secondary operations. Operators spend valuable time waiting for machine cycles. Queue times between OP10 and OP20 severely disrupt production flow. Re-chucking parts leads directly to higher scrap rates. Every single time you manually touch a part, you risk a defect. You also consume extra floor space for staging bins. These hidden inefficiencies silently destroy your profit margins. Consolidating operations fundamentally changes your production math.

You must apply double head turning where it naturally excels. This technology targets specific part families. It delivers the highest returns in continuous production environments.

Ideal Application Scenarios

  • Shaft end machining: Drive shafts, axles, and camshafts are perfect candidates. They require simultaneous or sequential operations on both ends. Traditional methods require flipping heavy shafts manually. Dedicated shaft end machining on a dual-spindle platform eliminates this physical burden.

  • High-volume complex fittings: Consider hydraulic connectors, automotive components, and aerospace fasteners. These parts require precise threading or boring on opposing faces. A consolidated setup guarantees perfect alignment between these features.

Limitations & Assumptions

This architecture is not a universal solution. High-mix, ultra-low-volume environments often struggle here. Setup times for dual-channel machines are naturally longer. You must synchronize two spindles and multiple tools. Small batches cannot easily recover this initial setup investment. Job shops running one-off prototypes should stick to standard lathes. You need medium to high volumes to justify the complex changeover process.

Evaluating Architectures: Twin Spindle vs. Special Purpose Lathes

Machine tool terminology can be confusing. Vendors often mix up definitions in their marketing materials. You must understand the distinct mechanical differences. This ensures you purchase the correct equipment for your part prints.

Defining the Configurations

There are two primary architectures available today. They function differently and suit different part families.

  • Opposed Twin Spindle Lathes: The main spindle and sub-spindle face each other. This setup is best for sequential transfer. You machine the front side. The sub-spindle then grabs the part. A cutoff tool separates it. Finally, the sub-spindle finishes the back side. It handles complete part processing independently.

  • Simultaneous Double Head Lathes: This functions as a special purpose lathe. The part sits in a fixed center or center-driven chuck. Two opposing machining heads work simultaneously. They attack both ends of the stationary part at once. This drastically slashes cycle times for long shafts.

Evaluating Rigidity & Footprint

Floor space is premium real estate. Operating two separate standard lathes consumes massive space. You need room for two operators. You need space for two chip conveyors. A single dual-spindle machine cuts this footprint in half. However, rigidity is a crucial concern. Two cutting zones generate intense vibrational forces. The machine bed must feature heavy-duty cast iron construction. Always verify the overall machine weight before buying.

Turret vs. Gang Tooling

Your tooling configuration impacts cycle time heavily. Gang tooling blocks offer lightning-fast chip-to-chip times. They have no moving index mechanisms. However, they limit total tool capacity. Turrets hold far more cutting tools. They allow for complex geometries. Yet, turrets take longer to index. They also create larger interference zones. You must carefully program tool paths to avoid violent turret crashes. Assess your part complexity before choosing.

Feature

Opposed Twin Spindle

Simultaneous Double Head

Operation Style

Sequential (Main to Sub)

Simultaneous (Both ends at once)

Best Part Type

Short fittings, complex fasteners

Long drive shafts, axles

Cutoff Required?

Yes (typically from bar stock)

No (pre-cut blanks usually loaded)

Tooling Setup

Dual Turrets or Gang Tooling

Dedicated Opposing Headstocks

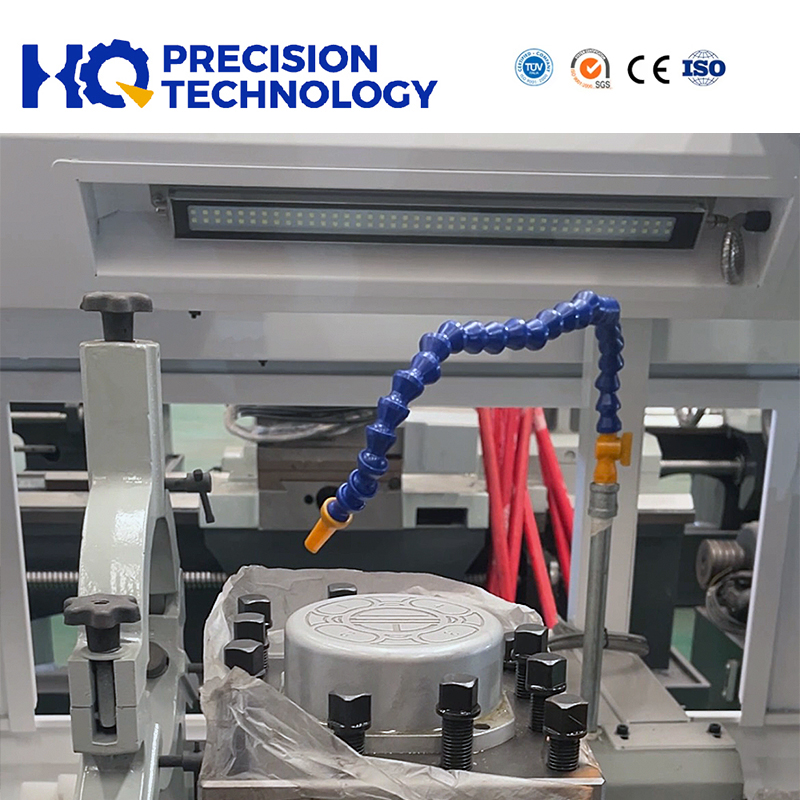

CNC Lathe Cooling System

Key Evaluation Dimensions for Two-End Machining

Implementing successful two-end machining requires strict evaluation. You cannot rely on basic machine specifications alone. Advanced mechanical and software capabilities are required. Focus on these critical engineering dimensions.

Spindle Synchronization Accuracy

Transferring a part requires absolute precision. The C-axis of both spindles must synchronize perfectly. This prevents harmful torsion during the physical hand-off. Any RPM mismatch will mar the surface finish. It can also twist the component out of tolerance. Request data on the encoder resolution. Ensure the machine uses direct-drive spindles for the fastest synchronization response.

Thermal Stability

Dual heat-generating zones exist in these machines. Two active spindles create immense thermal expansion. Standard single-spindle machines do not face this extreme condition. You need robust thermal compensation strategies. Look for machines utilizing active chiller units. Coolant must circulate through the spindle castings. Symmetrical bed designs also help dissipate heat evenly. Do not ignore thermal drift over a long production shift.

Automation Integration

You want a true automatic CNC lathe to maximize throughput. Standalone machines still rely on human loaders. To achieve unmanned running, assess integration readiness.

  • Bar Feeder Compatibility: Verify the spindle bore capacity. Check how the system handles bar remnants.

  • Gantry Loaders: For heavy shafts, top-loading gantries are superior. They keep the operator out of the loading zone.

  • Part Catchers: Finished parts need safe ejection. Integrated conveyors must transport delicate parts without scratching them.

Software & Control Capabilities

The brain of the machine is critical. Advanced CNC controllers are absolutely mandatory. You need a system capable of multi-channel programming. The controller must process dual tool paths simultaneously. It requires sophisticated wait-code logic (M-codes) to prevent collisions. Outdated or basic controllers will bottleneck your programming speed. Ensure the interface offers 3D simulation for safe path verification.

Implementation Realities and Adoption Risks

Transitioning to multi-spindle technology is not simple. It represents a major leap in manufacturing maturity. You must prepare your team for significant operational changes. Ignoring these realities will lead to extended downtime.

The Skill Gap

Programming these machines is significantly more complex. You cannot rely on basic manual conversational programming. It requires advanced CAM software. Operators need higher proficiency in multi-axis logic. They must understand wait codes and synchronization commands. Without proper training, you risk catastrophic tool crashes. Invest heavily in operator education before the machine arrives on your floor.

Setup Time Factors

Per-part cycle time drops dramatically. However, initial setup takes much longer. You are essentially setting up two machines in one enclosure. You must indicate multiple turrets. You must verify sub-spindle alignment. To mitigate this, utilize modular quick-change workholding. Implement preset tooling systems outside the machine. Standardize your jaw setups to reduce changeover friction.

Maintenance Overhead

More moving parts mean more wear. Two spindles and multiple turrets double your wearable components. Your maintenance team faces a heavier burden. You must enforce a stricter preventative maintenance schedule. Check spindle runout weekly. Verify drawbar clamping force regularly. Clean the sub-spindle jaws daily to prevent chip buildup. Neglecting maintenance on a dual-spindle machine halts two processes simultaneously.

  1. Audit current skill levels: Ensure programmers know multi-channel CAM.

  2. Upgrade workholding: Buy quick-change collets to speed up changeovers.

  3. Revise maintenance logs: Create specific checklists for dual-spindle alignment.

Shortlisting Logic and ROI Justification

Management needs hard numbers to approve capital expenditures. You must build a rock-solid justification model. Focus purely on process efficiency and throughput gains. Avoid vague estimates when proving the financial impact.

Calculating True Cycle Time Savings

You must model the exact financial impact. Start by calculating current queue times between OP10 and OP20. Measure the labor cost of moving parts across the floor. Calculate the scrap rate caused by manual re-chucking. When you consolidate, these costs drop to zero. A single setup slashes WIP inventory. It immediately frees up trapped cash flow. Use these concrete savings to justify the initial purchase price.

Vendor Evaluation Criteria

Do not trust glossy brochures. Hold machine vendors accountable during the evaluation phase. Implement strict testing protocols.

  • Physical Run-Offs: Demand a physical test cut of your hardest part. Never accept just software simulations.

  • Tolerance Verification: Measure the concentricity after the sub-spindle transfer. Prove the machine holds true position.

  • Localized Service: Verify local spare parts availability. Downtime here is doubly expensive. You need service technicians within driving distance.

Next Steps for Procurement

Create a standardized RFQ (Request for Quote) document. Do not let vendors dictate the conversation. Include your actual part prints. Highlight critical surface finish tolerances. List your current cycle times and target cycle times. Force vendors to prove their efficiency claims in writing. This data-driven approach removes emotion from the purchasing decision.

Evaluation Metric

Standard Lathe (2 Setups)

Double Head Lathe (1 Setup)

Cycle Time (Part A)

4 minutes + 2 minutes queue

2.5 minutes total

Concentricity Error Risk

High (due to manual re-chucking)

Extremely Low (synced transfer)

Labor Required

1 Operator per machine

1 Operator per cell

WIP Inventory Status

High accumulation between steps

Zero accumulation (Done-in-One)

Conclusion

Transitioning to a CNC double head lathe represents a major leap in production maturity. It removes the inefficiencies of secondary handling. It guarantees better part-to-part consistency. It significantly reduces your overall WIP inventory. However, this technology demands respect. It requires advanced programming skills and strict maintenance routines.

Your final purchasing decision must rely on hard analysis. Evaluate your high-volume part families carefully. Assess your team's readiness to adopt complex multi-axis CAM software. Do not buy this machine for low-volume prototype work. Implement it where process consolidation yields massive daily time savings. By following this objective framework, you will secure the right machine, reduce operational bottlenecks, and dominate your production schedules.

FAQ

Q: What is the difference between a dual-spindle and a CNC double head lathe?

A: A dual-spindle lathe typically features a main and sub-spindle. They face each other for sequential part transfer and cutoff. A double head lathe usually refers to a machine with a fixed center. It utilizes two opposing heads to machine both ends of a stationary shaft simultaneously.

Q: How much cycle time does two-end machining typically save?

A: Two-end machining typically saves 20% to 40% in overall cycle time. This range depends heavily on the operation balance. If front and back work are perfectly balanced, savings are maximized. You also eliminate queue times and manual re-chucking delays completely.

Q: Do I need specialized CAM software for double head turning?

A: Yes. Multi-channel and multi-tasking CAM environments are highly recommended. Standard software cannot efficiently manage simultaneous tool paths. Advanced CAM provides safe toolpath verification. It is essential for collision avoidance and generating complex wait-code logic between spindles.
