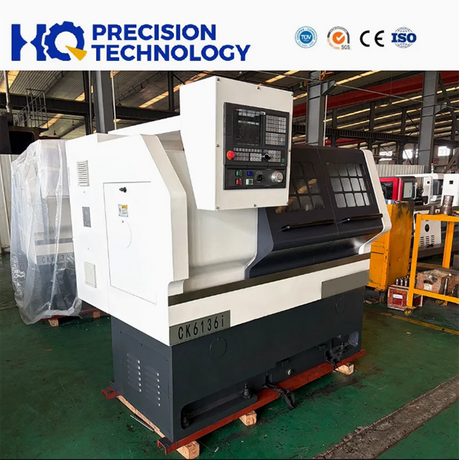

CK6136i horizontal CNC lathe Quality Inspection Points for Incoming Shipments

The transition between machine delivery and production readiness is a critical vulnerability for manufacturing facilities. A newly arrived piece of equipment represents massive potential. However, assuming it is completely flawless upon arrival can be a severely costly mistake. Accepting a non-compliant or transit-damaged machine directly leads to delayed production schedules and heavily compromised part tolerances. Furthermore, navigating complex vendor disputes becomes significantly more difficult if you discover mechanical issues weeks after signing the initial delivery receipt. Proactive verification is always the best defense. This guide provides a systematic, evidence-based framework for conducting a rigorous CK6136i CNC lathe quality inspection. You will learn clear, actionable steps to guarantee your new equipment perfectly meets all strict procurement specifications and daily production requirements. By following this protocol, you secure your operational efficiency from day one.

Key Takeaways

• A proper incoming inspection protects your capital investment and establishes baseline performance metrics for future maintenance.

• Visual and documentation checks must occur before the rigger leaves the facility to establish transit liability.

• Geometric accuracy and repeatability testing must only be conducted after proper leveling of the flat-bed lathe.

• Final acceptance requires verifiable data, including successful dry runs, safety compliance checks, and geometric alignments.

Phase 1: Visual Assessment and Documentation Verification (Arrival & Unloading)

Mitigating transit-related risks begins the moment the truck arrives. The primary business problem here involves ensuring the delivered configuration precisely matches your purchase order. You must establish a clear chain of custody and identify any handling liabilities immediately.

Documentation Match

Never offload equipment before checking the paperwork. Cross-reference the bill of lading, the packing slip, and the physical machine data plate against your original purchase order. Scrutinize specific details. Verify the spindle bore size perfectly matches your requirements. Confirm the chuck type aligns with your tooling strategy. Check the turret configuration to ensure it matches the quoted tool station count. A simple mix-up at the factory can severely derail your production timeline.

Transit Damage Inspection

Transporting heavy machinery introduces vibration, sudden shocks, and environmental exposure. Perform a systematic exterior check:

• Examine the exterior crating carefully for harsh impact marks, forklift blade penetrations, or crushed corners.

• Check all attached tip indicators (such as TiltWatch sensors) and shock monitors. A tripped sensor mandates immediate photographic documentation.

• Look for signs of water damage, especially if the machine traveled via ocean freight. Stained wood or pooled moisture indicates a compromised environmental seal.

• Inspect the machine base, sheet metal enclosures, and exposed cables for physical deformation or deep abrasions.

Anti-Corrosion and Component Verification

Manufacturers coat exposed metal surfaces with heavy rust inhibitors prior to shipping. Confirm the presence and condition of these factory-applied compounds on the guideways and the spindle nose. Dry or oxidized spots indicate poor preparation or weather seal failure. Next, verify all loose accessories remain secure. Ensure you have the correct tool blocks, manual chuck keys, foundation leveling pads, and coolant pumps. Missing accessories directly hinder the upcoming commissioning phases.

Phase 2: Structural and Mechanical Integrity Evaluation

Validating the physical build quality of the CK6136i CNC lathe before applying electrical power is crucial. You must guarantee the structural foundation remains perfectly sound after its long journey.

Flat-Bed Lathe Casting Inspection

The rigid cast iron foundation defines the cutting stability of your equipment. Thoroughly clean the machine base and check the main casting for obvious surface defects. Look closely for material porosity, pitting, or micro-cracks near the mounting points. High-quality castings undergo stress relief processes, so any visible stress fractures usually indicate a severe drop during logistics routing.

Guideway and Ball Screw Assessment

Precision motion relies entirely on the mechanical interface between axes. Inspect the bed ways closely. Look for smooth, uniform scraping (flaking) patterns. These microscopic oil pockets ensure proper hydrostatic lubrication during operation. Next, examine the exposed ball screws. They should exhibit a thin coat of clean lubrication. Visible grit, metallic debris, or completely dry threads signal poor assembly or compromised transport covers.

Turret and Tailstock Mechanics

Manually verify the rigidity of the tool post and turret seating. Grab the turret face and attempt to rock it; you should feel zero mechanical play. Check the tailstock mechanics next. Release the clamping mechanism and slide the tailstock along the ways. Observe the tailstock quill for smooth manual travel. Test the secure locking action to confirm it holds position firmly.

Implementation Reality: Mechanical binding at this stage often indicates a chassis twist during transport. Do not force movement. If hand wheels feel excessively tight or the tailstock jams mid-travel, stop immediately. Forcing a twisted machine damages the precision ball screws and scoring the way surfaces.

Phase 3: Electrical, Control System, and Safety Compliance

Once you verify structural integrity, transition into electrical and control validation. We evaluate these dimensions to ensure the machine remains electrically stable, operator-safe, and software-ready for cutting programs.

Power and Grounding

Incorrect voltage ruins sensitive servo drives instantly. Verify your incoming facility voltage requirements perfectly match the machine specifications. Measure leg-to-leg voltage to ensure phase balance. Open the main electrical cabinet and inspect the interior. You want to see highly organized wiring trays, tightly secured terminal blocks, and clear schematic labeling. Verify proper grounding protocols to ensure compliance with CE/UL directives or specific local safety standards.

CNC Controller Initialization

Power up the machine carefully. Monitor the boot sequence of the CNC controller closely. Whether it utilizes a FANUC, Siemens, or GSK architecture, the screen should load smoothly without hanging. Check the message screen for immediate alarm codes. Look specifically for memory battery warnings. A dead backup battery can wipe the machine parameters, requiring a lengthy restoration process before you can even jog the axes.

Safety System Verification

Operator protection remains non-negotiable. Validate these critical systems methodically:

1. Test all Emergency Stop (E-Stop) buttons across the control panel and chip conveyor. Pushing them must trigger an immediate hardware interruption and drop servo power.

2. Verify the door interlock switches. Command a low-RPM spindle rotation, then attempt to open the enclosure door. The system must immediately halt the spindle and throw an interlock alarm.

3. Check axis limit switches for over-travel protection. Slowly manually jog each axis to its extreme positive and negative limits until the software or hardware over-travel alarm trips securely.

Phase 4: Geometric Accuracy and Baseline Metrology Testing

This phase represents the core evaluation of the entire inspection protocol. Geometric accuracy directly dictates your future part yield and surface finish quality.

Prerequisite: Precision Leveling

You cannot measure geometric accuracy on an unsupported chassis. The machine must first be placed securely on its foundation pads. You must precision-level this flat-bed lathe using a high-grade machinist's level (0.02mm/m accuracy). Adjust the foundation bolts iteratively until the bubble reads zero across both X and Z planes. Never apply dial indicators before finalizing this leveling step, as a twisted bed will generate false metrology data.

Spindle Runout Test

The spindle is the heart of the turning center. Mount a precision dial test indicator onto a magnetic base. Place the stylus directly on the spindle nose and the internal taper. Rotate the spindle by hand to measure radial and axial runout. Record the total indicator reading (TIR). Compare these field results directly against the factory inspection certificate tolerances shipped with the manual.

Axis Parallelism and Perpendicularity

Tool path accuracy relies on perfect axis alignment. Mount your indicator to the turret. Sweep the Z-axis travel along the primary guideways to verify strict parallelism with the spindle centerline. Next, measure the X-axis squareness relative to the Z-axis travel. Any deviation here results in tapered parts during long turning cycles.

Repeatability Check

Command the machine via MDI to move the turret away from a fixed dial indicator and then return to a zero point at a rapid feed rate. Repeat this sequence multiple times. Measure the slight variance upon each return. This confirms the effectiveness of the electronic backlash compensation and validates overall ball screw health.

Standard Metrology Tolerance Table

Phase 5: Dynamic Testing, Shortlisting Logic, and Final Acceptance

Static tests confirm build quality, but dynamic tests prove operational readiness. Moving from stationary metrology to active motion testing allows you to finalize vendor accountability.

Spindle Run-In and Thermal Stability

Perform a spindle run-in procedure to distribute grease evenly inside the bearings. Run the spindle through its full RPM range incrementally, holding each speed tier for several minutes. Monitor the headstock for excessive vibration or high-pitched bearing noise. Place a hand on the casting to check for abnormal heat generation. Excessive heat indicates over-tightened bearings or a lack of proper lubrication.

Tool Turret Indexing

Command multi-station tool changes in automatic mode. Watch the turret indexing speed and listen to the mechanical clamping mechanism. You want to verify rapid indexing without noticeable servo lag or hesitation. The locking rigidity must feel sharp and decisive. A sluggish turret points to hydraulic pressure issues or misaligned internal couplings.

Coolant and Lubrication Systems

Manually trigger the automatic way-lubrication system. Confirm oil distribution reaches all designated metering points along the axes. Dry ways will destroy a machine in weeks. Next, fill the sump and activate the coolant pump. Verify adequate coolant pump pressure and check the delivery nozzles for smooth flow. Inspect all hose fittings for leaks while the system runs under full pressure.

Acceptance Decision Matrix

Conclusion

Summarizing the necessity of a methodical incoming inspection comes down to risk mitigation. A rigorous, step-by-step evaluation guarantees the long-term reliability and precision of your turning center. By identifying mechanical deviations, electrical faults, or transit damage before production begins, you protect your operation from unexpected downtime.

Moving forward, implement these action steps immediately. First, keep the completed inspection checklist securely filed. Second, store all initial metrology data to serve as the foundational record for the machine's preventive maintenance program. Third, train your operators on the specific baseline nuances discovered during testing. A documented, healthy start ensures your equipment will reliably produce high-tolerance parts for years to come.

FAQ

Q: What precision measuring tools are required for a CK6136i incoming inspection?

A: You need a standardized set of metrology equipment. This includes precision dial test indicators capable of measuring down to 0.001mm. You also require precision machinist levels (typically 0.02mm/m accuracy) to align the machine base. Finally, secure sturdy magnetic bases to firmly mount your indicators during runout and parallelism sweeps.

Q: How long does a thorough incoming quality inspection take for this model?

A: A comprehensive inspection process generally demands four to eight hours. The exact timeline depends heavily on your required metrology depth. Visual and mechanical checks take about two hours. Leveling and geometric metrology consume the largest block of time. Dynamic testing and final safety sign-offs usually require another two hours to complete properly.

Q: What should I do if the machine fails the spindle runout test upon arrival?

A: Immediately document the precise dial indicator readings using photographs and video. Halt the sign-off process and do not authorize final payment. Contact the manufacturer or local distributor right away to report the non-conformance. Leave the machine leveled in its current position so vendor technicians can independently verify the faulty runout parameters.
