How To Choose A CNC Heavy Duty Horizontal Lathe With Double Turret Options

Upgrading to a double turret configuration fundamentally transforms large-scale manufacturing operations. It moves facilities past the strict limitations of standard single-tool cutting. Today's industrial shops demand higher throughput but cannot sacrifice precision. The core challenge in heavy machining lies in balancing aggressive material removal rates against tight dimensional tolerances. Operators often handle massive, incredibly expensive raw materials. Scrapping these large forged shafts or power generation rotors is simply not an option.

This article serves as a technical and financial evaluation guide. Plant managers and manufacturing engineers can use it to determine if their operations truly require this sophisticated upgrade. We will explore how to properly specify a dual turret machine for your facility. You will learn how to evaluate structural rigidity, avoid tool collisions, and manage programming complexities. Following this framework ensures your next capital equipment investment meets your most demanding production realities.

Key Takeaways

• Double turret configurations effectively halve cycle times on long shafts by enabling simultaneous roughing or balanced pinch turning, provided the control system can handle the complex synchronization.

• The foundation of heavy workpiece machining relies entirely on structural rigidity; evaluate bed width, guideway design, and spindle torque before looking at turret specs.

• Proper center rest configuration is non-negotiable for long parts to prevent deflection, requiring careful interference planning against the dual turret travel paths.

• Adopting dual turret technology introduces steep programming learning curves and higher maintenance overhead, requiring a realistic assessment of in-house CAM capabilities.

Assessing Your Production Profile: When is a Double Turret Necessary?

You must clearly define your baseline ROI requirement before purchasing complex machinery. A dual turret setup requires significant initial capital. These advanced machines justify their cost only when cycle time reductions outpace the initial expenditure. You will typically see this return on high-value parts. Oil and gas drill collars, aerospace turbine shafts, and power generation rotors represent ideal candidates. If your shop processes these components daily, the upgrade makes financial sense.

Process consolidation offers another major justification. Combining multiple operations dramatically reduces part handling. Operators spend less time moving massive parts between different machines. A well-configured machine allows simultaneous upper and lower turret turning. You can also integrate live tooling for milling and drilling operations directly on the lathe. Completing a complex part in a single setup reduces human error and shortens overall lead times.

Balanced cutting, often called pinch turning, provides a massive physics benefit. You use two tools simultaneously on opposite sides of a massive workpiece. This action neutralizes radial deflection. When cutting forces push against one side of a shaft, the opposing tool pushes back equally. Maintaining precise cylindricity on parts featuring high length-to-diameter (L/D) ratios becomes much easier. The tools effectively support the workpiece during aggressive roughing passes.

• Identify bottlenecks in your current single-turret roughing cycles.

• Calculate potential time savings using simultaneous dual-tool cutting paths.

• Evaluate your current scrap rates caused by radial deflection on long shafts.

• Assess the feasibility of moving secondary milling operations to the lathe.

Core Structural Evaluation for Heavy Duty Turning

Structural rigidity matters more than any other specification. The bed architecture directly determines the success of your cuts. You must demand a wide, heavily ribbed, one-piece cast iron bed. Slant beds offer excellent chip evacuation, while flat beds traditionally support heavier loads. Cast iron naturally dampens vibrations. You need this vibration absorption during interrupted cuts on hardened steel or exotic aerospace alloys. A weak machine base will chatter, destroying both the workpiece finish and expensive tool inserts.

Many buyers focus on horsepower, but spindle and gearbox torque matter far more. You must look past peak horsepower ratings. Focus closely on evaluating torque curves at low RPMs. Heavy cuts require tremendous twisting force to shear metal at slow speeds. Always look for multi-speed gearboxes. A strong mechanical gearbox sustains heavy chip loads without stalling the spindle. When specifying a CNC heavy duty horizontal lathe, ensure the drive system matches your most aggressive material removal requirements.

Guideway design represents another critical evaluation point. Machine builders generally offer either box ways or linear guides. Linear guides move quickly but lack the necessary damping for massive interrupted cuts. Box ways provide maximum rigidity. They utilize broad sliding surfaces to distribute extreme cutting forces into the machine casting. We explicitly recommend heavily proportioned box ways for this specific class of equipment. They ensure long-term accuracy under brutal machining conditions.

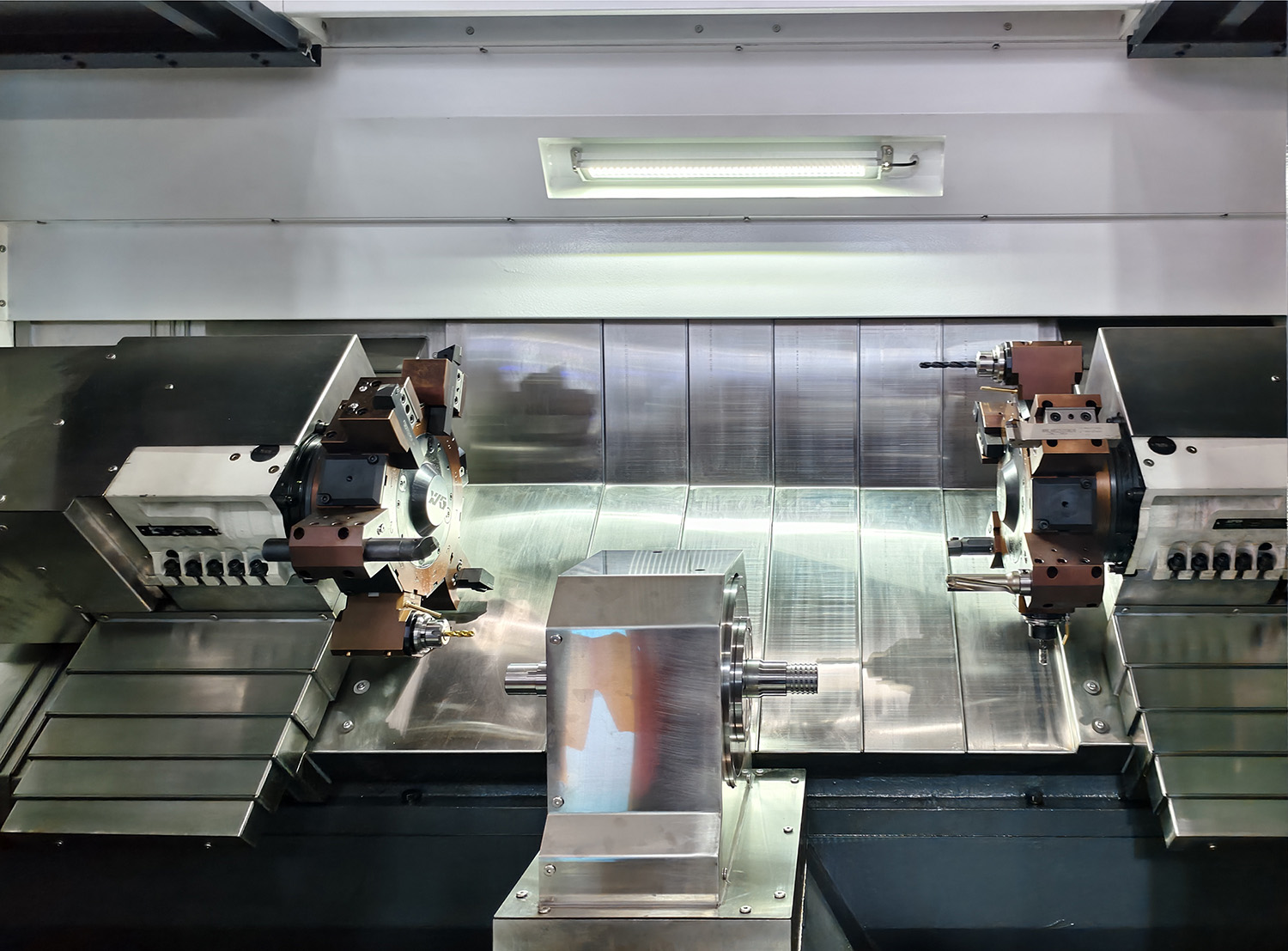

Navigating Turret Kinematics and Collision Avoidance

Managing two independent turrets requires an advanced multi-channel CNC controller. Basic controllers cannot process the complex mathematics required for simultaneous tool paths. You need upper-tier systems from reliable builders. Fanuc, Siemens, and Okuma OSP controllers represent the industry standard for multi-path synchronization. These controllers process lines of code rapidly, ensuring both turrets move exactly as programmed without lag. A substandard controller will throttle your processing speed and limit efficiency.

Tool crashes represent a severe physical reality. Operating a double turret lathe introduces intersecting interference zones. Two heavy turrets moving at rapid traverse rates can destroy a machine in seconds. Your evaluation must include a thorough review of the machine’s collision avoidance software. Modern high-end lathes feature real-time 3D simulation running directly on the control screen. The machine looks ahead in the code. It halts all axes before a physical collision occurs.

You must carefully size your turrets based on tool shank dimensions. Standard VDI or heavy-duty BMT interfaces offer different advantages. BMT turrets bolt the tool holder directly to the turret face. This provides superior rigidity for aggressive milling operations. However, you face a trade-off between the number of available tool stations and overall turret rigidity. A massive 8-station turret holds fewer tools but handles deeper cuts better than a crowded 12-station setup. Consider these limitations when choosing your horizontal CNC lathe.

Integrating the Center Rest Configuration

The success of heavy workpiece machining relies heavily on proper workholding. Steady rests are absolutely essential workholding imperatives. Long, heavy spans of metal suffer from gravity droop. This sagging ruins dimensional accuracy before the cutting tool even touches the material. Steady rests counter this gravity droop. They also push back against the extreme cutting forces generated during roughing passes. You simply cannot machine long shafts accurately without them.

Operators must choose between programmable and manual steady rests. Programmable, self-centering steady rests significantly boost operational efficiency. The carriage can tow these units into position automatically based on the part program. The hydraulic arms adjust to the required diameter without manual intervention. Conversely, manually positioned units require the operator to stop the machine, unbolt the rest, slide it down the bed, and dial in the rollers by hand. This wastes valuable spindle up-time.

Turret and steady rest interference presents a crucial evaluation point. Integrating the right center rest configuration prevents dangerous physical conflicts. The upper and lower turrets must pass the steady rest during long turning cycles. Instruct your buying team to request detailed interference drawings from the machine manufacturer. You must ensure neither turret's travel is severely restricted. If the turrets cannot safely pass over or around the steady rest, your programming team will face impossible machining scenarios.

1. Identify the maximum diameter of the workpiece needing support.

2. Determine the required clamping range for the steady rest rollers.

3. Request 3D CAD models of the machine interior from the builder.

4. Simulate turret pass-overs to identify potential collision points.

Implementation Risks: Programming Complexity and Maintenance

Adopting dual-path machinery introduces a significant CAM bottleneck. We must provide a transparent, skeptical view of this adoption process. Dual-path programming is significantly more complex than standard 2-axis turning. Programmers must utilize synchronization codes, commonly known as wait codes. One turret must wait for the other to reach a specific position before proceeding. You must evaluate if your current CAM software and programming staff can handle this steep learning curve safely.

Executing advanced heavy duty turning operations safely requires acknowledging maintenance realities. Doubling the moving parts inherently increases mechanical failure points. You now have two turrets, two sets of ballscrews, and two servo drive systems to maintain. We strongly recommend evaluating the machine's maintenance accessibility. Technicians must easily reach the lower ballscrews. The machine must also feature robust coolant management to clear massive chip volumes generated from dual cutting zones.

Vendor support and training dictate the ultimate success of the installation. Shortlisting vendors should heavily weight the OEM’s post-sale application engineering support. A highly capable machine becomes entirely useless if your team cannot program it safely. Ensure the vendor provides extensive on-site training. They should guide your programmers through the first several complex parts, teaching them how to optimize wait codes and tool clearances.

Conclusion

Your final purchasing decision requires a strict framework. First, you must match the structural rigidity of the machine to your maximum workpiece weight. Heavy castings and box ways are non-negotiable. Second, ensure the chosen control system actively mitigates collision risks through advanced 3D simulation. Finally, verify your internal programming competency. Your team must confidently handle synchronization codes and dual-path CAM software to unlock the machine's true potential.

Your next steps involve rigorous vendor verification. We advise buyers to gather their most complex "worst-case scenario" part drawings. Submit these directly to your shortlisted machine vendors. Demand accurate time studies and full 3D interference simulations. Do this long before requesting formal price quotes. This proactive approach proves the machine can actually produce your parts efficiently, eliminating expensive surprises after installation.

FAQ

Q: How does pinch turning on a double turret lathe improve accuracy?

A: Pinch turning applies equal, simultaneous cutting force from opposing sides of the workpiece. This balanced pressure cancels out radial deflection. The material does not push away from the cutting insert. Consequently, it maintains tighter dimensional accuracy and superior cylindricity on long, unsupported heavy workpieces.

Q: What is the maximum weight a heavy duty CNC horizontal lathe can handle?

A: Realistic ranges span from 5 tons to over 50 tons between centers. These maximum weight capacities strictly dictate your necessary machine configurations. You must specify appropriate chuck sizes, heavy-duty tailstock quill thrust limits, and robust steady rest capacities to support such immense loads safely.

Q: Can live tooling be equipped on both turrets?

A: Yes, it is possible, but physical space and budget constraints often restrict it. Standard configurations usually feature live tooling on the upper turret and standard static turning tools on the lower turret. However, high-end custom machine builds can easily accommodate driven tools on both turrets.

Q: How do we prevent tool collisions when programming a double turret lathe?

A: You must rely entirely on advanced CAM simulation software before machining begins. Programmers use sync codes (wait marks) to orchestrate turret movements. Furthermore, modern machines embed real-time collision avoidance monitoring within the controller, halting axes automatically during operation if interference is imminent.
