Manufacturing wind turbine main shafts presents a harsh, high-stakes reality on the factory floor. These massive components feature extreme part weights and rely on dense forged alloy materials. You have absolutely zero margin for error in this process. Scrapped parts easily cost tens of thousands of dollars in lost material and machining time. The heavy duty CNC lathe stands as the foundational investment for this demanding environment. It acts as the primary bottleneck for both your factory throughput and final part compliance. If this machine lacks rigidity, your entire production schedule collapses.
Our goal is to provide a strictly technical evaluation framework. We will help you select a machine balancing aggressive material removal with strict micron-level tolerances. You will discover exactly how to evaluate machine structures, powertrain capacities, and critical support systems. By understanding these mechanical nuances, you safeguard your manufacturing process against catastrophic failures and ensure reliable part delivery.
Wind turbine shaft machining requires specialized structural rigidity; standard large-format lathes often fail under continuous high-torque loads.
Evaluation must prioritize one-piece cast iron beds, wide box guideways, and programmable tailstock thrust over theoretical max spindle speeds.
Thermal deformation and tool wear management are critical differentiators between budget machines and reliable production assets.
Total Cost of Ownership (TCO) calculations must include foundation engineering, rigging, and customized steady-rest integrations, not just the base machine price.
When assessing the exact technical envelope for a wind turbine shaft, you face massive physical dimensions. These components typically span 2 to 5 meters in length. They frequently weigh up to 20 tons or more. Managing this sheer mass while maintaining microscopic precision defines your primary business problem. You must rotate a structure the size of a vehicle while shaving off metal at exact micron tolerances.
These components rely on high-strength forged steels, such as 42CrMo4. This material presents severe machinability challenges. You need exceptionally high torque at very low RPMs to shear this dense metal effectively. High-strength steel resists cutting forces intensely. It generates extreme heat and vibration during roughing passes. You cannot treat this material like standard carbon steel; it requires a fundamentally different approach to cutting parameters.
Critical success criteria dictate your machine selection. Bearing journal concentricity represents the most crucial metric. Runout tolerances and surface finish requirements leave no room for compromise. If a journal lacks perfect concentricity, the turbine bearings will fail prematurely in the field. Such failures cause catastrophic downtime for wind farm operators. You must ensure the machine holds tight geometric tolerances across the entire span of the workpiece.
We must establish the baseline difference between a standard large-swing lathe and a true heavy-duty solution. Many buyers confuse physical swing capacity with actual cutting capability. A standard lathe might physically accommodate a 3-meter part. However, it will stall or chatter violently under heavy cutting loads. True heavy-duty solutions feature massive geared headstocks. They utilize extremely wide guideway spans. They handle immense cutting forces without deflecting. When evaluating large shaft turning capabilities, prioritize physical mass and mechanical torque over sheer dimensional capacity.
A one-piece cast iron bed serves as the non-negotiable foundation for your machine. Builders typically utilize high-grade Meehanite cast iron. The graphite flakes within Meehanite absorb and dissipate severe vibrations naturally. Slanted or flat bed architectures must damp these vibrations during aggressive roughing cuts. Segmented or bolted beds inevitably shift under heavy loads. They compromise part geometry permanently.
Guideway design separates capable machines from inadequate ones. Linear guideways fail in heavy interrupted cuts. They lack the necessary surface area to distribute massive cutting forces. The rolling elements quickly degrade under sustained shock loads. Instead, you must specify hardened and ground box guideways. Friction box guideways provide the supreme damping required for stable machining. They offer the massive surface contact area needed to absorb tool pressure.
The gross weight of the machine indicates its true capability in large workpiece machining. Lightweight frames twist when subjected to high-torque roughing. Always check the physical width of the bed casting. Do not look solely at the advertised swing capacity. A wider stance prevents the machine geometry from twisting under torsional load. A narrow bed simply cannot support a heavy component rotating off-center.
Verify the casting certification to ensure authentic vibration-damping properties.
Measure the physical distance across the outer guideways.
Inspect the internal ribbing structure of the bed casting for robust cross-bracing.
Demand a single-piece casting pour rather than bolted extensions.
Guideway Type | Load Capacity | Vibration Damping | Application Suitability |
|---|---|---|---|
Linear Roller / Ball | Moderate | Poor | High-speed, light finishing operations |
Standard Box Way | High | Good | General heavy turning and standard shafts |
Wide Hardened Box Way | Extreme | Excellent | Massive forged shaft roughing and heavy interrupted cuts |
Direct-drive spindles lack the low-end mechanical advantage needed for forged alloys. You must focus entirely on high-torque gearbox configurations. Multi-step gearboxes multiply torque efficiently at low speeds. Emphasize continuous torque ratings over peak horsepower specifications. Peak horsepower numbers look impressive on brochures. However, you need sustained, continuous twisting force for multi-hour roughing cycles. A rugged gearbox guarantees the spindle will not stall during aggressive feed rates.
You cannot ignore tailstock specifications. A heavy-duty, programmable tailstock is absolutely mandatory. It must feature a built-in rotating quill. As the workpiece heats up during machining, it expands axially. A programmable tailstock maintains constant thrust, absorbing this thermal expansion. It supports immense weight without structural deflection. Standard manual tailstocks fail to compensate for part growth, causing severe bearing damage or bending the part entirely.
Mid-shaft sagging ruins dimensional tolerances. You must integrate heavy-duty steady rests. Hydraulic or self-centering steady rests provide essential radial support. Programmable positioning prevents sagging during mid-shaft turning operations. They support the part dynamically as the cutting tool travels along the bed. Without them, the middle of the shaft bows away from the cutting tool, creating an unacceptable taper.

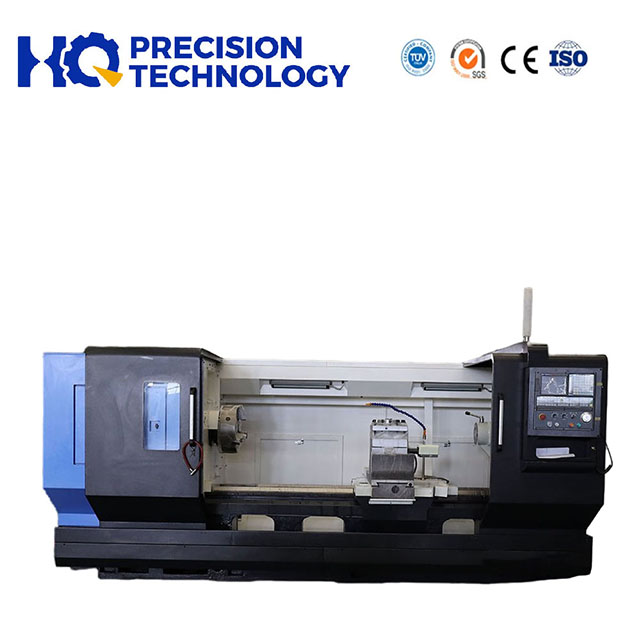

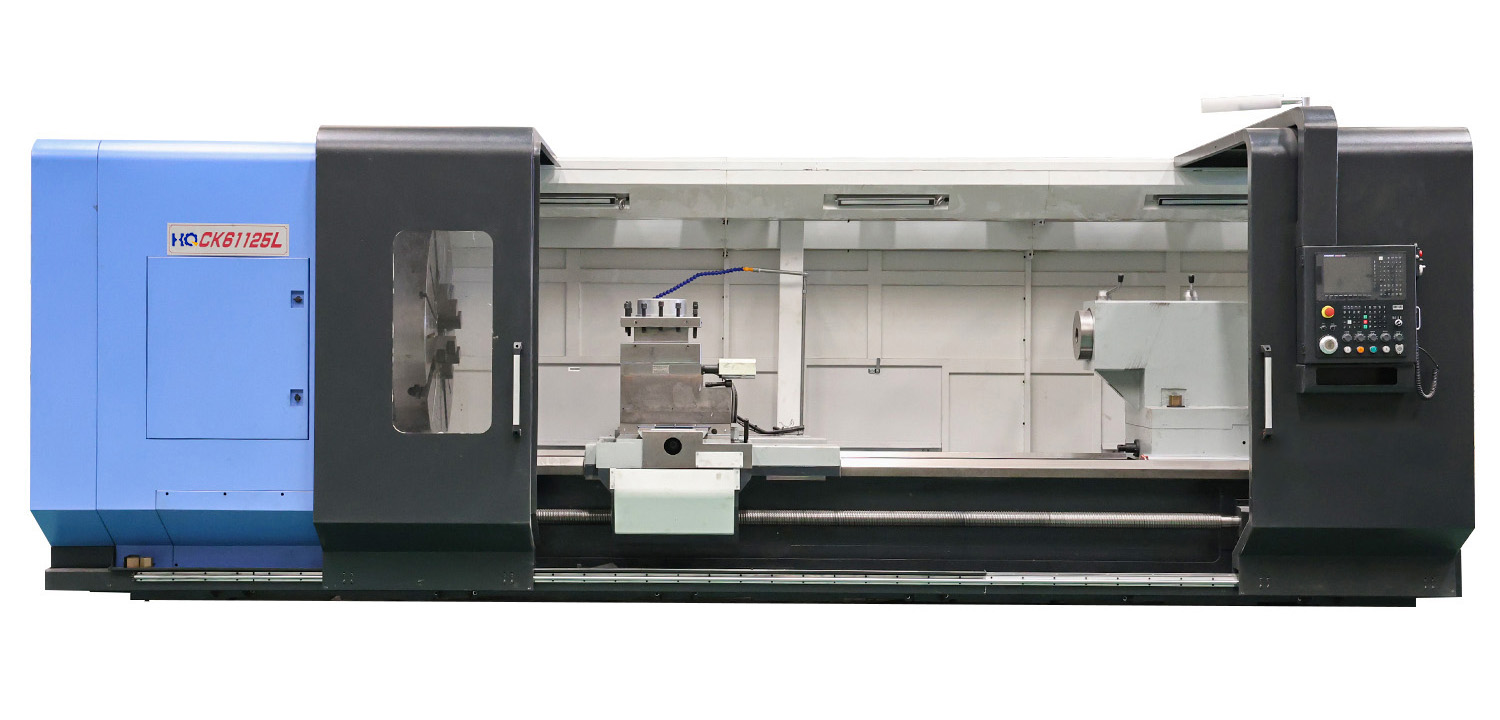

A properly configured heavy horizontal lathe acts as the mandatory configuration for this work. Vertical turning centers simply cannot accommodate these extended lengths safely. The horizontal layout allows gravity to assist in chip evacuation while providing multiple points of radial support along the horizontal axis.
Thermal growth acts as the silent killer of tight tolerances. Multi-hour cycle times generate immense heat inside the machine frame. The castings and ball screws expand unpredictably. You must implement robust thermal displacement management. Required features include dedicated spindle cooling circuits and ball screw chilling systems. These systems pump temperature-controlled fluid through the hollow core of the ball screw. Ambient temperature compensation sensors also help the control system adjust offsets automatically as the shop environment changes.
Advanced control systems elevate raw iron into precise instruments. You need industrial controllers like Fanuc or Siemens. They must feature advanced macro-programming capabilities. Operators use these macros for custom tool wear compensation. Forged scale destroys cutting inserts quickly. Real-time spindle load monitoring prevents catastrophic tool breakage. The control halts the feed automatically if sudden load spikes occur, saving the workpiece from gouging.
Relying on motor-mounted encoders proves insufficient for micron-level precision. You must demand linear glass scales on the X and Z axes. This provides true closed-loop positioning accuracy on a CNC heavy lathe. The control reads the exact physical position of the cutting tool. It ignores any thermal stretching happening within the ball screw itself. You achieve exact dimensional compliance regardless of internal machine temperatures.
Relying solely on electronic pitch error compensation instead of physical chilling systems.
Ignoring ambient shop temperature fluctuations during overnight production runs.
Using generic tool wear offsets instead of dynamic, sensor-based load monitoring.
Assuming a heavy casting completely negates the need for linear glass scales.
Installing heavy machinery brings hidden physical risks and massive facility demands. You cannot simply place a 40-ton machine on a standard shop floor. You must pour specialized, reinforced concrete foundations. These foundations require deep excavation and geological surveys to ensure soil stability. Vibration isolation trenches prevent adjacent shop-floor chatter from reaching the machine bed. Furthermore, your overhead crane capacity must comfortably exceed the combined weight of the shaft and the largest chuck.
Removing tons of material creates massive chip volumes daily. You must address these tooling and chip management realities aggressively. Evaluate high-capacity hinged-belt chip conveyors designed specifically for stringy, forged steel chips. High-pressure coolant systems must blast chips away from the cutting zone forcefully. This extends insert life during aggressive roughing by preventing the tool from re-cutting hardened chips.
Vendor shortlisting requires a rigid, logical approach. Do not rely on slick marketing brochures or theoretical specifications. You must validate claims through empirical evidence.
Demand verifiable case studies specifically within the wind energy sector.
Require a documented test-cut (run-off) on a similarly sized forged billet before accepting delivery.
Assess their local spindle-rebuild capabilities and OEM service response times.
Verify the origin of the primary structural castings.
You need a partner capable of executing complex runoff criteria, not just a machinery broker. Ensure they maintain a robust inventory of spare parts locally to minimize eventual downtime.
Selecting heavy machinery for wind turbine components exercises risk mitigation and capability matching. You must never approach this as an exercise in bargain hunting. Your factory depends entirely on the structural rigidity and thermal stability of this primary asset. If you compromise on bed architecture or gearbox torque, you will struggle with scrapped parts and blown tolerances permanently.
Audit your specific part drawings immediately. Finalize your maximum weight and length envelopes before contacting builders. Compile all journal tolerance requirements into a strict technical matrix. Approach vendors armed with uncompromising run-off criteria. Demand proof of performance on actual forged billets, matching your exact material grades.
Take action today to secure your production line. Request a highly technical consultation with experienced application engineers. Map out your facility constraints and foundation limitations. A rigorous evaluation today prevents catastrophic production failures tomorrow, ensuring you deliver flawless components to the wind energy sector.
A: Roughing forged wind turbine shafts requires extremely high torque. You should focus on high-torque gearbox configurations. These applications typically require upwards of 10,000+ Nm of continuous torque, depending on the specific part diameter and your aggressive material removal rate.
A: Tapering occurs when the part deflects under cutting pressure. A capable machine prevents this using a combination of programmable tailstock thrust, heavy-duty hydraulic steady rests, and exceptionally rigid box guideways. These elements support the shaft dynamically, maintaining perfect centerline geometry.
A: No. Standard large-swing lathes lack the fundamental structural casting mass. They also lack the heavy-duty bearing capacities required for multi-ton forgings. Modifying a standard frame cannot compensate for an inherently weak bed architecture or insufficient guideway width.
A: You must pour deep, isolated reinforced concrete pads. Before pouring, conduct thorough geological surveys to ensure soil stability. You must also include vibration damping trenches around the perimeter to isolate the machine from ambient factory floor vibrations.
