The tool holding mechanism, consisting of a tool post and compound rest, allows for precise positioning of the cutting tool. The operator can adjust the position of the tool in multiple directions, both horizontally and vertically, to achieve the desired thread depth and shape. The feed mechanism, which controls the movement of the tool along the length of the workpiece, is also a crucial part of the lathe's design. It enables consistent and accurate threading by ensuring a uniform advancement of the cutting tool.

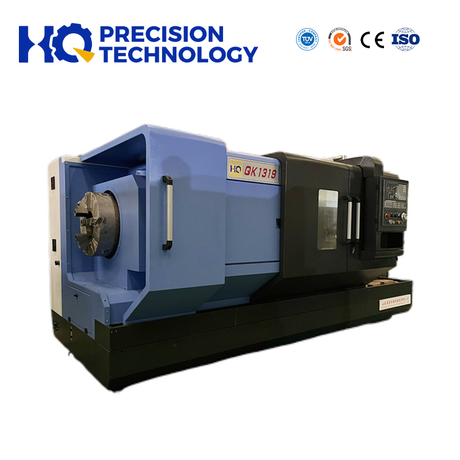

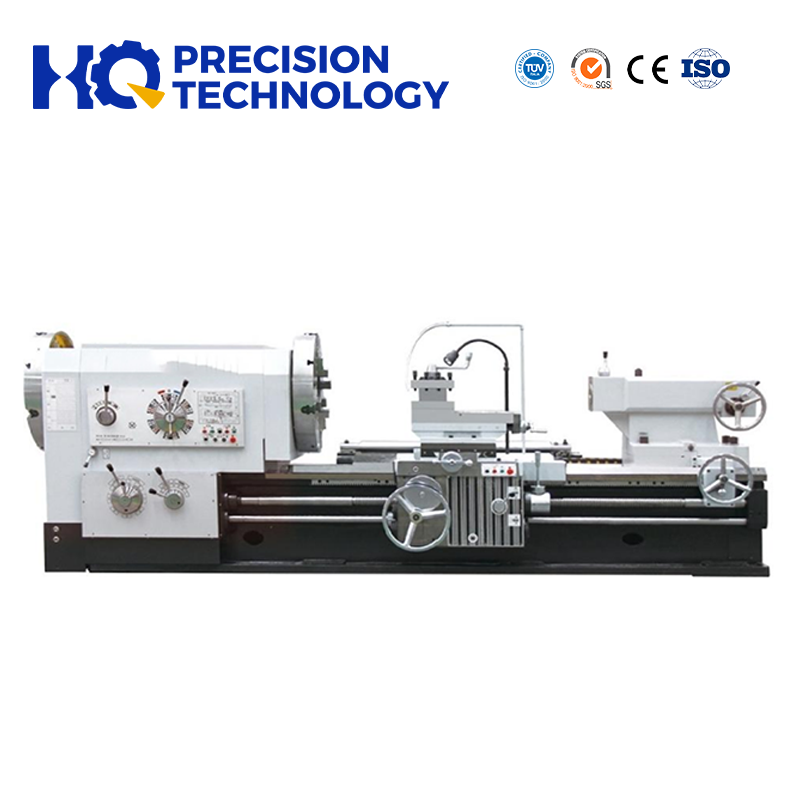

Q13 series pipe threading lathe is primarily designed for cutting internal and external pipe threads, while also serving as a conventional lathe for machining shafts, discs, and other workpieces. It can perform various turning operations including external cylindrical surfaces, internal bores, and face machining. The machine comes equipped with a taper attachment, enabling the processing of tapered workpieces. Additionally, it features robust construction for stable threading operations and offers versatile applications in plumbing, petroleum pipeline, and mechanical part manufacturing...

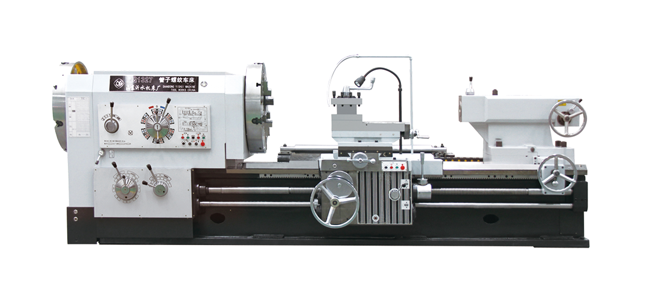

The tooth profile design of ordinary pipe threads lathe can achieve a good sealing effect. When connecting pipelines, it can effectively prevent the leakage of liquids or gases. This is because parameters such as the tooth profile angle and pitch of the pipe threads are carefully designed, enabling the internal and external threads to fit closely when they are matched, reducing the gaps.
The conventional pipe threads lathe have unified standard specifications. As long as the pipe threads conform to the same standard, they can be matched and used with each other regardless of the manufacturer. This makes the installation, maintenance, and replacement of components in the pipeline system more convenient and faster.
The connection method of pipe threading lathe machine is relatively simple and does not require special tools or complex operation procedures. Only common tools such as wrenches are needed to tighten and connect the pipe fittings with pipe threads together. This convenient installation method has enabled ordinary pipe threads to be widely used in various pipeline installation projects. Whether it is the installation of water supply and drainage pipelines in construction projects or the installation of various fluid conveying pipelines in industrial production, the advantage of its convenient installation can be reflected.
The good quality pipe threading machine can adapt to a variety of different working environments and media. Whether it is conveying various fluids such as water, oil, and gas, or under different temperature and pressure conditions, ordinary pipe threads lathe can maintain good working performance.
SPECIFICATION | UNIT | Q1313C | Q1319C | Q1322C | Q1325C | Q1327C | ||
Capacity | Swing over bed | mm | 630/800 | 630/800 | 630/800 | 800 | 800 | |
Swing over cross slide | mm | 340/520 | 340/520 | 340/520 | 480 | 480 | ||
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | ||
Pipe threading range | mm | 30-126 | 50-193 | 20-220 | 20-250 | 50-270 | ||
Spindle | Guideway width | mm | 550 | 550 | 550 | 600 | 600 | |
Max.load capacity | 3 | 3 | 3 | 4 | 4 | |||
Spindle bore | mm | 130 | 206 | 225 | 255 | 280 | ||
Spindle speed steps | FWD.18 steps REV.9 steps | VF.4 Steps | VF.4 Steps | |||||
Spindle speed range | rpm | 6-800 | 20-500 | 25-350 | ||||
Chuck | mm | Φ400 3-jaw manual | Φ520 4-jaw manual | Φ630 4-jaw manual | Φ680 4-jaw manual | |||
Turret | Turret tool/post | Manual 4 position | ||||||
Tool shank size | mm | 32×32 | 32×32 | 32×32 | 32×32 | 32×32 | ||
Feed | X axis travel | mm | 320/420 | 320/420 | 320/420 | 420 | 420 | |
Z axis travel | mm | 1350/2850 | 1350/2850 | 1350/2850 | 1250/2750 | 1250/2750 | ||
X axis feed grade range | Mm/r | 64/0.1-1.52 | 32/0.475-0.72 | 32/0.475-0.72 | 32/0.475-0.72 | 32/0.475-0.72 | ||
Z axis feed grade range | Mm/r | 64/1.6-24.32 | 32/0.095-1.44 | 32/0.095-1.44 | 32/0.095-1.44 | 32/0.095-1.44 | ||
X axis rapid traverse | Mm/min | 2300 | 2300 | 2300 | 2300 | 2300 | ||
Z axis rapid traverse | Mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | ||
Metric thread grade/range | mm | 50/1-240 | 22/1-15 | 23/1-15 | 23/1-15 | 23/1-15 | ||
Inch thread grade /range | T.PI | 26/14-1 | 26/14-1 | 26/14-1 | 26/14-1 | 26/14-1 | ||
Tail stock quill diameter | mm | φ100 | φ100 | φ100 | φ100 | φ100 | ||
Tailstock | Tail stock quill taper | MT6 | MT6 | MT6 | MT6 | MT6 | ||
Tail stock quill travel | mm | 250 | 250 | 250 | 250 | 250 | ||
Motor | Main spindle motor | kW | 11 | 11 | 11 | 15 | 15 | |
Rapid traverse motor | KW | 0.3 | 0.3 | 0.3 | 1.1 | 1.1 | ||
Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | ||
Dimension | Width x Height | mm | 1500×1500 | 1550x1550 | 1650x1550 | 1700×1600 | 1700×1600 | |
Length | mm | 3700/5200 | 3700/5200 | 3700/5200 | 4100/5600 | 4100/5600 | ||
Weight | Net weight | 4.0/5.2 | 4.3/5.5 | 4.5/5.7 | 8.0/9.0 | 8.0/9.0 | ||
Please note: Machine bed length can be customized according to real work demand | ||||||||
Focused on miniaturization and high-precision manufacturing, the conventional threading lathe is widely applied in the electronics industry. It fabricates precision threaded parts including electronic connectors, circuit board screws and motor small shafts, delivering accurate thread processing to guarantee tight and stable assembly of delicate electronic components. Additionally, it supports customized threaded component production for high-end audio and professional specialized electronic equipment, fully meeting the industry’s strict precision and quality standards.
Suited for harsh and high-demand working environments, the conventional threading lathe manufactures high-strength threaded components for oil and gas pipelines, valves and drilling equipment. It produces high-precision leak-proof threads that withstand high pressure, ensuring the tightness and operational integrity of pipeline connections. Meanwhile, it processes core drilling parts such as drill collars and tool joints with excellent dimensional accuracy and structural strength, enabling these components to resist extreme impact and vibration during long-term drilling operations.
The conventional threading lathe produces standard threaded fasteners and shaft parts for various textile machinery, including bolts, screws and assembly shafts. Precise thread processing ensures accurate equipment alignment and stable operation, effectively guaranteeing textile product quality. Besides, it can manufacture fully compliant replacement parts for in-service textile machines with consistent original specifications, realizing perfect fitting and restoring the stable performance of continuously operating production equipment.
Ideal for high-precision and intricate processing scenarios, the conventional threading lathe produces ultra-fine threaded components for watches and jewelry, such as watch movement screws, jewelry clasps and tool micro shafts. It features ultra-fine pitch thread machining and high long-term accuracy, adapting to the production of high-end delicate products. With user-friendly operation, it allows operators to precisely control processing procedures and realize customized design and production of jewelry and watch parts.
