Product Introduction

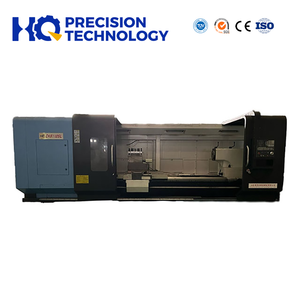

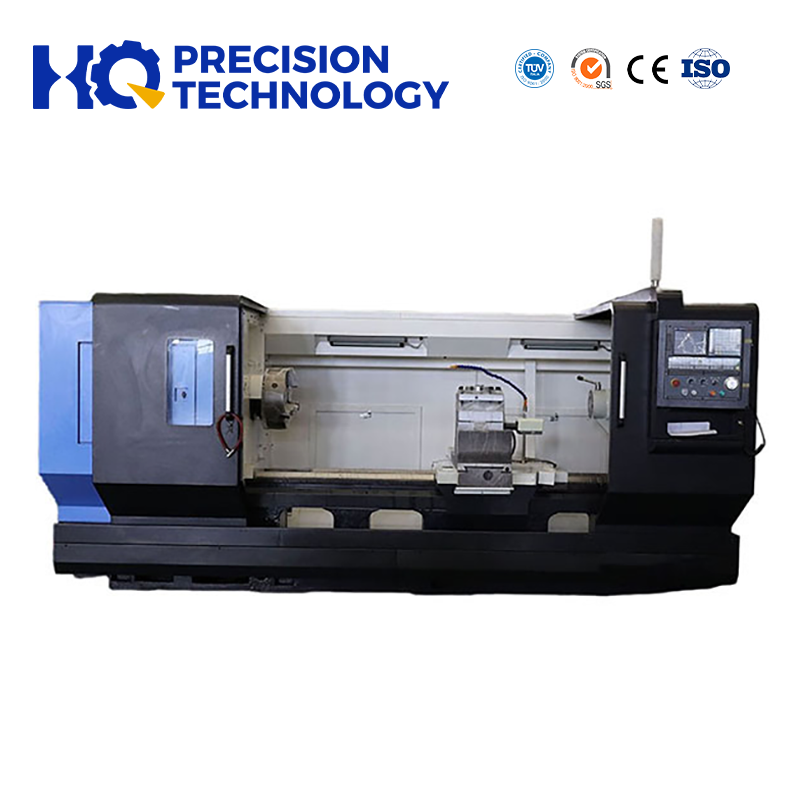

This CNC lathe is designed for semi-finishing and finishing turning of shaft and disc parts, as well as drilling and tapping. Equipped with an advanced CNC system, it can perform straight and tapered turning, cutting lines, arcs (cylindrical, rotary curved, spherical, and conical surfaces), and metric/imperial threads. It also supports axial drilling and threading, making it ideal for machining complex, high-precision disc, sleeve, and shaft components.
Product Advantage
This CNC lathe features a monolithic flat bed design, ensuring easy operation, adjustment, efficient chip removal, and convenient workpiece loading/unloading. The longitudinal and transverse guides utilize medium-frequency hardened rails, enhancing machine responsiveness and service life.
The spindle drive system is powered by a motor via belt and gear transmission, while the X and Z axes employ direct coupling, improving stability, reliability, and response speed.
Equipped with a reliable 4-station vertical electric turret (domestic premium brand), it offers high precision, smooth rotation, and quick tool changes, supported by appropriate accessories for broader process adaptability and reduced auxiliary time.
With a modern, ergonomic design, the machine ensures user-friendly operation. Its electrical components are stable and durable, and the CNC system features AC digital drive with semi-closed-loop control, ensuring high reliability and strong anti-interference capability. Advanced functions include:
- Pitch error compensation
- Constant surface speed cutting
- Fixed cycles
- Direct dimension programming (DNC communication)
The machine delivers fast response, excellent dynamic rigidity, and superior machining quality, making it ideal for high-precision turning operations.
Technical Parameters
Project | Unit | CK61140H/1 | CK61160H/1 | CK61180H/1 | CK611200H/ | |
Capacity | Maximum rotation diameter on the bed | mm | φ1500 | φ1700 | φ1900 | φ2100 |
Maximum workpiece rotation diameter on the horizontal slide | mm | φ1050 | φ1250 | φ1450 | φ1650 | |
Maximum workpiece length | mm | 3000-20000 | ||||
Bed rail span | mm | 1100 | ||||
Guide rail load-bearing range | T | 20 | ||||
Spindle | Spindle diameter | mm | φ130 | |||
Spindle bore taper | Metric140 | |||||
Spindle head type | 1:30Extended spindle head | |||||
Spindle speed level | 4-speed frequency conversion/optional 4-speed hydraulic | |||||
Spindle speed range | r/min | 2-37rpm, 23-70rpm 37-110rpm, 70-200rpm | ||||
Spindle front bearing | mm | 240 | ||||
Specifications of four-jaw single-action chuck | mm | φ1250 | φ1250 | φ1600 | φ1600 | |
Turret | Tool holder type | Four-station electric tool holder | ||||
Tool specifications | mm | 50×50 | ||||
Feed | X feed axis maximum travel | mm | 750 | 750 | 850 | 850 |
Z feed axis maximum travel | mm | 2850-19850 | ||||
X-axis fast moving speed | mm/min | 4000 | ||||
Z feed axis rapid moving speed | mm/min | 6000 | ||||
Tailstock | Tailstock sleeve diameter | mm | φ260 | |||
Tailstock sleeve front end taper hole | Metric80 | |||||
Tailstock sleeve moving distance | mm | 300 | ||||
Motor | Spindle motor | KW | 37KW | |||
Dimension | Width W × Height H | mm | 2250×2050 | 2250×2150 | 2300×2250 | 2300×2250 |
Length L | mm | 7700-24700 | ||||
Weight | Total weight of machine tool (3m specification) | kg | 19760 | 20400 | 20820 | 21490 |
For every additional meter, the weight will increase by 1050Kg | ||||||
Performance characteristics
One-piece bed adopts high strength iron to ensure rigidity and precision.
Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
Carriage and guide-way contact surface use Turcite B to maintain accuracy.
Standard Configuration
Siemens controller, NC turret, automatic lubrication, coolant pump.
Optional Configuration
Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock.

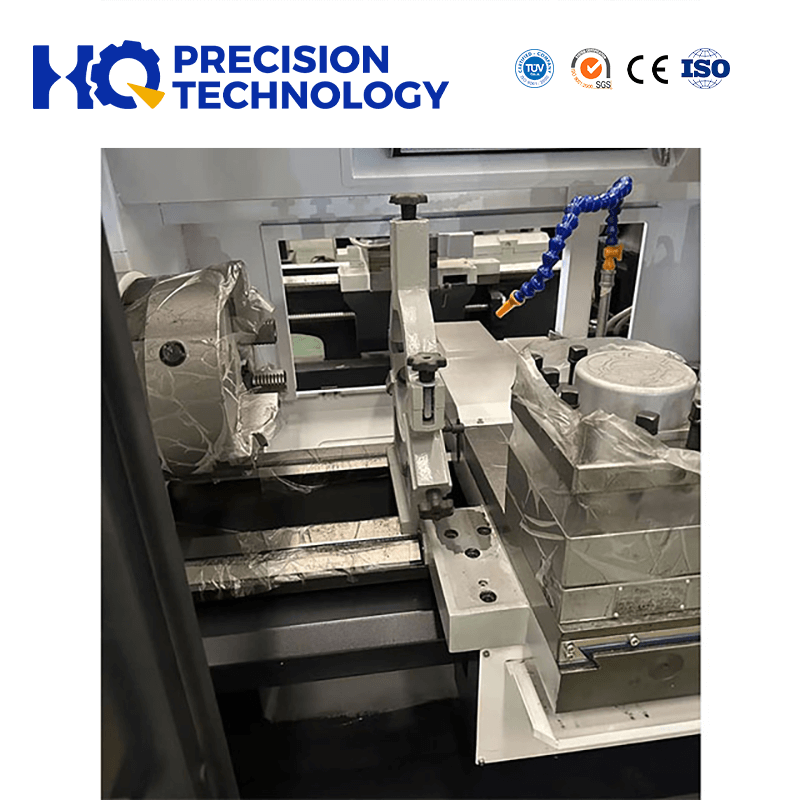

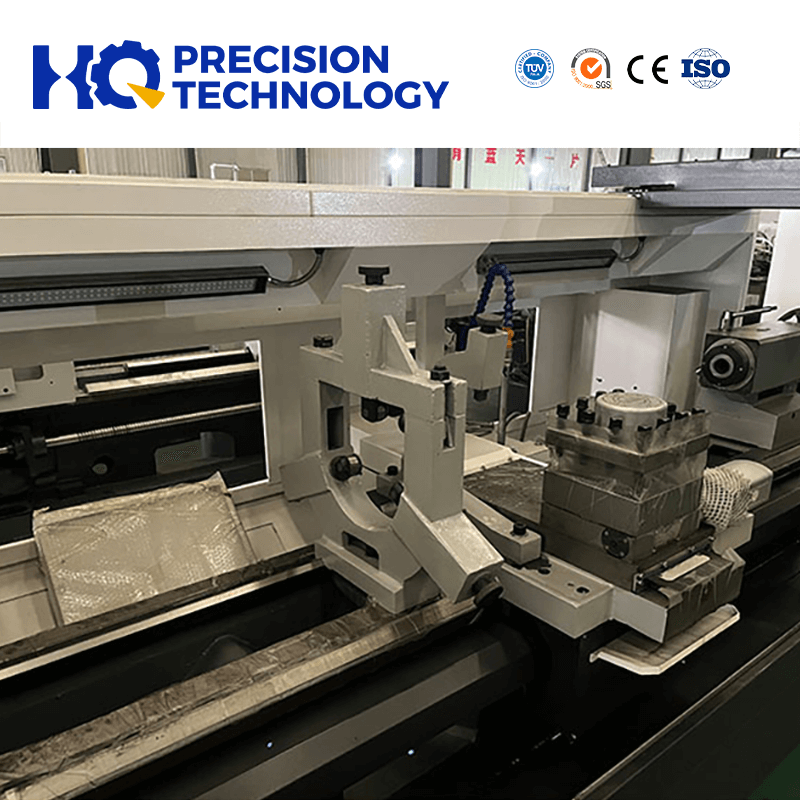

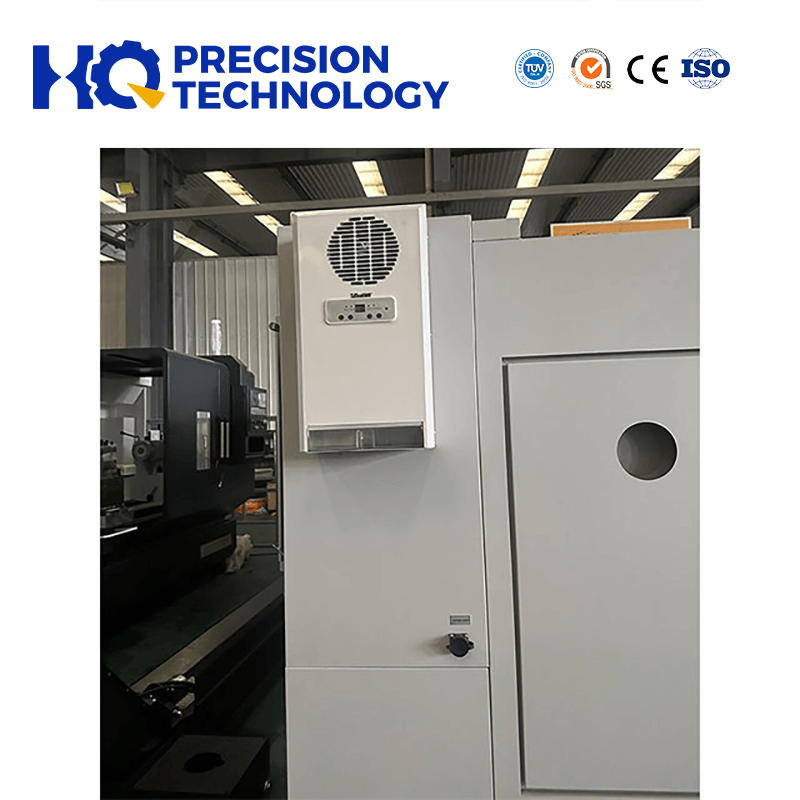

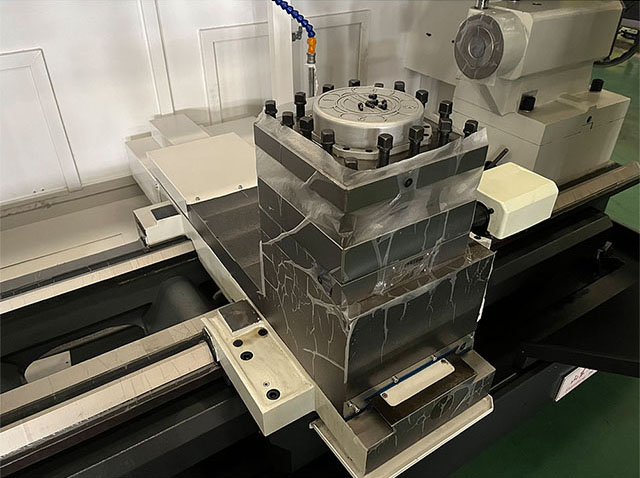

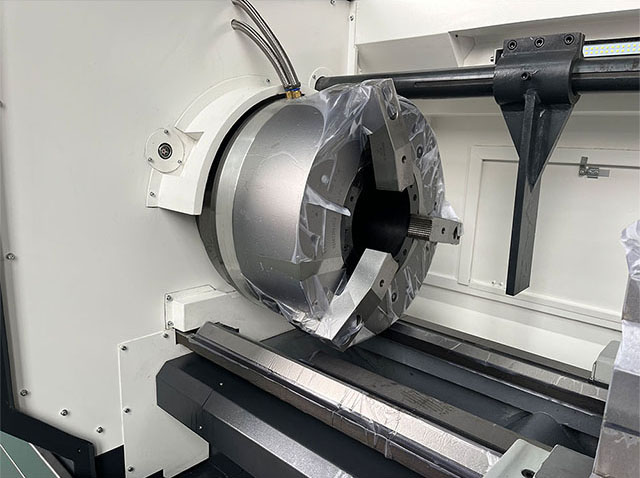

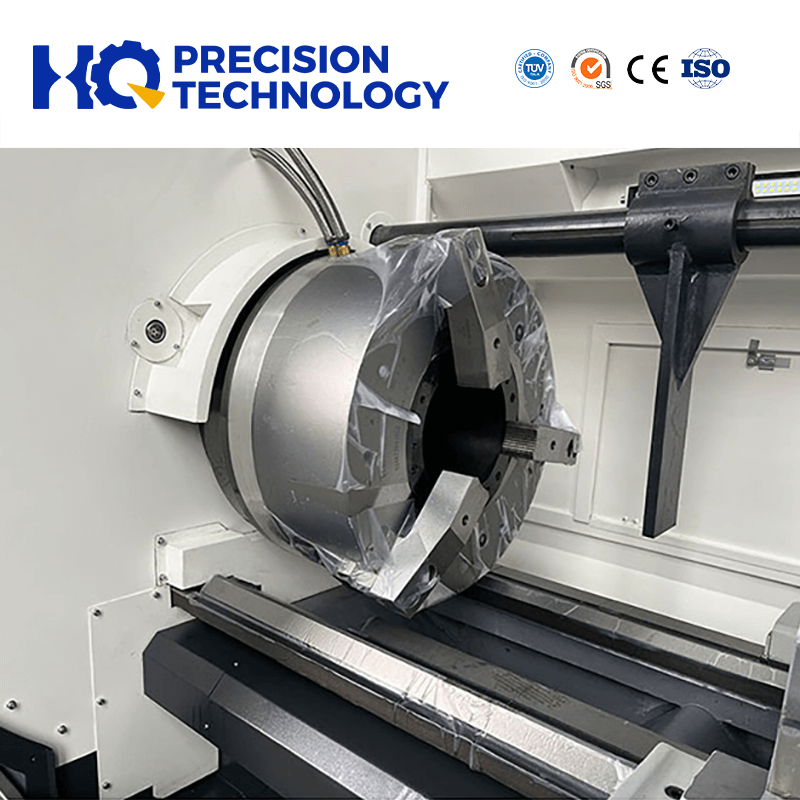

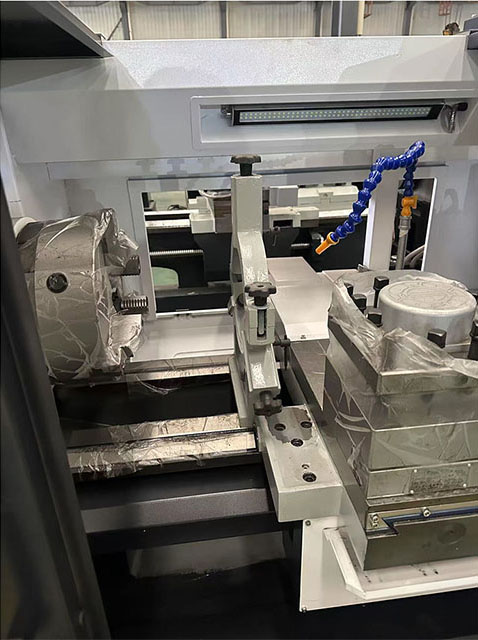

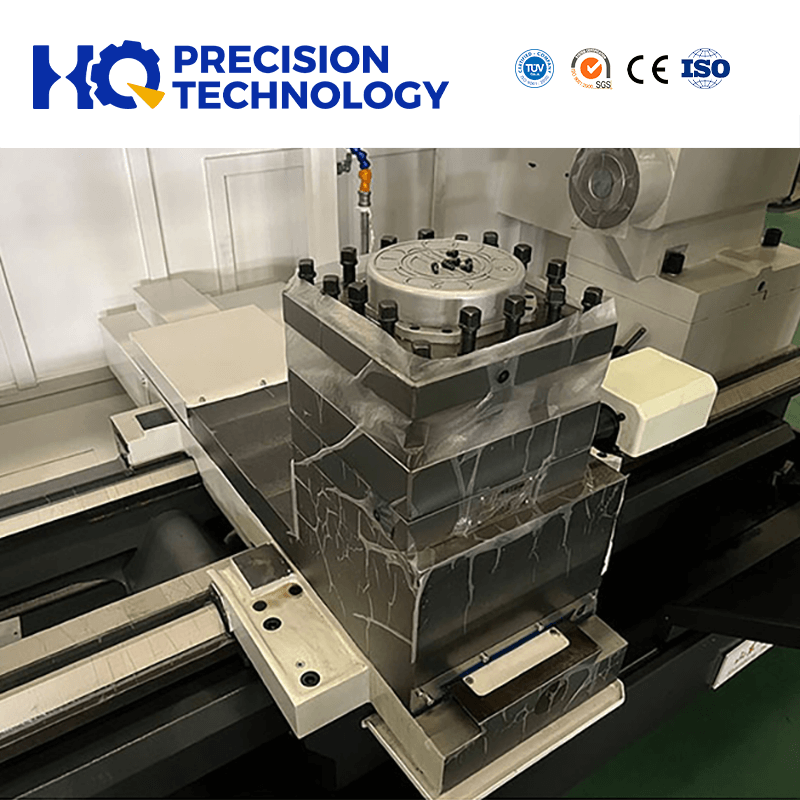

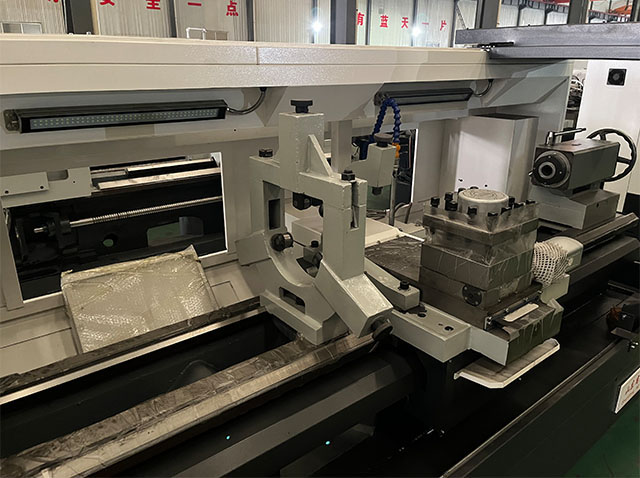

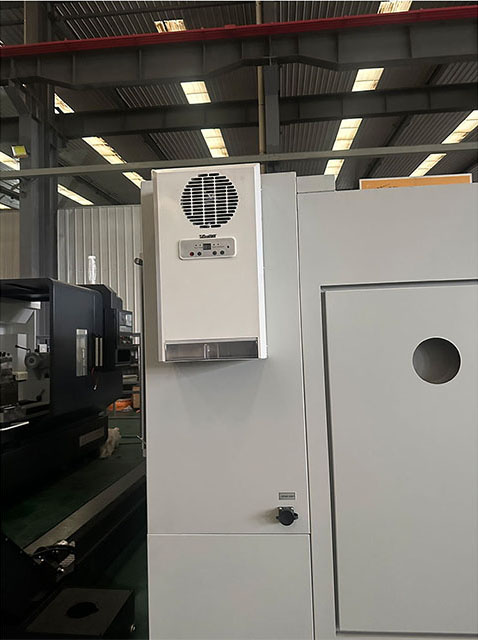

Product Detail Photos
 |  | ||
 |  |  | |
Product Video
FAQ
Q: How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you , or you can choose the exact model.
You can also send us the products drawing, we will choose the most suitable machines for you.
Q: What's your main products of your company?
A: We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine and so on.
Q: Where is our factory located? How can I visit there?
A: Our factory is located in Linyi City, Shandong Province, China. Yes, You are warmly welcomed to visit us.
Q. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
Q: What's the MOQ?
A: 1 set.
Q: Can the machine be customized according to customers?
A: Yes, we provide OEM and ODM service. Our aim is to provide the most suitable and convenient machine for every customer.
