Professional Large Aperture Customized Multi-material Conventional Lathe Conventional Lathe CWH1 Series

The Conventional Lathe is a fundamental and classic machine tool in the manufacturing industry, boasting a long standing history and a proven track record of reliability. As a cornerstone of traditional machining, it provides a straightforward yet highly effective solution for a wide range of metalworking operations.
Availability:
Quantity:

Overview



Constructed with a robust frame, usually made from high grade cast iron, the conventional lathe offers exceptional stability during operation. This sturdy build minimizes vibrations, which is essential for achieving accurate machining results. The lathe features a spindle that rotates the workpiece at variable speeds, while the carriage, equipped with a tool post, moves along the bed to perform cutting operations. Its manual control system, consisting of handwheels and levers, gives operators direct and precise control over the machining process, making it accessible to both novice and experienced machinists.



Features


1. Manual Precision Control


The most distinctive feature of the conventional lathe is its manual control mechanism. Operators can use handwheels to make fine tuned adjustments to the position of the cutting tool, allowing for meticulous control over the depth and angle of cuts. This hands on approach is particularly advantageous for tasks that require custom modifications or intricate detailing, as operators can respond immediately to the specific requirements of each workpiece. The tactile feedback from the manual controls also enables experienced machinists to achieve a high level of accuracy through feel and experience.


2. Versatile Machining Capabilities


A conventional lathe is capable of performing a diverse array of machining operations. Turning, which involves reducing the diameter of the workpiece, is its primary function. However, it can also execute facing, boring, threading, and grooving operations with ease. This versatility makes it suitable for manufacturing a wide variety of components, from simple cylindrical parts to more complex shapes with threaded features. The ability to switch between different operations using the same machine reduces production time and costs associated with using multiple specialized tools.


3. Cost Effective and Low Maintenance


Compared to more advanced CNC machines, conventional lathes are relatively inexpensive to purchase and operate. Their simple mechanical structure means fewer components that can potentially malfunction, resulting in lower maintenance costs. Routine maintenance tasks, such as lubricating moving parts and checking for wear on the spindle and bearings, are straightforward and can be carried out by in house maintenance staff without the need for specialized technical knowledge. This makes conventional lathes an ideal choice for small to medium sized enterprises or workshops with limited budgets.


4. Adaptability to Small Batch Production


For small batch production runs or prototype development, the conventional lathe shines. Its manual operation allows for quick setup changes between different jobs, enabling manufacturers to produce a variety of parts without the need for complex programming. This flexibility is crucial for meeting the demands of custom orders or for rapidly testing new designs, making the conventional lathe an indispensable tool in environments where versatility and quick turnaround times are key.



Applications


1. Job Shops and Small Manufacturing Enterprises


Job shops that handle a wide range of custom machining jobs find conventional lathes invaluable. These shops often receive orders for small quantities of unique parts, and the conventional lathe's ability to be easily adjusted for different tasks makes it well suited for such work. Small manufacturing enterprises can also benefit from the cost effectiveness and simplicity of conventional lathes, using them to produce components for various industries, including automotive, machinery, and general fabrication.


2. Education and Training Institutions


Conventional lathes play a vital role in technical education and training programs. They provide students with a hands on understanding of fundamental machining principles, allowing them to learn basic turning, threading, and other operations in a tangible way. The manual control aspect of these lathes helps students develop essential skills such as hand eye coordination, precision control, and an understanding of how machining parameters affect the final product. This practical knowledge forms a solid foundation for those pursuing careers in machining and manufacturing.


3. Maintenance and Repair Workshops


In maintenance and repair workshops, conventional lathes are used to manufacture replacement parts for machinery and equipment. When an existing part is damaged or worn out, machinists can use the lathe to create an exact replica based on the original specifications. The lathe's versatility and manual control make it possible to reproduce complex geometries and threaded features, ensuring that the replacement parts fit and function correctly. This helps to minimize downtime and keep industrial equipment running smoothly.



Product Advantage


1. Our company was established in 1952. Over the past 70+ years, we've amassed rich industry experience. Notably, we were a designated pipe thread lathe manufacturer for the former Ministry of National Machinery Industry. During this long - standing journey, we've continuously refined our production techniques and product quality, maintaining our leading position in the industry.


2. The company holds ISO9001 certification, with products renowned for high precision and reliability, especially its leading position in CNC lathe and pipe threading lathes. Provides 365/24 online support and on-site after-sales service by a professional engineering team. Over 5% of annual revenue is invested in R&D, with 30+ completed projects, 30patents(6 invention patents), and collaborations with top research institutions.


3. With an annual output of 1,000 units and 500+ production and precision testing devices. It ensures Universal lathe and Multi-functional manufacturing capabilities. Specializing in medium and large lathes, it offers tailored solutions to meet diverse industry needs.


4. Our operates advanced R&D platforms, including provincial and municipal technology centers, and is equipped with over 500 production and precision testing devices. Specializing in CNC lathes, pipe thread lathes, and machining centers, it produces 1.000units annually, with CNC pipe thread lathes being the most comprehensive in China. Its products are widely sold across 30+ regions in China and exported globally, including Russia, Australia, and Southeast Asia, earning high reputation all over the world.


5. Shandong HQ Precision Technology Co., Ltd. We have prioritized  R&D, allocating over 5% of annual revenue to innovation. With 30+completed projects.16provincial initiatives, and 2 key R&D programs,the company has earned multiple awards, including national and provincial science and technology prizes. Its CKY6150 filled a domestic market gap. Collaborating with top research institutes, the company holds 30 patents (6 inventions) and boasts ISO9001 certification, along with honors like "Shandong Province Integrity Demonstration Enterprise" and "Specialized SME".


Technical Parameters


SPECIFICATION

Unit

CW61180H/1

CW611200H/1


Capacity

Swingover bed

mm

φ1900

φ2100

Swing over cross slide

mm

φ1450

φ1650

Distance between centers

mm

3000-10000

3000-10000

Guideway width

mm

1100

1100

Max.load capacity


20

20


 Spindle

Spindle bore

mm

φ130

Φ130

Spindle bore taper


Metric140

Metric140

Spindle nose type


1:30 Extended spindle head

1:30 Extended spindle head

Spindle speed steps


NF,4steps

NF.4steps

Spindle speed range

r/min

2-37rpm, 23-70rpm 37-110rpm, 70-200rpm

2-37rpm, 23-70rpm 37-110rpm, 70-200rpm

Spindle front bearing

mm

240

240

Chuck

mm

φ1600

φ1600

Turret

Turret/tool post


Manual turret 4 position

Manual turret 4 position

Tool shank size

mm

45×45

45×45



Feed

X axis travel

mm

850

850

Z axis travel

mm

2850-985056 species/0.1-12mm

2850-985056 species/0.1-12mm

X axis feed grade/range


56 species/0.05-6mm

56 species/0.05-6mm

Z axis feed grade/range


1870

1870

X axis rapid traverse

mm/min

3740

3740

Z axis rapid traverse

mm/min

44 species/1-120mm

44 species/1-120mm

Metric thread grade/range


31 species/28-3/8

31 species/28-3/8

Inch thread grade/range


φ260

φ260

Tailstock

Tailstock quill diameter

mm

Metric 80

Metric 80

Tailstock quill taper


300

300

Tailstock quill travel

mm

37

37

Motor

Main spindle motor

KW

1.5

1.5

Rapid traverse motor

KW

2300×2250

2300×2250

Dimension

Width x Height

mm

7700-14700

7700-14700

Length

mm

20820

21490

 Weight

Net weight (3m)

kg

For every additional meter, the weight will increase by 1050Kg

For every additional meter, the weight will increase by 1050Kg



1050Kgfor each 1madditional weight

1050Kgfor each1madditional weight


Product Detail Photos

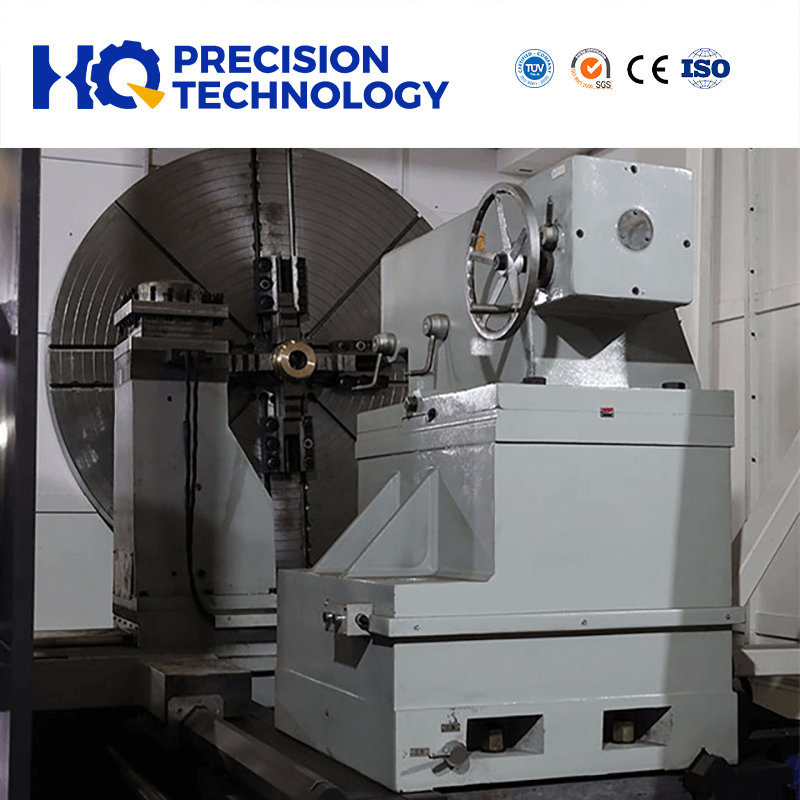

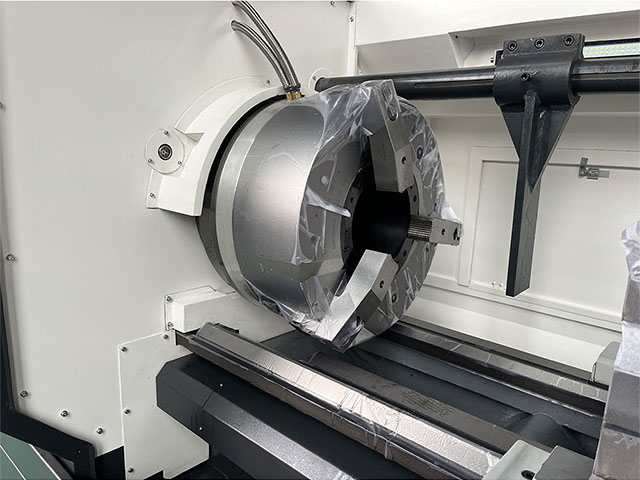

Conventional Lathe Conventional Lathe

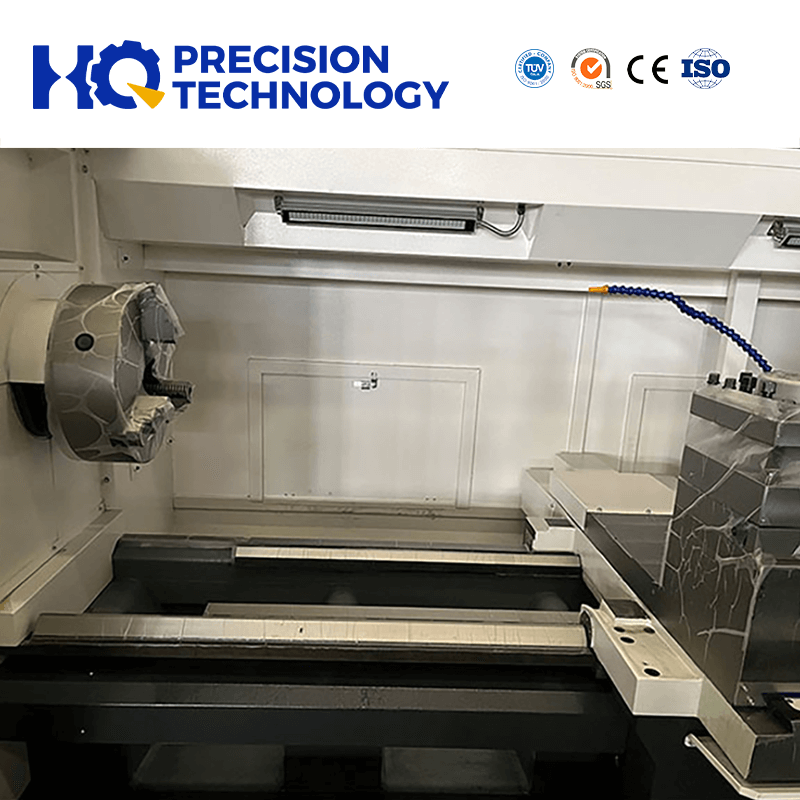

Conventional Lathe Conventional Lathe Conventional Lathe
