Product Overview

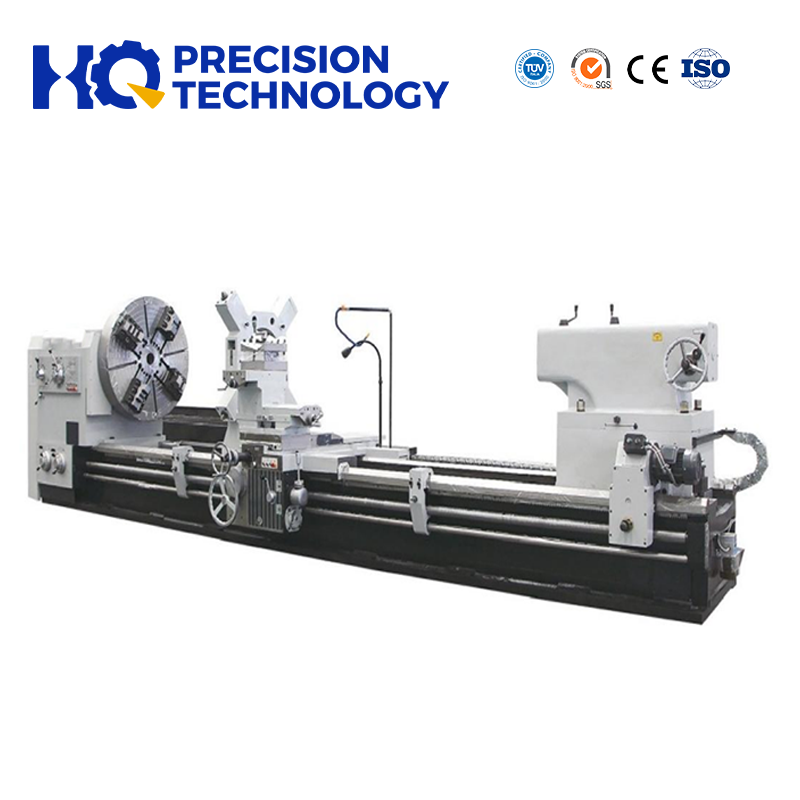

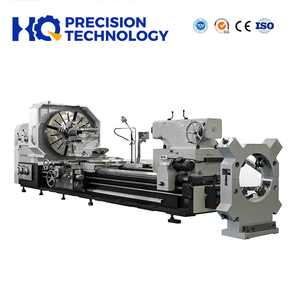

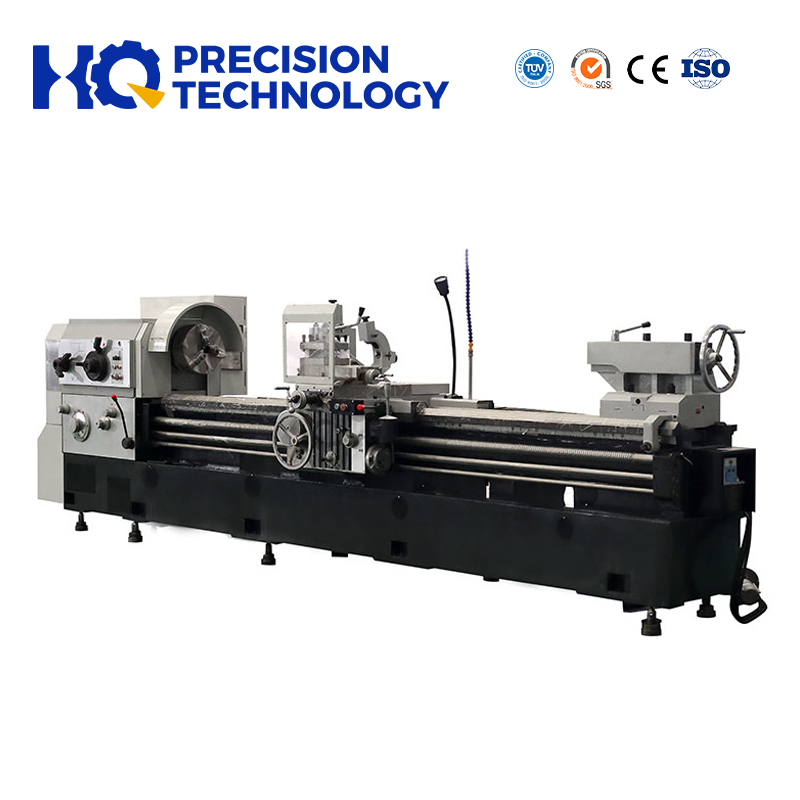

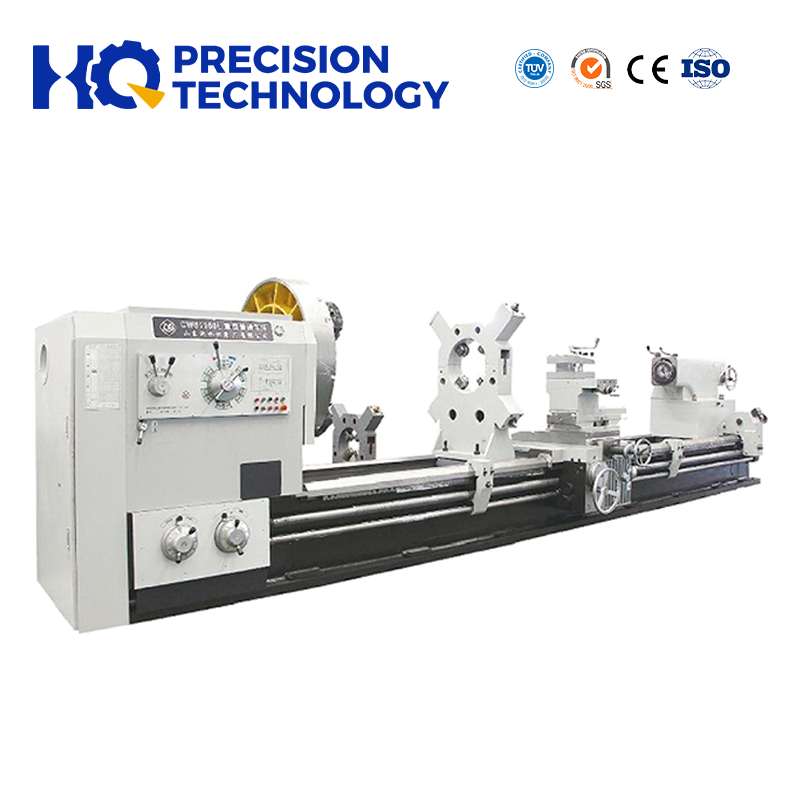

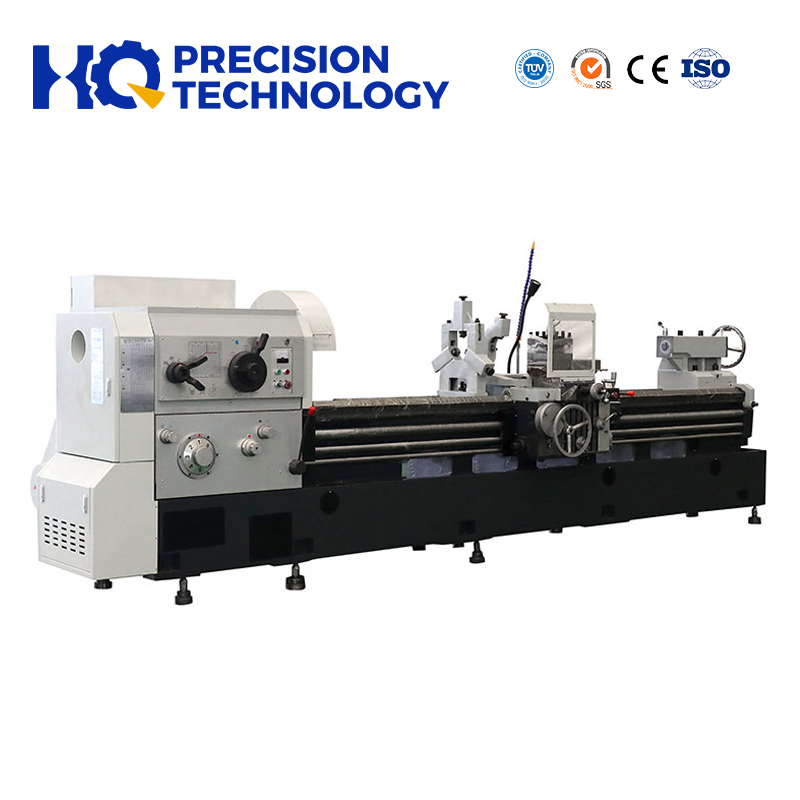

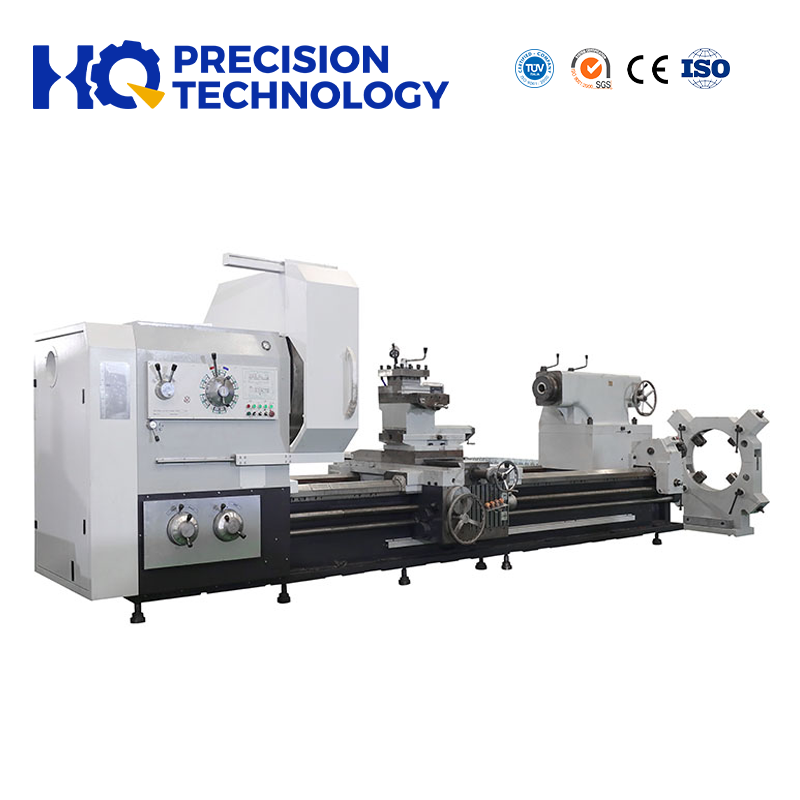

The Conventional Universal Lathe CW61125L, CW61140L, CW61160L series is designed to meet the diverse needs of small to medium-sized workshops. Combining versatility with precision, these lathes excel at machining cylindrical, conical, and threaded components across various materials. The series includes three models differentiated by swing diameter (1250mm, 1400mm, 1600mm) to accommodate workpieces of varying sizes, making them suitable for job shops, prototyping facilities, and batch production lines.
Product Advantage
The universal design supports turning, boring, threading, grooving, knurling, and facing, eliminating the need for multiple machines in small workshops. Quick tool changeovers (under 2 minutes) enhance flexibility for mixed-batch production.
The one-piece cast iron bed with reinforced ribbing reduces deflection by 30% compared to split-frame designs, ensuring consistent dimensional accuracy even during heavy cuts (up to 10mm depth of cut on carbon steel).
Ergonomic control panel with centralized handwheels (1:160 feed ratio) and digital readout (optional) reduces operator fatigue. The splash guard and chip conveyor (optional) maintain a clean working environment.
Competitive pricing with low energy consumption (30kW motor operates at 85% efficiency) and minimal maintenance needs, making it ideal for budget-conscious workshops with fluctuating production demands.
Technical Parameters
SPECIFICATION | UNIT | CW61125L | CW61140L | CW61160L | |
Capacity | Swing over bed | mm | 300 | 1500 | 1700 |
Swing over cross slide | mm | 850 | 1050 | 1250 | |
Distance between centers | mm | 3000-10000 | 3000-10000 | 3000-10000 | |
Guideway width | mm | 1100 | 1100 | 1100 | |
Max.load capacity | T | 10 | 10 | 10 | |
Spindle | Spindle bore | mm | 100 | 100 | 100 |
Spindle bore taper | Meticφ120/M6 | Meticφ120/M6 | Meticφ120/M6 | ||
Spindle nose type | 1:30 Extended spindle head | 1:30Extended spindle head | 1:30Extended spindle head | ||
Spindle speed steps | FWD.21 steps | FWD.21 steps | FWD.21 steps | ||
Spindle speed range | rpm | 3.15-315 | 3.15-315 | 3.15-315 | |
Chuck | mm | φ1250 4-jaw manual | φ1250 4-jaw manual | φ1400 4-jaw manual | |
Turret | Turret/tool post | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | |
Tool shank size | mm | 45x45 | 45X45 | 45x45 | |
Feed | X axis travel | mm | 650 | 750 | 750 |
Z axis travel | mm | 1350---9750 | 1350---9750 | 1350---9750 | |
X axis feed grade/range | mm/r | 56/0.05-6 | 56/005-6 | 560.05-6 | |
Z axis feed grade/range | mm/r | 56/0.1-12 | 56/0.1-12 | 560.1-12 | |
X axis rapid traverse | mm/min | 1870 | 1870 | 1870 | |
Z axis rapid traverse | mm/min | 3740 | 3740 | 3740 | |
Metric thread grade/range | mm | 44/1-120 | 44/1-120 | 44/1-120 | |
Inch thread grade/range | TP. | 31/28-3/8 | 31/28-3/B | 31:28-3/8 | |
Module thread grade/range | mm | - | - | ||
DP thread grade/range | DP | ||||
Tailstock | Tailstock quill diameter | mm | φ260 | φ260 | φ260 |
Tailstock quill taper | Metric 80 | Metric 80 | Metric 80 | ||
Tailstock quill travel | mm | 300 | 300 | 300 | |
Motor | Main spindle motor | KW | 30 | 30 | 30 |
Rapid traverse motor | KW | 15 | 1.5 | 1.5 | |
Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | |
Dimension | W x H | mm | 2000×1950 | 2250×2050 | 2250×2150 |
Length | mm | 6400--13400 | 6400-13400 | 6400--13400 | |
Weight | Net weight(5m) | T | 21.17---(Increase by 1050Kg for every additional 1m) | 21.86---(Increase by 1050Kg for every additional 1m) | 22.5---(Increase by 1050Kg for every additional 1m) |
Please note: Lathe length can be customized according to real demand. | |||||
Product Video
Features
Swing diameters of 1250mm (CW61125L), 1400mm (CW61140L), and 1600mm (CW61160L), with maximum workpiece lengths ranging from 3000mm to 16,000mm (customizable via bed extensions).
Standard equipment includes a 1000mm four-jaw independent chuck, 300mm three-jaw self-centering chuck, center rest (range
200–600mm), and follow rest (range
50–200mm). The tailstock with Morse 6 taper supports drilling, reaming, and tapping operations up to 50mm diameter.
1100mm bedways undergo induction hardening (HRC 50–55) and precision grinding to ensure surface roughness of Ra 0.8μm, minimizing tool wear and ensuring positional accuracy within ±0.01mm/1000mm.
Powered by a 30kW variable-speed motor, the spindle offers 21 forward speeds (3.15–315 RPM) and 12 reverse speeds (3.5–290 RPM), controlled via a gear lever with clear speed markings for easy operation.
