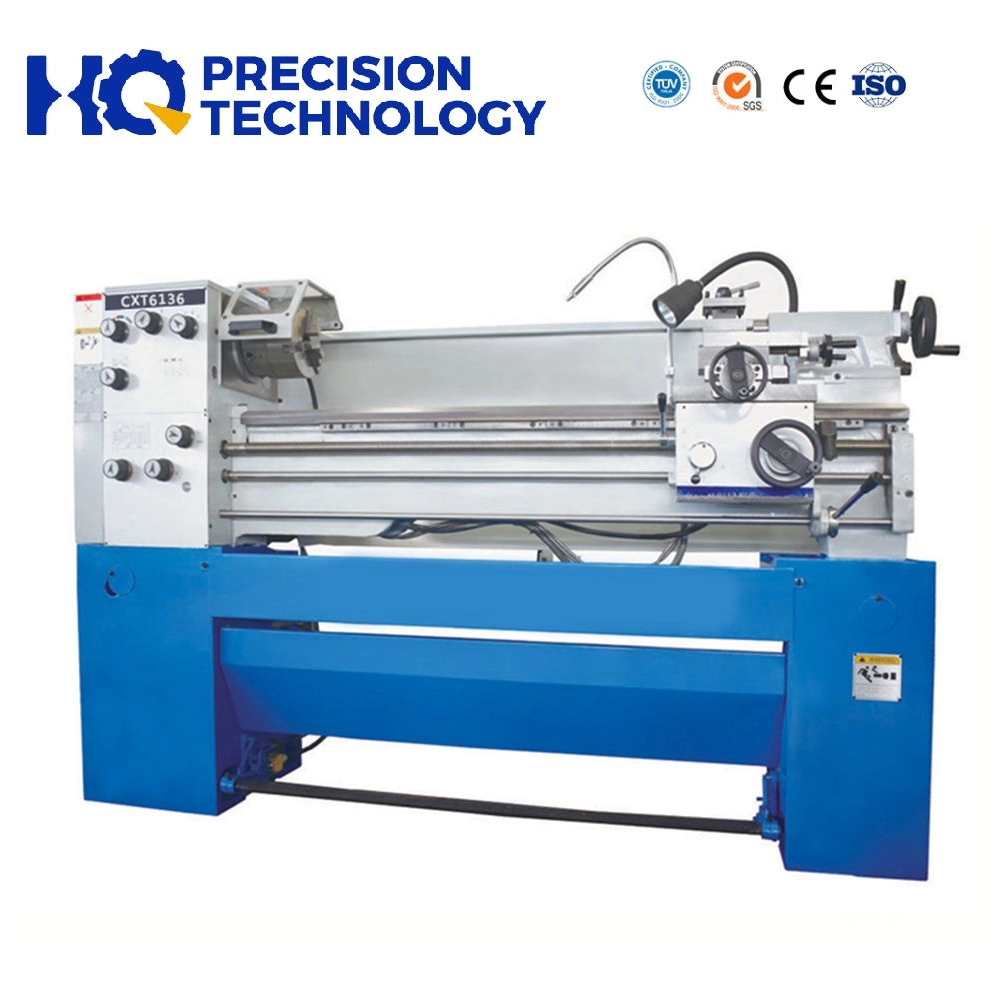

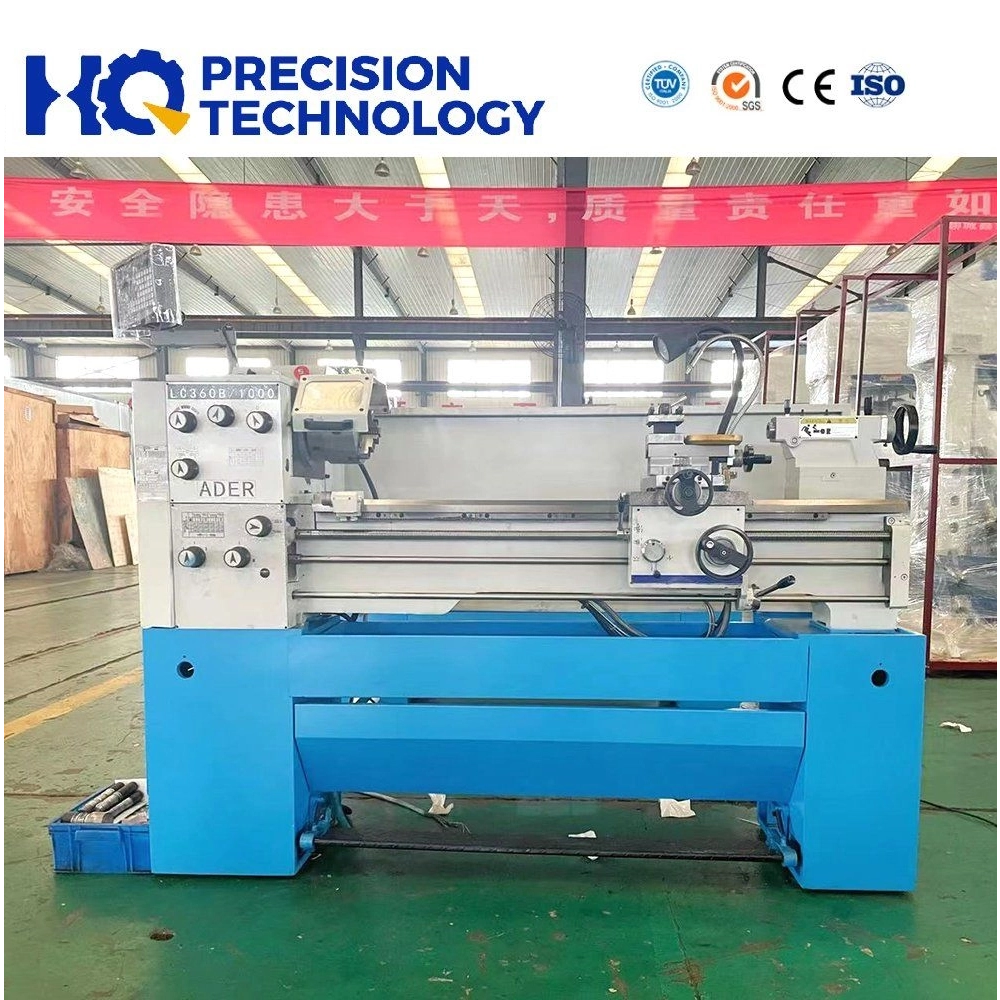

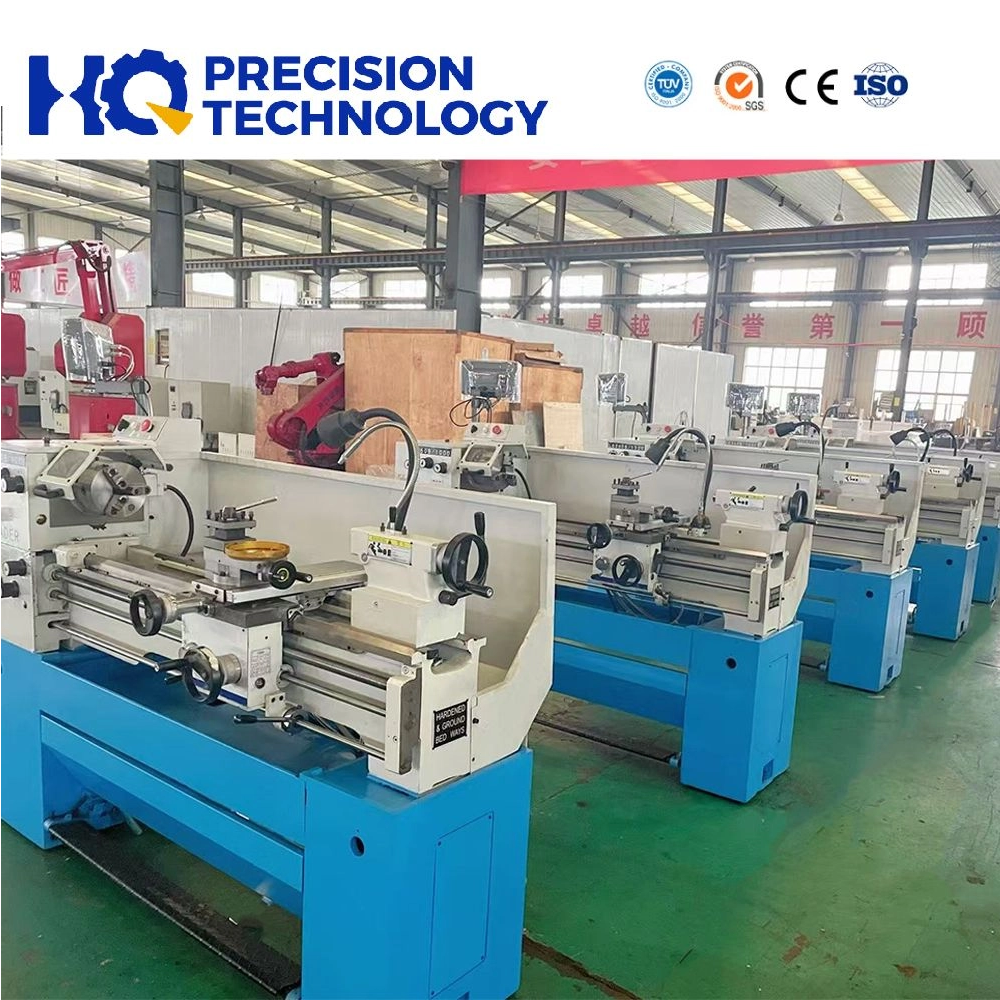

This robust horizontal saddle‑type lathe, also known as a conventional lathe or metal lathe, delivers flexible universal turning performance for general‑purpose metalworking. As a practical saddle lathe, it handles internal‑external cylinders, tapers, end faces and diverse rotary surfaces. It supports metric, inch, module and diametral pitch thread cutting, alongside drilling, reaming and oil‑groove pulling tasks.
The removable saddle expands maximum swing diameter for larger‑diameter workpieces. Compact layout, intuitive manual controls and simple maintenance make this manual horizontal lathe fit single‑piece and small‑batch production, educational training and hobby‑grade metal fabrication.
Item |
Specification |
|---|---|
Max Swing over Bed |
360 mm |
Max Swing over Cross Slide |
200 mm |
Max Swing over Gap (Saddle removed) |
420 mm |
Max Distance between Centers |
1000 mm |
Spindle Bore |
38 mm |
Taper of Splidle Bore |
M5 |
Spindle Nose |
D5 |
Steps of Spindle Speed |
9 |
Spindle Speed Range |
60‑2000 r/min, 9‑speed |
Chuck |
φ160 |
Bed Width |
220 mm |
Diameter of Tailstock Quill |
40mm |
Tailstock Quill Travel |
80 mm |
Range of longitudinal Feeds |
0.03-0.469 |
Range of Cross Feeds |
0.015-0.21 |
Metric Thread Range |
0.25‑9 mm (20 kinds) |
Inch Thread Range |
72‑4 TPI (33 kinds) |
Main Motor Power |
2.2 kW |
Power of Coolant Pump |
40W |
Gross Weight |
850 kg |
Overall Dimension (L×W×H) |
2250×900×1230 mm |

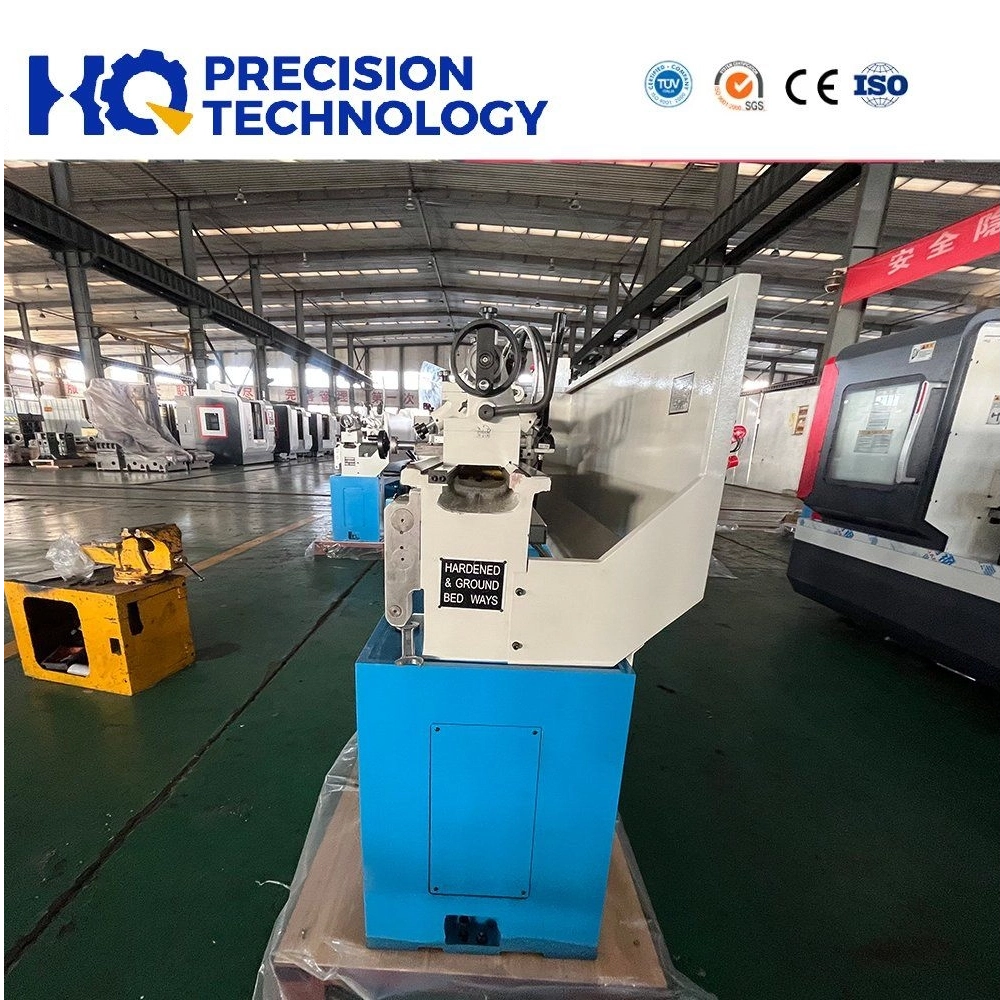

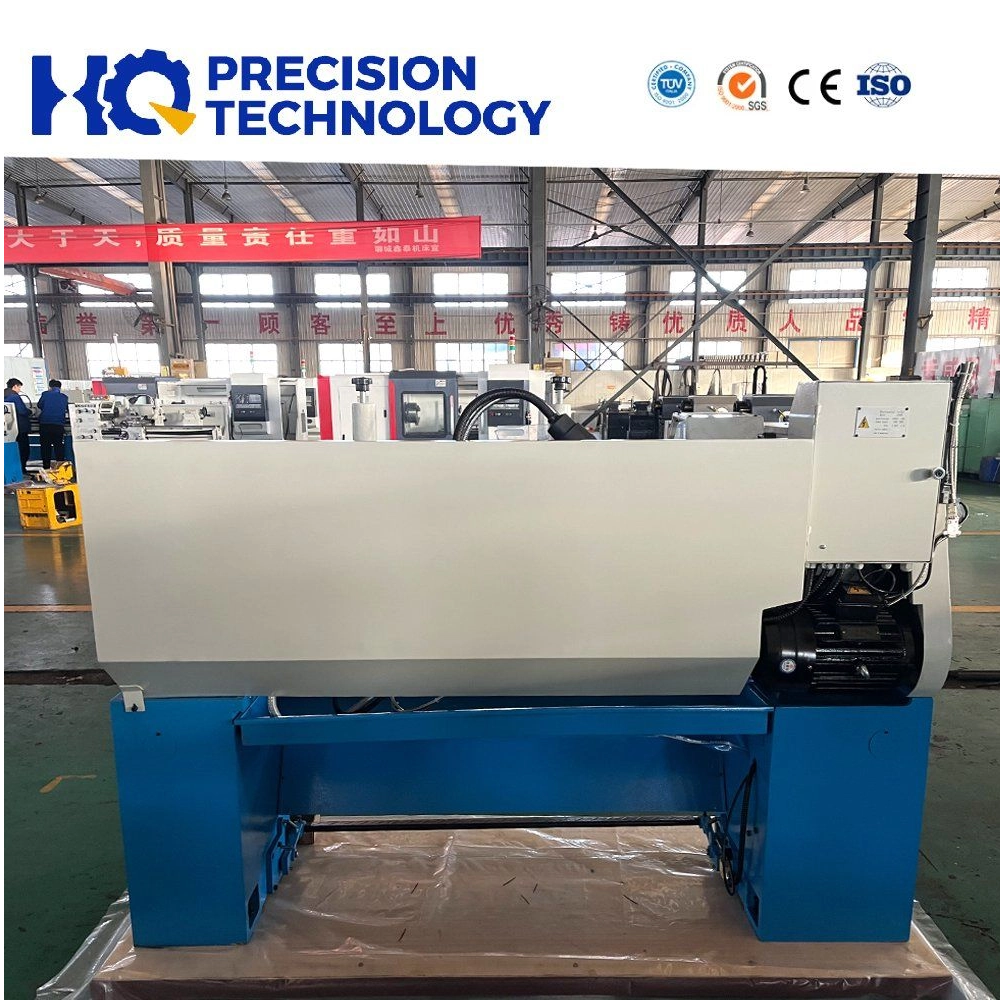

Built with high‑grade HT300 cast iron bed, guide rails are quenched above HRC52 for outstanding wear‑resistance and structural rigidity. Key transmission components including spindle and gears undergo forging, quenching and precision finishing, paired with well‑known brand bearings to sustain stable running.

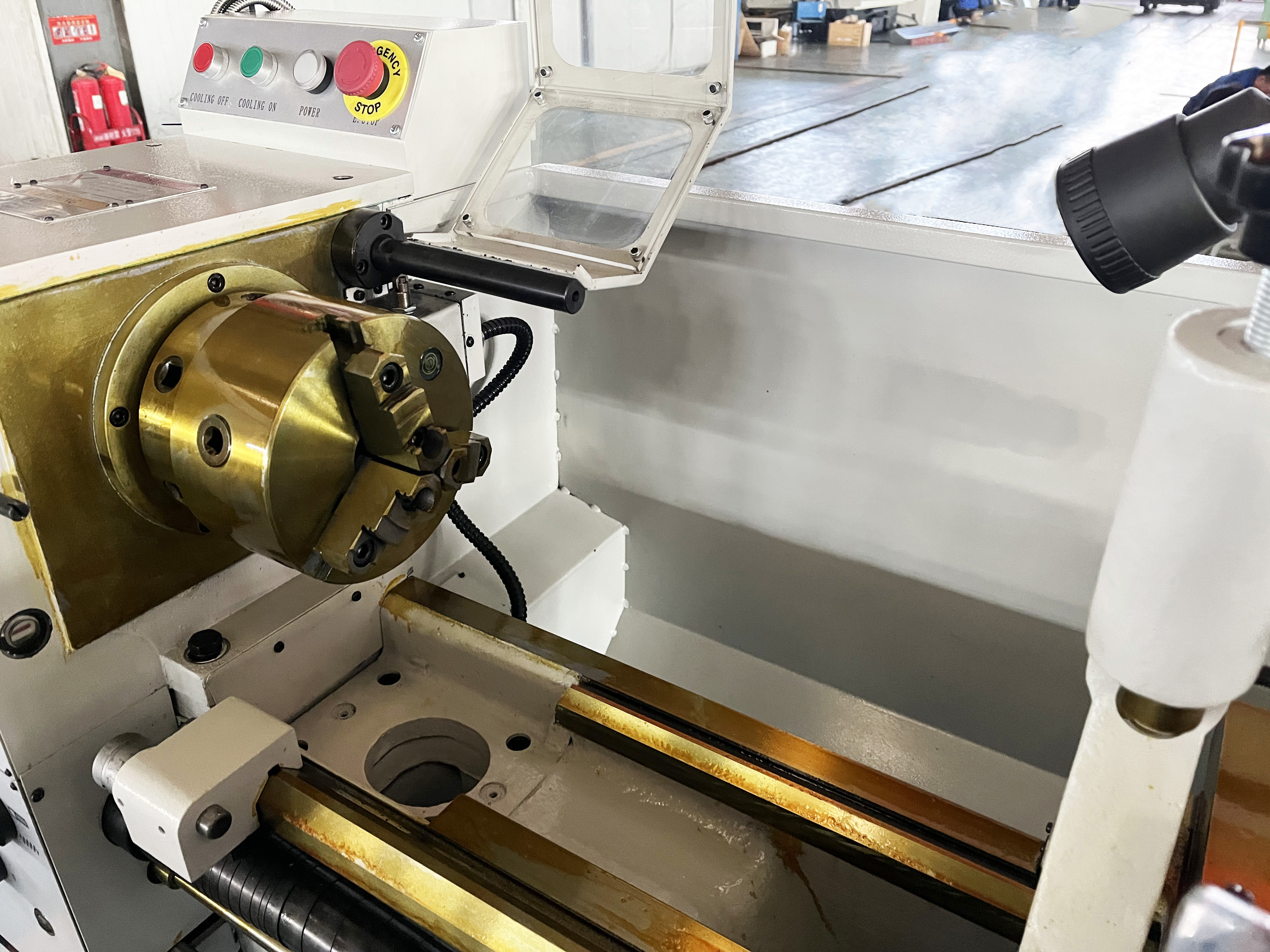

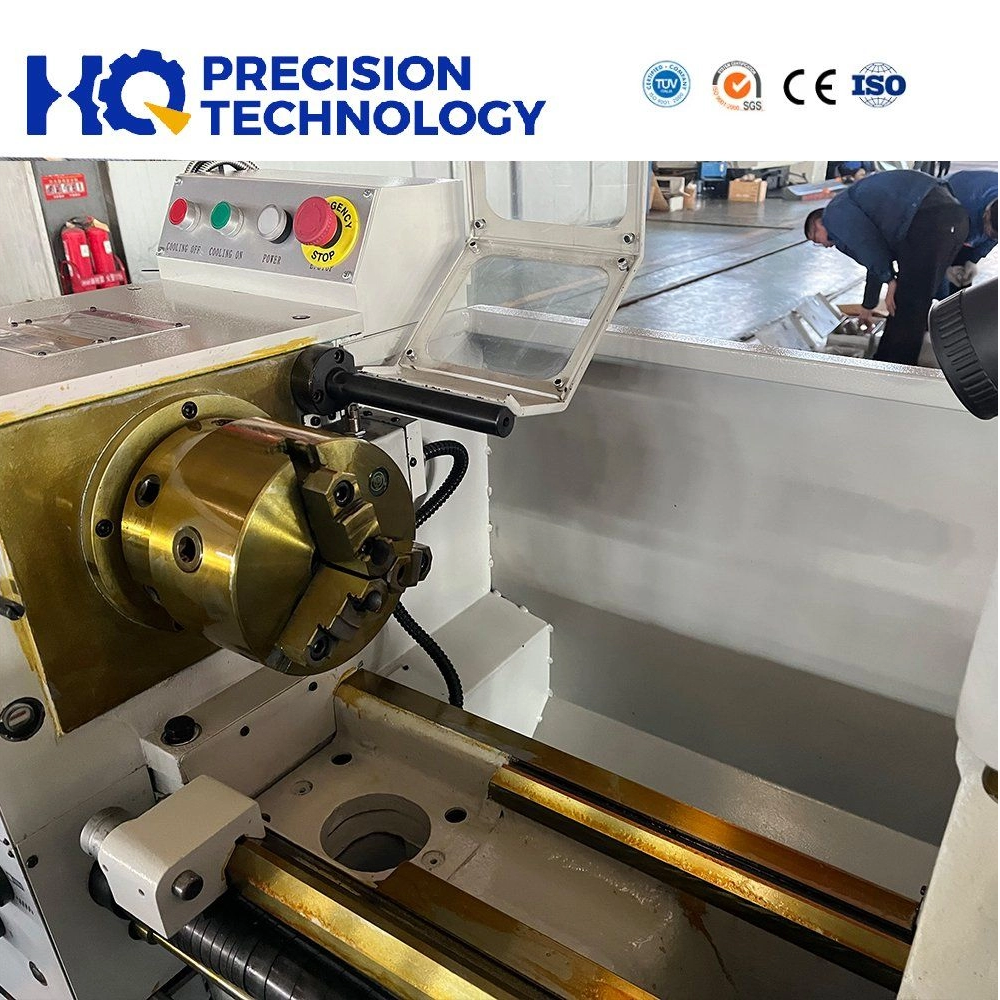

The detachable saddle of this horizontal saddle‑type lathe widens processing capacity for oversized parts. Equipped with emergency‑stop button and overload safety mechanism to improve operational security. Nine‑level spindle speed covers low‑speed heavy cutting to high‑speed finishing. Standard accessories contain three‑jaw chuck and chasing dial; optional protective guards further enhance workshop safety.
This versatile conventional lathe / metal lathe serves multiple industrial segments. It fits machinery workshops, electronics, instrument manufacturing and light‑industry factories for small‑batch component turning. It also works well for technical‑school machine‑shop training and hobby metalworking projects.
Repair shops benefit from its full thread‑cutting capability for shaft and sleeve‑type spare‑part remanufacturing. As a cost‑effective saddle lathe, it suits workshops requiring mixed‑job manual turning without high‑volume automated production.
