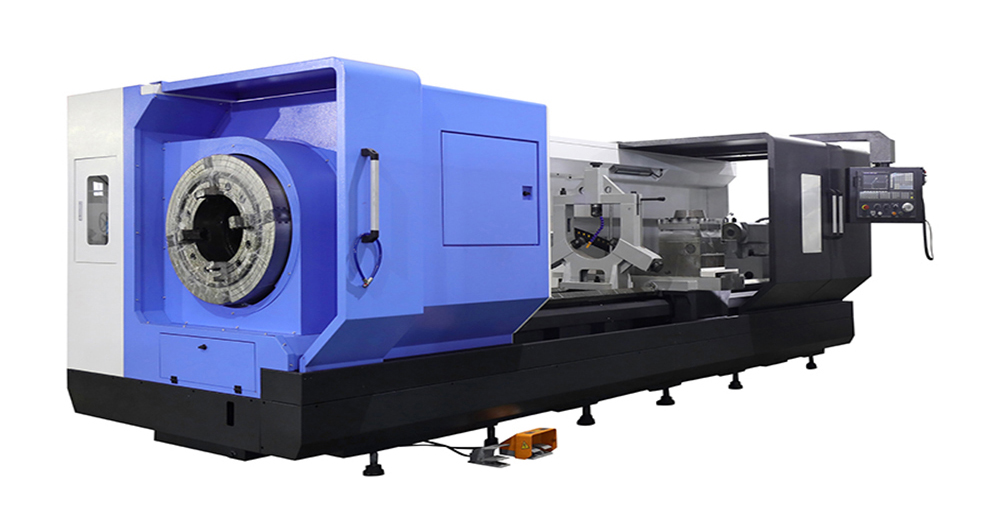

Product Introduction
This series of CNC pipe threading lathe are mainly used for processing internal and external threads of pipe work pieces. At the same time, they have the functions of ordinary CNC lathe and can process the outer circle, inner hole and end face of shafts and discs. This series of Flat Bed Lathe is widely used in the oil industry for processing and repairing drill pipes, joints, casings and other work pieces. This series of Lathe can also be used in geological exploration, mineral mining, chemical smelting, pipeline network construction, machinery manufacturing and shipbuilding.
Product Advantage
1. This series of CNC pipe threading lathe is meticulously crafted from premium high - strength cast iron. This material choice imparts remarkable rigidity, allowing the entire bed to uphold high precision, even under strenuous working conditions.
2. The surface of the CNC lathe guide rail is treated through advanced ultrasonic quenching. This process endows it with an extremely high hardness, thereby ensuring a long - lasting lifespan and consistent performance over time.
3. The advanced CNC threading lathe slide makes use of the innovative guide rail surface plastic laminating process. This not only provides excellent wear resistance but also significantly contributes to maintaining high machining precision.
4. The flat bed lathe spindle is designed with a large aperture, guaranteeing high passability for various work pieces. Additionally, the double chuck system offers stable work piece clamping, enhancing the reliability of the machining process.
Detail Pictures

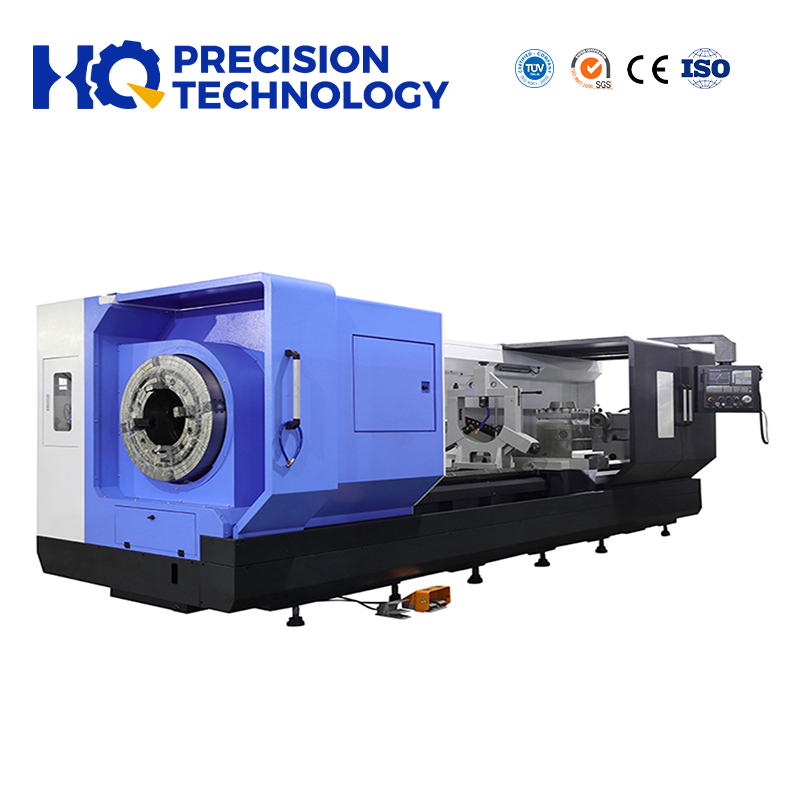

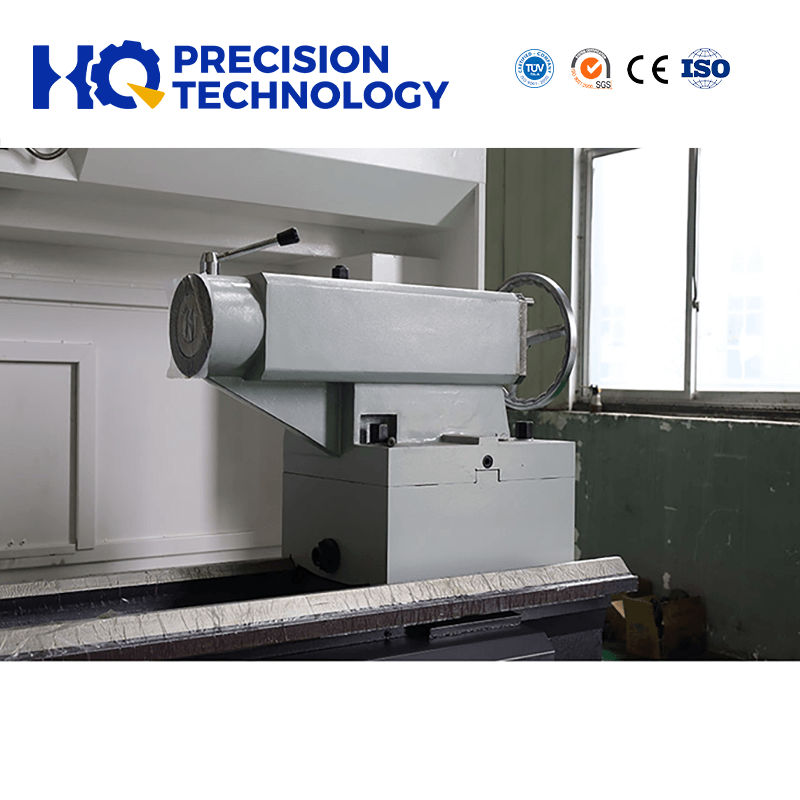

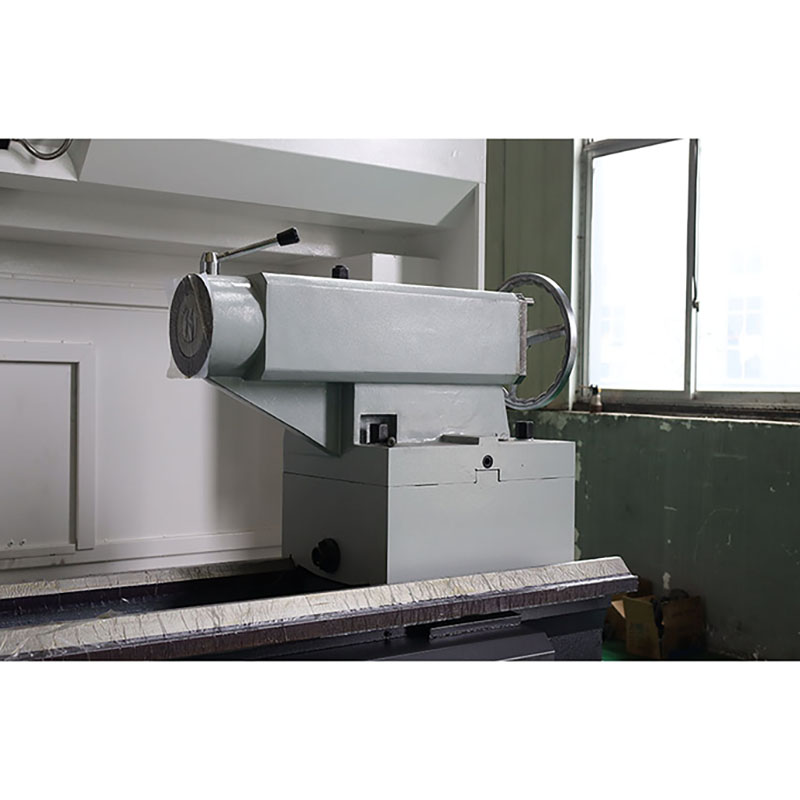

Accurate CNC Threading Lathe |

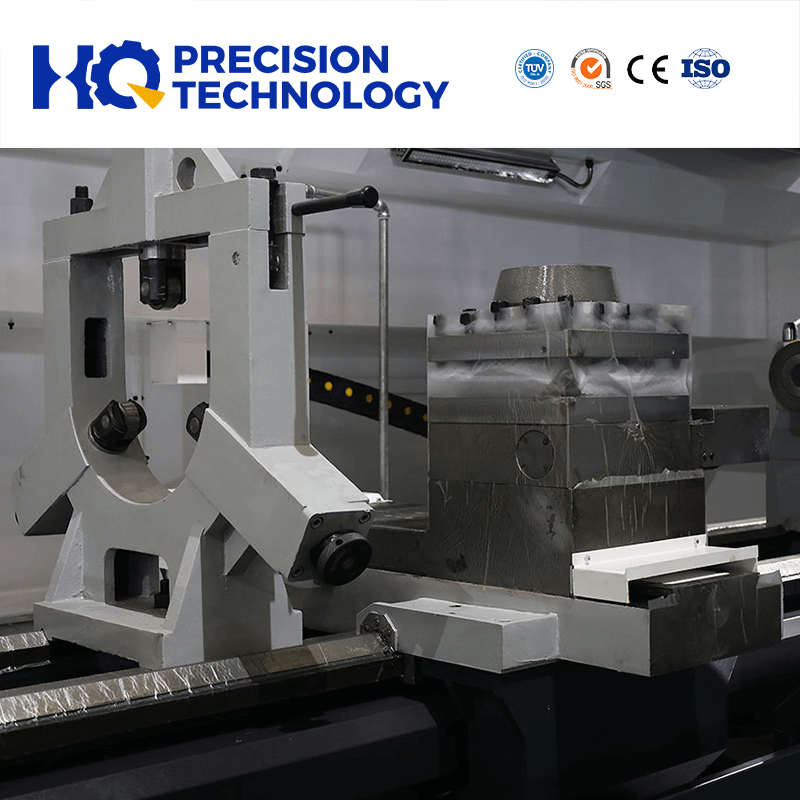

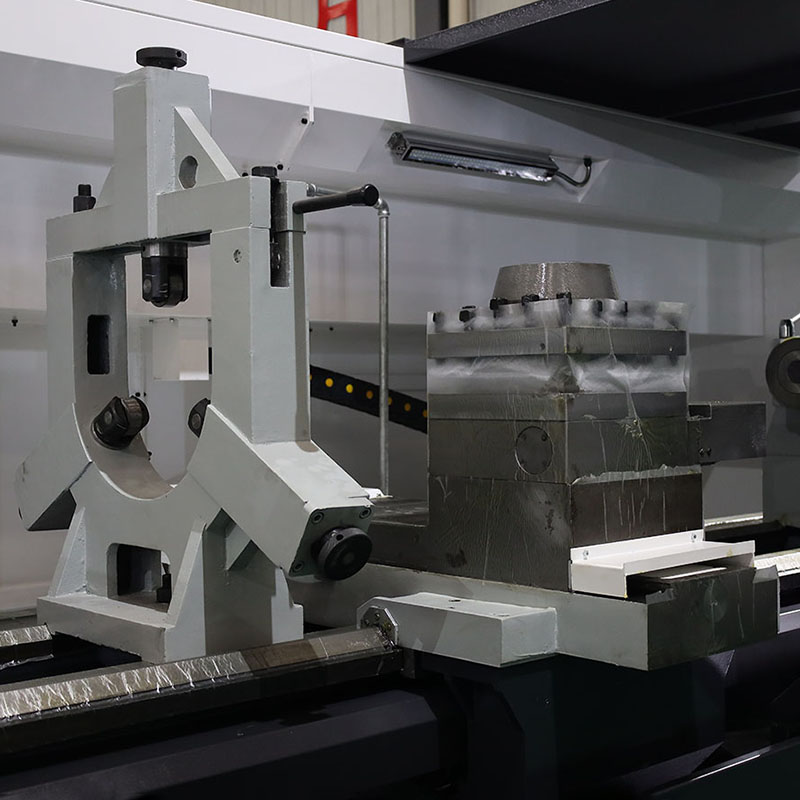

Advanced CNC Threading Lathe |

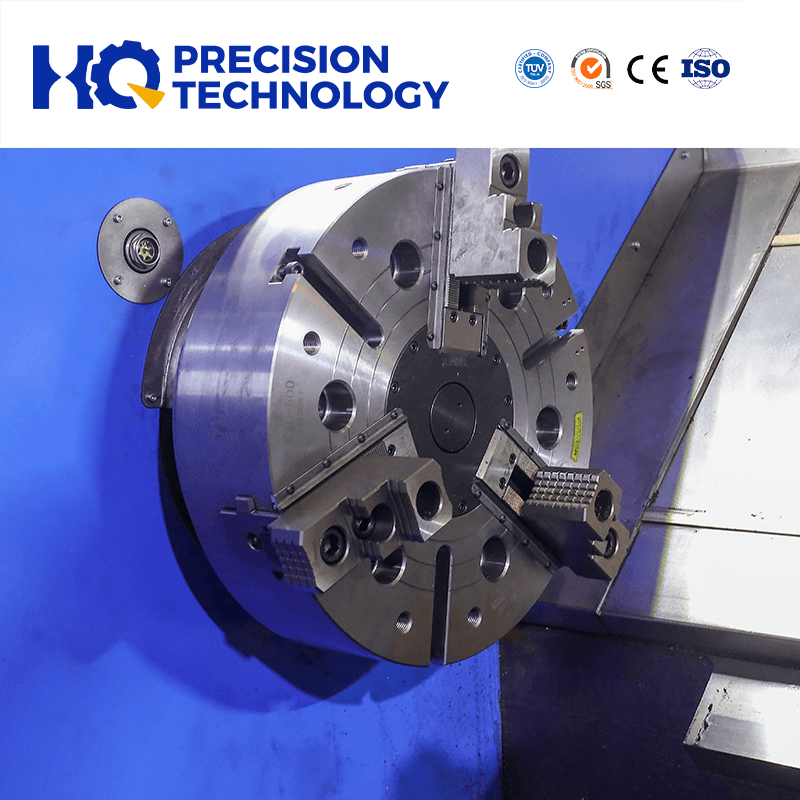

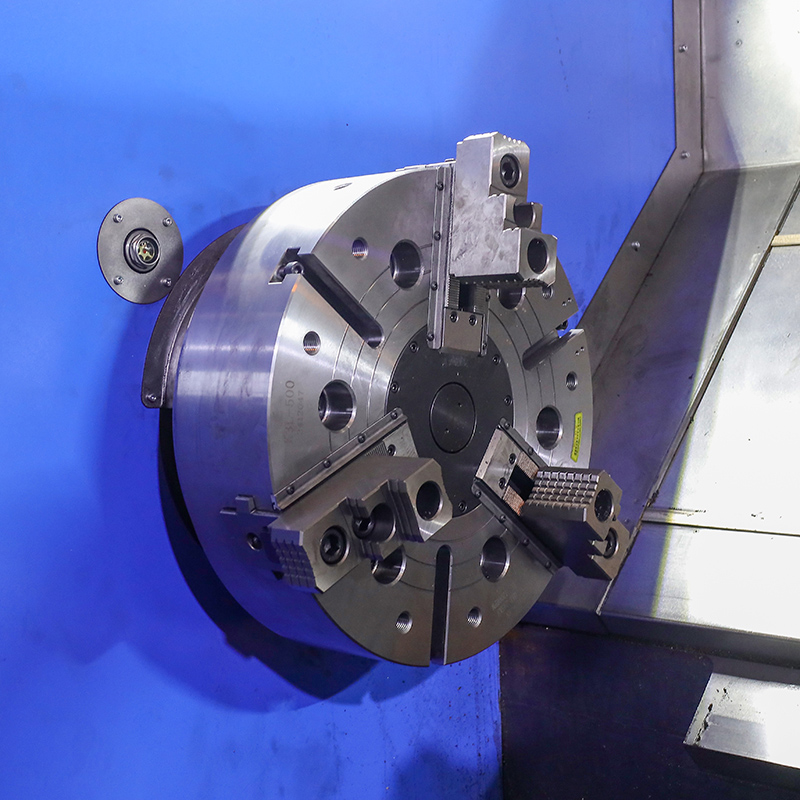

CNC Lathe |

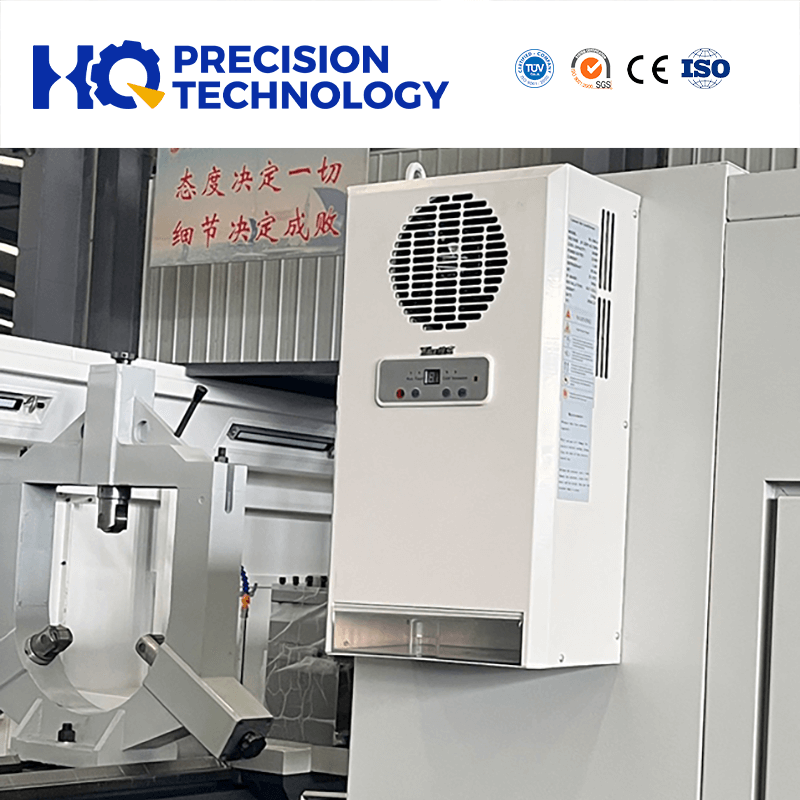

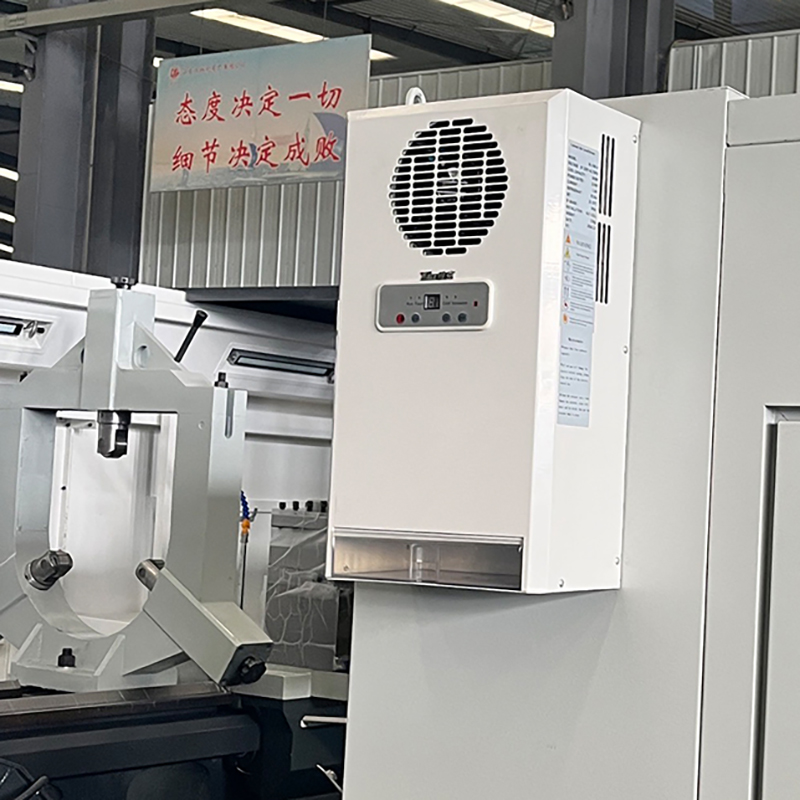

Cost-Effective CNC Lathe |

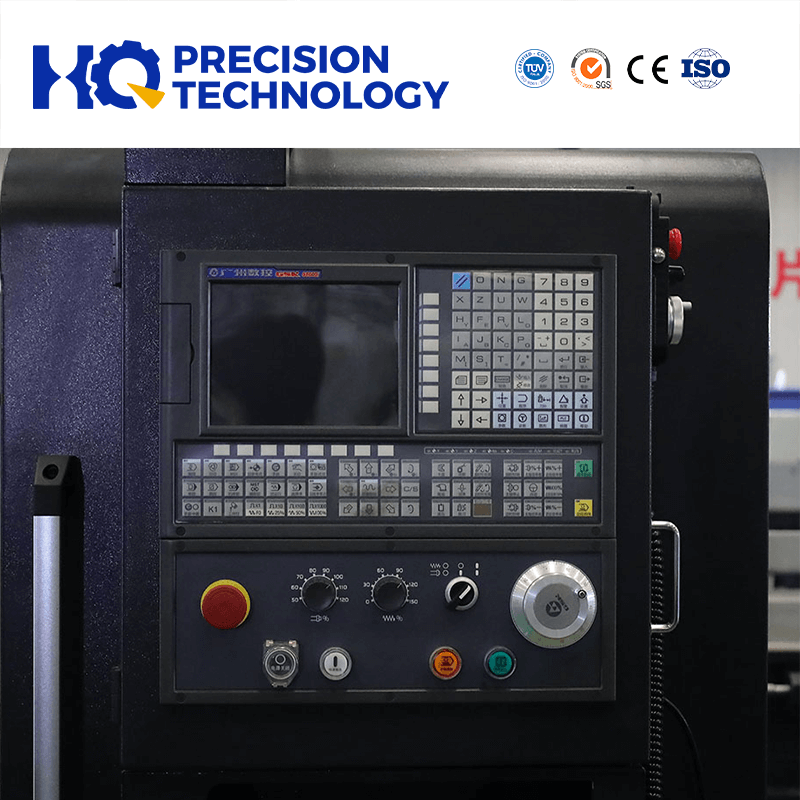

High-Performance Lathe |

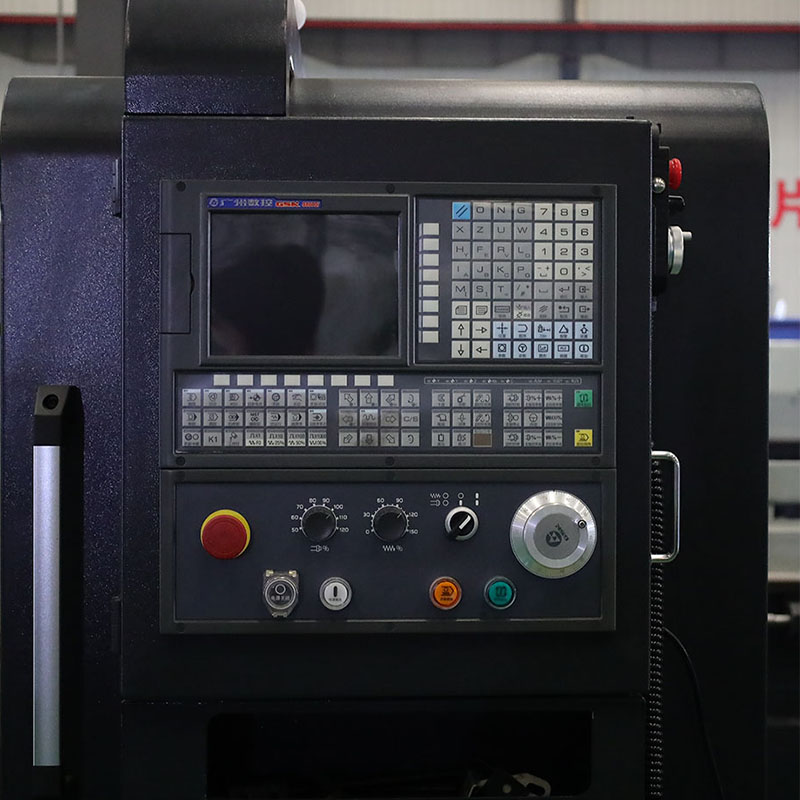

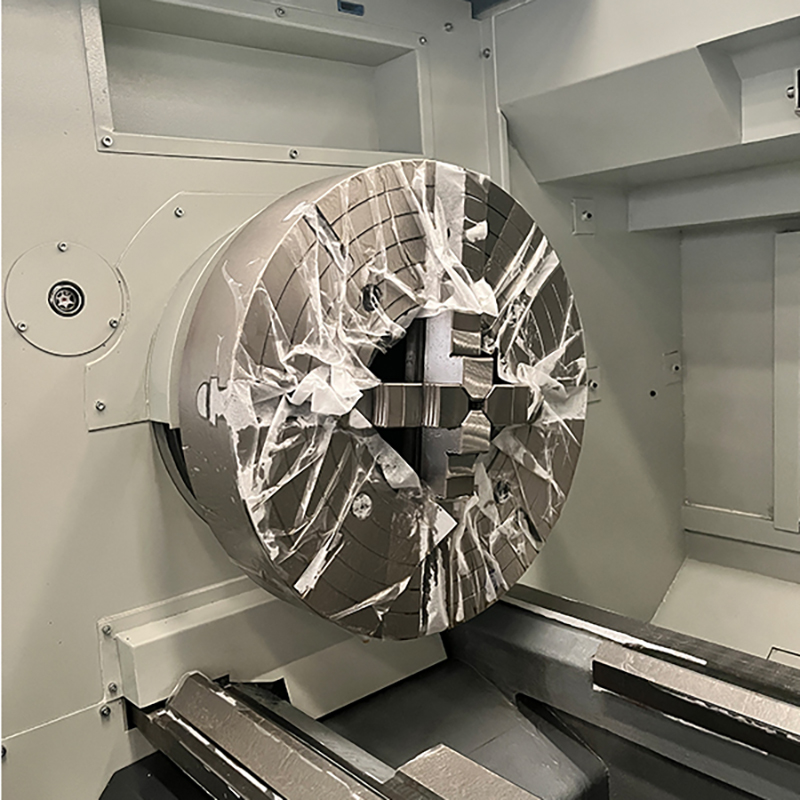

Precision CNC Lathe |
Technical Parameters
| SPECIFICATION | UNIT | QK1313 | QK1319 | QK1322 | |||
| Manual | Manual | HYD | Manual | Manual | |||
| Capacity | Swing over bed | mm | 630/800 | 630/800 | 630/800 | ||
| Swng over cross slide | mm | 340/520 | 340/520 | 340/520 | |||
| Dstance betwieen centers | mm | 1000-6000 | 1000-6000 | 1000-6000 | |||
| Ppe threading range | mm | 30-126 | 50-193 | 50-220 | |||
| Guideway width | mm | 550 | 550 | 550 | |||
| Max. load capacity | T | 3 | 3 | 3 | |||
| Spindle | Spindle bore | mm | 130 | 206 | 225 | ||
| Spindle speed steps | - | NF.3steps | NF.4 steps | HYD.4 steps | NF.4steps | HYD.4steps | |
| Spindle speed range | rpm | 30-800 | 20-500 | 20-500 | |||
| Chuck | mm | φ400 3-jaw manual | φ500 3-jaw manual | φ500 3-jaw manual | |||
| Turret | Turret/tool post | - | NC turret 4 position | NC turret 4 position | NC turret4 position | ||
| Tool shank size | mm | 32×32 | 32×32 | 32×32 | |||
| Feed | X axis travel | mm | 340/420 | 340/420 | 340/420 | ||
| Z axis travel | mm | 1000-6000 | 1000-6000 | 1000-6000 | |||
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |||
| Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | |||
| Tailstock | Tailstock quill diameter | mm | φ100 | φ100 | φ100 | ||
| Tailstock quill taper | - | MT6 | MT6 | MT6 | |||
| Tailstock quil travel | mm | 250 | 250 | 250 | |||
| Motor | Main spindle motor | kW | 11 | 11 | 11 | ||
| Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | |||
| Dimension | Width x Height | mm | 1800×1850 | 1880×1850 | 1880×1850 | ||
| Length | mm | 3000/8300 | 3000/8300 | 3000/8300 | |||
| Weight | Net weight | T | 4 | 4.6-8.6 | 4.7-87 | ||
| Please note: Machine bed length can customize according to real work demand, machine on this page can choose sevo motordirect diving strucure turnng center with C axis. | |||||||
Products Uses
1. Pipeline processing industry
Petrochemical pipelines: Pipelines for oil and natural gas, as well as pipelines for chemical raw materials, usually require high-precision pipe threads to ensure the sealing and strength of pipeline connections, and can withstand the influence of high pressure, high temperature and corrosive media.
2. Mechanical manufacturing field
Hydraulic and pneumatic systems: In the hydraulic and pneumatic systems of various mechanical equipment, pipes such as oil pipes and air pipes need to be connected to various hydraulic components and pneumatic components through pipe threads, such as hydraulic cylinders, cylinders, hydraulic valves, pneumatic valves, etc., to achieve power transmission and control.
3. Automobile manufacturing industry
Braking system: The connection of the brake line has extremely high requirements for sealing and reliability. The high-precision pipe threads processed by CNC pipe thread lathes can ensure the normal transmission of brake fluid in the pipeline and ensure the stability of automobile braking performance.
4. Aerospace field
Aircraft hydraulic system: The hydraulic system of the aircraft needs to withstand extremely high pressure, and the precision and strength requirements of the pipe threads are extremely strict. The CNC pipe thread lathe can process high-precision pipe threads that meet aerospace standards to ensure the safe and reliable operation of the hydraulic system.
Product Video
FAQ
Q: Is your company a factory or trading company?
A: We are a designated lathe manufacturer in China, founded in 1952, with a history of more than 70 years.
Q: What's your main products of your company?
A: We specialized in all kinds of machines, our main products include general CNC lathes, pipe thread lathes, cylinder lathes, heavy-duty lathes, turning and milling machines, machining centers and various industry-specific machines, including all kinds of lathes with flat bed and inclined bed structures.
Q: How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
Q: What is your trade terms?
A: FOB, CFR and CIF all acceptable.
Q: What is your delivery time?
A: Usually, one machine takes 15-20 days. For mass production purchase order at big quantity, it could be discussed with each other case by case.
