Product Introduction

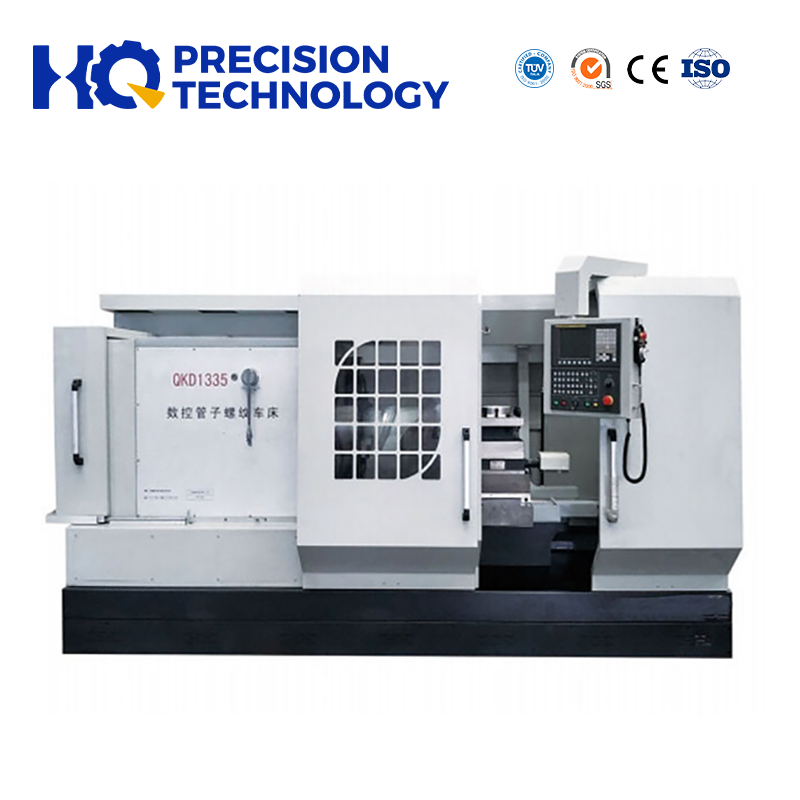

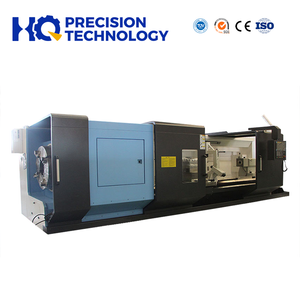

This series CNC pipe threading lathe features a full - servo headstock structure. High Precision CNC Pipe Threading Lathe incorporates a combined electric chuck, significantly streamlining operations. It’s an incredibly high - efficiency solution for processing and repairing drilling pipes, rods, and thread couplings in the oil field.
Moreover,Advanced CNC Pipr Threading Lathe offers all the standard functions of regular CNC lathes. For instance, it can accurately machine the inner bores and end faces of shafts and disks. As a result, it finds extensive applications across multiple industries, including petroleum exploitation, minerals mining, chemical piping, and geological prospecting.
Product Advantage
1. Our company was established in 1952. Over the past 70+ years, we've amassed rich industry experience. Notably, we were a designated pipe thread lathe manufacturer for the former Ministry of National Machinery Industry. During this long - standing journey, we've continuously refined our production techniques and product quality, maintaining our leading position in the industry.
2. The company holds ISO9001 certification, with products renowned for high precision and reliability, especially its leading position in CNC lathe and pipe threading lathes. Provides 365/24 online support and on-site after-sales service by a professional engineering team. Over 5% of annual revenue is invested in R&D, with 30+ completed projects, 30patents(6 invention patents), and collaborations with top research institutions.
3. With an annual output of 1,000 units and 500+ production and precision testing devices. It ensures Universal lathe and Multi-functional manufacturing capabilities. Specializing in medium and large lathes, it offers tailored solutions to meet diverse industry needs.
4. Our operates advanced R&D platforms, including provincial and municipal technology centers, and is equipped with over 500 production and precision testing devices. Specializing in CNC lathes, pipe thread lathes, and machining centers, it produces 1.000units annually, with CNC pipe thread lathes being the most comprehensive in China. Its products are widely sold across 30+ regions in China and exported globally, including Russia, Australia, and Southeast Asia, earning high reputation all over the world.
5. Shandong HQ Precision Technology Co., Ltd. We have prioritized R&D, allocating over 5% of annual revenue to innovation. With 30+completed projects.16provincial initiatives, and 2 key R&D programs,the company has earned multiple awards, including national and provincial science and technology prizes. Its CKY6150 filled a domestic market gap. Collaborating with top research institutes, the company holds 30 patents (6 inventions) and boasts ISO9001 certification, along with honors like "Shandong Province Integrity Demonstration Enterprise" and "Specialized SME".
Technical Parameters
SPECIFICATION | UNIT | QKD1325 | QKD1330 | QKD1335 | |
Capacity | Swing over bed | mm | 800 | 900 | |
Swing over cross slide | mm | 435 | 535 | ||
Distance between centers | mm | 1C00-3000 | 1000-3000 | ||
Pipe heading range | mm | 50-235 | 110-290 | 110-340 | |
Guideway width | mm | 755 | 755 | 755 | |
Max.load capacity | T | 5 | 5 | 5 | |
Spindle | Spindle bore | mm | 240 | 305 | 355 |
Spindle speed steps | - | Stepless | Stepless | ||
Spindle speed range | rpm | 90-450 | SC-350 | 90-350 | |
Chuck | mm | φ630 4-jaw electric | φ780 4-jaw electric | ||

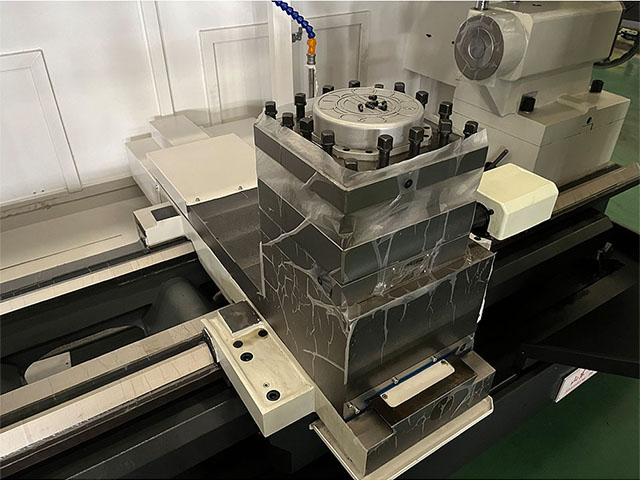

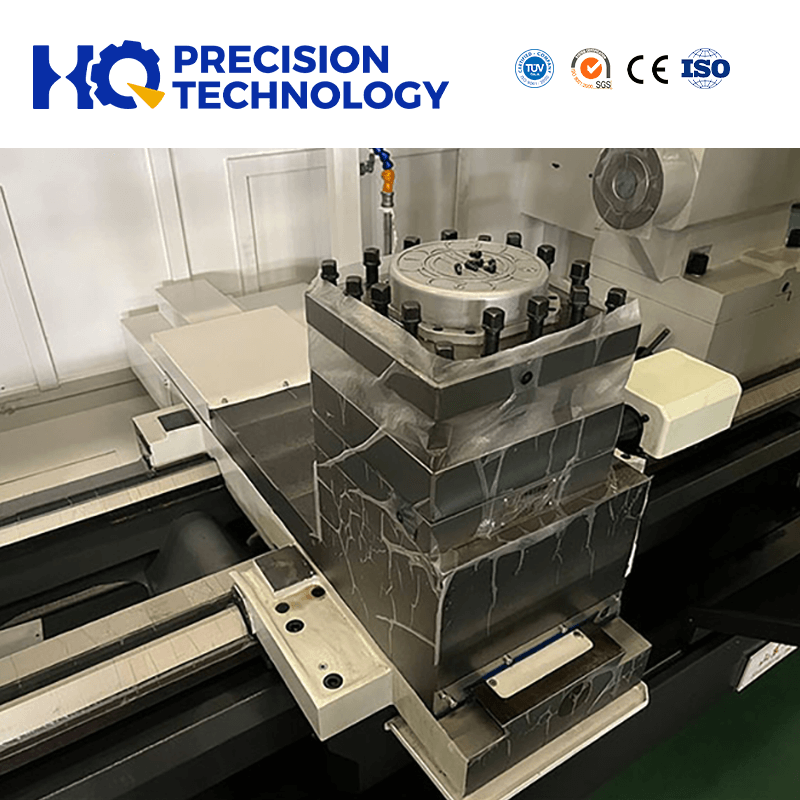

Turret | Turret/tool post | NC turret 4 position | NC turret 4 position | ||
Tool shank size | mm | 32×32 | 40×40 | 40×40 | |
Feed | X axis travel | mm | 480 | 480 | 480 |
Z axis travel(without tailstock) | mm | 1000-3000 | 1000-3000 | 1000-3000 | |
X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |
Z axis rapid traverse | mm/min | 6000 | 6000 | G000 | |
Motor | Main spindle motor | kW | 22 | 22 | 22 |
Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | |
Dimension | Width xHeight | mm | 2050×2050 | 2050×2050 | 2050×2050 |
Length | mm | 3952/5950 | 3952/5950 | 3952/5950 | |
Weight | Net weight | T | 8.1-10 | 89 | 10.9 |
Performance characteristics
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide-way contact surface use Turcite B to maintain accuracy
Big spindle bore and double chucks to ensure processing big diameter pipe

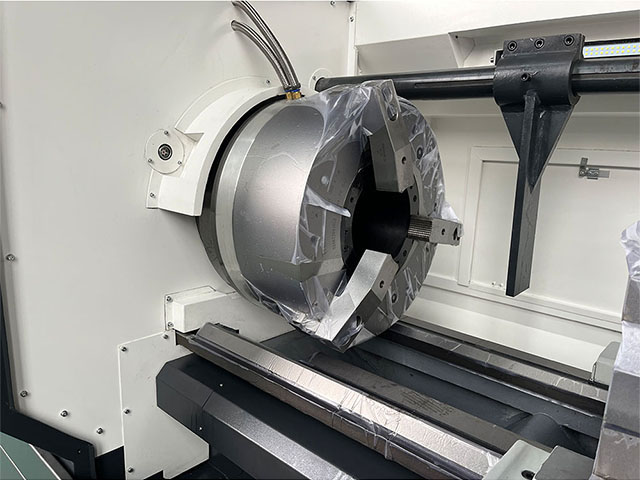

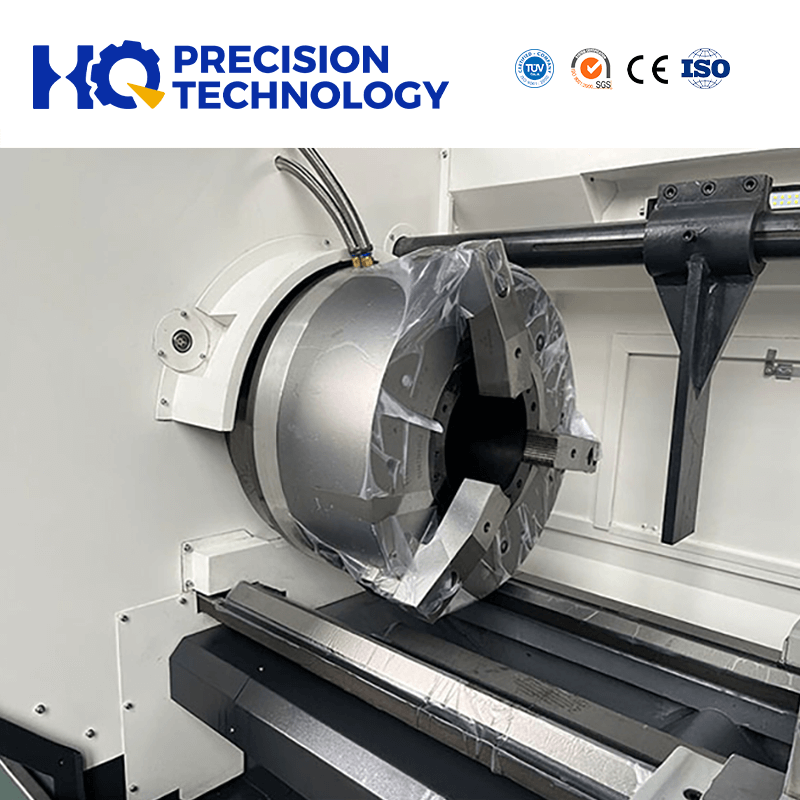

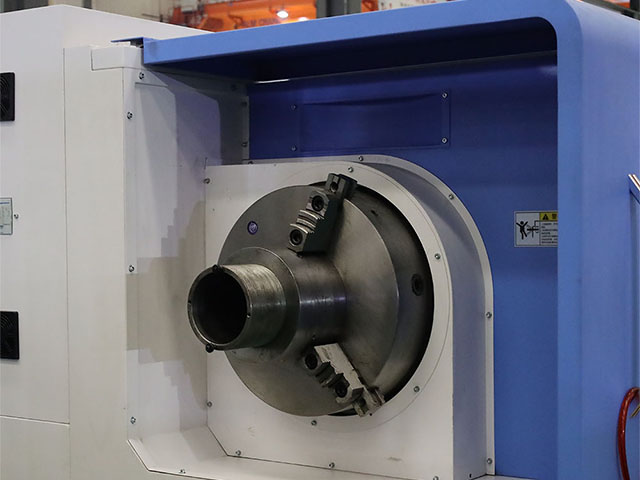

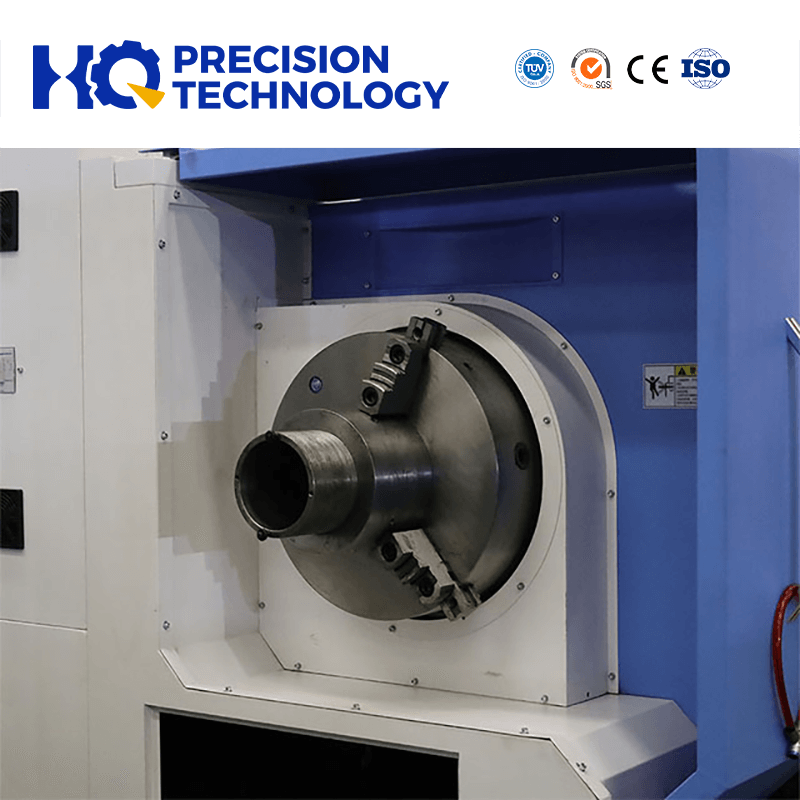

4-jaw electrical chucks ensure high efficiency in improving batch processing
Standard Configuration
Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shied.
Optional Configuration
Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock.

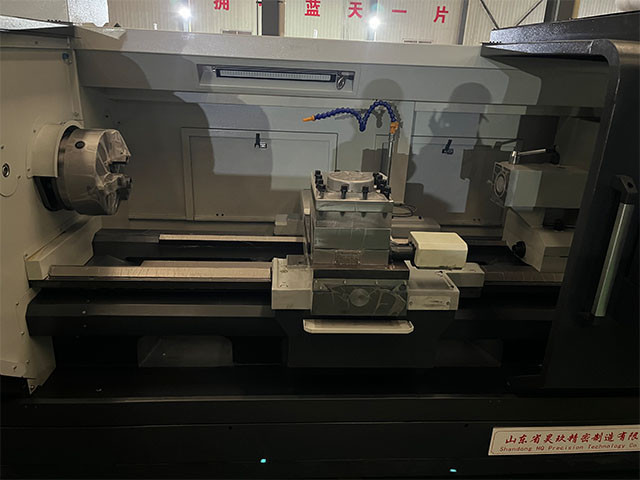

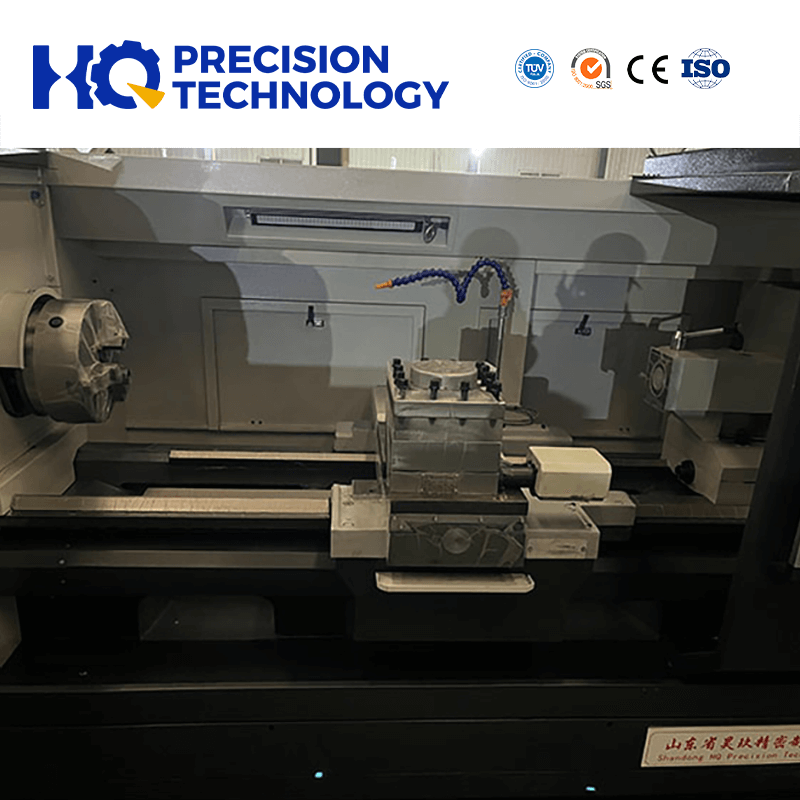

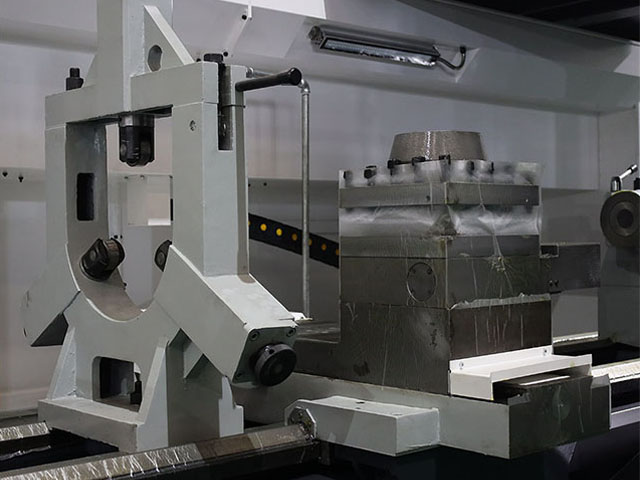

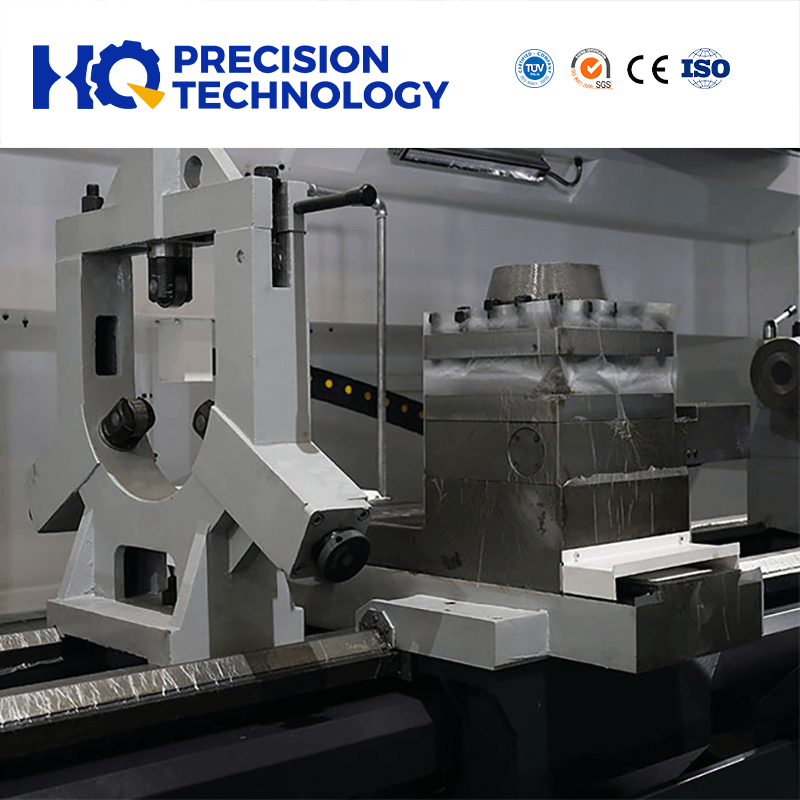

Product Detail Photos
 |  | ||
 |  |  | |
Product Video
FAQ
Q: How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the products drawing, we will choose the most suitable machines for you.
Q: What's your main products of your company?
A: We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine and so on.
Q: Where is our factory located? How can I visit there?
A: Our factory is located in Linyi City, Shandong Province, China. Yes, You are warmly welcomed to visit us.
Q. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
Q: What's the MOQ?
A: 1 set.
Q: Can the machine be customized according to customers?
A: Yes, we provide OEM and ODM service. Our aim is to provide the most suitable and convenient machine for every customer.
