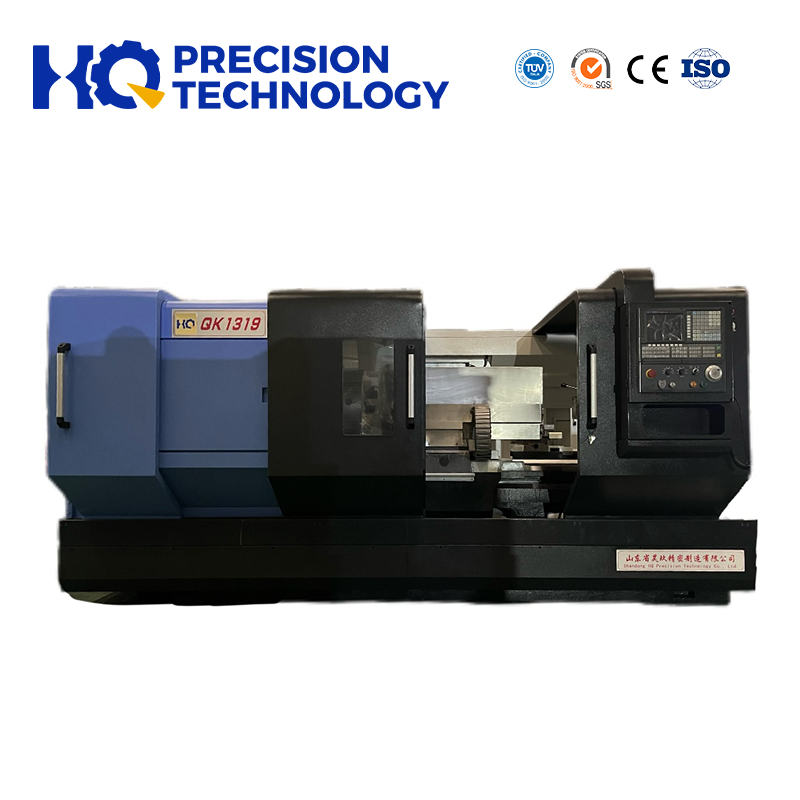

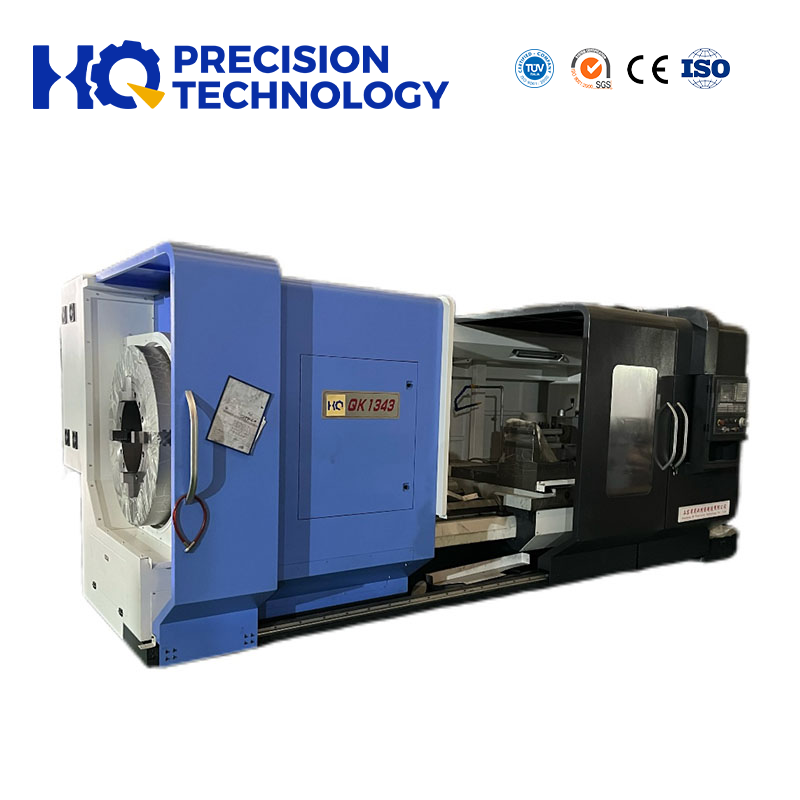

Product Introduction
This series of heavy duty CNC pipe threading lathe is mainly designed for processing internal and external pipe threads of large size pipe, including metric, inch, module, DP and taper threads, as well as having all the common functions of regular CNC lathe such as processing the outer circle, inner bore and end face of shafts and disks, etc.

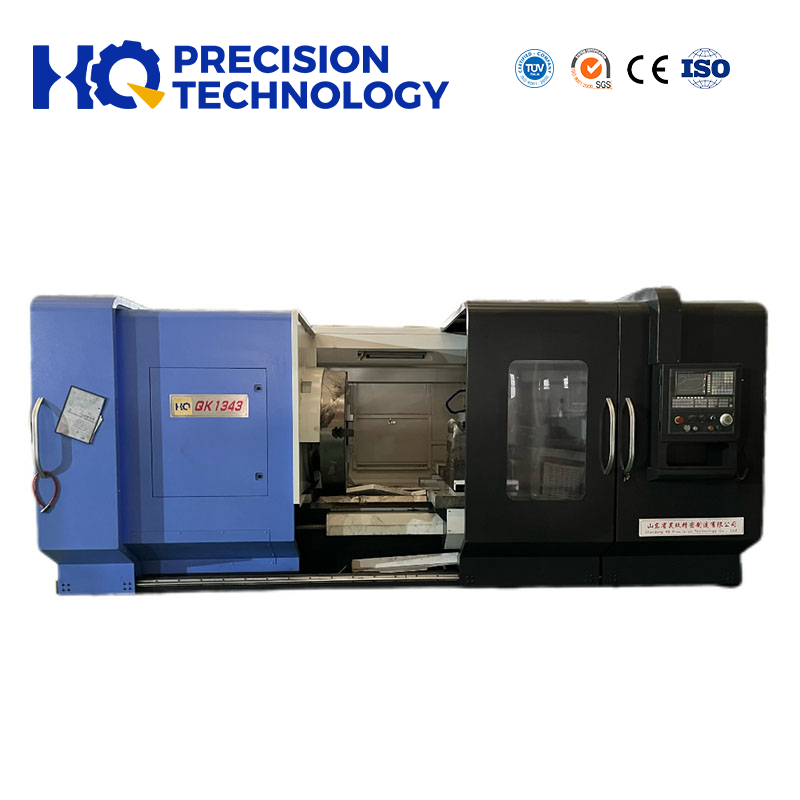

Product Advantage

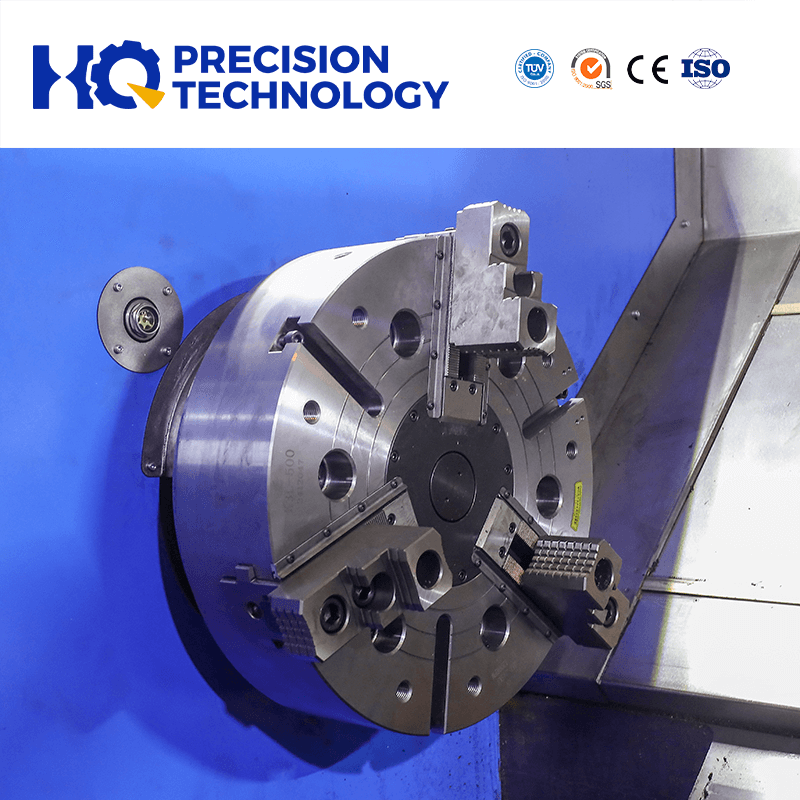

Big spindle bore and double chuck to ensure process large diameter pipe
One-piece bed adopts high strength cast iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
Application
This series of CNC pipe threading lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling, etc.
Technical Parameters
SPECIFICATION | UNIT | QK1343 | QK1350 | QK1363 | |
Capacity | Swing over bed | mm | 1000 | 1200 | 1500 |
Swing over cross slide | mn | 610 | 710 | 900 | |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | |
Pipe threading range | mm | 270-430 | 330-510 | 330-630 | |
Guideway width | mm | 755 | 765 | 1100 | |
Max.load capacity | T | 6 | 6 | 10 | |
Spindle | Spindle bore | mm | 440 | 520 | 640 |
Spindle speed steps | - | VF.3 steps | VF.3 steps | VF.3 steps | |
Spindle speed range | rpm | 10-210 | 10-200 | 1-170 | |
Chuck | mm | φ1000 4-jawelectric | φ1250 4-jaw manual | ||
Turret | Turret/tool post | NC turret 4 position | |||
Tool shank size | mm | 40×40 | 50×50 | 50×50 | |
Feed | X axis travel | mm | 520 | 520 | 750 |
Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 | |
X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |
Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | |
Tailstock | Tailstock quill diameter | mm | 160 | 160 | φ260 |
Tailstock quill taper | - | MT6 | MT6 | Metric 80 | |
Tailstock quill travel | mm | 300 | 300 | 300 | |
Motor | Main spindle moor | kW | 22 | 22 | 37 |
Coolant pump motor | KW | 0.25 | 0.25 | 0.25 | |
Dimension | Width x Height | mm | 2220×2120 | 2300×2200 | 2500×2500 |
Length | mm | 5000/6500 | 5000/6500 | 5600/7100 | |
Weight | Net weight | T | 13.0/14.0 | 15.0/16.0 | 18.0/19.3 |
Please note: Machine bed length can be customized according to real work demand. Extra-long bed and simple protective cover can be customized for the heavy duty CNC pipe threading lathe. | |||||
Standard Configuration
This CNC pipe threading lathe's standard configuration: Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield.

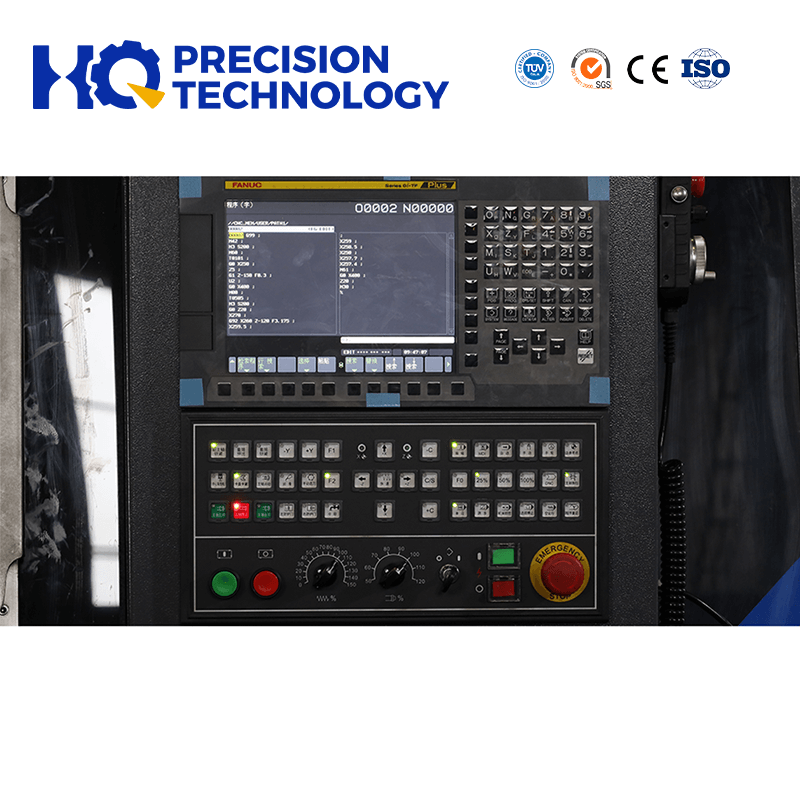

Optional Accessories
Optional parts or brand for this CNC pipe threading lathe: FANUC CNC controller or other brand, hydraulic turret or power turret, full shield.
Product Video
FAQ
Q: Is your company a factory or trading company?
A: We are a designated lathe manufacturer in China, founded in 1952, with a history of more than 70 years.
Q: What are your company's main products?
A: We specialize in all kinds of machines, such as CNC Lathe Machines, CNC pipe threading lathe, CNC Milling Machines, Vertical Machining Centers, Lathe Machines, Drilling Machines and so on.
Q: What is your MOQ of CNC pipe threading lathe?
A: 1 set.
Q: How long is the warranty period for your machines?
A: The warranty period for our machines is one year, starting from the completion of commissioning. During the warranty period, we will repair or replace any parts damaged due to manufacturing defects for free.
Q: Do you provide technical support if I encounter problems during use?
A: Absolutely, we provide comprehensive technical support. You can contact our technical team via phone, email, or online chat, and they will be happy to assist you with any questions.
Q: Do your machines support customization?
A: Yes, we offer customization services. You can contact us with your specific requirements, such as size, functionality, color, etc., and we will customize the CNC pipe threading lathe according to your needs.
