China’s Leading CNC Pipe Threading Lathe Ships To Brazil – Precision, Affordability & Global Trust!

China's Leading CNC Pipe Threading Lathe Ships to Brazil – Precision, Affordability & Global Trust!

2 month ago, our Brazilian client ordered a high-performance QK1319x3000 CNC Pipe Threading Lathe, which embarked on its journey to South America last week. After a 30–50-day voyage, this advanced machine will soon boost our client’s productivity with unmatched precision and reliability.

Why Choose HQ CNC Pipe Threading Lathes?

As China's top manufacturer of pipe threading lathes, HQ offers the most comprehensive bore range (30mm–630mm) and specialize in machining pipes with API Spec 5B, 5CT, 7-1, 7-2, drill tools, casing threads, metric/imperial threads, and custom threads. HQ CNC pipe threading lathes are highly praised worldwide for their superior quality and cost-effectiveness!

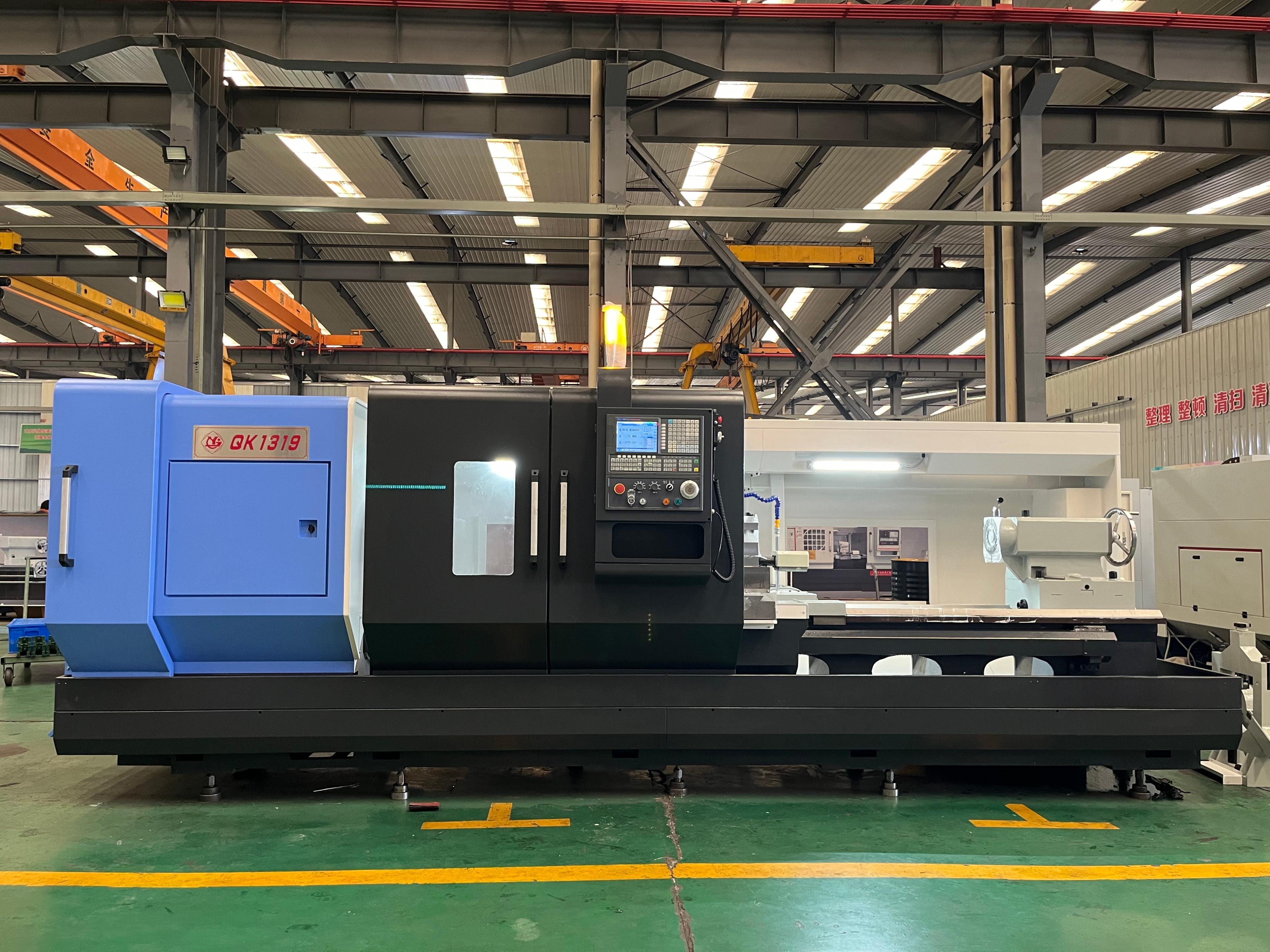

Key Features of the QK1319x3000 Pipe Threading Lathe Machine:

1. Wide Processing Range

Pipe diameter Range: Ø50–Ø193mm;

2. Versatile Machining Capabilities

HQ CNC pipe threading lathes are designed for semi-finishing and finishing of shafts, discs, drilling, and tapping.

Equipped with an advanced CNC system for straight/tapered turning, arcs (cylindrical, spherical, conical), and metric/imperial threads.

Ideal for complex, high-precision parts like sleeves, discs, and shafts.

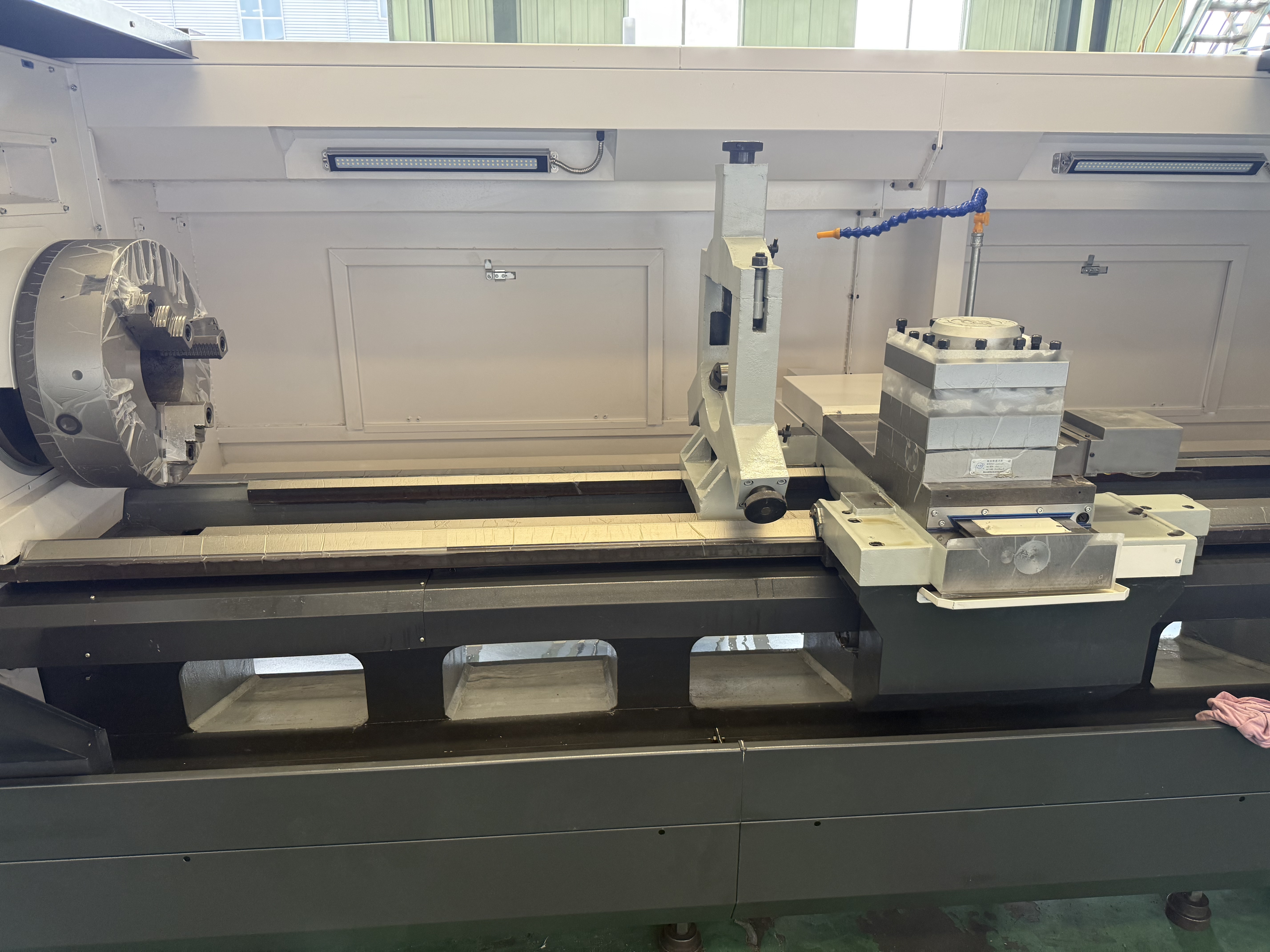

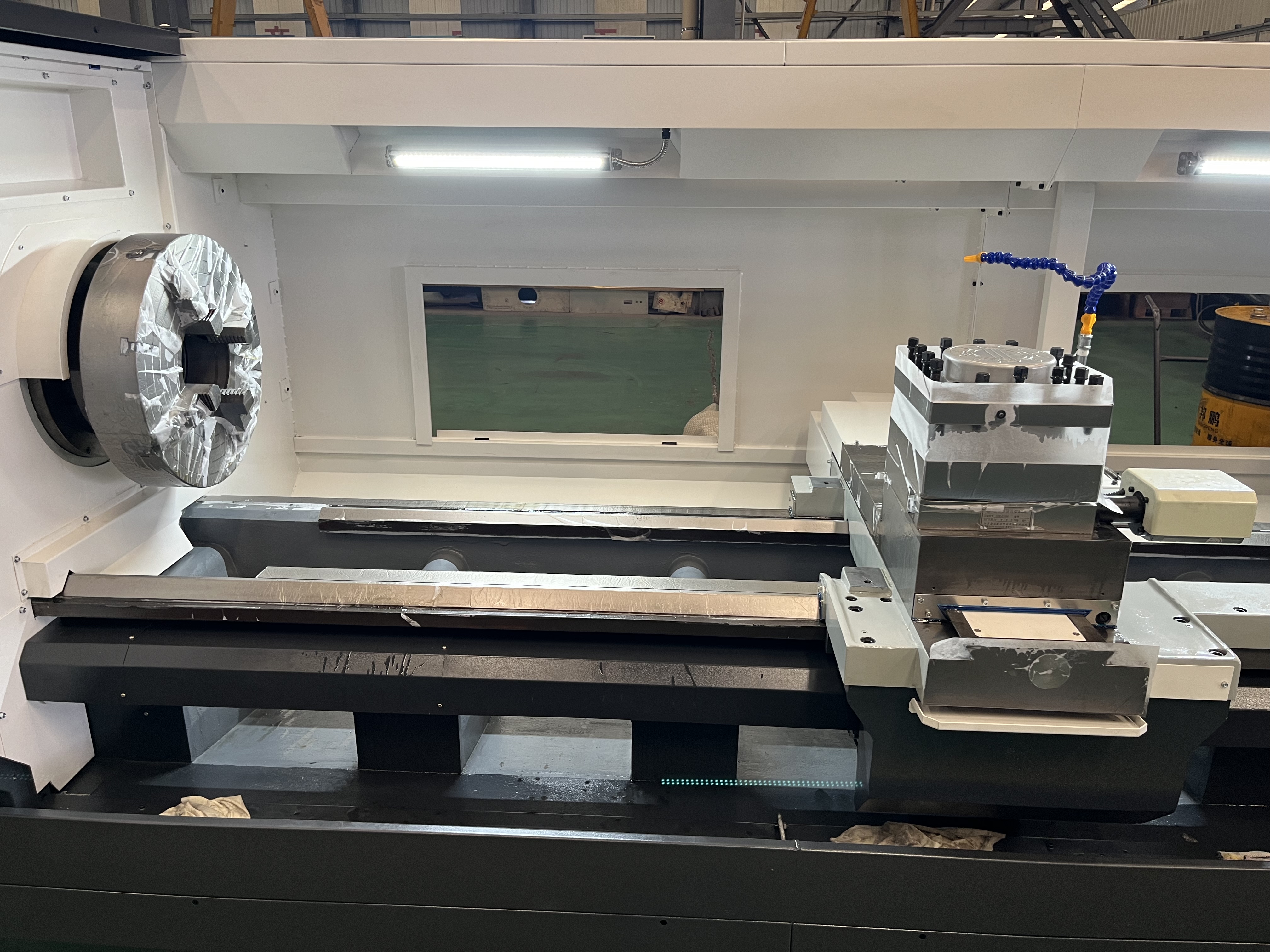

3. Robust & Stable Construction

Solid HT300 cast iron bed (550mm width) with "Mountain-Flat" guideway structure for superior rigidity. (HQ has its own casting workshop, which is not common for most suppliers, the quality is strictly controlled).

High-frequency hardened & ground guide rails (anti-friction treatment) prevents low-speed crawling for ultra-smooth operation.

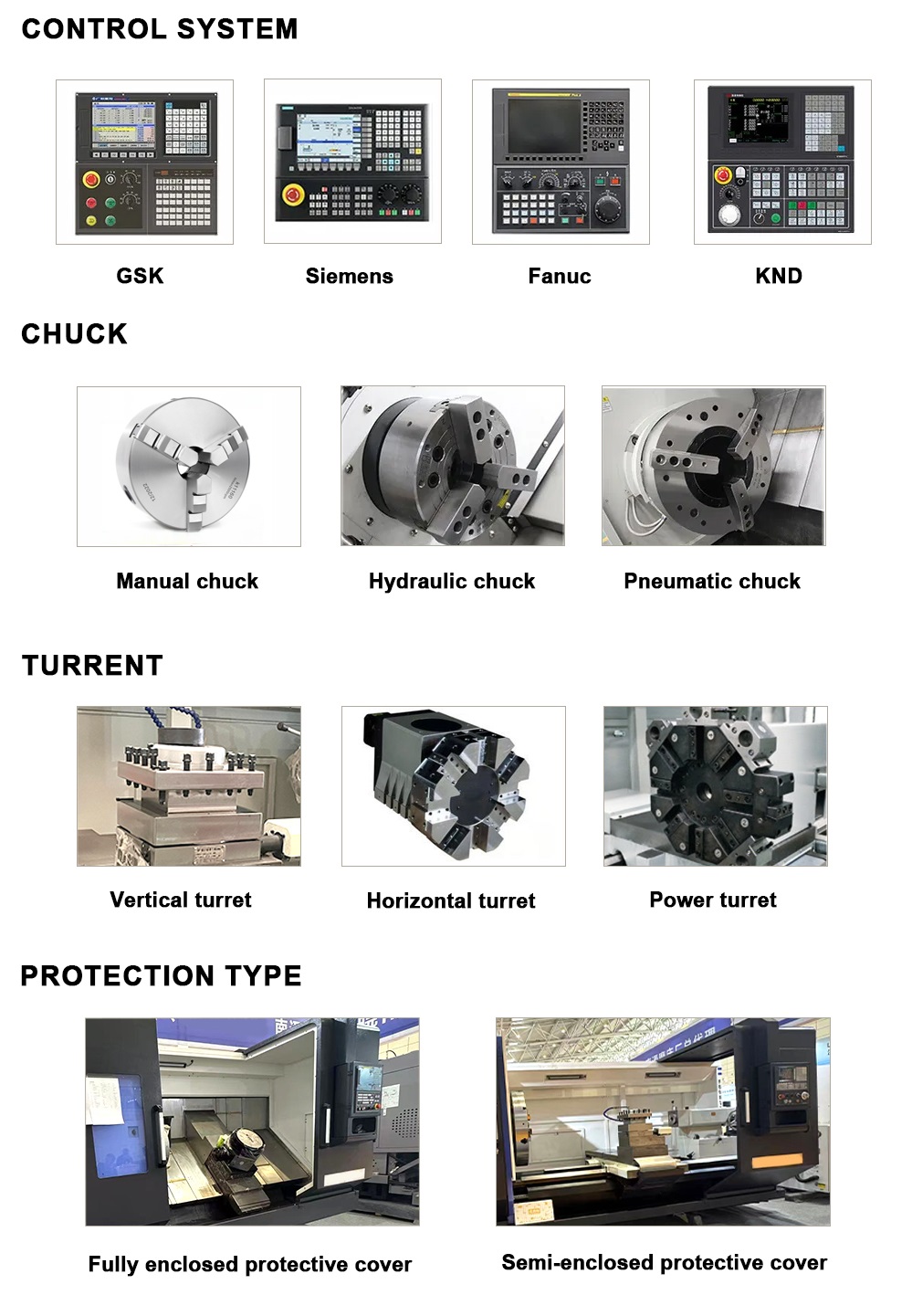

4. Customizable Configurations

Control Systems: GSK, FANUC, SIEMENS, or others.

Tool Holders: Standard 4-station vertical turret (optional horizontal electric/hydraulic turret).

Tailstock: Manual or hydraulic.

Auto chip conveyor: optional

Full enclosure: Optional (Standard is semi-enclosure)

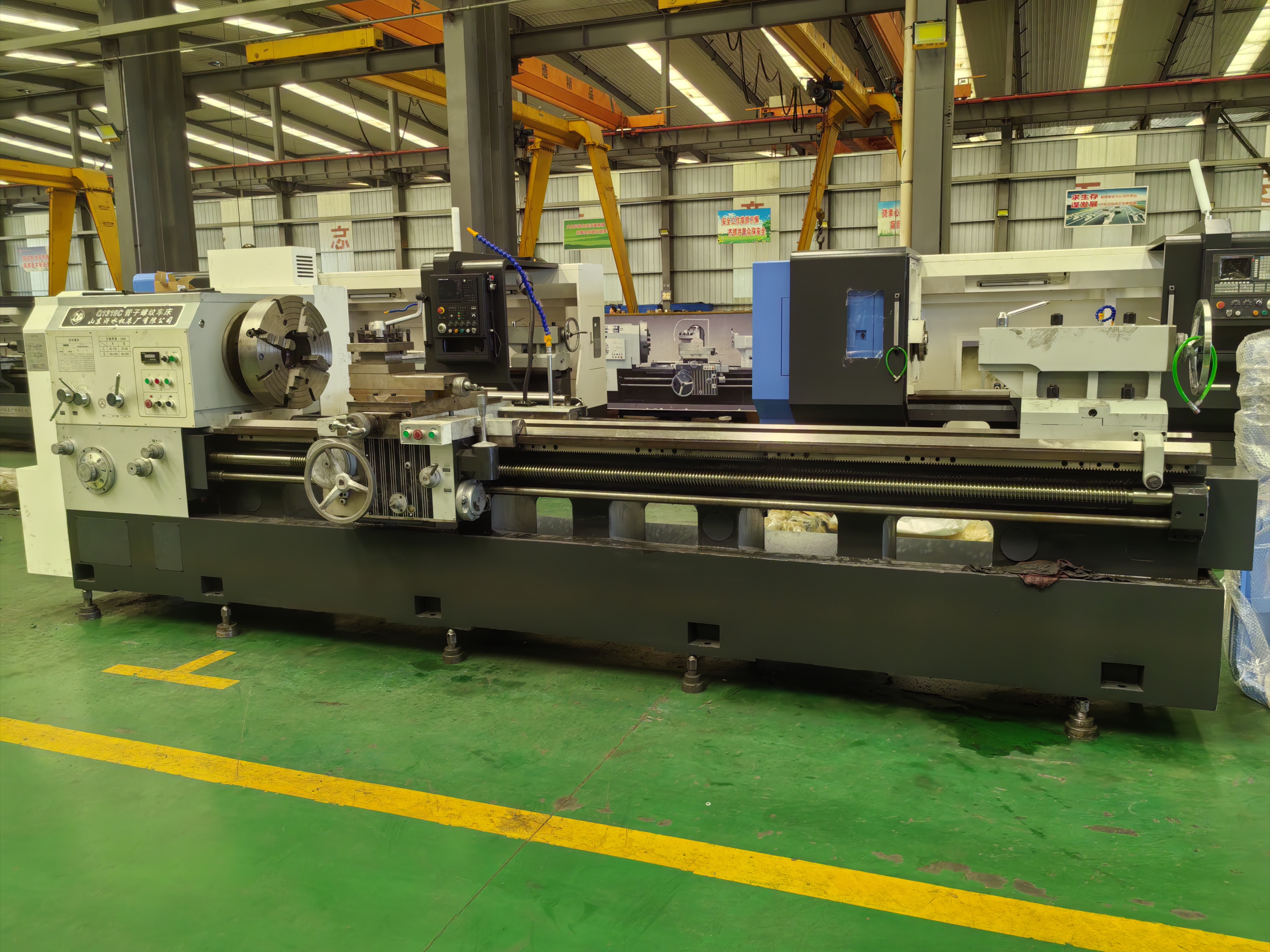

More Than Just CNC lathes– HQ Excel in Manual Lathes Too!

Except CNC lathe, manual lathe are our strong point. Manual lathes are more strict for the experience and technical capabilities of a manufacturer, because the production of manual lathes has more process flows than CNC lathes, and request for higher skills of the assemblers, while for the CNC lathe is not.

Struggling to Select the Right Lathe for Your Needs?

With so many options available, choosing the perfect lathe machine can be overwhelming. Whether you need a high-precision CNC lathe for complex threading or a robust manual lathe for general machining, our team of experts is here to guide you every step of the way. Contact us now!
