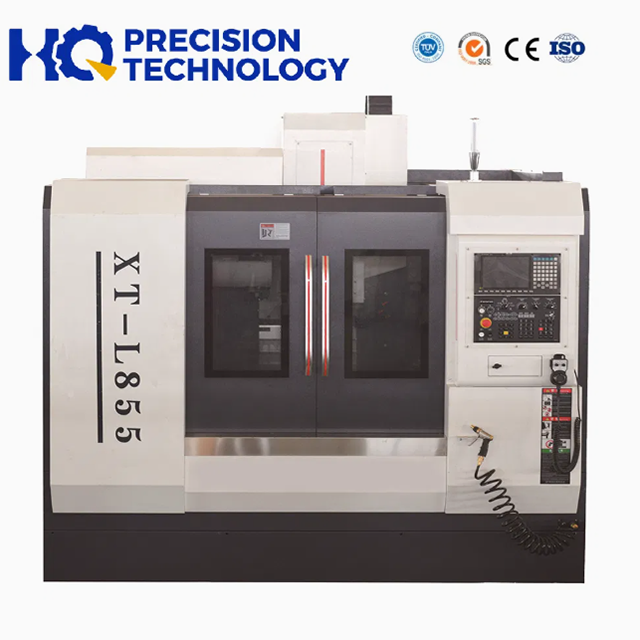

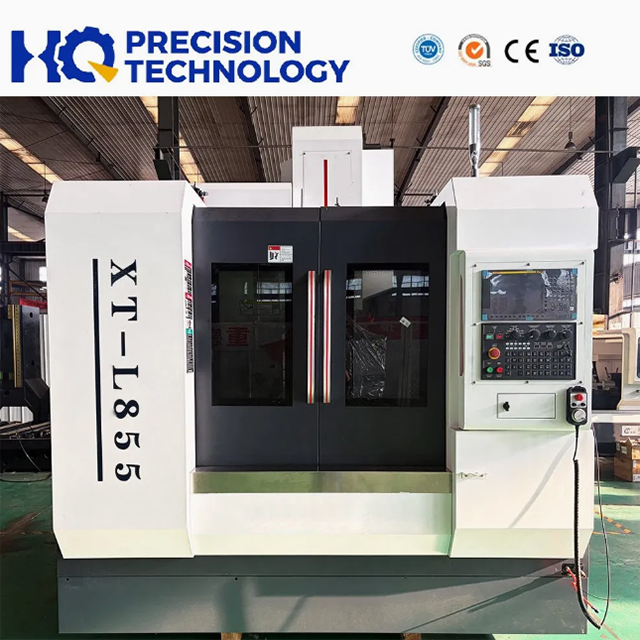

The XT‑855 vertical machining centre is designed for efficient metal milling, drilling, tapping and contour machining. Suitable for general precision manufacturing workshops, this CNC vertical machining centre delivers stable performance in the mass production of mechanical metal parts.

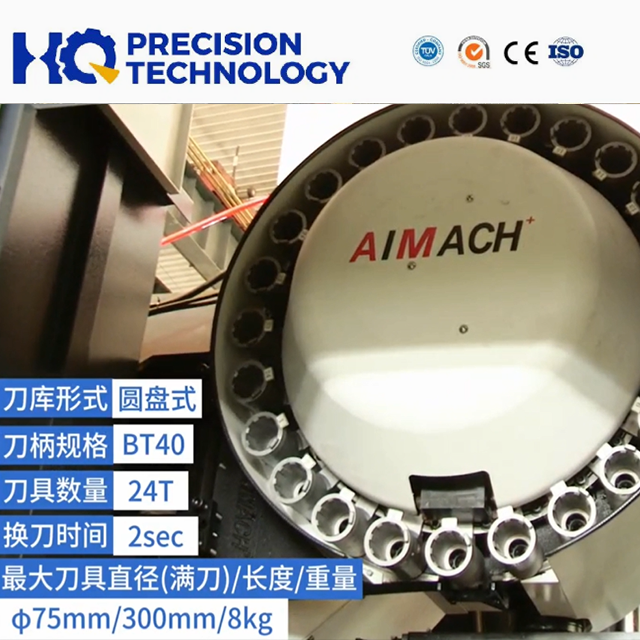

Equipped with a KND220M CNC system, BT40 spindle unit and 24-slot arm-type tool magazine, the vertical machining centre strikes a balance between high-speed feed motion and structural rigidity. It is widely used in automotive parts, mould processing, hardware machinery and other metal cutting scenarios.
Below lists the full core technical data of this CNC vertical machining centre for your quick reference.
Item | Specification |
|---|---|
Model | XT‑855 Vertical Machining Centre |
X‑Axis Travel | 800 mm (4016 ball screw, 35 roller linear guideway) |
Y‑Axis Travel | 550 mm (4016 ball screw, 45 roller linear guideway) |
Z‑Axis Travel | 550 mm (4016 ball screw, 45 roller linear guideway) |
Spindle Nose to Worktable | 120‑670 mm |
Spindle Centre to Column | 590 mm |

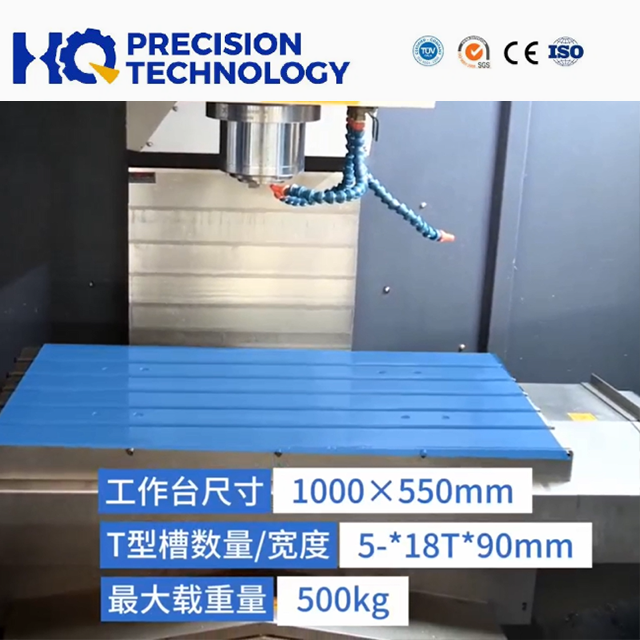

Worktable Dimension | 550 mm × 1000 mm |
Max Table Loading Weight | 500 kg |
T‑slot | 5 slots ×18 mm ×90 mm |
Spindle Taper | BT40 |
Max Spindle Speed | 8000 rpm |
Spindle Motor Power | 11 kW |
X/Y Axis Servo Motor Power | 2.9 kW (18.6 Nm) |
Z Axis Servo Motor Power | 4.2 kW (27 Nm) |
Cutting Feed Rate | 0‑8000 mm/min |
Rapid Traverse Speed X/Y/Z | 32000 mm/min |
Required Air Pressure | ≥6 kgf/cm² |
Machine Net Weight | Approx. 5500 kg |
Floor Occupation Dimension | 2700 mm(L) ×3000 mm(W) ×2600 mm(H) |
Built with cross‑slide bed layout, this CNC vertical machining centre uses resin‑sand cast main parts. Reinforced box‑shaped castings go through stress‑relief aging, securing great rigidity, stability and lasting precision for daily machining tasks.
Fitted with Japan / Germany high‑precision angular contact bearings, the vertical machining centre reaches 8000 rpm via timing‑belt drive. Pneumatic unclamping cylinder enables quick, secure tool changes for non‑stop metal cutting.
X/Y/Z axes come with Taiwan‑sourced roller linear guideways and C3‑grade ball screws (40 mm diameter, 16 mm lead). Heavy‑duty bearing supports lower thermal shift and maintain stable positioning for this vertical machining centre.
A timed‑dose central lubrication unit feeds rails and ball screws to cut component wear. Industrial‑grade pneumatic parts with DC24V solenoid valves deliver steady performance for tool release and auxiliary machine functions.
Stainless steel telescopic shields guard guide rails and ball screws from chips and coolant damage. Safe stroke limits are built‑in; the vertical machining centre follows standard industrial safety requirements for workshop operators.
This vertical machining centre comes with full set of standard accessories right out of factory:
Central automatic lubrication system
Working completion warning lamp
Hand‑held electronic MPG handwheel
Coolant circulation system
Machine working lamp
Pneumatic tool pull‑off device
Air gun and water gun for machine cleaning
Tool box and complete paper‑form operation documents
Critical spare parts of this vertical machining centre select well‑known global and Taiwan‑sourced brands for stable quality:
CNC Controller: KND220M (KND, China Beijing)
Spindle & 3‑axis servo motor: KND servo system
Spindle unit: Taiwan‑made BT40 spindle
Tool magazine: Taiwan‑funded brands
Guideways & ball screws: HIWIN / PMI from Taiwan
Screw support bearings: NSK from Japan
Tool unclamping cylinder: Taiwan‑funded brand
Electrical components: Schneider; Pneumatic parts: AIRTAC
Custom solutions are available. Feel free to contact us for your requirements.
