Product Introduction

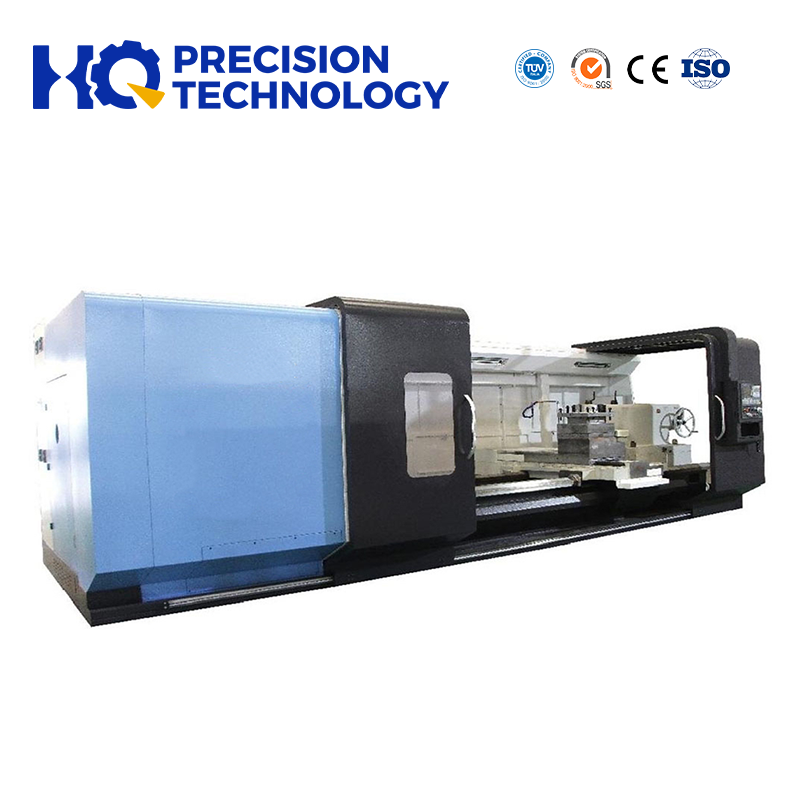

This series of Horizontal Heavy Duty CNC Lathe, which combines the features of a Flat Bed Lathe and a Universal Lathe, is developed by our company. Leveraging our long - term production experience, we've assimilated the latest international advanced technology. By adopting advanced design and manufacturing methods like simulation design, three - dimensional modelling, and finite element analysis, we've crafted a modular - configured Multi - functional CNC Lathe. This Heavy Duty Lathe is a remarkable electromechanical integration product that fuses electrical, hydraulic control, automatic control, and modern mechanical design with multiple categories of precision manufacturing technology. As a High precision CNC Lathe and High efficiency Lathe, it is also ideal for Metal Processing Lathe tasks, meeting the needs of OEM/ODM Lathe projects. This machine tool boasts excellent structural performance, with high dynamic and static stiffness, a long service life, high processing efficiency, safe and reliable functions, convenient operation, and a beautiful appearance. Regarding product configuration, the range and quantity of the open and closed center rest can be customized according to users' requirements. We can also provide additional features such as a double turret, milling and boring device, grinding device, iron chip conveyor, and tool cooling system to further enhance its functionality.
About product configuration, the range and quantity of the open and closed center rest can be configured according to the requirements of the users. According to the user requirements, can provide double turret, milling and boring device, grinding device, iron chip conveyor, tool cooling system, etc.
Product Performance
The spindle of the spindle box is a through-axis structure, which adopts high-precision double-column cylindrical roller bearing support, with high precision and good stability.
The main drive is driven by AC spindle servo motor or DC motor, with hydraulic two gears, stepless speed regulation in gear, wide speed regulation range and good adaptability.
The bed guide way adopts integral three-guide rail or integral four-guide rail, and adopts fine grinding processing method. The main guide rail surface of the bed body is treated by medium frequency quenching, and the hardness can reach HRC52.
The tailstock is an integral box structure, the mandrel in the sleeve adopts double row short cylind rical roller bearing with high precision and adjustable radial clearance.
The turret horizontal adopts ball screw, longitudinal adopts high precision rack and double tooth rod gap structure, improve the transmission precision of the knife frame.
The machine is equipped with walking platform and hanging button station for easy operation.
CK61XXC is 32T, G is 40t, G/l is 50t.

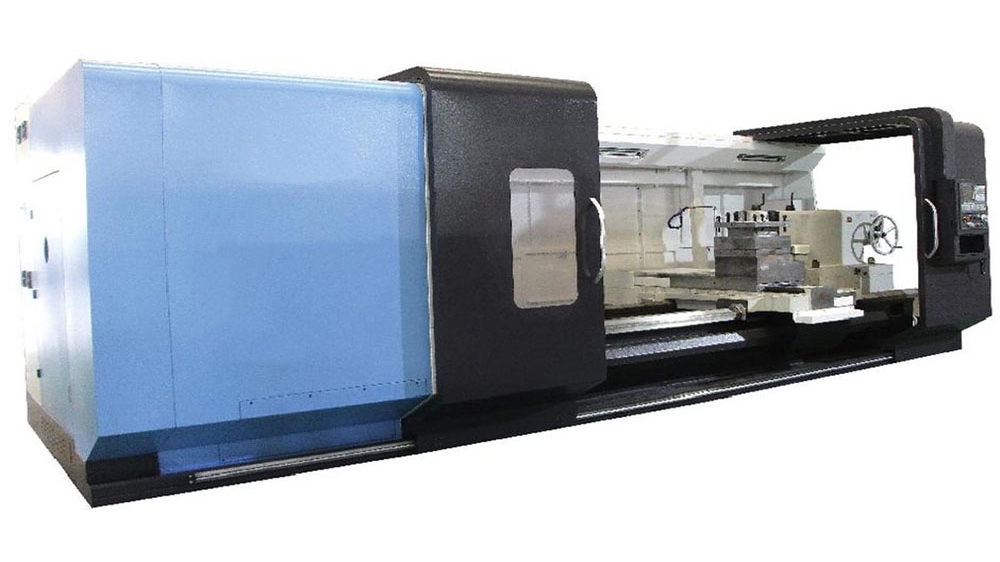

Detail Pictures
CNC Lathe |
High Precision CNC Lathe |
Heavy Duty Lathe |
Lathe |
Multi-functional CNC Lathe |
Slant Bed Lathe |
Technical Parameters
| Specifications | Model | ||
| CKY61160C, G, G/I | CKY61200C, G, G/I | CKY61250C, G, G/I | |
| Maximum swing diameter over the bed | 1600mm | 2000mm | 2500mm |
| Maximum swing diameter over the turret | 1250mm | 1600mm | 2000mm |
| Maximum length of the workpiece between centers | 4-20mm | ||
| Maximum machining weight of the workpiece between centers | 32t, 40t, 50t | ||
| Type of the bed guideway | Overall three - guideway or overall four - guideway | ||
| Width of the bed guideway | 1615mm | 1850mm | 2050mm |
| Diameter of the faceplate | 1600mm | 1600mm | 2000mm |
| Spindle speed range | 0.8-160r/Min | 0.8-160r/Min | 0.8-160r/Min |
| Number of spindle speed change steps | Hydraulic two - speed range with stepless speed within each range | ||
| Stroke of the tailstock quill | 300mm | ||
| Type of the turret | Frame - type turret, four - position electric turret | ||
| Feed rate range of the turret | 0.1-1000mm/Min | ||
| Rapid traverse speed of the turret | 4000mm/Min | ||
| Number of turret feed steps | Stepless speed | ||
| Power of the main motor | 90kW | ||
| Numerical control system | GSK980TDI, KND1000T, Siemens 828D | ||
Products Uses
1. Power Generation Equipment Manufacturing
Heavy horizontal lathes are crucial in manufacturing components for power plants. They can precisely machine large - scale turbine shafts, ensuring they meet strict dimensional and balance requirements, thus guaranteeing stable power generation.
2. Shipbuilding Industry
In shipbuilding, these lathes play a vital role. They're used to fabricate propeller shafts, which must withstand extreme forces. Their high - precision machining ensures smooth ship operation and reduces vibration.
3. Oil and Gas Equipment Production
For the oil and gas industry, heavy horizontal lathes machine parts like large - diameter drill collars. These parts need to endure harsh underground conditions, and the lathes' capabilities ensure reliable product quality.
4. Mining Machinery Manufacturing
When manufacturing mining equipment such as large - scale conveyor rollers, heavy horizontal lathes come in handy. Their robust construction allows for efficient machining of oversized components used in mines.
Product Video
FAQ
Q: What types of lathes do you offer?
A: We specialize in a diverse range of lathes. Our offerings include high - precision CNC lathes, traditional engine lathes, compact bench lathes, and robust heavy - duty industrial lathes. Each category has models with varying spindle speeds, swing diameters, and automation levels to meet different customer needs.
Q: Can you customize lathes for specific requirements?
A: Absolutely. Our company provides comprehensive OEM/ODM services. We can customize spindle configurations, bed lengths, and integrate various control systems like Siemens and Fanuc. Additionally, we offer automation integration. Share your specific specs, and we'll design a tailor - made solution.
Q: How long is the production lead time?
A: Typically, the production lead time for our products is 15 - 25 days. However, if the lathe you're interested in is in stock, we can arrange delivery within 7 days. The exact duration hinges on the model and quantity of your order.
Q: Where is your factory located? How can I visit there?
A: Our factory is strategically located in Yishui County, Shandong Province, China. We warmly welcome clients to conduct quality inspections and factory audits. Just let us know your visit plan, and we'll arrange proper reception.
