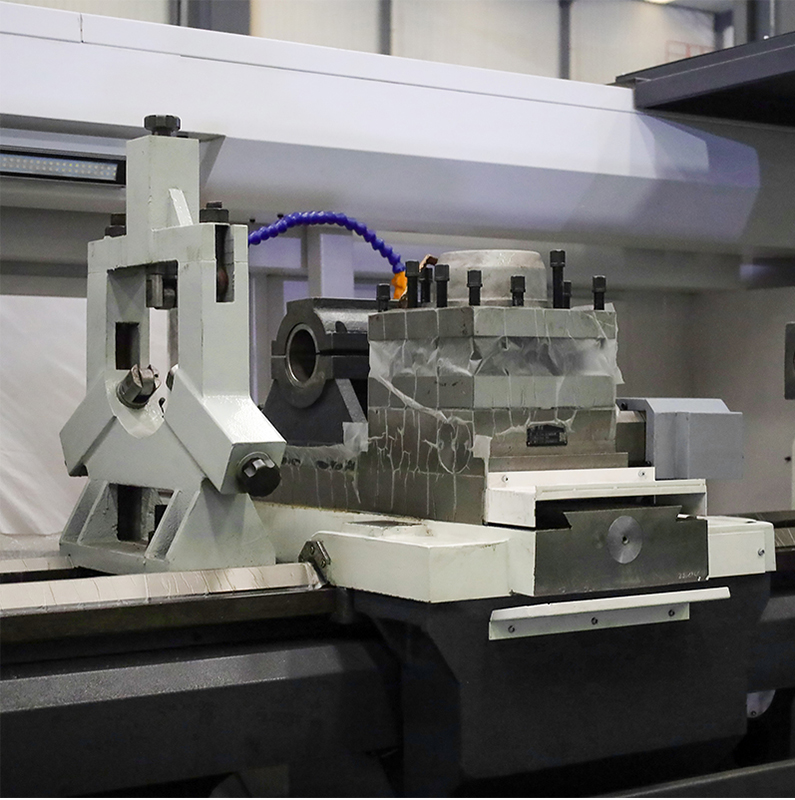

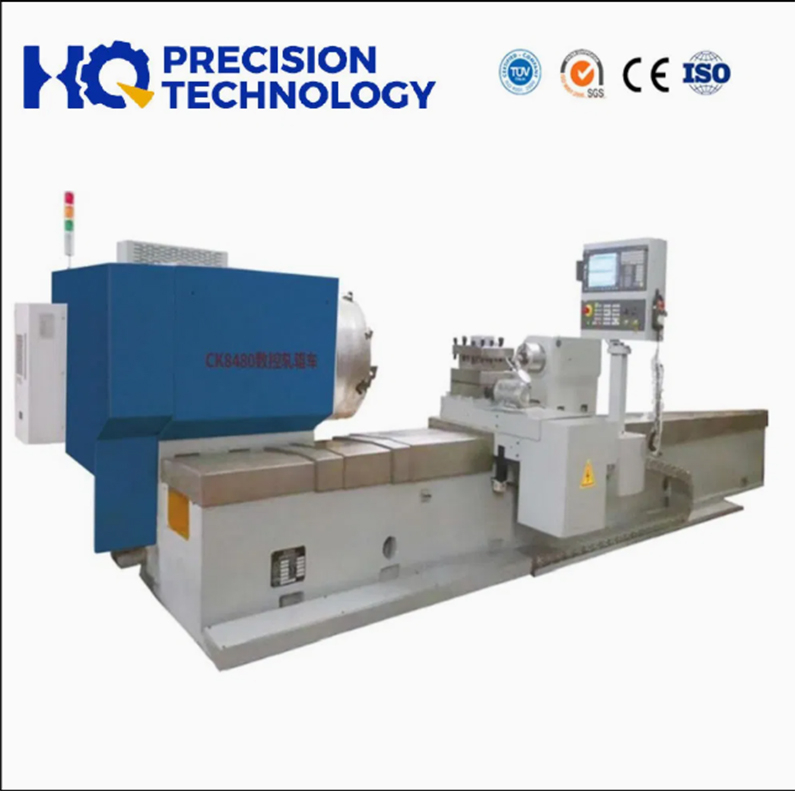

The bed of this CNC Roller Lathe has three guide rails, usually made of high-strength cast iron or steel, it has sufficient rigidity and stability to with stand the loads and vibrations during the machining process. The spindle typically has high-precision bearings and a cooling system to ensure stable machining performance. The machine is mainly used for roll pass processing, but also can turn the outer circle of the roll, roll neck, etc.. Applicable to cutting cast steel forged steel, alloy steel, cold cast iron, ductile iron and other material.
1. Multifunctional: In addition to turning straight lines, oblique lines, arcs (cylindrical surfaces, revolving surfaces, spherical surfaces, conical surfaces), straight and conical metric and imperial threads, it is also suitable for processing various discs, sleeves and shaft parts with complex shapes and high precision.
2. Reasonable design: The machine tool adopts a three-guide flat bed, which is easy to operate and adjust, convenient for chip removal, and conducive to workpiece loading and unloading.
3. Well-made: The longitudinal and transverse guides are medium-frequency quenching guides to improve the response speed of the machine tool.
4. Reliable material: Our company independently casts, the bed uses HT300, and the bed head uses HT250. Compared with ordinary cast iron bed, it has higher strength and hardness, better load-bearing capacity and stability, higher precision, and can also extend the service life of the machine tool.

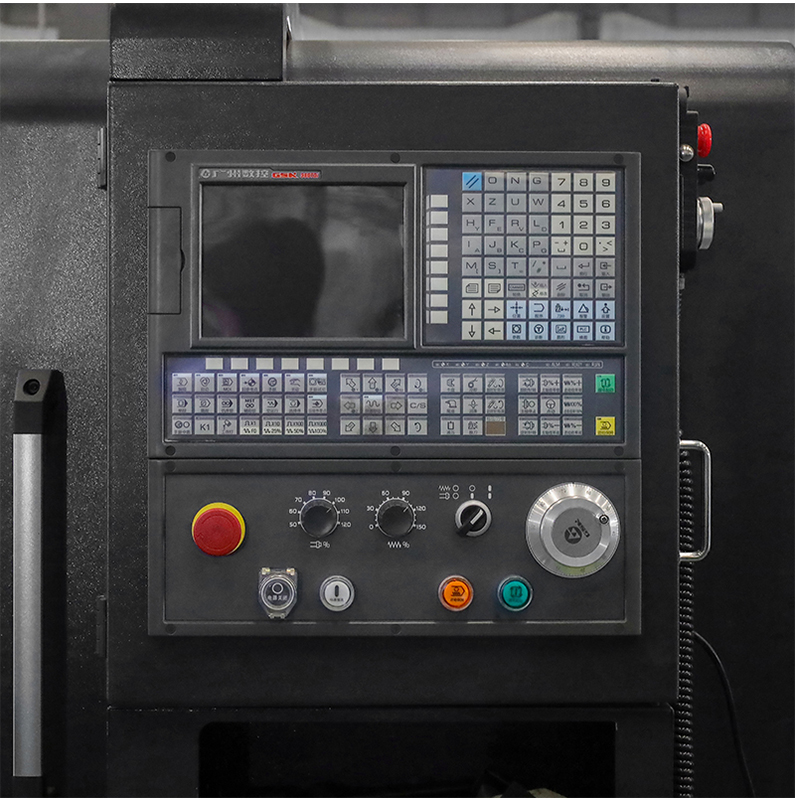

5. Good user-friendliness: The operation interface is simple and easy to operate.
Project | Unit | CK8450 | CK8463 | CK8480 | CK84100 |
Maximum rotation diameter on the bed | mm | 500 | 630 | 800 | 1000 |
Maximum workpiece length between two centers | mm | 3000 | 3000-6000 | 3000-6000 | 3000-6000 |
Maximum weight of workpiece | 3 | 3-6 | 3-6 | 8 | |
Bed rail width | mm | 700(Three guide rails) | 880(Three guide rails) | 880(Three guide rails) | 1350(Three guide rails) |
Spindle speed range | r/min | 10-400r/min | 10-400r/min | 10-400r/min | 10-250r/min |
Spindle speed stages | Hydraulic two-speed, stepless | Hydraulic two-speed, stepless | Hydraulic two-speed, stepless | ||
Tailstock quill stroke | mm | 250 | |||
Tool holder form | Four-station electric tool holder | ||||
Tool holder feed range | mm/min | 0.1-1000 | |||
Rapid moving speed of tool holder | mm/min | 4000 | |||
Main motor power | kW | 15-30kW | |||
Cnc system | GSK980TDI, Kaneti1000T, Siemens828D |
