Product Introduction

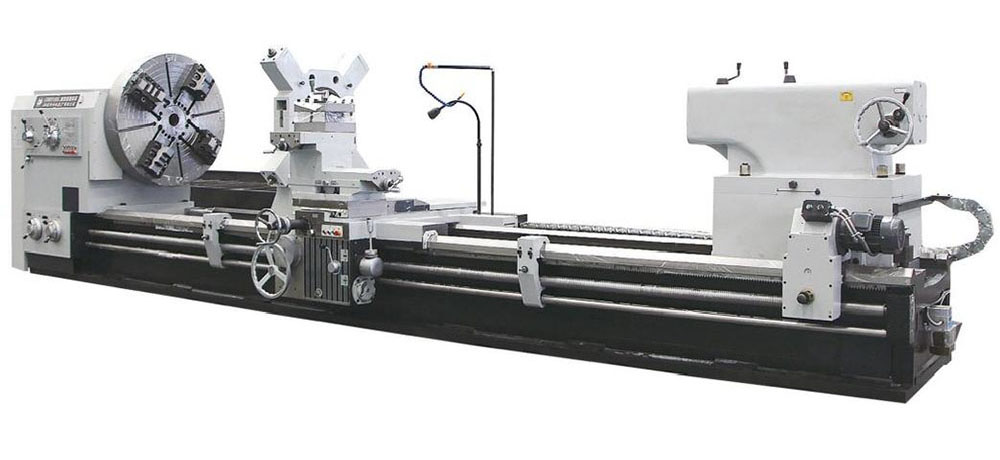

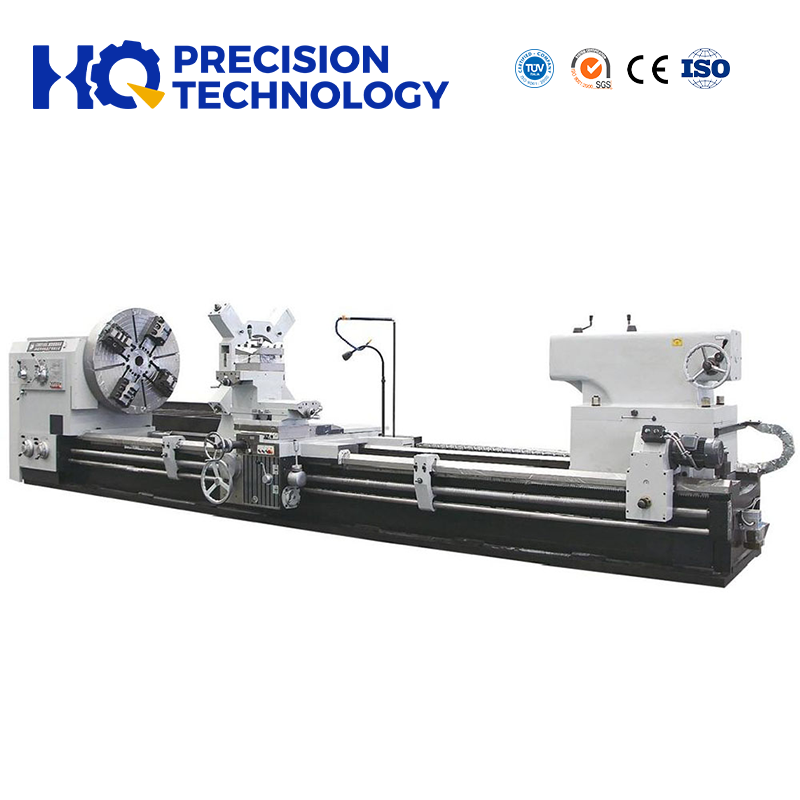

This series of heavy - duty Conventional Lathe, also a type of Horizontal and Flat Bed Lathe, serves as a versatile Universal Lathe. It primarily undertakes diverse turning operations in Metal Turning Lathe applications. It can precisely turn the end face, outer circle, inner hole, and various threads such as metric, inch, module, and diametral pitch threads on different parts. The upper carriage offers flexibility, capable of cutting short cones independently or long cones in tandem with longitudinal feed. Additionally, it functions for drilling nesting and boring, making it a Multi - functional Lathe. With high power, speed, and rigidity, it's suitable for OEM/ODM Lathe needs. Hard alloy tools enable powerful turning of ferrous and non - ferrous metals, ensuring high - efficiency machining.
Product Advantage
1. Our Conventional Lathe, specifically a type of Horizontal Lathe and Flat Bed Lathe, features a one - piece bed crafted from high - strength iron.
This design is crucial for ensuring outstanding rigidity, minimizing vibrations during metal turning operations. As a High precision Lathe, it guarantees accuracy, making it ideal for OEM/ODM Lathe requirements where tight tolerances matter. Whether it's a simple or complex job, the rigid bed is essential for consistent results.
2.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
In our Universal Lathe, which can also function as a Multi - functional Lathe, the guide - ways are treated with ultrasonic frequency quenching. This treatment significantly enhances wear - resistance, reducing maintenance in Metal Turning Lathe applications. As a High efficiency Lathe, it ensures long - term, trouble - free operation, maintaining accuracy over time for various machining tasks.
3. Headstock gears hardened and ground to achieve precision and low noise
The headstock gears in our Lathe, suitable for diverse applications like those of a High precision Lathe, are hardened and ground. This process enables precise spindle speed control and low - noise operation. For Metal Turning Lathe work, it provides a quiet and accurate machining environment, meeting the demands of both industrial and OEM/ODM Lathe users who value precision and a peaceful working atmosphere.
Detail Pictures
Universal Lathe |
High Precision Lathe |
Heavy Duty Lathe |
Lathe |
Multi-functional Lathe |
Slant Bed Lathe |
Technical Parameters
| SPECIFICATION | UNIT | CW61180H | CW611200H | |
| Capacity | Swing over bed | mm | φ1900 | φ2100 |
| Swing overcrosslide | mm | φ1450 | φ1250 | |
| Distance between centers | mm | 3000-10000 | 3000-10000 | |
| Guidewaywidth | mm | 1100 | 1100 | |
| Max load capacity | 15 | 15 | ||
| Spindle | Spindlebore | mm | φ130 | φ130 |
| Spindle bore taper | 140 | 140 | ||
| Spindlenose type | 1:30 Extended spindle head | 1:30 Extended spindle head | ||
| Spindlespeed steps | 4-speed frequency conversion | 4-speed frequency conversion | ||
| Spindlespeed range | r/min | 2-37rpm, 23-70rpm 37-110rpm, 70-200rpm | 2-37rpm, 23-70rpm 37-110rpm, 70-200rpm | |
| Spindlefront bearing | mm | 240 | 240 | |
| Chuck | mm | φ1600 | φ1600 | |
| Turret | Turret/toolpost | Four-position manual tool holder | Four-position manual tool holder | |
| Tool shank size | mm | 45×45 | 45×45 | |
| Feed | Xaxis travel | mm | 850 | 850 |
| Zaxis travel | mm | 2850-985056 types/0.1-12mm | 2850-985056 types/0.1-12mm | |
| Xaxis feed grade/range | 56 types/0.05-6mm | 56 types/0.05-6mm | ||
| Zaxis feed grade/range | 1870 | 1870 | ||
| Xaxis rapid traverse | mm/min | 3740 | 3740 | |
| Zaxis rapid traverse | mm/min | 44 types/1-120mm | 44 types/1-120mm | |
| Metric thread grade/range | 31 types/28-3/8 | 31 types/28-3/8 | ||
| Inch thread grade/range | φ260 | φ260 | ||
| Tailstock | Tailstock quill diameter | mm | 80 | 80 |
| Tailstock quilltaper | 300 | 300 | ||
| Tailstock quilltravel | mm | 37 | 37 | |
| Motor | Main spindle motor | KW | 1.5 | 1.5 |
| Rapid traversemotor | KW | 300×2250 | 2300×2250 | |
| Dimension | WidthxHeight | mm | 7700-14700 | 7700-14700 |
| Length | mm | 20820 | 21490 | |
| Weight | Netweight | kg | For every additional meter, the weight will increase by 1050Kg | For every additional meter, the weight will increase by 1050Kg |
| Please note: Bedlength can be customized accordingto the actualneeds of customers. | ||||
Products Uses
1. General Mechanical Repair
In mechanical repair shops, common lathes are indispensable. They can quickly fix or fabricate small - to - medium - sized parts like worn - out pulleys or shafts. With simple operation, mechanics can adjust the lathe to meet various repair needs on - site.
2. Educational Institutions
In vocational schools and technical colleges, common lathes serve as essential teaching tools. They help students grasp basic machining principles and skills. Students learn to turn, drill, and thread materials, laying a solid foundation for future careers in manufacturing.
3. Small - scale Hardware Production
Small - scale hardware manufacturers rely on common lathes to produce items such as custom - sized bolts, nuts, and small - diameter rods. These lathes offer flexibility, allowing for quick changes in production to meet different orders.
4. Hobbyist and Artisan Work
Hobbyists and artisans use common lathes to create unique handicrafts. Whether it's fashioning wooden spindles for furniture or turning metal art pieces, the lathes enable them to bring their creative ideas to life with relative ease.
Product Video
FAQ
Q: What types of lathes do you offer?
A: We specialize in a diverse range of lathes. Our offerings include high - precision CNC lathes, traditional engine lathes, compact bench lathes, and robust heavy - duty industrial lathes. Each category has models with varying spindle speeds, swing diameters, and automation levels to meet different customer needs.
Q: Can you customize lathes for specific requirements?
A: Absolutely. Our company provides comprehensive OEM/ODM services. We can customize spindle configurations, bed lengths, and integrate various control systems like Siemens and Fanuc. Additionally, we offer automation integration. Share your specific specs, and we'll design a tailor - made solution.
Q: How long is the production lead time?
A: Typically, the production lead time for our products is 15 - 25 days. However, if the lathe you're interested in is in stock, we can arrange delivery within 7 days. The exact duration hinges on the model and quantity of your order.
Q: Where is your factory located? How can I visit there?
A: Our factory is strategically located in Yishui County, Shandong Province, China. We warmly welcome clients to conduct quality inspections and factory audits. Just let us know your visit plan, and we'll arrange proper reception.
